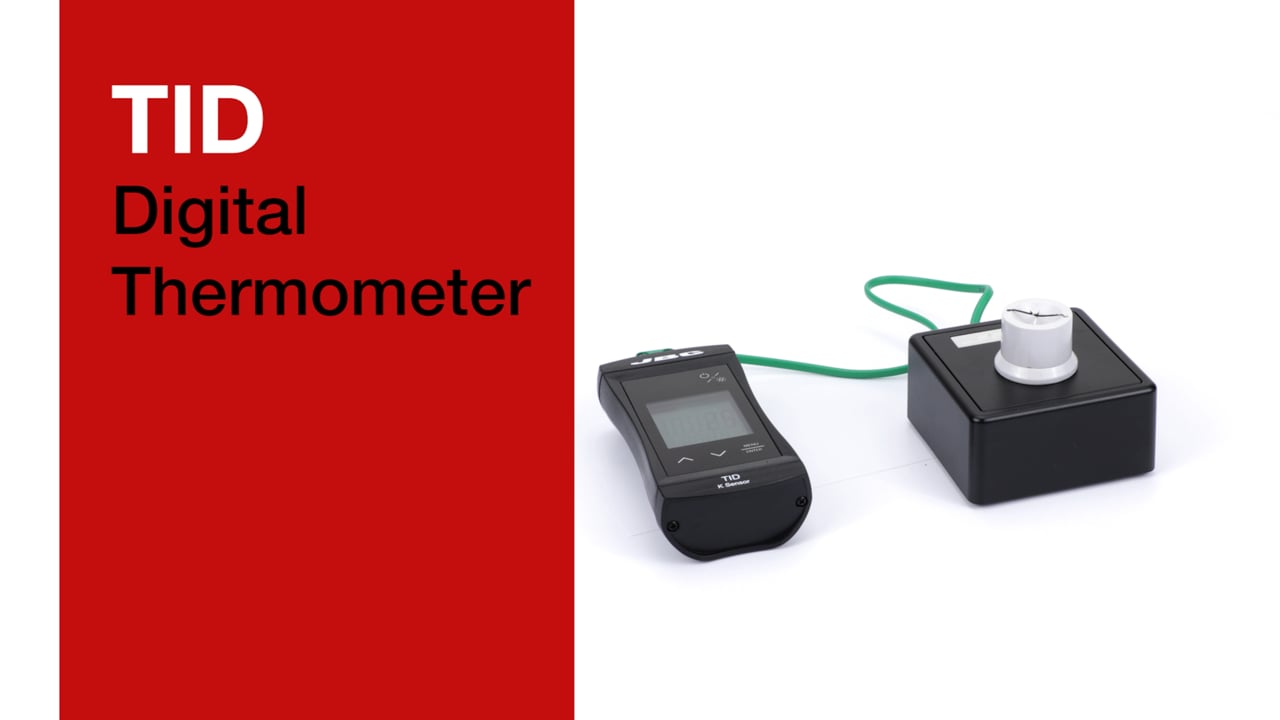

Digital soldering tip thermometer Type K, -65 to +1200 °C - JBC TID-B
High-precision digital thermometer for fast measurement of soldering tip temperature via a Type K thermocouple, measuring range -65 to +1200 °C at ±0.1 % accuracy of reading. With Min/Max and Hold functions and switchable °C/°F units.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The TID-B is a high-precision digital thermometer that measures soldering tip temperature quickly and reliably. It works with the supplied STD sensor (Type K thermocouple) and additionally with the PH218 thermocouple (Type K). This lets you regularly check the soldering process and document it to quality requirements.
Benefits
- Wide measuring range of -65 to +1200 °C covers all common soldering processes
- High accuracy of ±0.1 % of reading (±1 °C) for reliable process control
- Fast measurement at 3 readings per second
- Min/Max value and Hold function for easy reading
- Switchable temperature unit °C/°F via the settings menu
- Long battery life of over 2500 h with alkaline batteries
Applications
Regular checking and documentation of soldering tip temperature in production, repair and quality assurance, compatible with JBC soldering and desoldering tools.
Compatibility and scope of delivery
Supplied with the STD sensor (Type K thermocouple). Can also be used with the PH218 thermocouple (Type K). Order unit: piece.
Made in Spain. CE compliant, RoHS compliant.
Technical data
| Manufacturer | JBC |
|---|---|
| Item number | WL70546 |
| Model | TID-B |
| Manufacturer item number | TID-B |
| Measuring range | -65 to +1200 °C |
| Accuracy | ±0.1 % of reading, ±1 °C |
| Cold junction compensation | ±0.3 °C |
| Temperature drift | ±0.01 % of reading, ±0.025 °C/K |
| Measuring frequency | 3 readings per second |
| Probe connection | Type K thermocouple |
| Operating conditions | -25 to 50 °C, 0 to 80 % RH (non-condensing) |
| Storage temperature | -25 to 70 °C |
| Power supply | 2x AA |
| Battery life | > 2500 h (alkaline, without backlight) |
| Net weight | 0.77 kg |
| Dimensions | 255 x 210 x 70 mm |
| ESD safe | no |
| Order unit | piece |
| Weight | 0.8 kg |
| Manufacturer Nr. | TID-B |
| HS-Code | 85151100 |
| GPSR manufacturer information | JBC Soldering SL, Ramón y Cajal 3, ES-08750 Molins De Rei, www.jbctools.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| ESD version | ESD (antistatic) |
| Temperature range | -65-1200 °C |
