Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Premium Line precision hot air station with 300 W for reworking small and medium SMD components. Temperature range of 150 to 450 °C, air flow of 2 to 17 SLPM and up to 25 configurable profiles. Supplied with the TET precision hot air iron and the extractor stand.

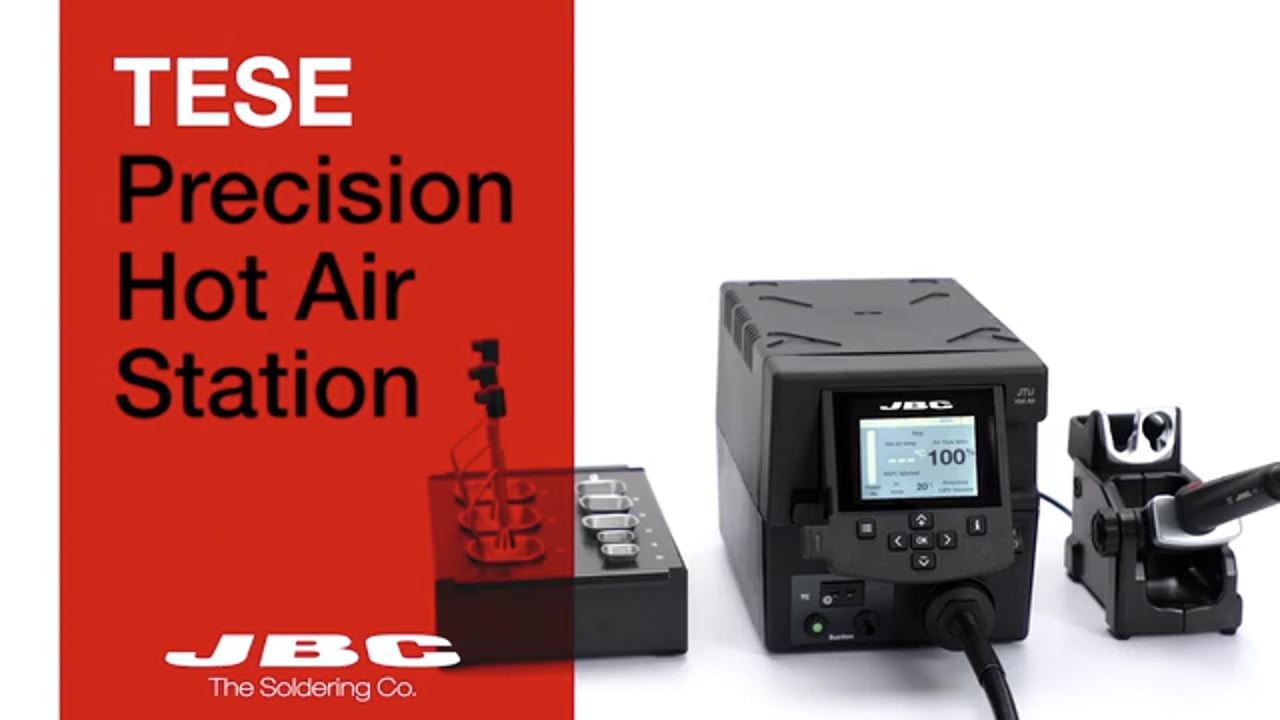

Precision hot air station 300 W with iron and extractor stand - JBC TESE-2B
JBC
Original product
Net price (excl. VAT)
€2,225.08
Item
WL71139
Manufacturer no.
TESE-2B
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TESE-2B
ConditionNew
Article
WL71139
Frequently Bought Together
-
This Item:
€2,225.08
-
Kilews ESD cordless straight screwdriver, 0.3 - 2.2 Nm, incl. 1 batterie SKC-LB1025S
€828.28
-
ESD Ball Joint Vise SPANNFIX for Clamping, 70 mm Clamping Width, Dissipative - Bernstein 9-205-ESD
€185.98
Total price
The TESE-2B is a Premium Line precision hot air station with 300 W that reworks small and medium SMD components. It controls the temperature from 150 to 450 °C at an air flow of 2 to 17 SLPM and stores up to 25 configurable soldering profiles. An external thermocouple allows high-precision control of component and PCB. Supplied with the TET precision hot air iron and the extractor stand.
Benefits
- Nominal power 300 W with selectable temperature from 150 to 450 °C
- Air flow 2 to 17 SLPM for the right throughput during rework
- Up to 25 fully configurable temperature profiles to avoid thermal shock
- Type K thermocouple for control and protection of component and PCB
- USB-A and USB-B ports, RS-232 for robot and pedal, equipotential bonding to the EPA
- ESD safe design for protected workstations
Technical data
| Item no. | WL71139 |
| Manufacturer item no. | TESE-2B |
| Manufacturer | JBC |
| Model line | Premium Line |
| Station type | hot air station |
| Nominal power | 300 W |
| Temperature range | 150-450 °C |
| Air flow | 2 to 17 SLPM |
| Vacuum | 30% / 228 mmHg / 9 inHg |
| Storable soldering profiles | up to 25 |
| Thermocouple | type K |
| Operating temp. range | 10-50 °C |
| Station dimensions | 232 x 148 x 160 mm |
| Station weight | 4.72 kg |
| Package dimensions | 490 x 485 x 278 mm |
| Weight with packaging | 5.68 kg |
| ESD safe | yes |
| Order unit | piece |
Applications
Rework and desoldering of small and medium SMD components with hot air in repair, prototyping and production.
Compatibility and scope of delivery
The TESE-2B station is supplied with the TET precision hot air iron and the extractor stand. Runs with the exclusive JBC hot air system and matching nozzles.
ESD safe for workplaces in accordance with IEC 61340-5-1. Made in Spain.
| Certification | IEC 61340-5-1 |
|---|---|
| Manufacturer Nr. | TESE-2B |
| Manufacturer | JBC |
| Weight | 0.100000 |
| GPSR manufacturer information | JBC Soldering SL, Ramón y Cajal 3, ES-08750 Molins De Rei, www.jbctools.com |
| Article authenticity | Original product |
| Condition of article | New |
| Power | 300 W |
| Temperature range | 150-450 °C |
| Temperature (max.) | up to 450 °C |
| Position sensing | No |
