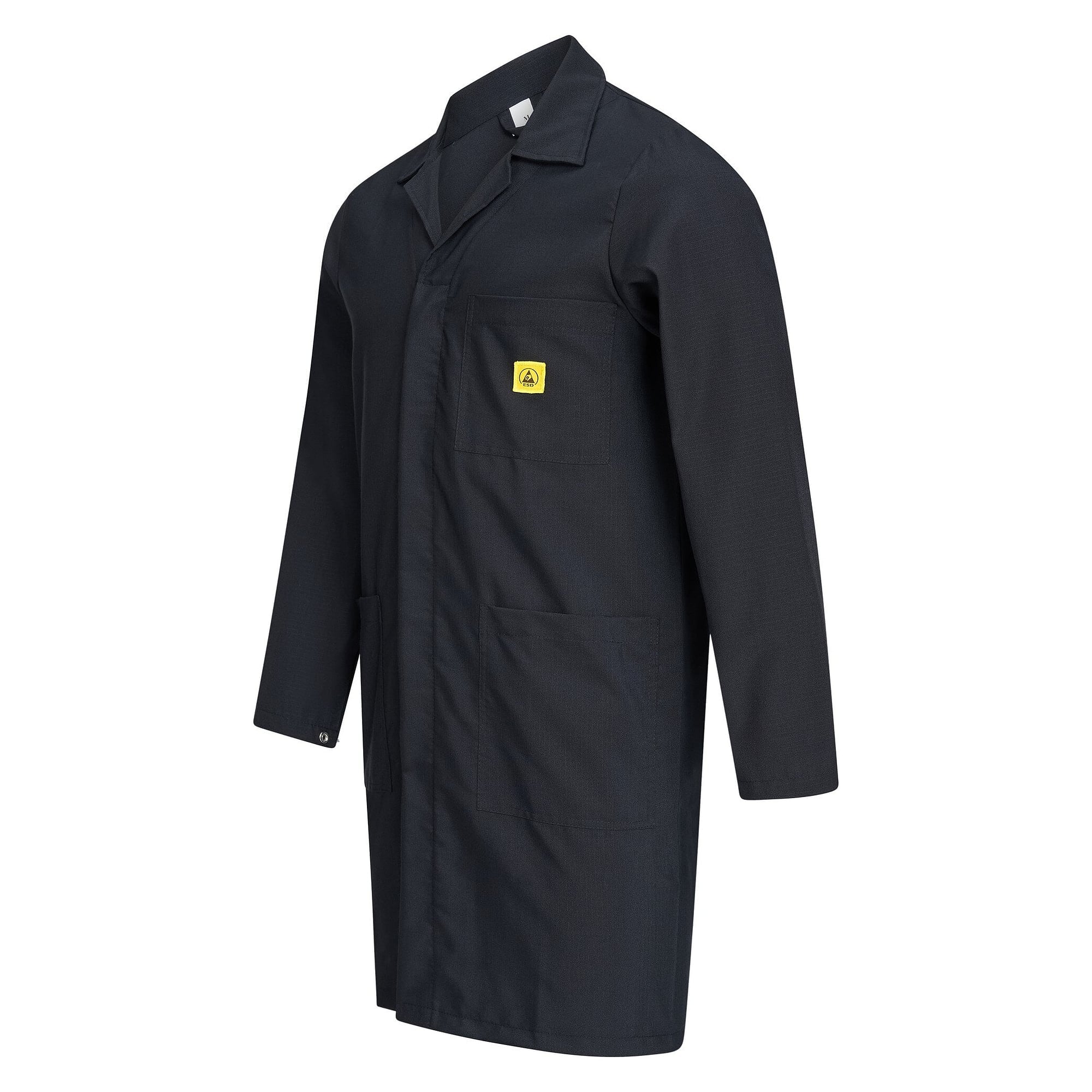

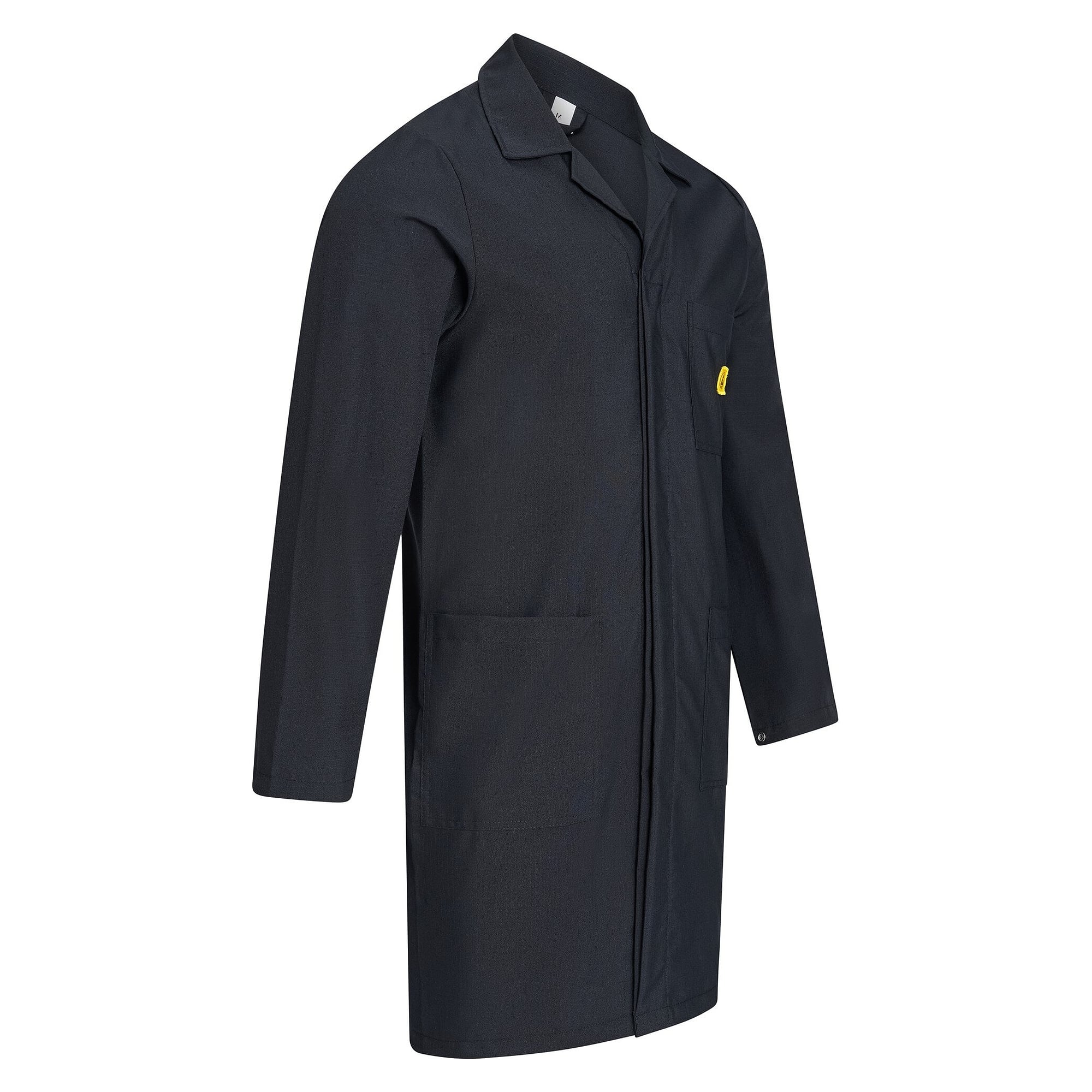

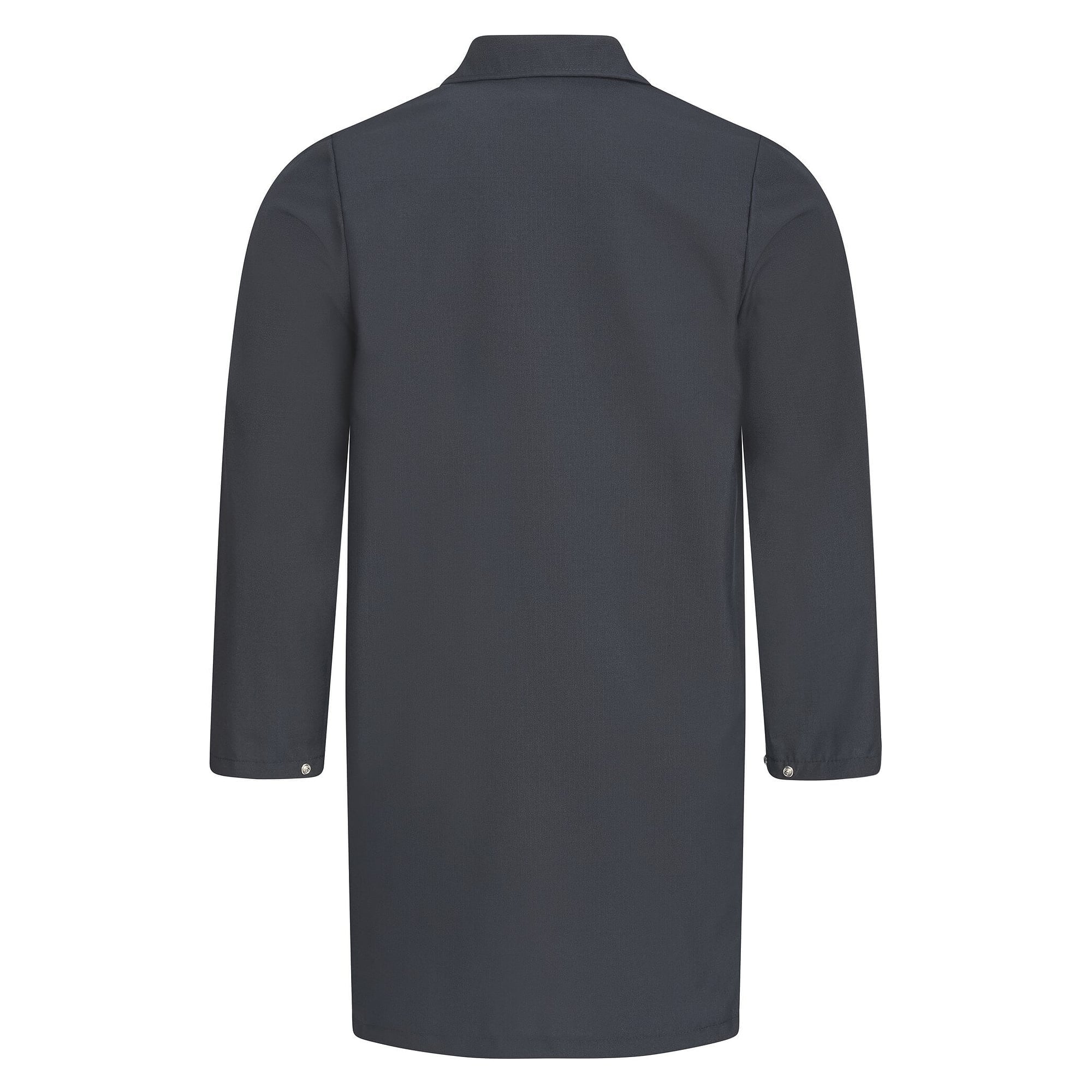

ESD work coat long sleeve, 140 g/m², unisex, black, size M - Safeguard ESL-KK01-BKM
Black ESD work coat in size M with conductive yarn in a 4 x 4 mm grid and a typical surface resistance of 10⁵ to 10⁷ ohms. Certified to IEC 61340-5-1, closed with a covered button placket instead of a zip.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Anyone handling assemblies in the EPA has to cover street clothing completely. This black coat in 140 g/m² blended fabric dissipates charge through a 4 x 4 mm carbon fibre grid and reaches a typical surface resistance of 10⁵ to 10⁷ ohms. Black shows less soiling in daily workshop use than white or light blue.
Key benefits
- Dissipative: conductive yarn in a 4 x 4 mm grid, typical surface resistance Rpp 10⁵ to 10⁷ ohms.
- Tested: ESD certification to IEC 61340-5-1.
- No zip: button front with fabric cover and concealed placket, lapel collar.
- Practical: two side pockets, press studs on the sleeves, ESD logo on the breast pocket.
- Easy care: 140 g/m² blend of 63 % polyester, 33 % cotton and 4 % carbon fibre, washable up to 40 °C.
Applications
Electronics manufacturing and SMT assembly, hand soldering stations, repair, test and quality control inside the EPA.
Standards and compliance
Certified to IEC 61340-5-1. The coat does not replace grounding of the wearer via ESD footwear or a wrist strap.
Technical data
| Design | ESD coat, long sleeve |
|---|---|
| Gender | unisex |
| Colour | black |
| Size | M |
| Composition | 63 % polyester, 33 % cotton, 4 % carbon fibre |
| Fabric weight | 140 g/m² |
| Typical surface resistance (Rpp) | 10⁵ to 10⁷ ohms |
| Zip | no |
| ESD certification to IEC 61340-5-1 | yes |
| Washing temperature | up to 40 °C |
| Sales unit | 1 piece |
| Package size | 360 x 300 x 20 mm |
| Weight | 0.222 kg |
| Manufacturer | Safeguard |
| Manufacturer Nr. | ESL-KK01-BKM |
| HS-Code | 62113210 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Hungary |
| ESD version | ESD (antistatic) |
Downloads
ESD version
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
