HD microscope camera with 13 inch screen, 8 MP, 1080p at 60 fps, HDMI and USB-C - Euromex VC.3039-HDS

At the inspection station the image should be there at once, without booting a computer. The VC.3039-HDS attaches to the microscope via C-mount and delivers a smooth 1080p live image at 60 fps over HDMI.

Photos at 3840 x 2160 pixels and 1080p videos go straight to the SD card, operated with the mouse. For measuring, annotating and archiving, connect the camera via USB and work in ImageFocus Alpha.

Key benefits

• Stand-alone operation: connect an HDMI monitor or TV and use the built-in software with the mouse
• Sony CMOS Exmor 8 MP, 1.45 µm pixel size, capture at 3840 x 2160 pixels
• Live image 1080p at 60 fps over HDMI, 26 fps over USB
• Digital zoom, automatic and manual exposure, RGB and white balance
• ImageFocus Alpha for Windows 10/11 and macOS with image editing, annotation and measurement
• Special functions for fluorescence imaging

Applications

Documentation on stereo and transmitted light microscopes in electronics production, quality control, research and laboratories, live display on a large screen for training and inspection.

Compatibility and scope of delivery

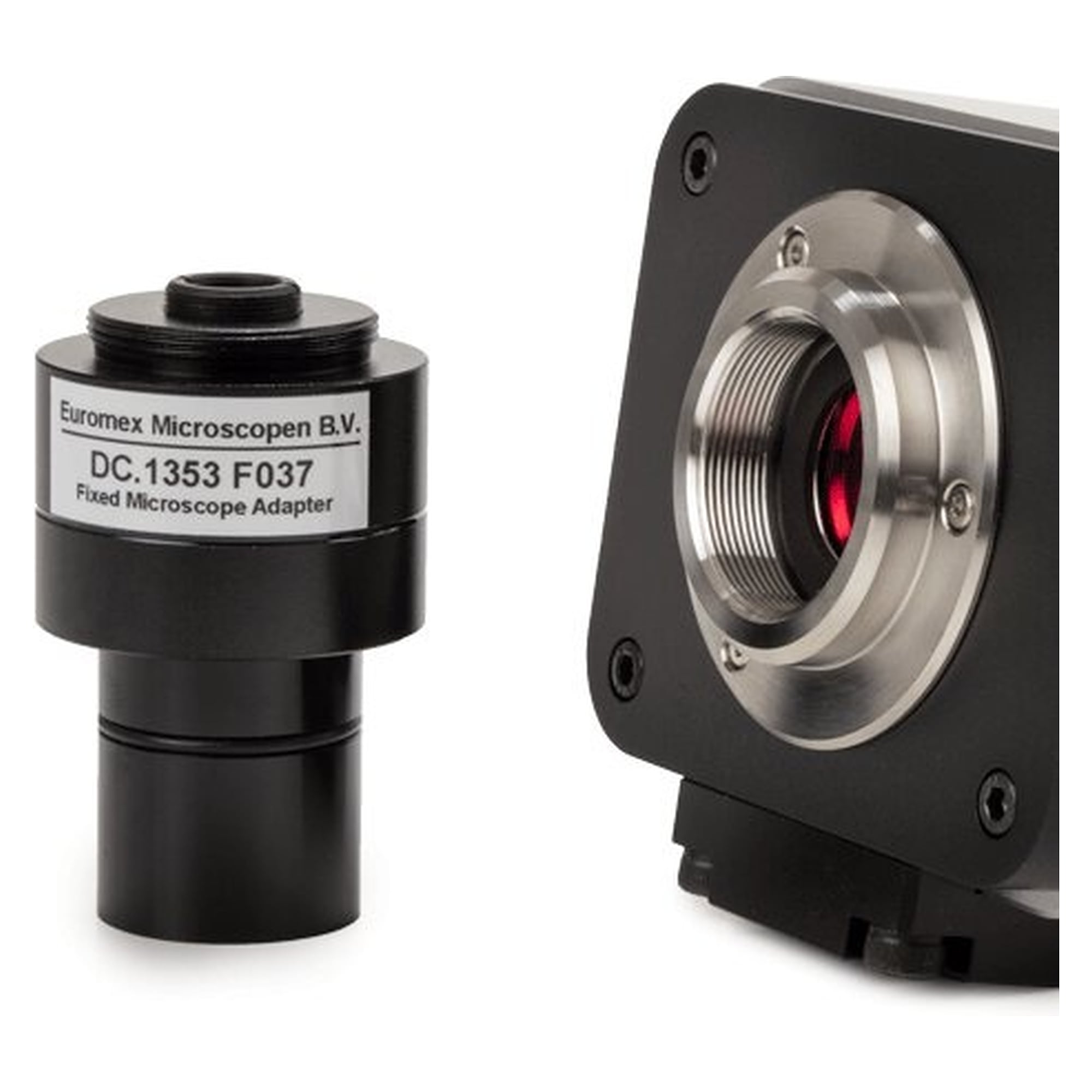

Connects to the microscope via C-mount, and with the supplied conversion adapters also to eyepiece tubes of 30.0 or 30.5 mm. Scope of delivery: USB mouse, C-mount adapter 0.35x, conversion adapters 30.0 mm and 30.5 mm, power supply 12 V 1 A, USB 2 cable 1.5 m, calibration slide 76 x 24 mm (1 mm / 100), 32 GB SD memory card, HDMI cable.
