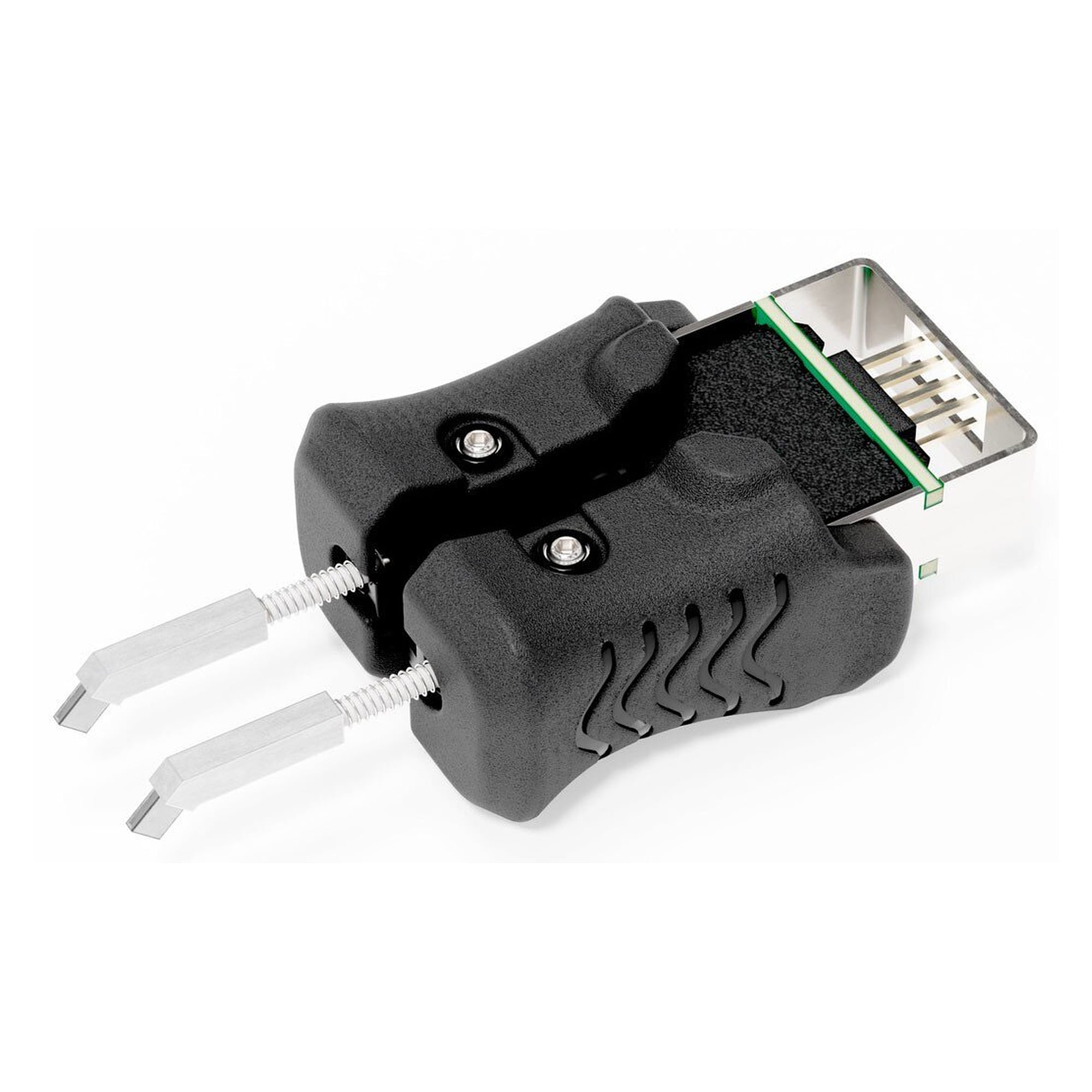

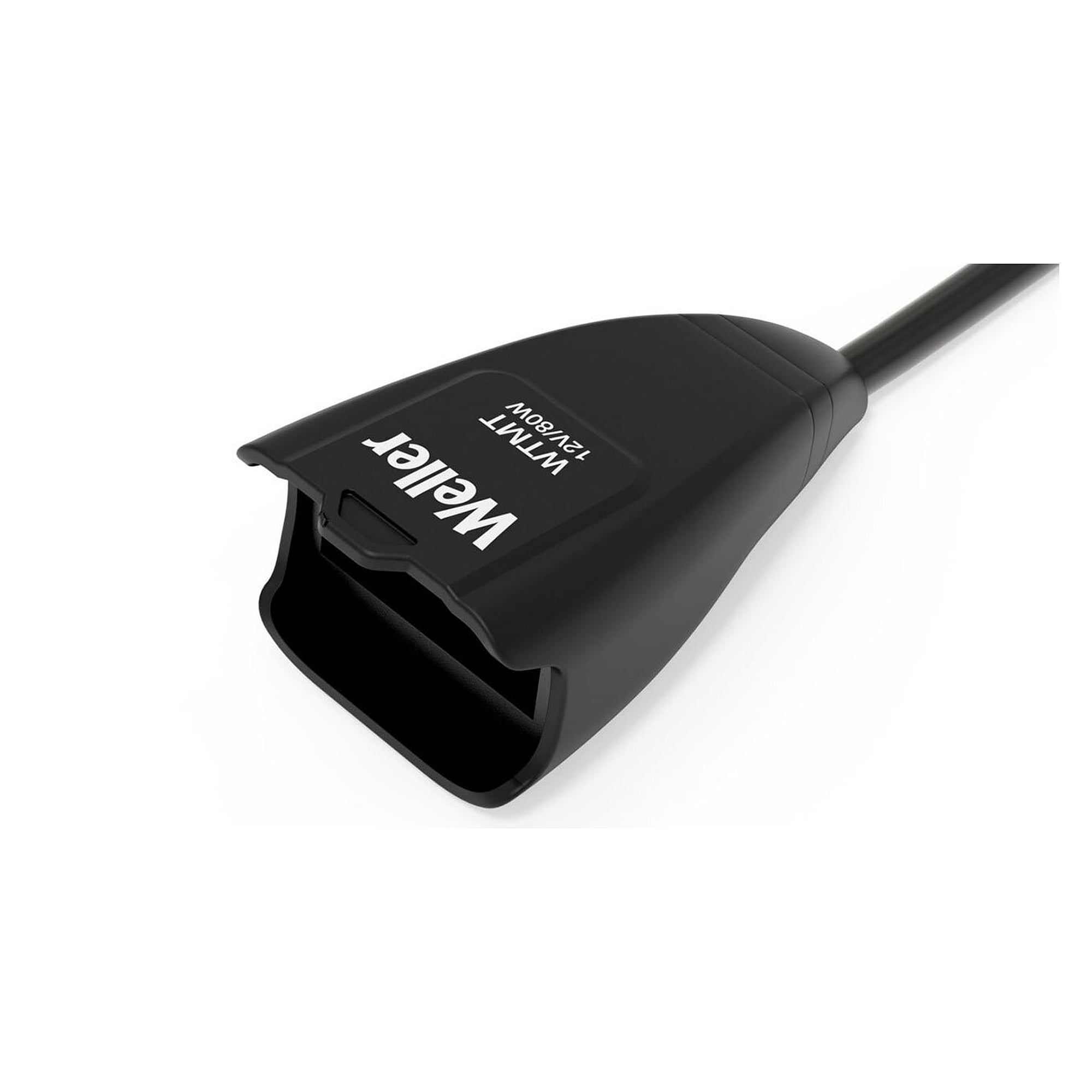

Micro soldering and desoldering tweezers handpiece WTMT, 80 W, ESD safe, for WT and WR - Weller T0051321199

An existing WT or WR bench can gain a desoldering tweezer without replacing the station. The WTMT handpiece runs at 80 W and 12 V, is at temperature after 5 seconds and connects without a software update. Tips of the RTWMS and RTWPS ranges are ordered separately.

Benefits in use

• 80 W at 12 V, heat-up time of 5 seconds, working range 100 to 450 °C.
• Connects to WT 2M, WR 3M, WD 2M and WD 1M without a software update, the installed station stays in service.
• Active Tip Cartridge System, tips change hot without any further tool.
• Paired pre-aligned tips and a parallel sliding block guide, no alignment after a change.
• Adjustment with a 1.5 mm Allen key, rotation of ±80° and vertical length of ±1.2 mm.
• ESD safe build with ergonomic soft grips, suitable for work under a microscope.

Technical data

Applications

Rework on assembled boards, sample building, training and test areas. The 2-in-1 design takes pico and micro tips, which saves a second tweezer grip at the bench.

Compatibility

Matches the WT 2M, WR 3M, WD 2M and WD 1M control units and the WSR 211 safety rest. It uses the RTWMS and RTWPS tip ranges, tips are not part of the delivery.

Standards and compliance

Built to military standard, Mil-Spec compliant and tested to IPC-TM-650 2.5.33 for electrical overstress from soldering hand tools.
