Blade rework tip 10 mm, 600 series, 357 °C, for MX systems - Metcal SMTC-0BL100
Wide 10 mm blade tip for the Metcal SMTC cartridge range, 600 series with 357 °C tip temperature. It spreads heat over a large contact area and suits soldering and rework on large pads and high-mass components.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Large pads, ground planes and heat-hungry components draw heat away quickly. The SMTC-0BL100 blade tip puts 10 mm of contact width on the joint, and the SmartHeat cartridge regulates itself to 357 °C.
Benefits
- 10 mm blade width for large-area soldering and solder removal
- 600 series with 357 °C tip temperature, no setting at the station
- SmartHeat heater integrated in the cartridge, tip and heater replaced together
- Suitable for lead-free soldering, RoHS compliant
Applications
Rework on electronic assemblies, soldering connectors and ground planes, removing solder from component rows and cleaning pads.
Compatibility and scope of delivery
Fits Metcal MX soldering stations of the MX-500, MX-5000 and MX-5200 series with a handpiece for SMTC cartridges. Scope of delivery: one cartridge.
Standards and compliance
RoHS compliant, suitable for lead-free solders.
Technical data
| Tip series | SMTC |
|---|---|
| Temperature series | 600 (357 °C) |
| Tip shape | blade |
| Tip orientation | straight |

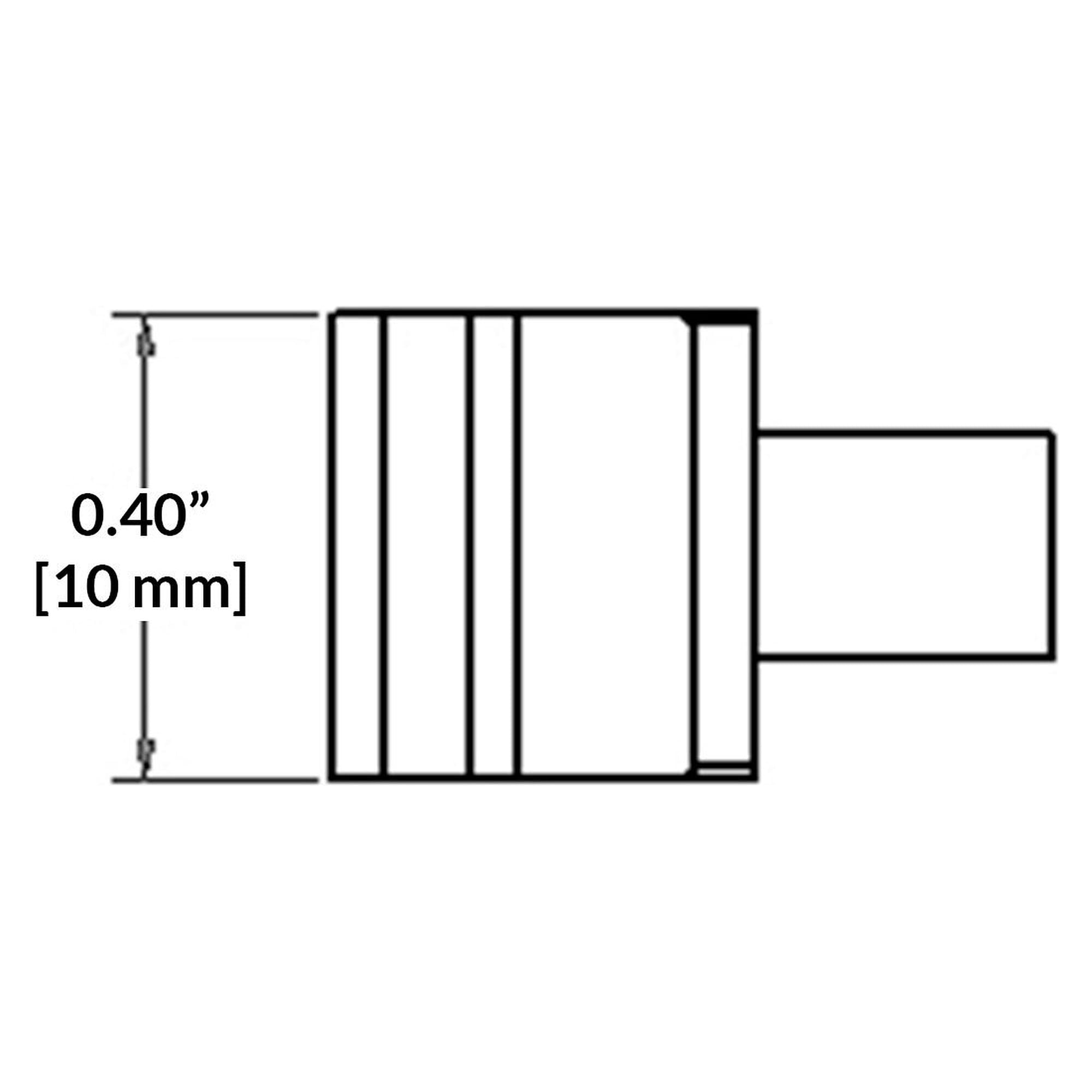

| Width | 10 mm |
| Colour | silver |
| Compatible stations | MX-500, MX-5000, MX-5200 |
| Compatible handpiece | SMTC range handpieces |
| Heating principle | SmartHeat, heater in cartridge |
| ESD safe | no |
| Sales unit | 1 piece |
| Weight | 0.1 kg |
| Manufacturer | Metcal |
| Manufacturer Nr. | SMTC-0BL100 |
| HS-Code | 85159080 |
| GPSR manufacturer information | OK International Ltd, Eagle Close, Chandlers Ford, GB-SO53 4NF Hampshire, www.metcal.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
Downloads
Accessories
Soldering and rework handpiece for MX-5000 and MX-5200 - Metcal MX-H1-AV
Item WL24460ESD version

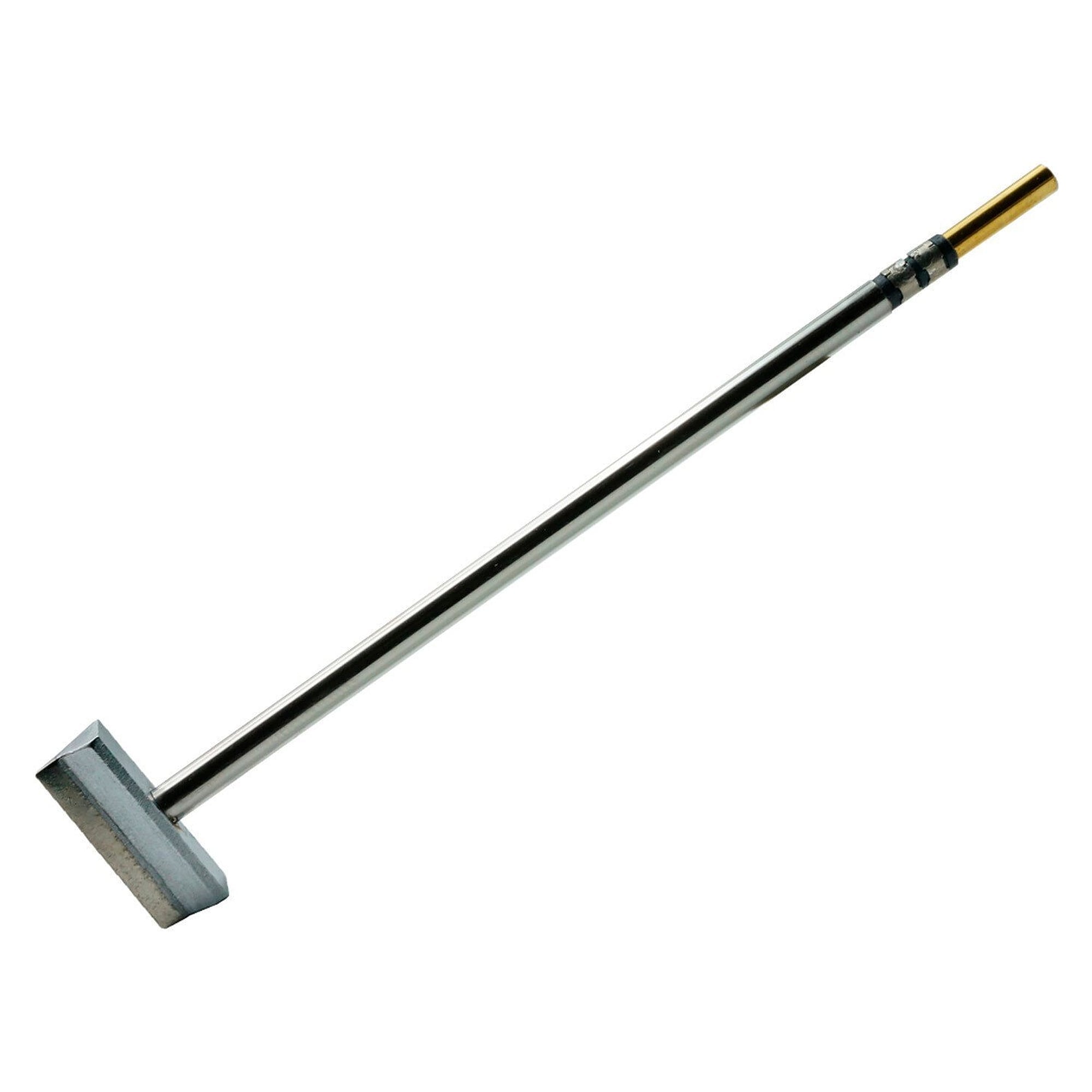

Blade rework tip 25 mm, 600 series, 357 °C, for MX systems - Metcal SMTC-0BL250
