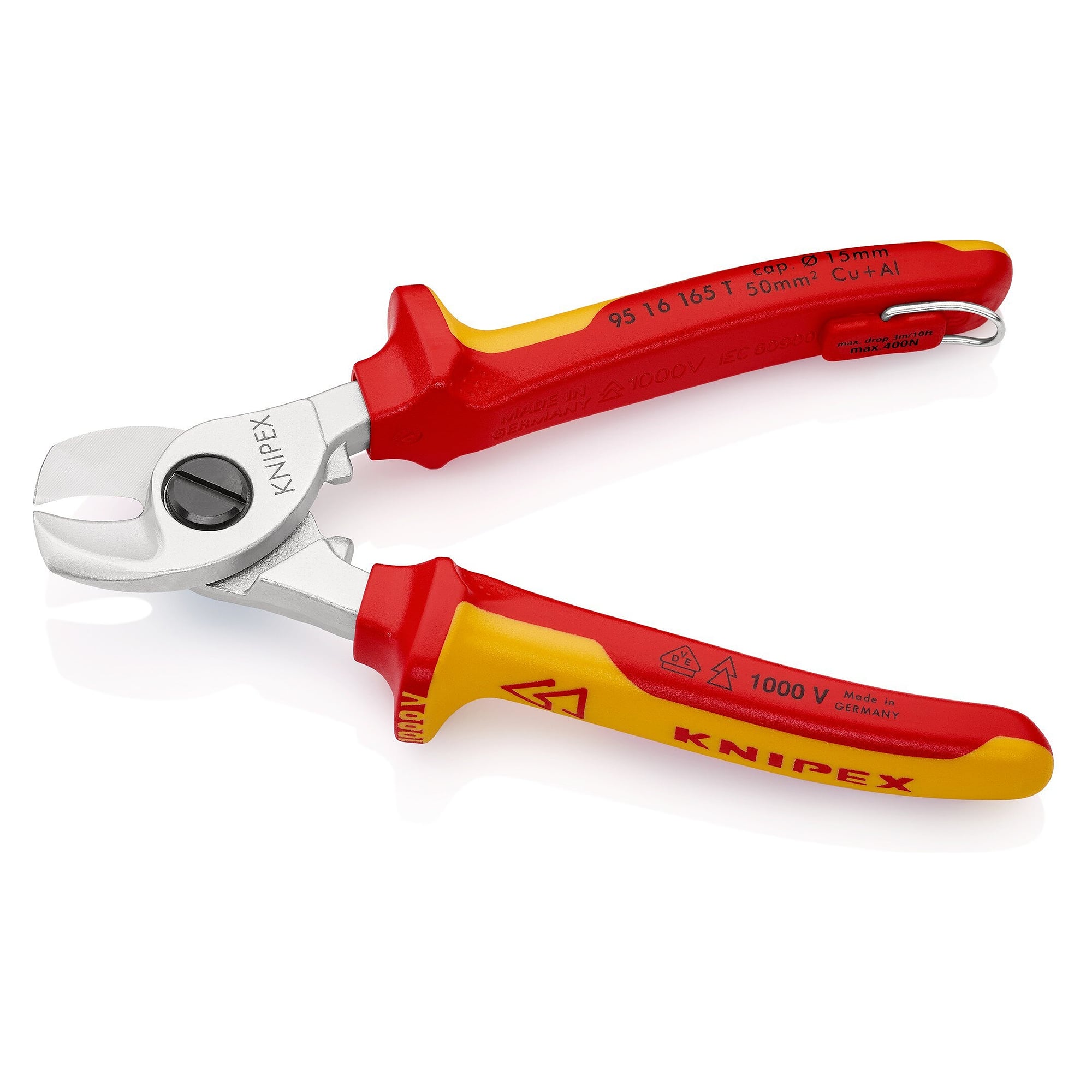

VDE cable shears with tethering eyelet, insulated, Cu cable up to 50 mm² / Ø 15 mm, 165 mm - Knipex 95 16 165 T BK
Insulated cable shears to IEC 60900 for stranded Cu cable up to 50 mm² or Ø 15 mm. With an insulated eyelet for attaching fall protection. For electrical installation and switchgear building.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
These compact 165 mm cable shears cut stranded copper cable up to 50 mm² cross-section and 15 mm diameter cleanly, without crushing. The multi-component grips are insulated to IEC 60900 and VDE tested. The integrated, insulated eyelet takes a tool lanyard for fall protection, essential when working on ladders, platforms and poles.
Benefits in use
- 50 mm² stranded: cuts Cu cable up to 15 mm diameter in a single action.
- Insulated to IEC 60900: VDE tested for work on installations up to 1000 V AC.
- Multi-component grips: non-slip and comfortable, also for longer jobs.
- Screwed joint, chrome-plated head: solid pivot and corrosion-protected surface.
- Tethering eyelet: insulated and integrated for attaching fall protection.
Applications
Electrical installation, control cabinet and distribution board building, cable assembly, maintenance of low-voltage installations.
Standards and compliance
Insulated and VDE tested to IEC 60900 for work up to 1000 V AC.
Technical data
| Brand | Knipex |
|---|---|
| Tool length | 165 mm |
| Cutting capacity Cu cable, stranded | 50 mm² |
| Cutting capacity Cu cable, stranded, Ø | 15 mm |
| Joint design | screwed joint |
| Handles | multi-component grips |
| Insulated | yes |
| VDE tested | yes |
| Standards | IEC 60900 |
| Tethering eyelet for fall protection | yes |
| ESD safe | no |
| Net weight | 300 g |
| Dimensions L x W x H (data sheet) | 170 x 62 x 28 mm |
| Dimensions incl. packaging L x W x H | 244 x 85 x 24 mm |
| Head finish | chrome-plated |
| Sales unit | 1 Stück |
| Packaging | blister card |
| Weight | 0.3 kg |
| Manufacturer | Knipex |
| Manufacturer Nr. | 95 16 165 T BK |
| HS-Code | 82033000 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
1 cable shears 95 16 165 T BK, 165 mm, on blister card.
