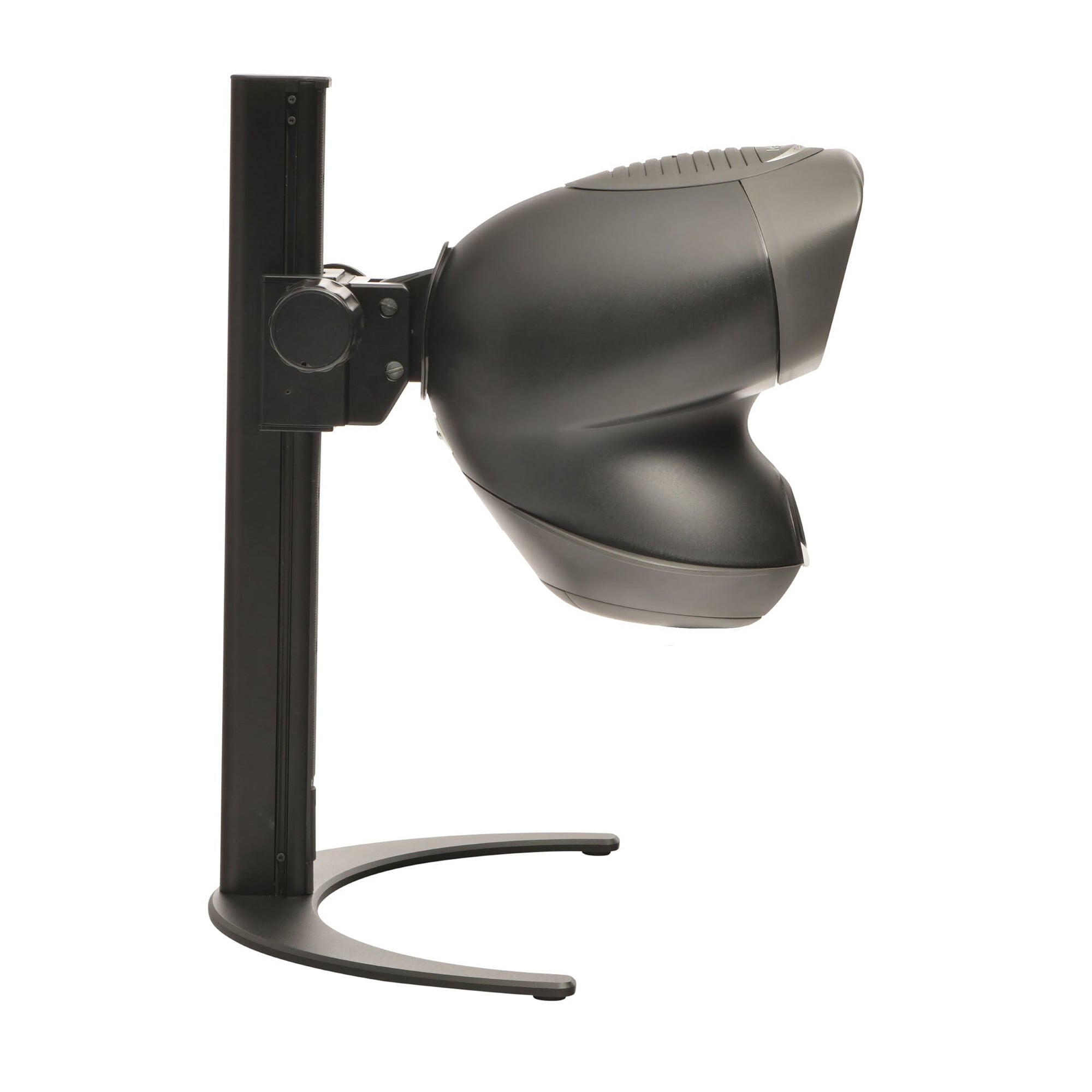

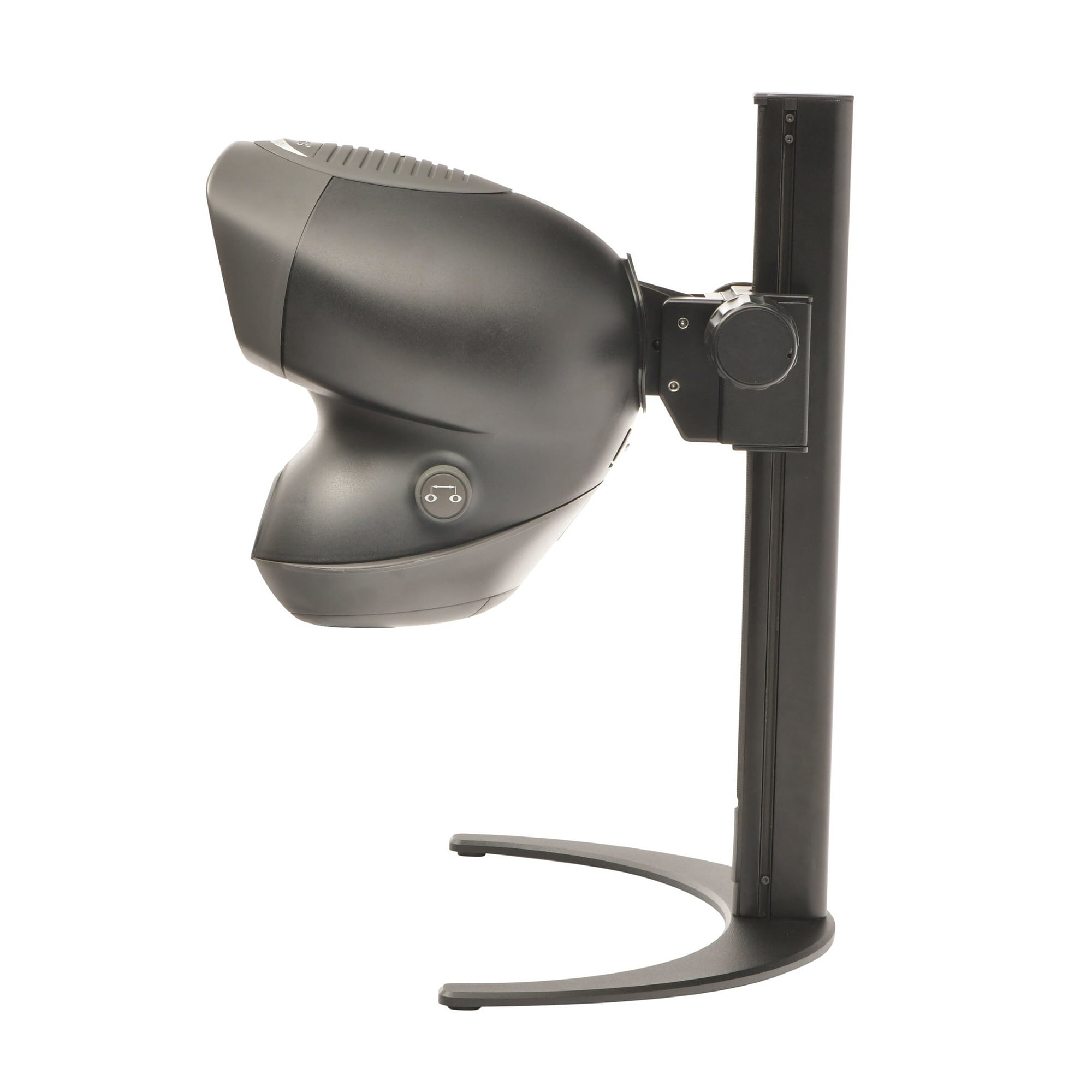

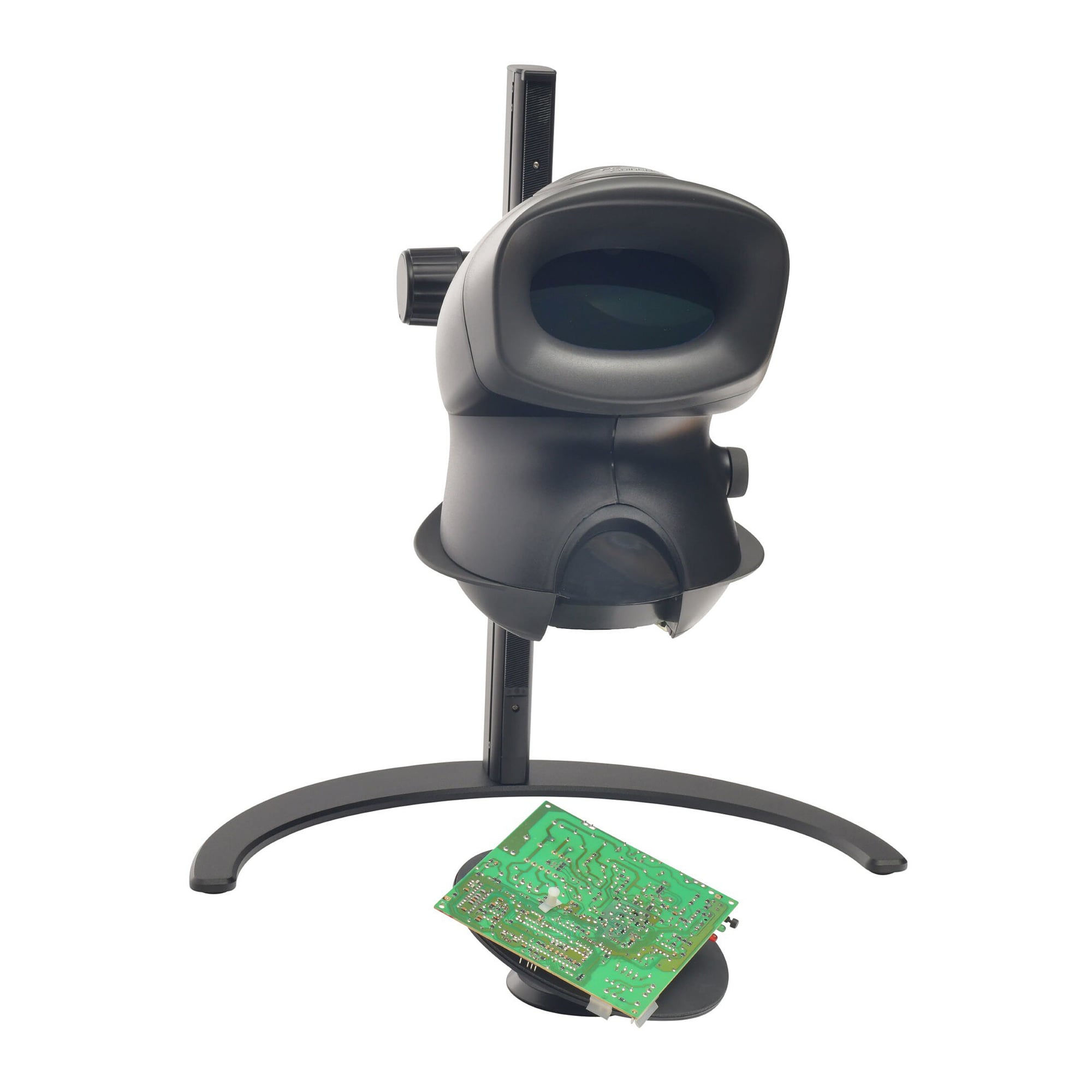

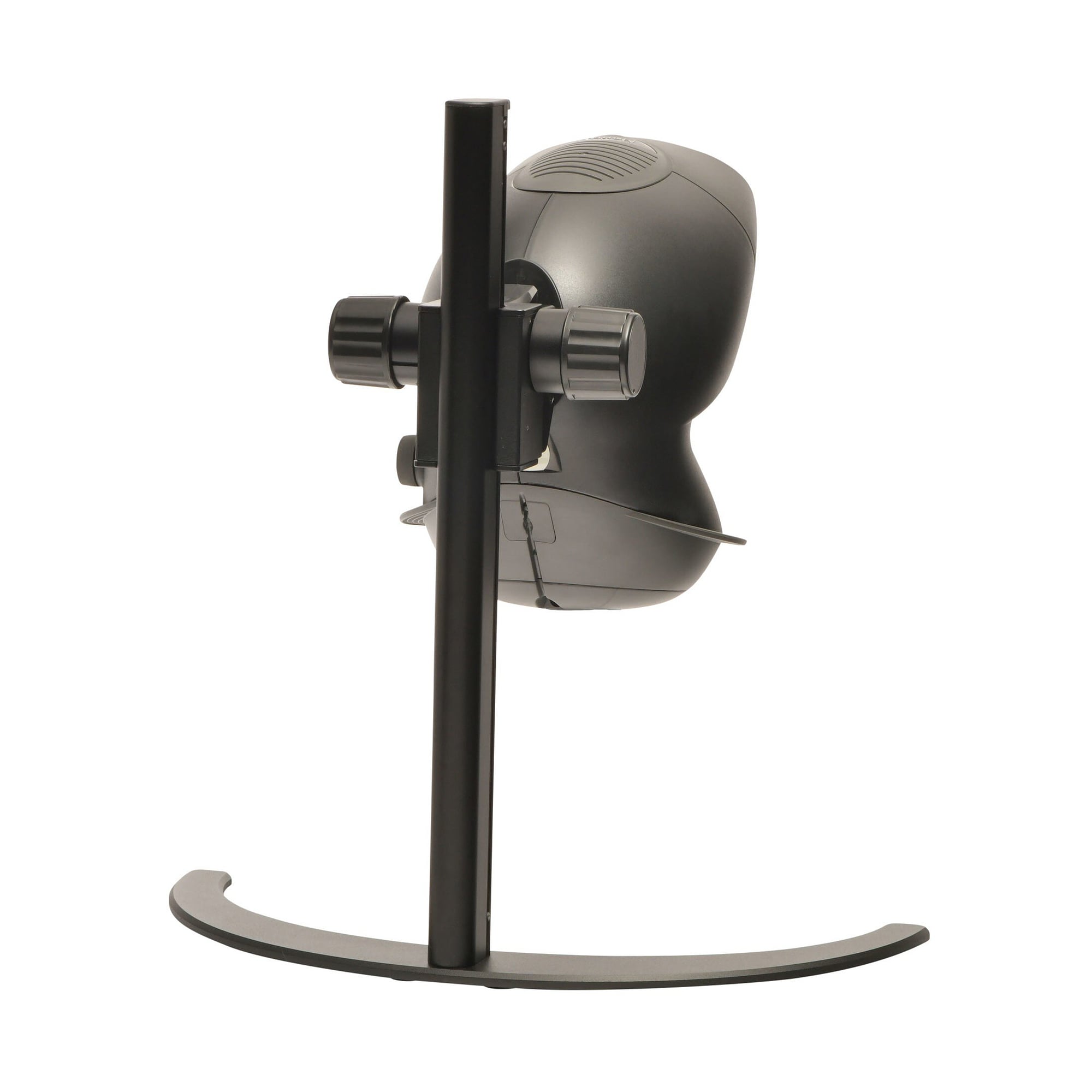

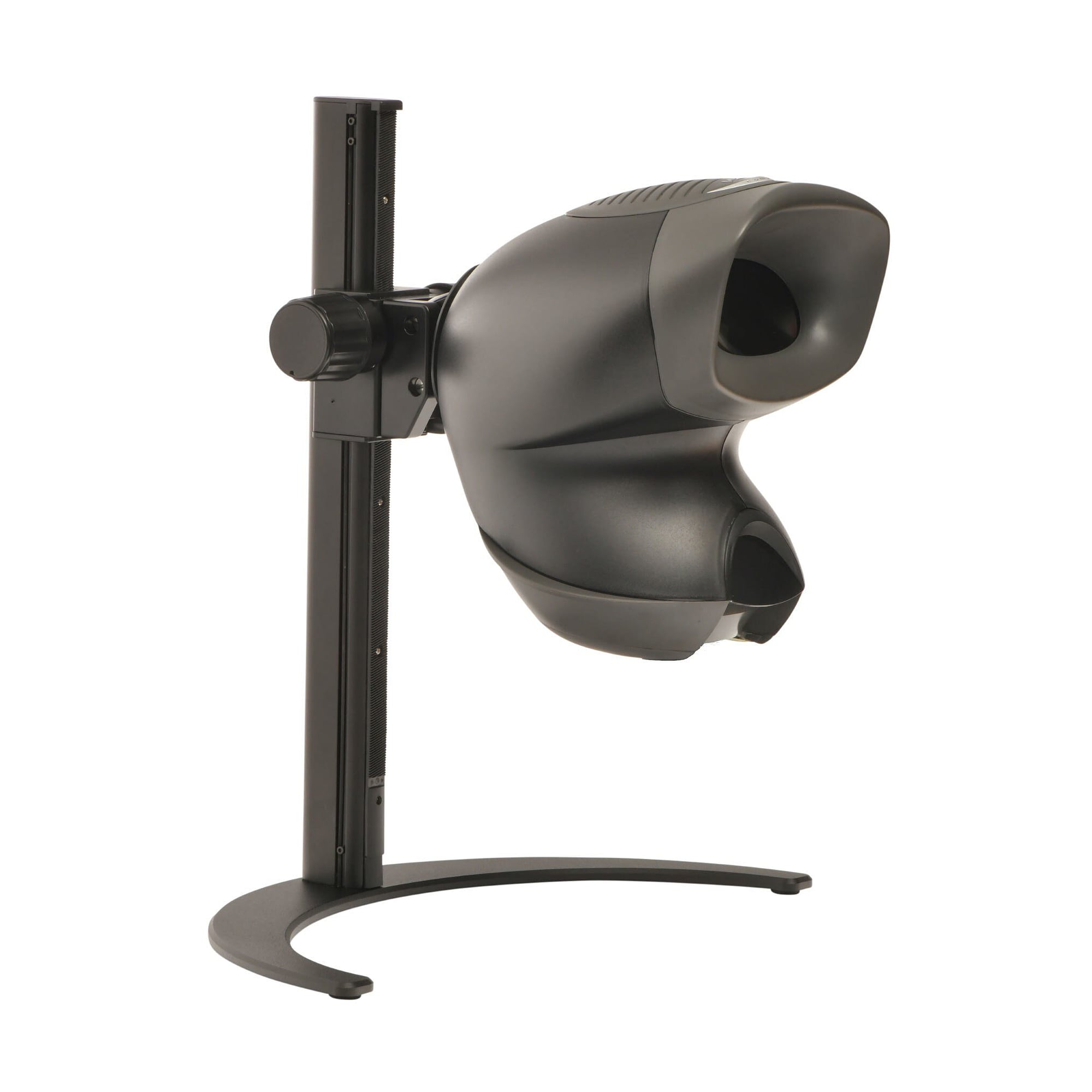

OPTA eyepiece-less stereo microscope kit with 6x objective and arc stand - Vision MOS002

With the OPTA the operator looks into a projected stereo image instead of eyepieces. The head stays upright, the eyes keep their usual distance and corrective or safety glasses can stay on. That is what carries through a full shift of checking many small parts one after another.

Key points

• Eyepiece-less viewing with a spatial image, hand and eye stay coordinated even with glasses on.
• The kit arrives ready to assemble, projection head, objective, stand and focusing drive adapter are matched to each other.
• Focusing drive on the adapter, so focus is corrected without changing grip.
• Arc stand 500 mm wide, the boom carries the head over the object and keeps the working area underneath free.
• Objective with 6x magnification, the step is set through the OPTA projection head.

Technical data

Applications

Incoming goods, final inspection and rework on small parts, printed circuit boards, connectors and precision mechanical components, plus assembly work under view in workshop and laboratory.

Compatibility and scope of delivery

The delivery covers the OPTA projection head, the 6x objective and the arc stand set including the OPTA focusing drive adapter. Column, base and adapter come from the OPTA modular range, so the stand type can be changed later. Weight, EAN and customs code are not stated in the supplier data, and the property table does not list the kit as ESD safe.
