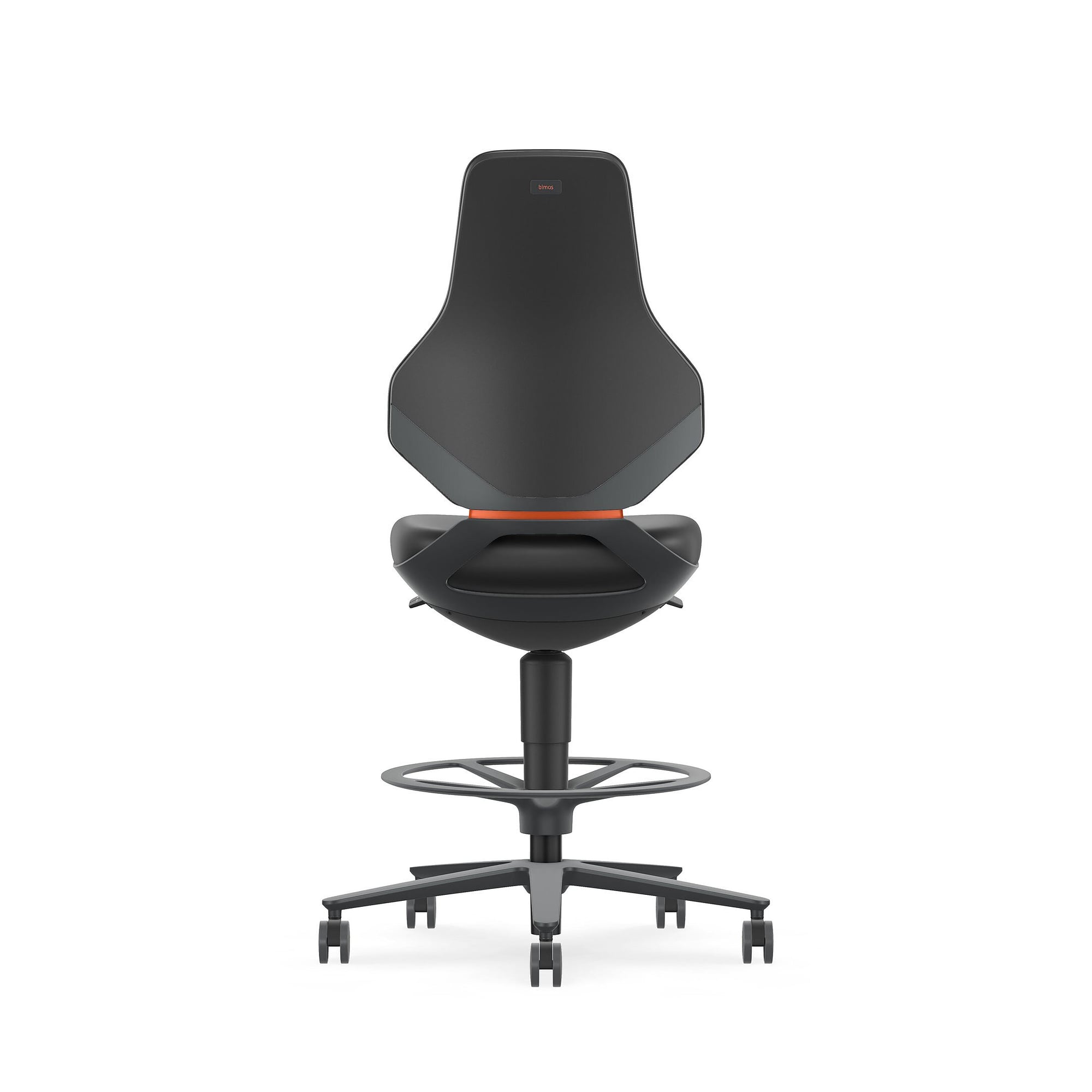

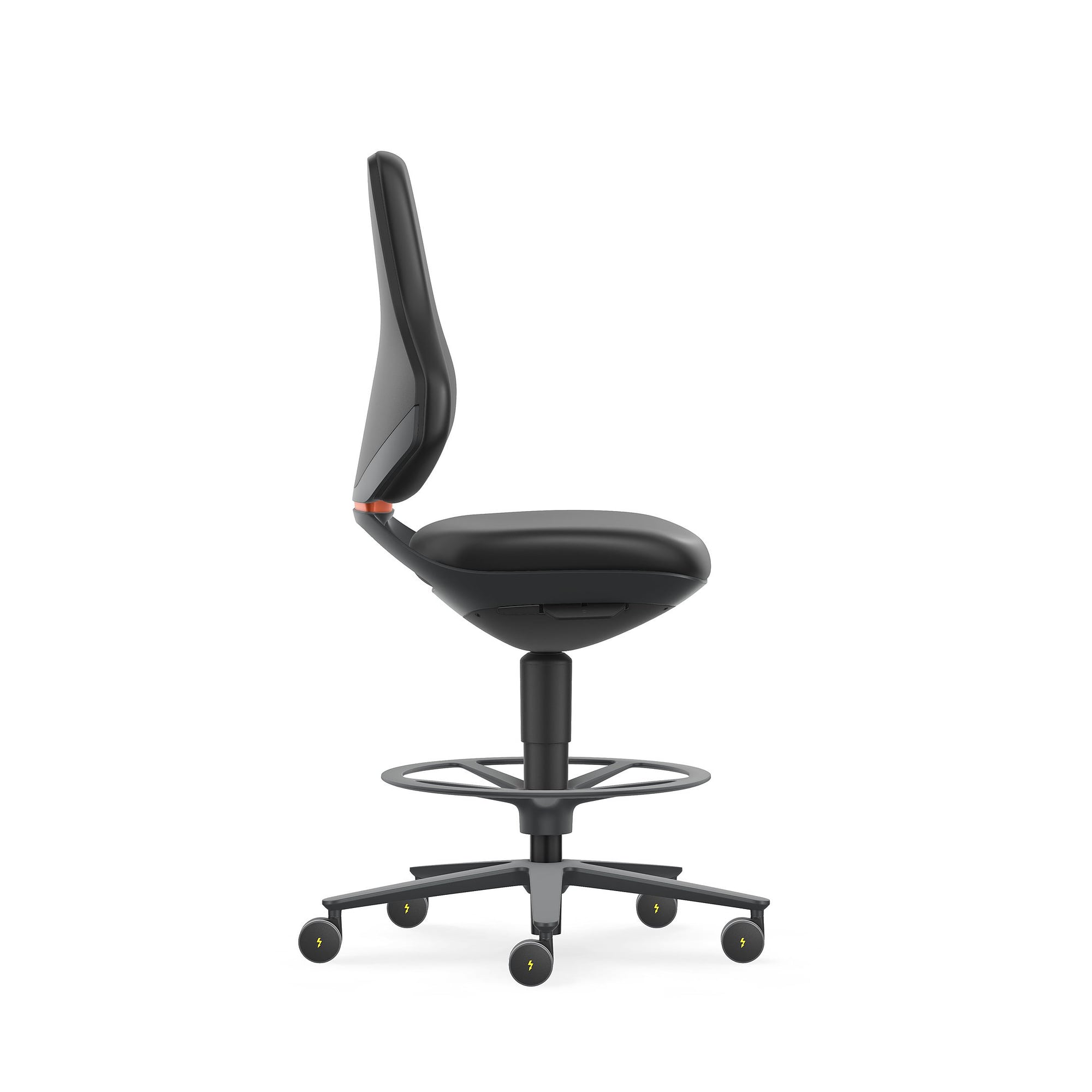

Task swivel chair TEXON 4 with seat-stop castors and foot ring, 570-810 mm, Magic faux leather black - Bimos 9175-MG01
High task swivel chair for standing workstations and tall benches, with a seat height of 570 to 810 mm and a height adjustable foot ring. The seat-stop castors brake as soon as someone sits down and only roll again once the chair is unloaded. Weight adjustment is automatic, upholstery in Magic faux leather black.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
At a tall bench every stand-up costs time, and a chair that rolls away as you sit down costs more than that. The TEXON 4 therefore uses seat-stop castors and a height adjustable foot ring, and its 570 to 810 mm seat height covers the whole span between sitting and standing work.
What sets the chair apart
- Seat-stop castors brake under load and release only once the chair is unloaded. At a seat height of 810 mm that is a safety feature, not a comfort detail.
- Height adjustable foot ring so the legs find support in the upper seat positions too.
- Automatic weight adjustment sets the counterpressure without a handwheel, which lets one chair suit every user across shifts with no instruction.
- Auto-Motion follows the movement and locks in three positions, the Flex-Back on the lower backrest adds rearward travel. The backrest is 570 mm high.
- Interchangeable upholstery system. Seat and backrest in black Magic faux leather release in one click without tools. The joint-free design and closed surfaces keep cleaning short.
- Anthracite aluminium five-star base and an extra thick seat pad for long shifts.
Applications
Tall assembly and packing stations, standing-height benches, machine operation, inspection and quality benches, and laboratory tables where work alternates between standing and sitting.
Equipment and accessories
One chair per sales unit, with an aluminium five-star base, seat-stop castors and a height adjustable foot ring. Bimos lists the matching 4D armrests separately under 9179.
Standards and compliance
The reference standard for task swivel chairs is DIN EN 1335. The manufacturer property table does not list this version as ESD safe, for EPA workstations the dissipative version of the range applies.
Technical data
| Property | Value |
|---|---|
| Sales unit | 1 piece |
| Content unit | 1 piece |
| Colour | black |
| Battery included | no |
| Base version | castors |
| Upholstery colour | black |
| Upholstery material | faux leather |
| Five-star base | yes |
| Backrest height | 570 mm |
| Seat height adjustment | 570 to 810 mm |
| ESD safe | no |
| Weight | 0.1 kg |
| Manufacturer | Bimos |
| Manufacturer Nr. | 9175-MG01 |
| GPSR manufacturer information | Bimos GmbH & Co. KG, Brühlstraße 21, DE-72469 Meßstetten-Tieringen, www.bimos.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Upholstery | Artificial leather |
| Base type | Castors |
| Armrests | Optional |
| Seat height min (mm) | 570 |
| Seat height max (mm) | 810 |
| Seat mechanism | Weight adjustment, 3D seat dynamics |
| Backrest | high |
| Seat shape | Standard seat |
| Series | TEXON |
