ESD swivel arm with double hand rest HRL and HRR for PHSEK preheating set - JBC RHSD-A

Precise placement, soldering and solder feeding only work with a steady hand. Above a preheater there is no place to rest it, because the assembly is hot. The RHSD answers that with two articulated hand rests on a swivelling arm, so both hands can work supported at the same time.

What the swivel arm delivers

• One rest each for the left and the right hand, giving a more relaxed working posture and less fatigue across the shift.

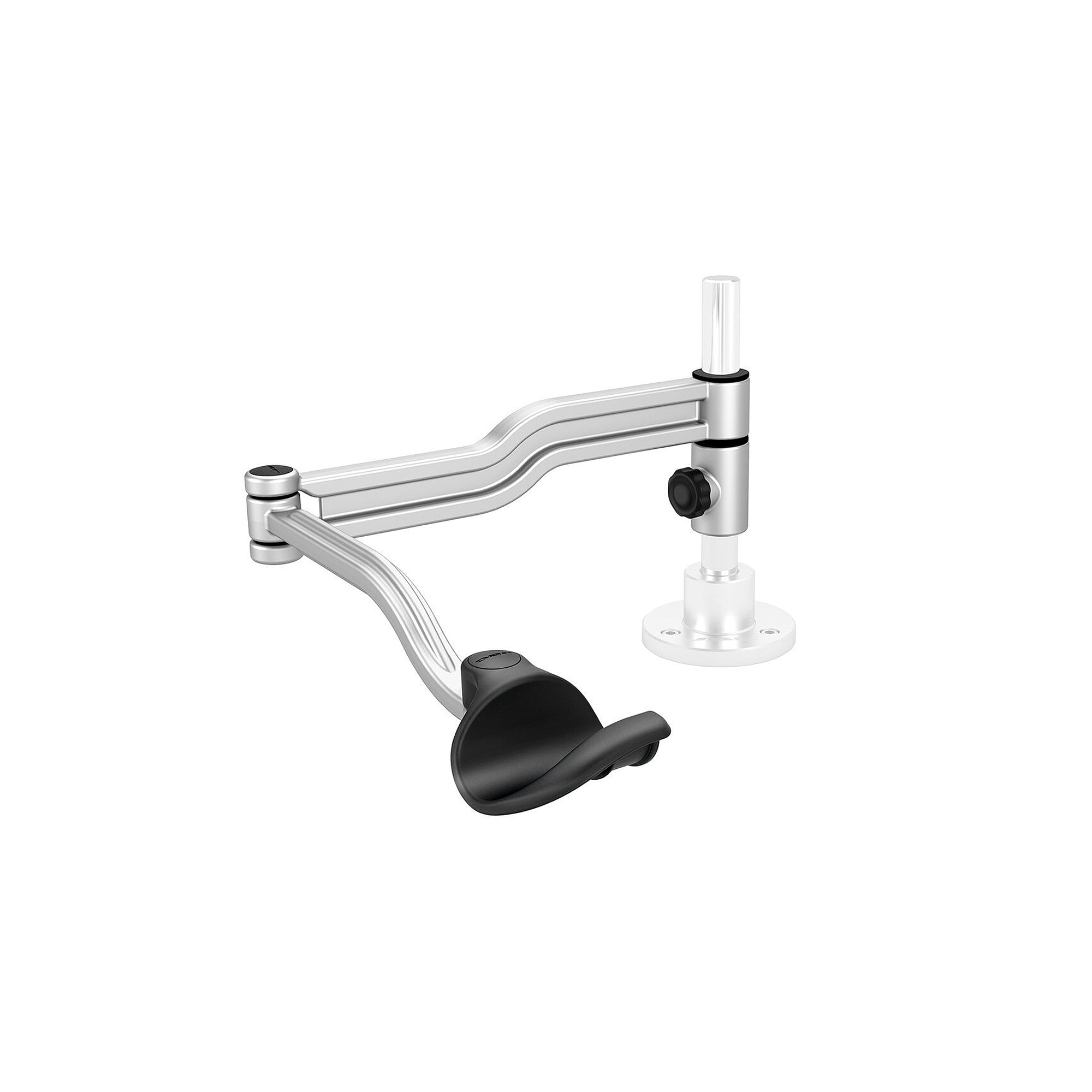

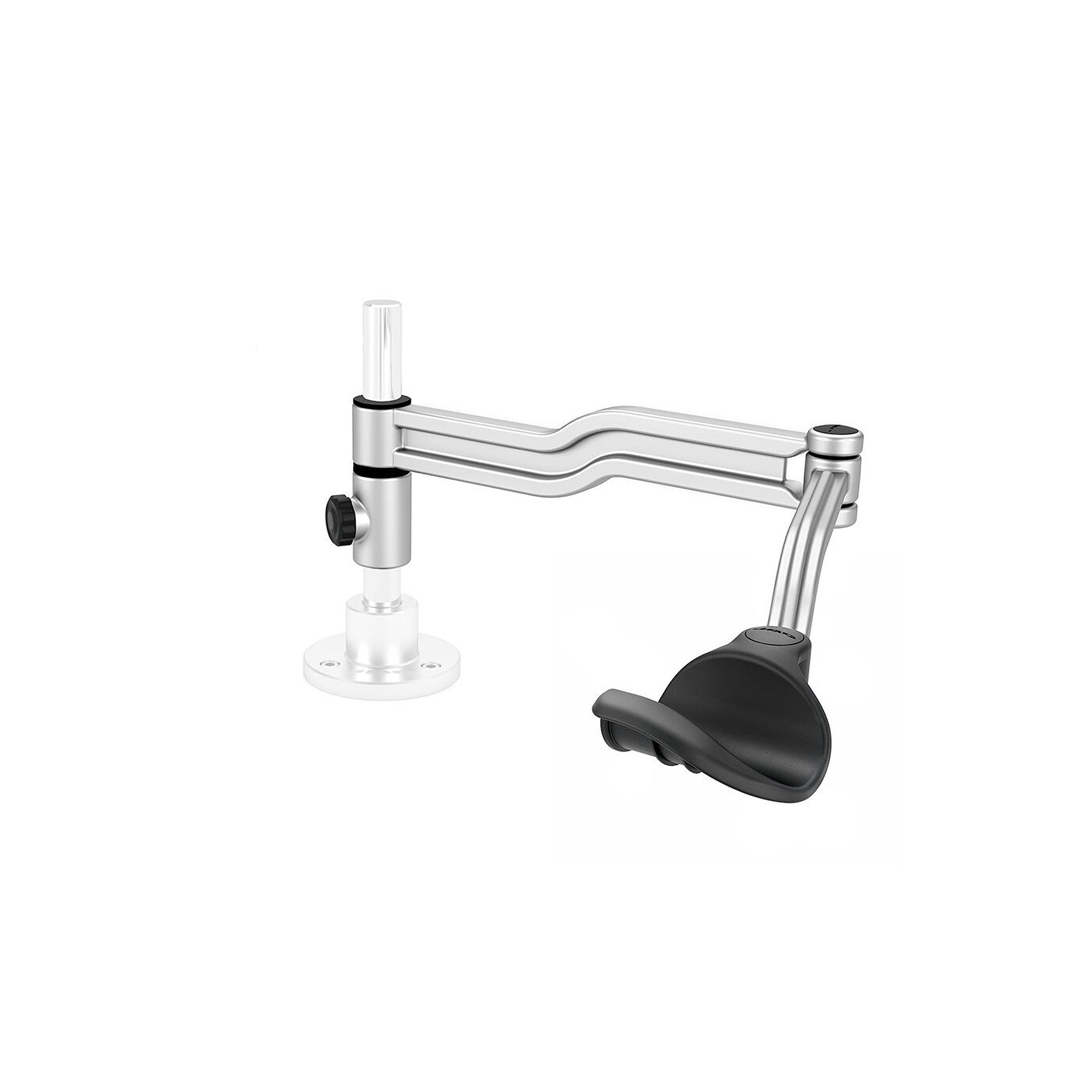

• Both hand rests are articulated, so the support follows the movement over the assembly instead of limiting it.
• An arm length of 498 mm and an arm height of 200 mm cover the working area above the preheater.
• The base plate is designed for the PHSEK preheating set, and the manufacturer also lists PHSE and PHSS as matching.
• ESD safe according to the property table and therefore released for workplaces inside an EPA.

Technical data

Applications

• Rework on SMD assemblies above a preheater
• Component placement and tweezer work under the microscope
• Solder feeding and rework on assemblies with long cycle times

Compatibility and scope of delivery

The delivery contains the base with column plus the articulated hand rests HRL and HRR. The base plate is designed for the PHSEK preheating set. The manufacturer also names PHSE and PHSS as matching accessories. Both hand rests are available individually as spare parts.

Standards and compliance

The manufacturer property table rates the set as ESD safe. The manufacturer is JBC Soldering SL in Spain.
