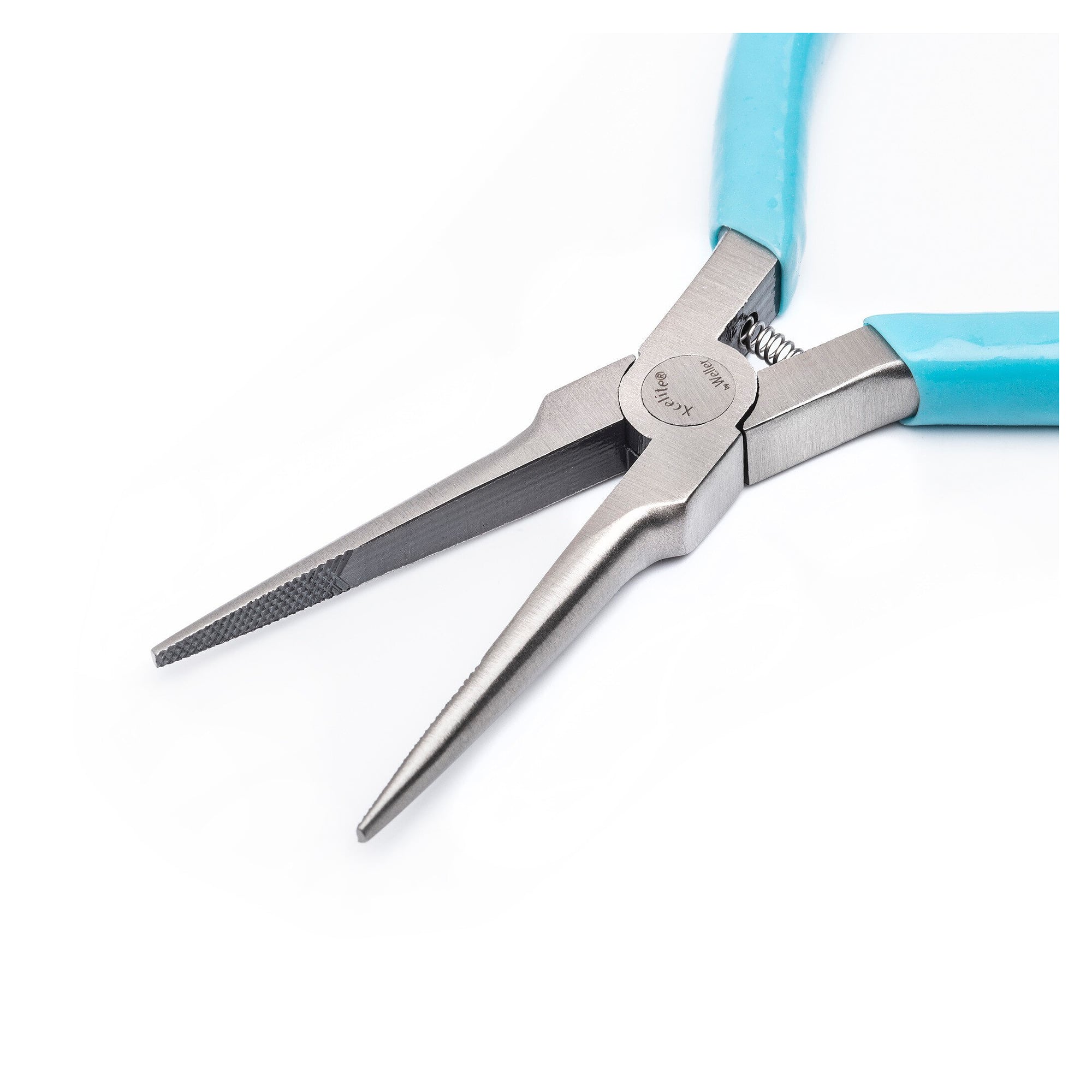

ESD long nose pliers 139.7 mm slim line with serrated jaws and fine tip - Weller LN775512VN

The slim line shape combines a fine tip with serrated jaws. At 44.5 mm head length and 6.4 mm thickness the access stays narrow while the grip on the wire stays firm.

What the tool delivers

• Fine tip with serration, so the grip holds even on smooth strands and small leads.
• Head 44.5 mm long and only 6.4 mm thick, suited to work between neighbouring components.
• Head width 11.9 mm keeps the view of the solder joint open.
• Overall length 139.7 mm balances reach and sensitivity.
• ESD-safe according to the property table, padded handles for low fatigue work.

Technical data

Applications

• Wiring and forming component leads
• Picking up small parts during assembly

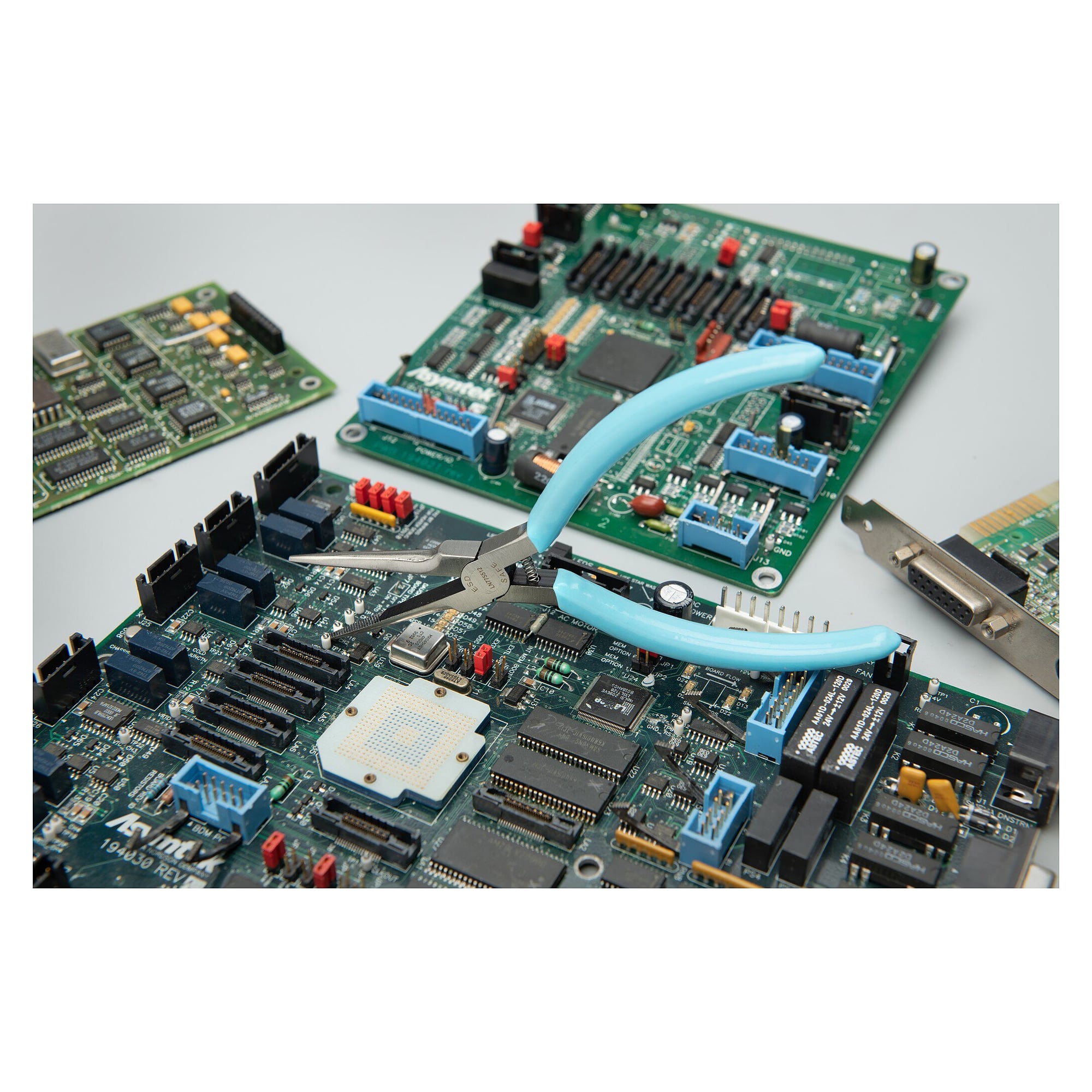

• Rework and repair on printed circuit boards
• Test field and prototype build

ESD and conformity

The manufacturer property table lists this tool as ESD-safe, so handles and head are intended for workstations according to IEC 61340-5-1. A test report with the resistance value is not part of the article data, please ask the manufacturer if you need that value documented.
