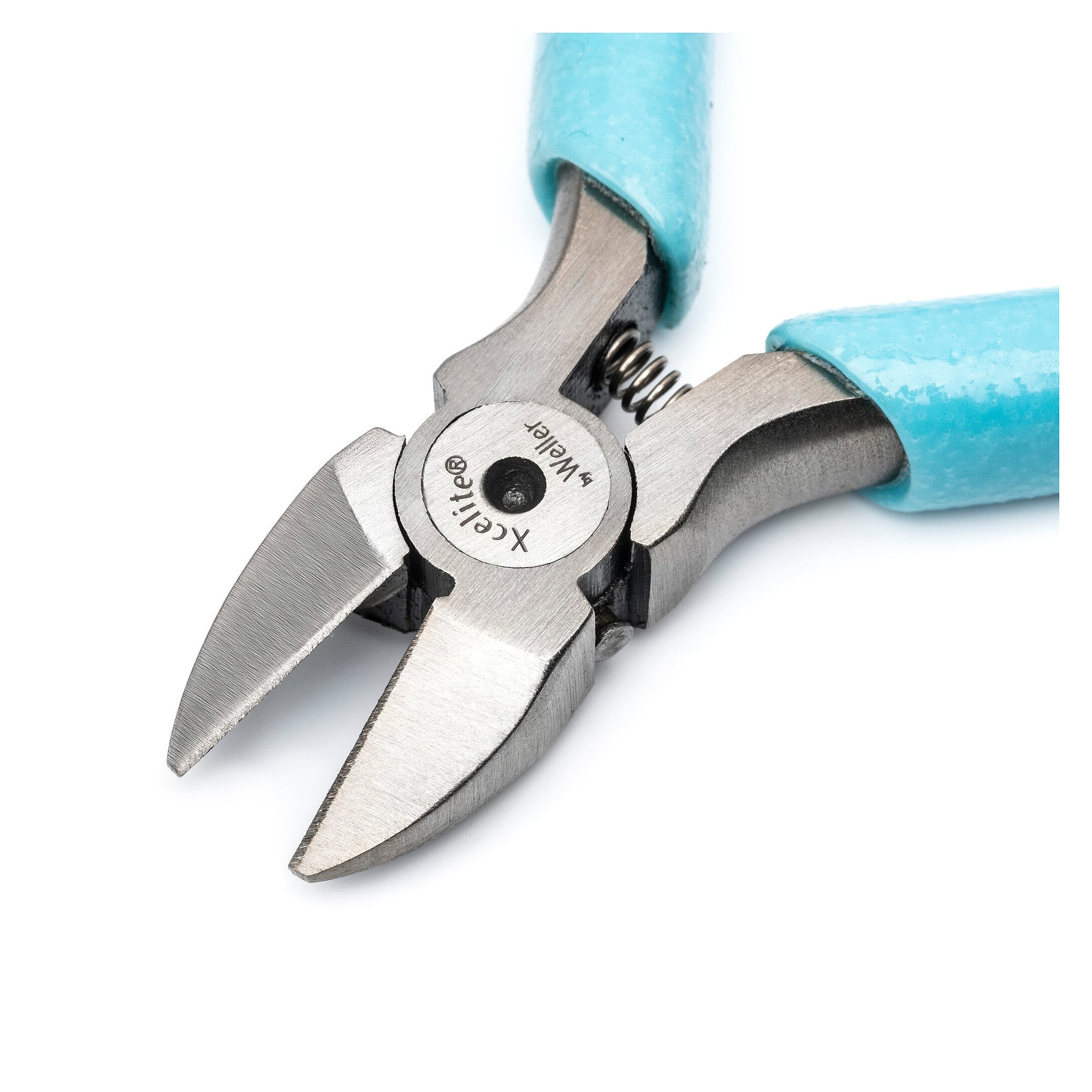

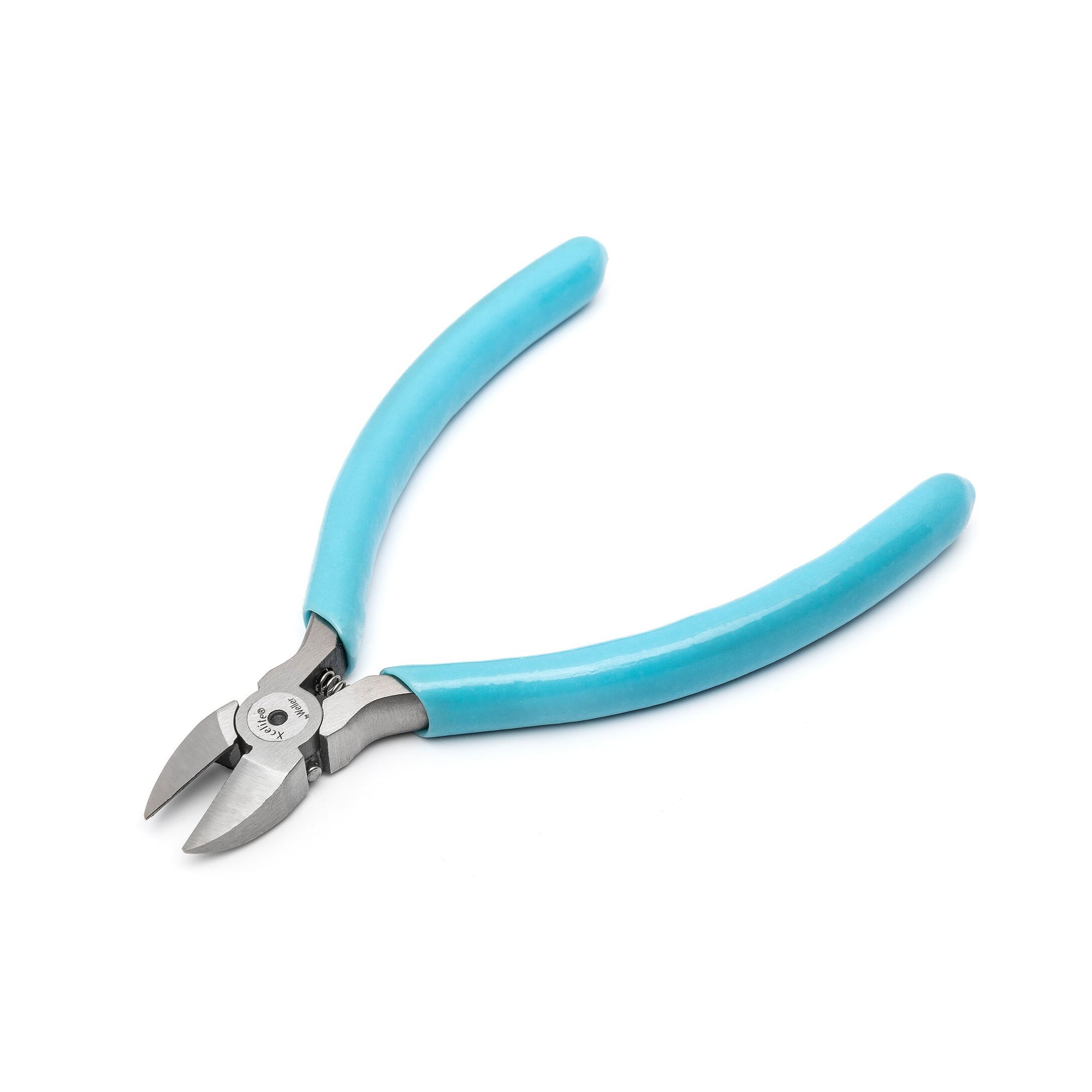

ESD side cutter 101.6 mm semi-flush with oval head for wire up to 20 AWG - Weller MS54VN

Once the wire gets thicker the capacity of fine cutters ends quickly. The MS54VN cuts soft wire up to 20 AWG, that is 0.8 mm, using an oval head with a 10.3 mm cutting edge.

What the tool delivers

• Capacity of soft wire up to 20 AWG, equal to 0.8 mm diameter.
• Semi-flush cut, suitable for general trimming where a zero stub is not required.
• Oval head of 11.1 mm width and 7.1 mm thickness, a sturdy shape for continuous use.
• Cutting edge 10.3 mm at 101.6 mm overall length.
• ESD-safe according to the property table, blue padded handles.

Technical data

Applications

• Cutting thicker strands and wires up to 0.8 mm
• Cable assembly at the workbench
• Trimming component leads
• Service and repair on assemblies

ESD and conformity

The manufacturer property table lists this tool as ESD-safe, so handles and head are intended for workstations according to IEC 61340-5-1. A test report with the resistance value is not part of the article data, please ask the manufacturer if you need that value documented.
