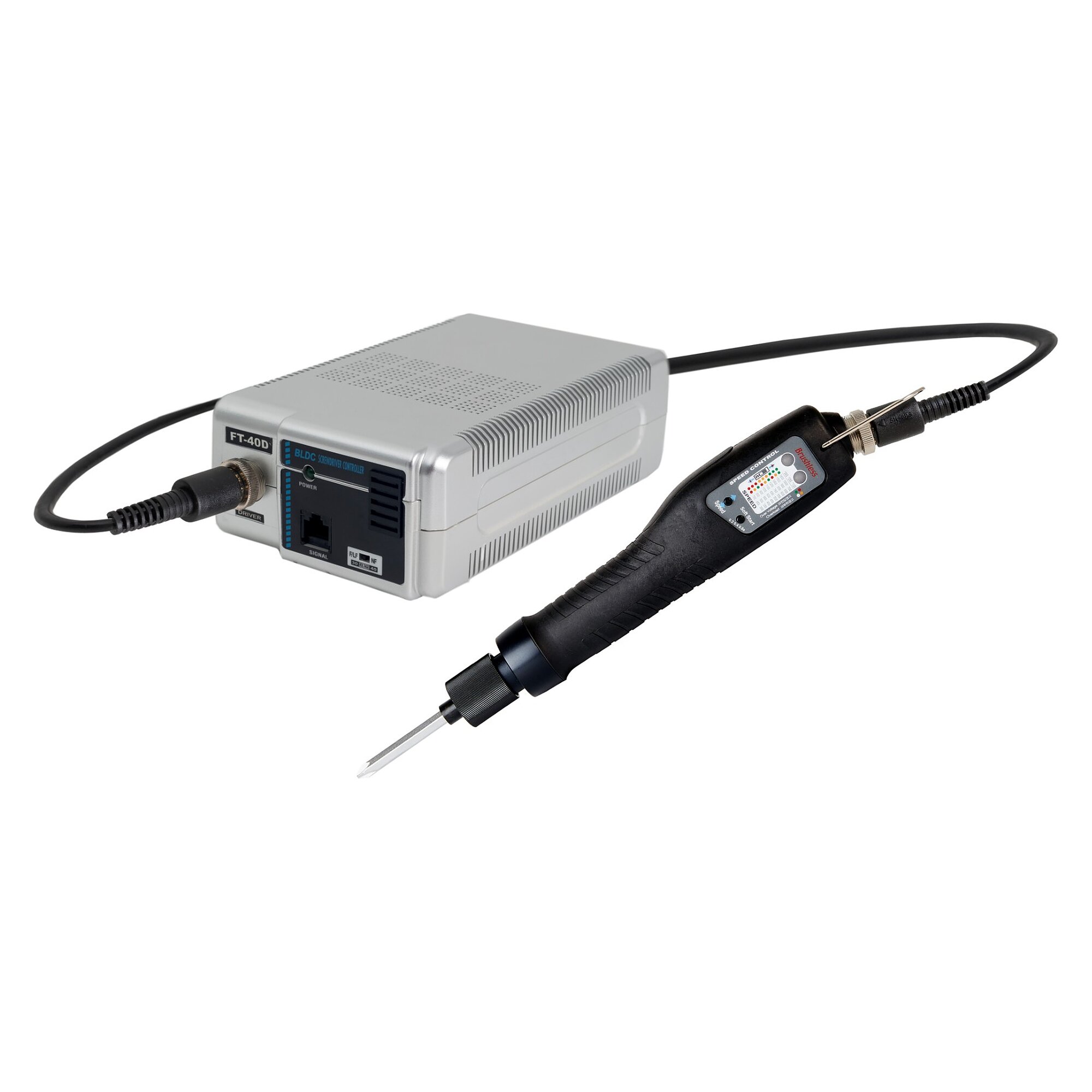

Brushless ESD Electric Screwdriver 0.02-0.34 Nm - Sehan F035-E
The Sehan F035-E is a brushless ESD electric screwdriver with a torque range of 0.02-0.34 Nm and a dissipative design. A speed range of 300 to 1,100 rpm, lever start and shut-off clutch keep assembly precise and low in maintenance.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Sehan F035-E is a brushless ESD electric screwdriver with shut-off clutch and infinitely adjustable torque from 0.02-0.34 Nm. The speed range of 300 to 1,100 rpm and the dissipative housing with grounded bit make it a safe choice for assembling sensitive electronics.
Features
- Brushless, maintenance-free motor for a long service life
- ESD-safe design with dissipative housing and grounded bit
- Shut-off clutch with infinitely adjustable torque from 0.02-0.34 Nm
- Speed range of 300 to 1,100 rpm
- Lever start for controlled positioning and clean rework
- Suitable for use in cleanroom class 5
Application
The screwdriver is designed for screw sizes M0.6-M2.5 and suits assembly work in electronics, precision engineering and device manufacturing. The dissipative design and the suitability for cleanroom class 5 allow use at EPA workstations and in clean production areas.
Compatibility
The F035-E is operated on the FT-40D control unit, which runs on 230 VAC and offers soft start, speed preselection and a 5-pin connection. The control unit is ordered separately. Available accessories are the protective cap 587-0003 and the vacuum attachment 901-0052 as well as the connecting cables 518-0029, 518-0078, 518-0032 and 518-0031. For documenting the fastenings, the SCOUT II screw counter can be used on the FT-40D.
Technical data
| Torque | 0.02-0.34 Nm |
|---|---|
| Speed | 300 to 1,100 rpm |
| Repeat accuracy | ±3% |
| Drive/bit | 4.00 mm half-round |
| Start mode | Lever start |
| Motor | brushless |
| Operating voltage | 30/40 VDC |
| Weight | 0.24 kg |
| Grip diameter | 30 mm |
| Screw size | M0.6-M2.5 |
| ESD | yes, dissipative |
| Manufacturer | Sehan |
| Manufacturer Nr. | F035-E |
| HS-Code | 84672985 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | South Korea |
| ESD version | ESD (antistatic) |
| Min torque (Nm) | 0.02 |
| Max torque (Nm) | 0.34 |
| Max speed (rpm) | 1100 |
| Start system | Lever start |
| Drive | H4 (4 mm hexagon) |
| Brushless motor | Ja |
