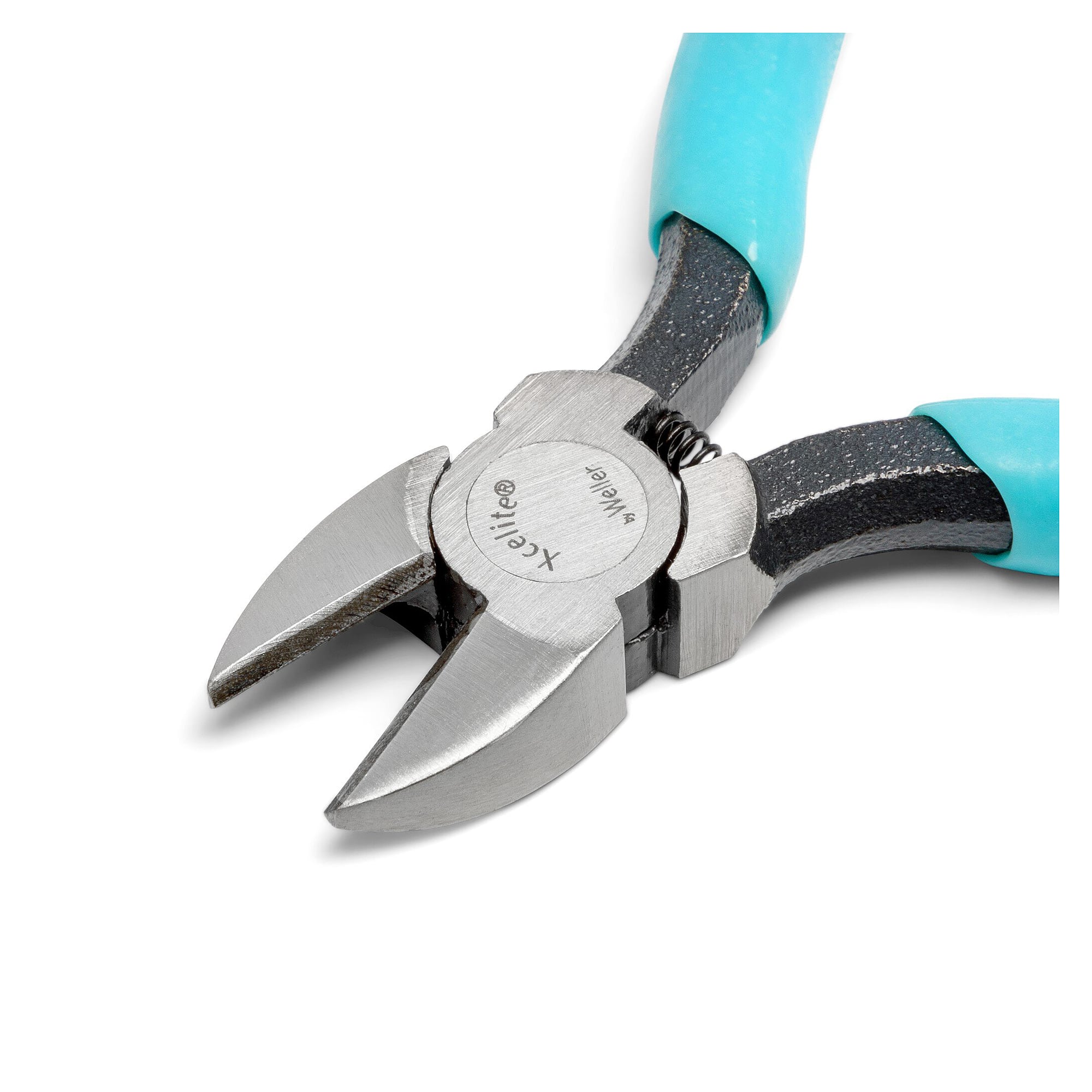

Xcelite Pro Series ESD diagonal cutter 114.3 mm, oval head, semi-flush - Weller S54SNN

Hard wire needs a solid head rather than a fine flush edge. This diagonal cutter carries an oval head of 14.7 mm width and 9.5 mm thickness and cuts semi-flush across a 15.9 mm edge. A coil spring in the handle reopens the tool after every cut, and the Pro Series version is listed as ESD safe.

Benefits in use

• Oval head of 9.5 mm thickness is built for heavy duty cutting.
• Standard beveled edges give a semi-flush cut rather than a fully flush one.
• Cutting edge of 15.9 mm at 14.7 mm head width suits lead wire and hook-up wire.
• Coil spring in the handle reopens the tool after every cut.
• ESD safe design per the property table, so the tool may stay inside an EPA area.
• Overall length of 114.3 mm with padded handles for controlled work.

Technical data

Applications

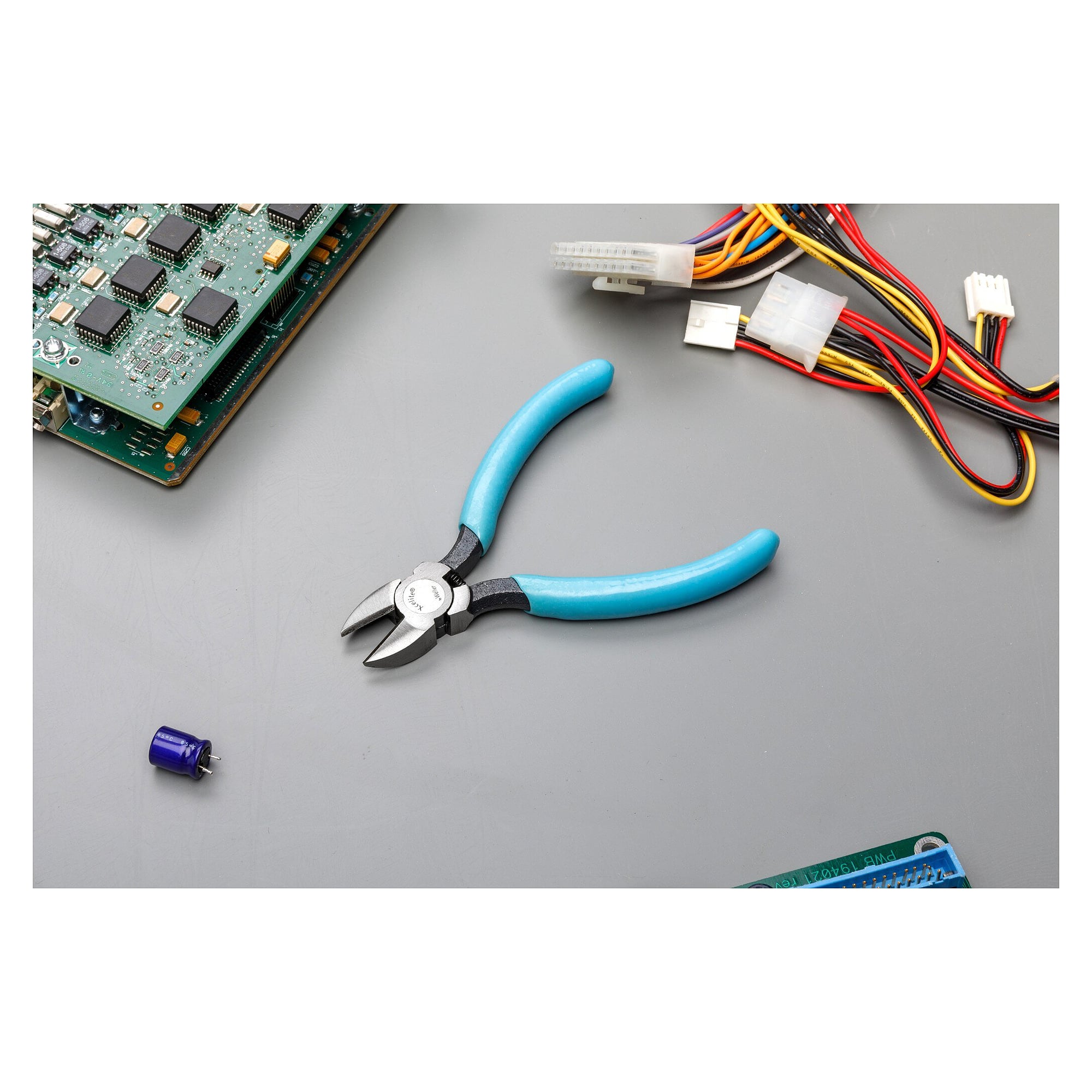

The cutter belongs on assembly and rework benches, in cable assembly and in test fixture build. It trims component leads and harder wire that would overload a fully flush edge.
