ESD Table Mat Set L Pro Blue 1200 x 600 mm, 5-Piece with Wrist Strap and Coiled Cord - Safeguard WL93310
Complete ESD workstation set with table mat 1200 x 600 mm in blue, wrist strap, 2 megohm coiled cord, earthing cable and earthing plug. The mat dissipates in a controlled way at 10⁶ to 10⁷ ohms surface resistance and withstands heat and solder. One order equips full-size soldering and assembly workstations for ESD-safe work.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
An ESD workstation needs more than a mat: the operator and the bench must be earthed too. This 5-piece L Pro set provides the table mat in 1200 x 600 mm, personal earthing and the cables to the earth connection.
Key benefits
- 5 matched parts, mat, personal earthing and earth connection in one order
- Two-layer mat, dissipative and conductive, surface resistance 10⁶ to 10⁷ ohms to EN 61340-2-3
- Heat and solder resistant, glow wire test to IEC 60335-1 up to 750 °C
- Resistant to chemicals, oil and grease, permanently elastic and lies flat
- Anti-reflective surface and abrasion below 200 mm³ to ISO 4649
Applications
Setting up new or upgrading existing workstations in the EPA, for full-size soldering and assembly workstations in electronics production, service and laboratories.
Standards and compliance
Resistance measured to EN 61340-2-3, RoHS compliant.
Technical data
| Length | 1200 mm |
|---|---|
| Width | 600 mm |
| Thickness | 2 mm |
| Colour | blue |
| Material | Natural rubber and synthetic rubber |
| Construction | two-layer, dissipative and conductive |
| Typical surface resistance Rpp (EN 61340-2-3) | 10⁶ to 10⁷ ohms |
| Typical volume resistance RV (EN 61340-2-3) | 10⁶ ohms |
| Hardness (ISO 7619) | Shore A 75 |
| Residual indentation (EN ISO 24343-1) | < 0.20 mm |
| Abrasion (ISO 4649, method A, 5 N) | < 200 mm³ |
| Flexibility (EN ISO 24344, method A, 20 mm mandrel) | passed |
| Needle flame test (IEC 60695-11) | up to 30 s |
| Dynamic coefficient of friction (EN 13893) | > 0.30 |
| Stain resistance (EN ISO 26987) | resistant, depending on concentration and contact time |
| Oil and grease resistance (ASTM D471) | limited change in volume and mass |
| RoHS compliant | yes |
| Corners | rounded |
| Connection | 2x 10 mm press stud |
| Earthing cable included | yes |
| Cleaning | with a suitable ESD cleaner |
| Sales unit | 1 set |
| Weight | 1 kg |
| Manufacturer | Safeguard |
| Manufacturer Nr. | WL93310 |
| HS-Code | 40169997 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |

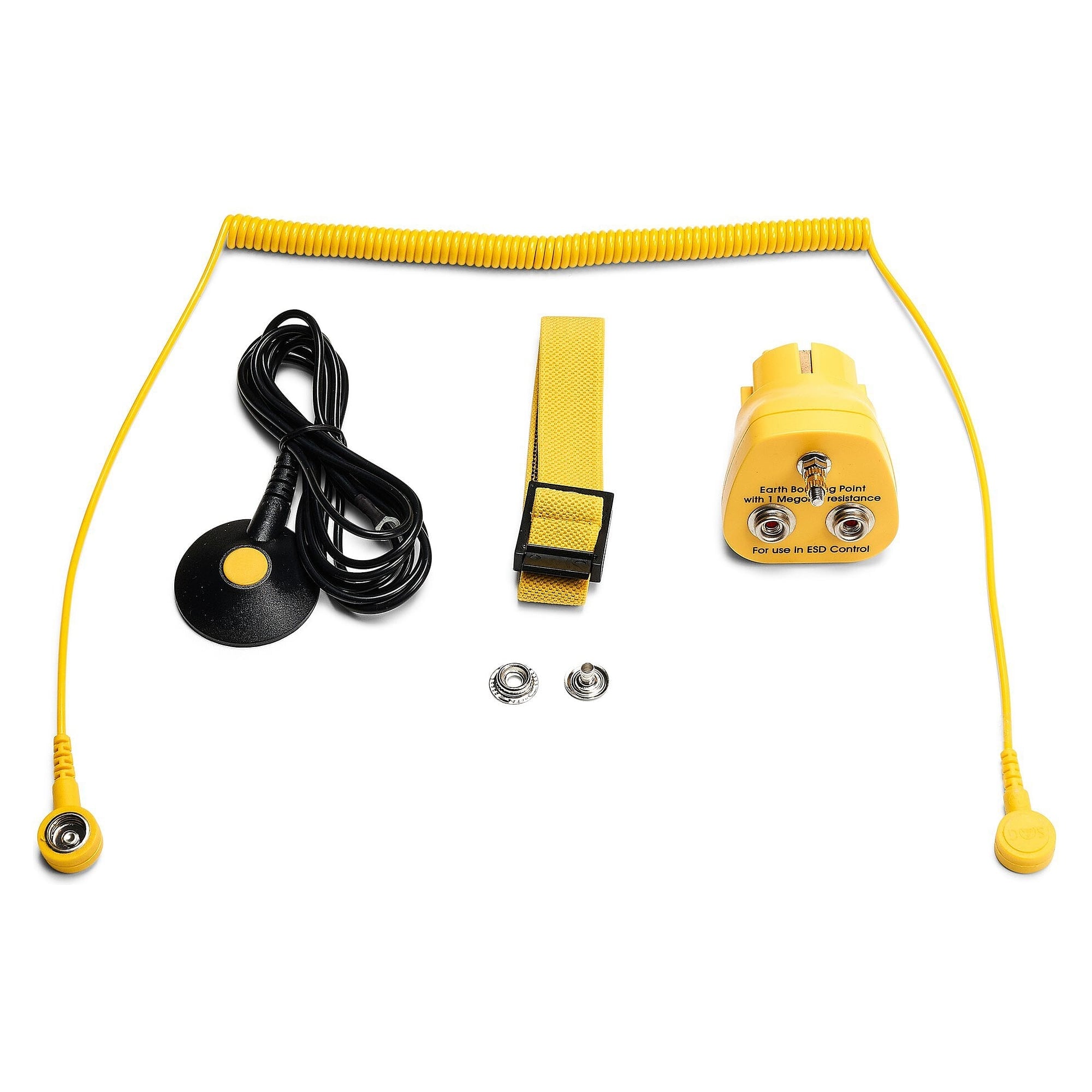

Scope of delivery

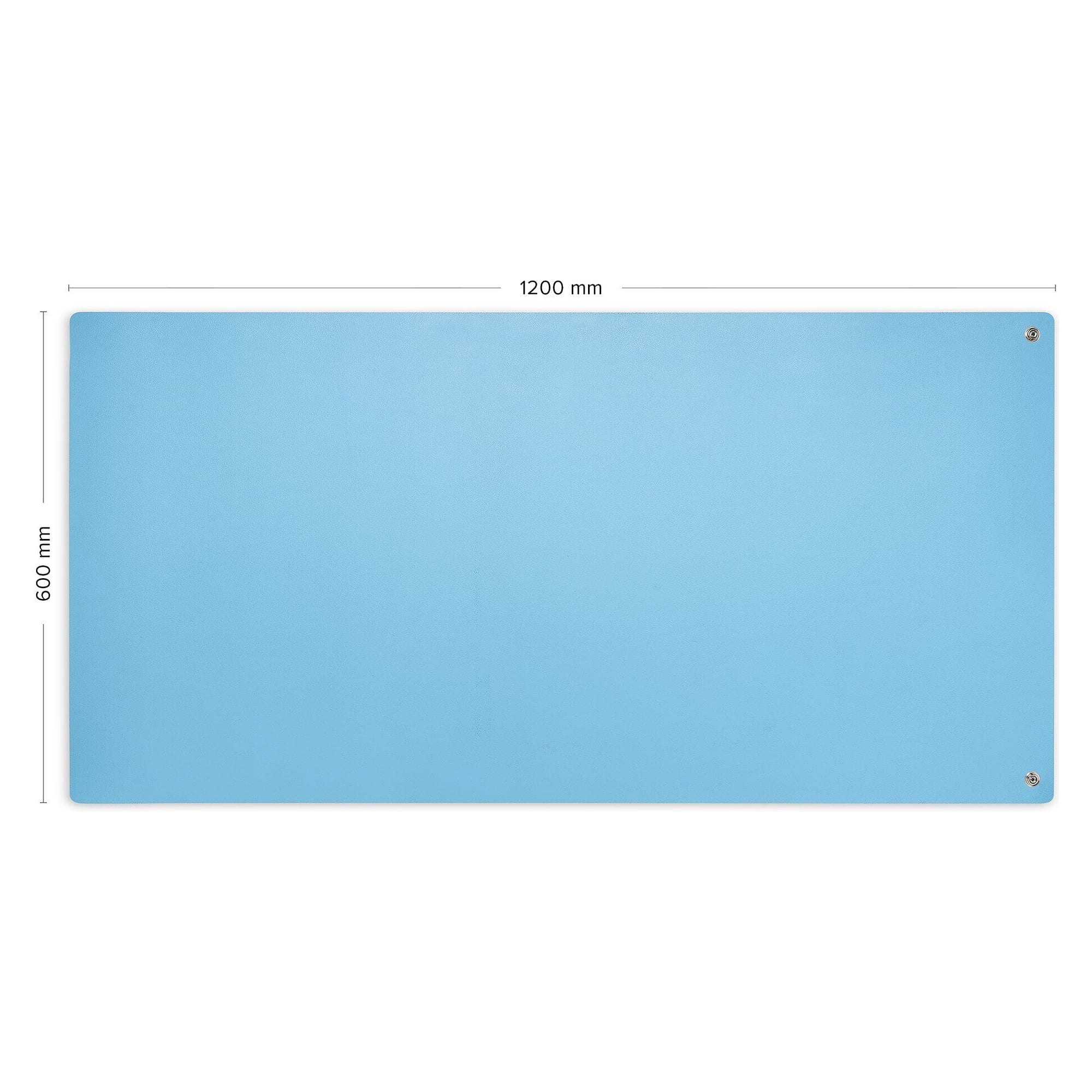

- ESD table mat blue 1200 x 600 x 2 mm with 2x 10 mm press stud
- ESD wrist strap with 10 mm press stud
- ESD coiled cord 2 megohms, 3.6 m, 10/10 mm press stud
- Earthing cable 1.8 m, 10 mm press stud to 4 mm eyelet
- Earthing plug with 2x 10 mm press stud
