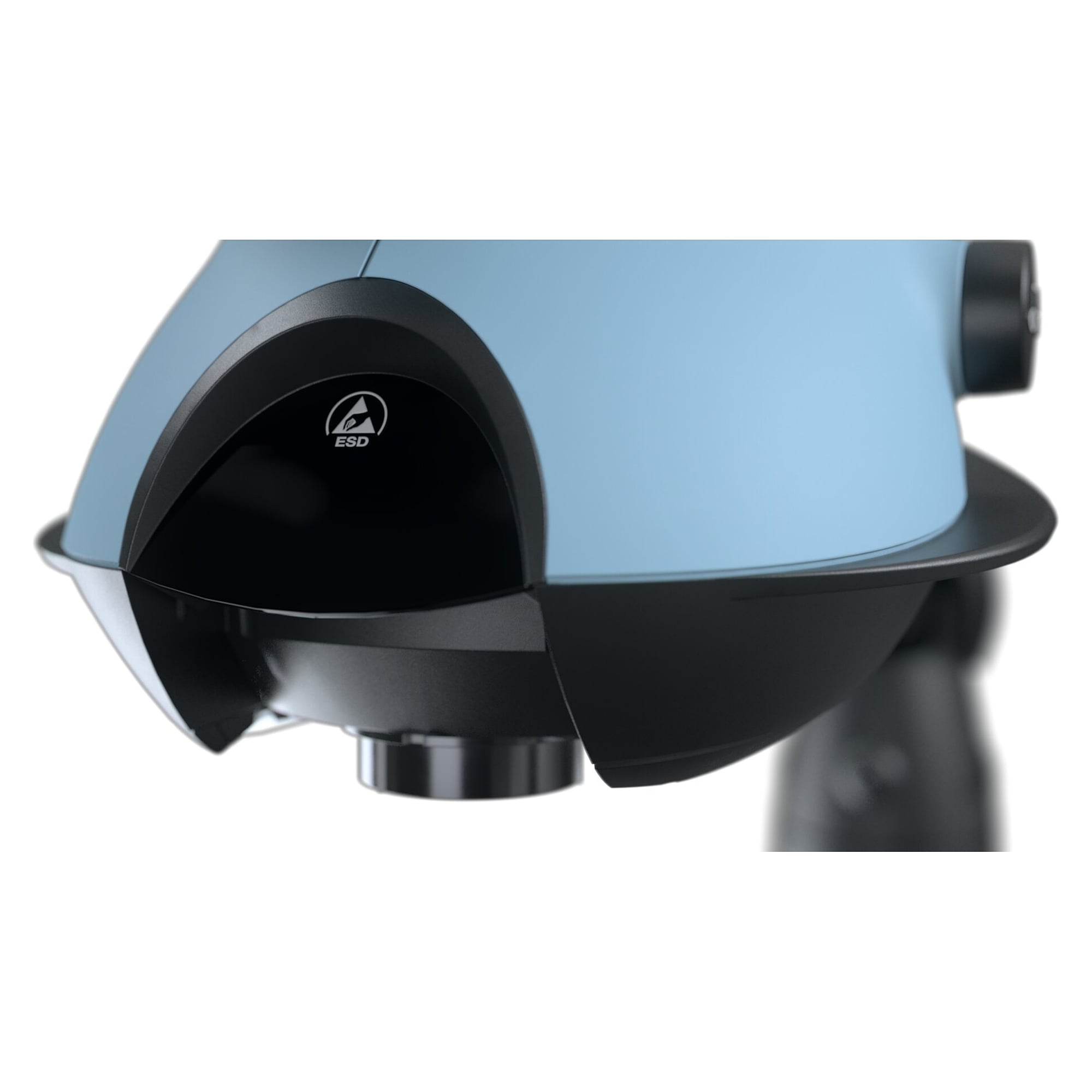

ESD optics head for PRISMA microscope, eyepiece-free 3D stereo view, 7000 K LED - Weller T0051406799
Optics head of the Weller PRISMA as a single part. It delivers an eyepiece-free 3D stereo image with integrated 7000 K LED illumination and fits the PRISMA universal stand, ideal for a second station or as a replacement.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The head is the core of the PRISMA system: optics, LED illumination and ESD-safe housing in one 130 x 135 x 200 mm unit. With only 2.5 W power consumption it mounts on the existing universal stand.
Benefits in use
- Clear 3D stereo image without eyepieces, comfortable for glasses wearers too.
- Integrated 7000 K LED, power consumption 2.5 W.
- Compatible with the PRISMA universal stand.
- Accepts the 4x, 6x and 8x lenses from the PRISMA range.
- ESD-safe for the EPA.
Applications
Setting up additional PRISMA workstations, replacing a damaged head, visual inspection and nano-soldering in electronics manufacturing.
Compatibility
Weller PRISMA universal stand, PRISMA standard lenses 4x, 6x and 8x, PRISMA accessories such as replacement LED strip and lens protection caps.
Technical data
| Manufacturer | Weller |
|---|---|
| Product type | Stereo microscope head, eyepiece-free |
| Light source | LED, 7000 K |
| Power | 2.5 W |
| ESD-safe | yes |
| Dimensions (L x W x H) | 130 x 135 x 200 mm |
| Sales unit | 1 piece |
| Weight | 2.086 kg |
| Manufacturer Nr. | T0051406799 |
| HS-Code | 90111000 |
| GPSR manufacturer information | WELLER Tools GmbH, Carl-Benz-Strasse 2, DE-74354 Besigheim, www.weller-tools.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
| ESD version | ESD (antistatic) |
