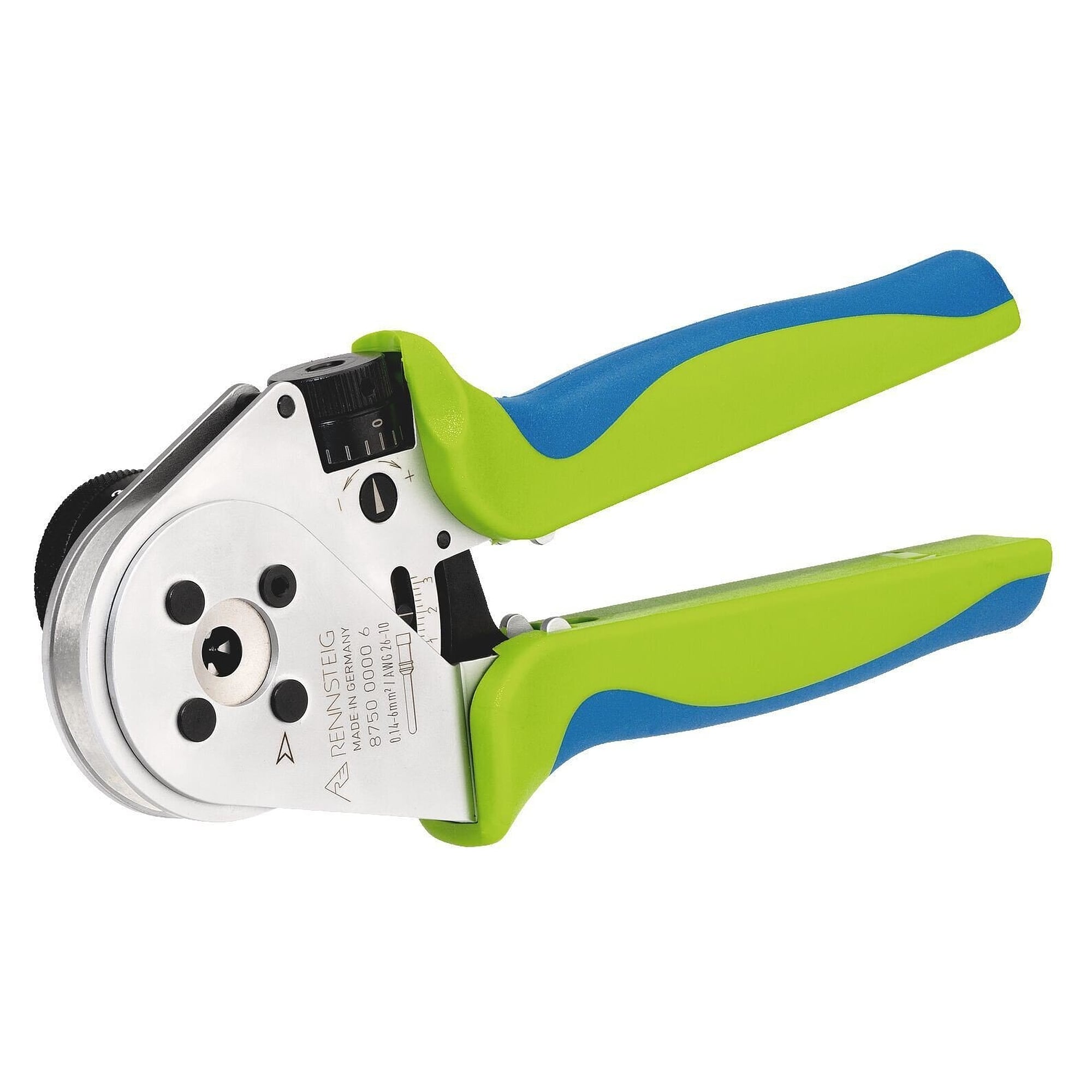

MicroCrimp four-indent crimping pliers for turned pin and socket contacts 0.14 to 6.0 mm² - A1-ESD 8750 0000 6
MicroCrimp four-indent crimping pliers for turned pin and socket contacts from 0.14 to 6.0 mm² (AWG 26 to 10). Indenter travel is adjustable in 0.01 mm steps, and the ratchet ensures that every crimp is fully completed.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

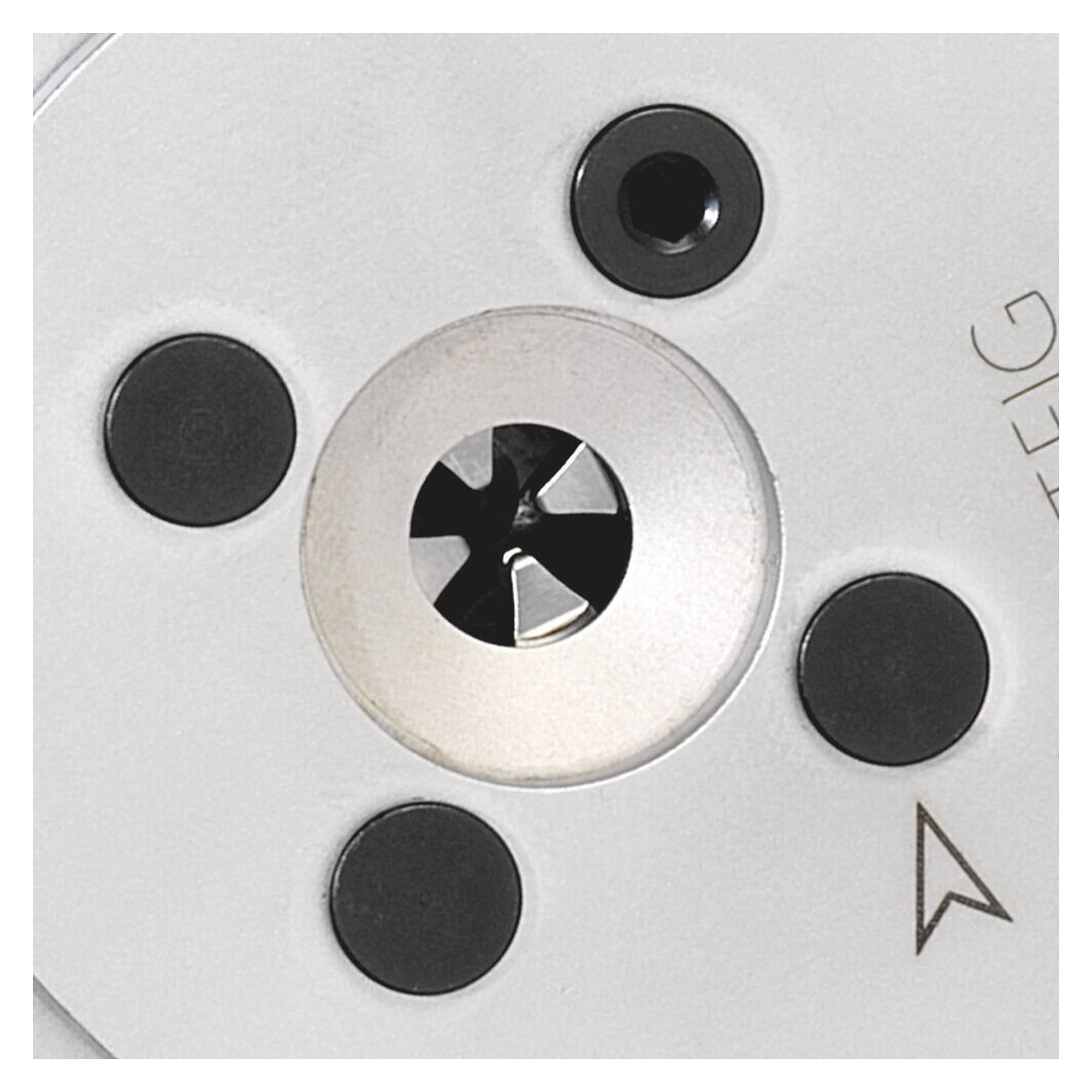

Turned contacts in circular connectors require a four-indent crimp that presses the contact evenly from four sides. The MicroCrimp 8.75 moves the indenters synchronously and can be set to the contact with 0.01 mm accuracy.
Benefits

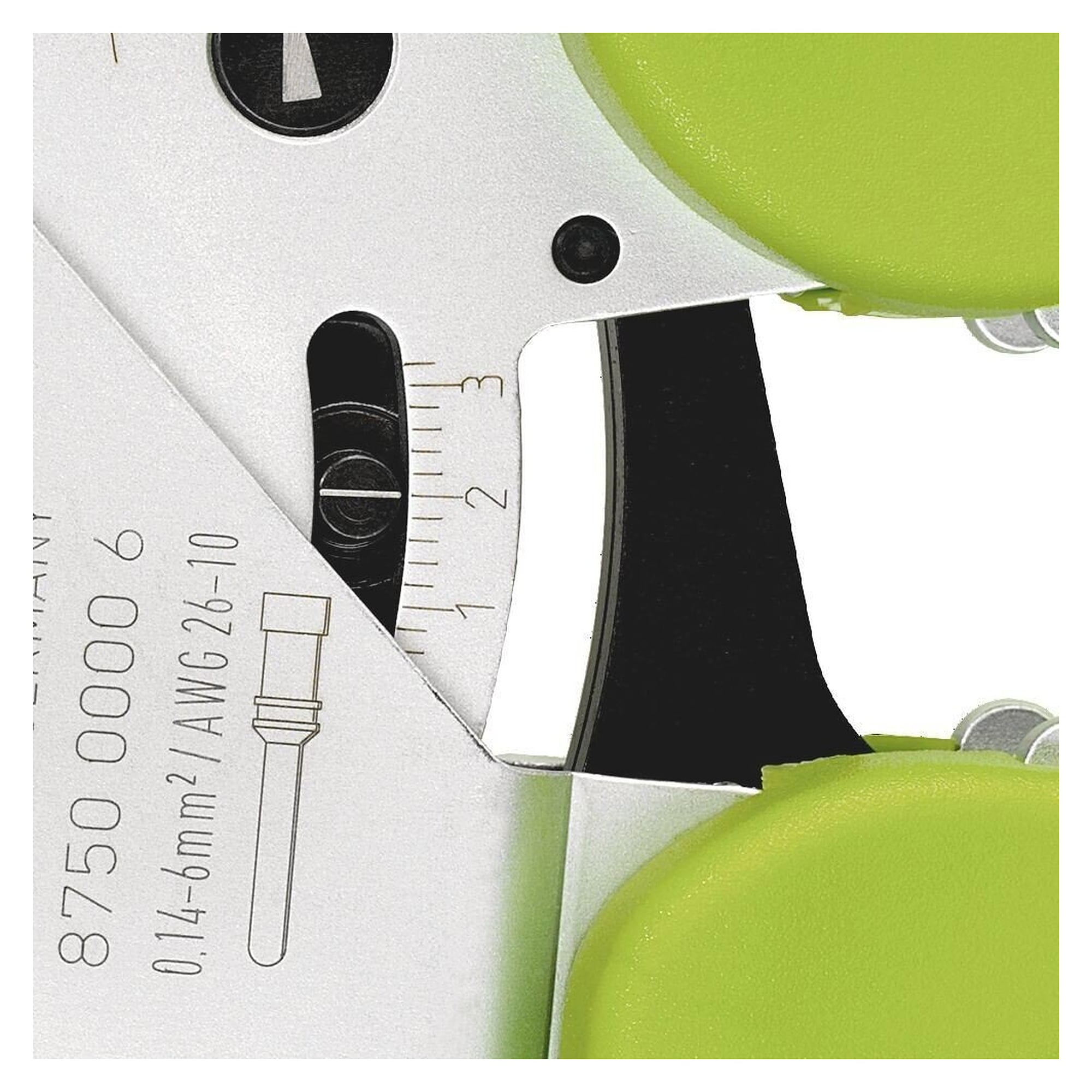

- Fine adjustment of indenter travel in 0.01 mm steps
- Synchronous movement of all four indenters for an even crimp
- Full-cycle ratchet: every crimp is always completed
- Basic setting checked with the supplied test pin
- Cross-sections 0.14 to 6.0 mm² (AWG 26 to 10), contacts up to 7.5 mm diameter
Applications

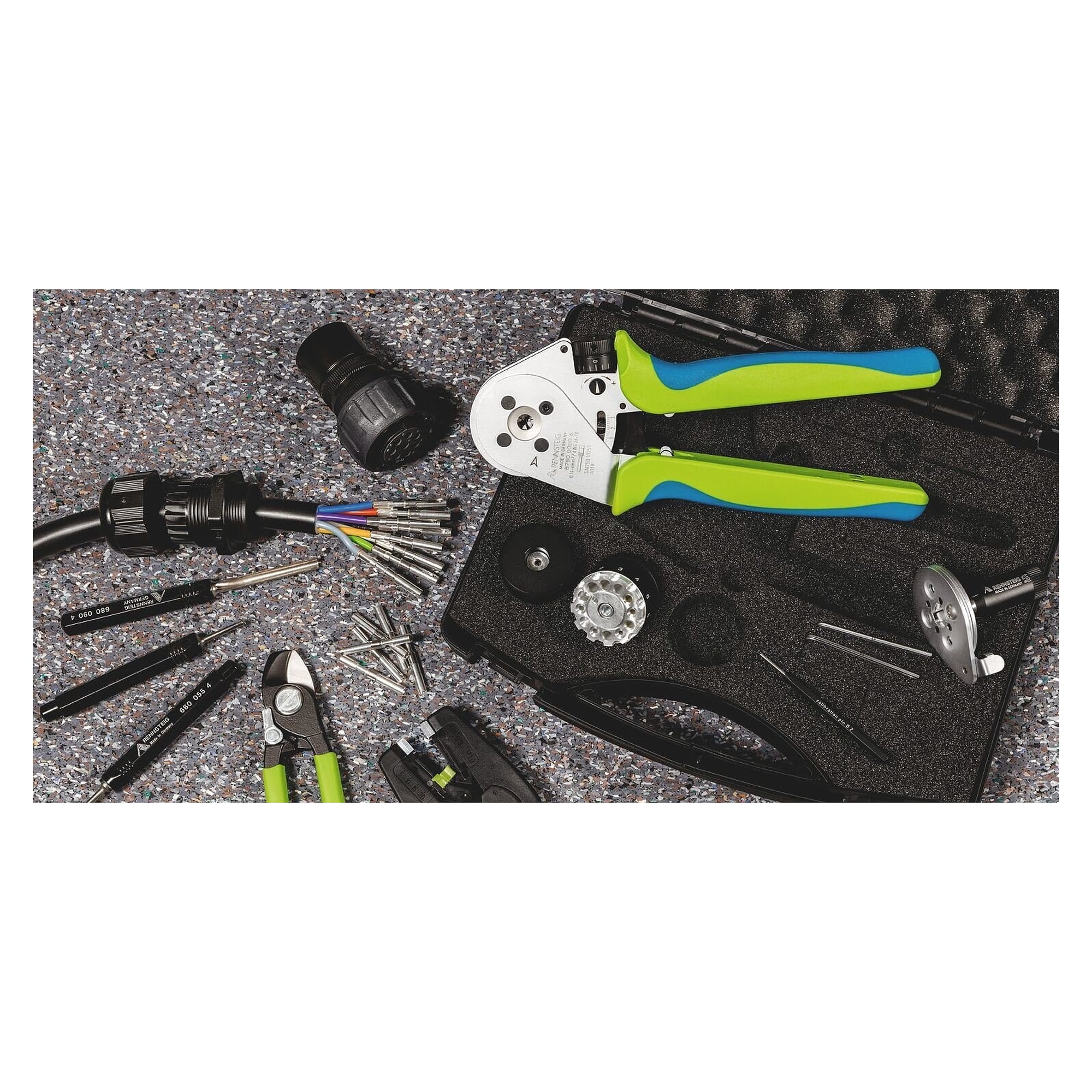

Assembly of circular connectors in aerospace, railway, industrial electronics and measurement technology, service and repair.
Technical data
| Product | Four-indent crimping pliers |
|---|---|
| Designation | MicroCrimp 8.75 |
| Contact type | turned pin and socket contacts |
| Cross-section range | 0.14 to 6.0 mm² (AWG 26 to 10) |
| Max. contact diameter | 7.5 mm |
| Indenter travel | adjustable in 0.01 mm steps |
| Finish | chrome-plated |
| Length | 83 mm |
| Width | 230 mm |
| Height | 27 mm |
| ESD-safe | no |
| Sales unit | 1 piece |
| Weight | 0.64 kg |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | 8750 0000 6 |
| HS-Code | 82032000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
MicroCrimp 8.75 crimping pliers with test pin for the basic setting.
