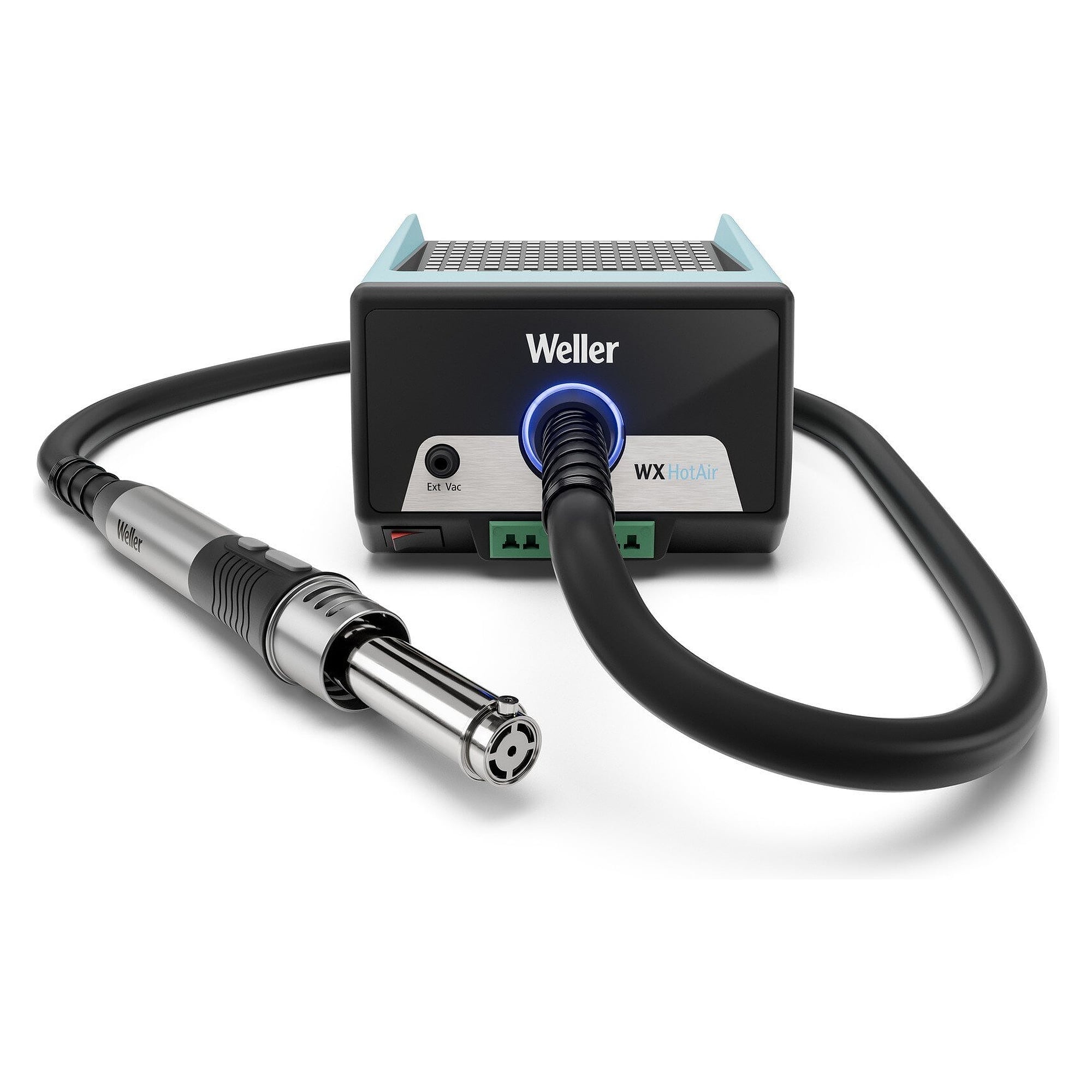

WXHotAir Hot-Air Rework Module 900 W, 50 to 600 °C, with Safety Rest and Software - Weller T0053175699

Copper-rich multilayer boards pull heat away fast. The WXHotAir module counters this with up to 900 W of hot-air power and reaches working temperature in 15 s. Components with high thermal mass can be reworked precisely without heating the surrounding area for longer than needed.

• Up to 900 W of regulated hot air at 50 to 600 °C, also for PCBs with high copper content and large thermal mass
• Temperature monitoring via type K thermocouples (2 inputs) for traceable process control
• Vacuum pickup either through the external vacuum system of the station or the integrated vacuum function in the handpiece, -0.5 bar
• Optional Windows software with live sensor data, graphical temperature curves, user management and project-based data storage
• Stackable WXsmart platform housings save space on the workbench
• Runs standalone, software-controlled or integrated into the WXsmart platform

Applications

SMD rework on QFP, QFN, PLCC and BGA packages, repair and prototyping in development and laboratory environments, spot reflow soldering and rework in electronics production.

Standards and compliance

ESD-safe design for use in EPA protected areas, RoHS compliant.
