8767 B VDE HF TORX Zyklop bit socket TX 30, insulated, 3/8" drive, with holding function - Wera 05004923001

The 8767 B VDE HF Zyklop bit socket fastens TX 30 TORX screws, as found on equipment connections and mounting plates under voltage, with protection up to 1,000 V. The holding function clamps the screw on the tool, and the short design at 55 mm overall length fits tight control cabinets.

Benefits

• Individually tested at 10,000 V as per IEC 60900 for safe working up to 1,000 V

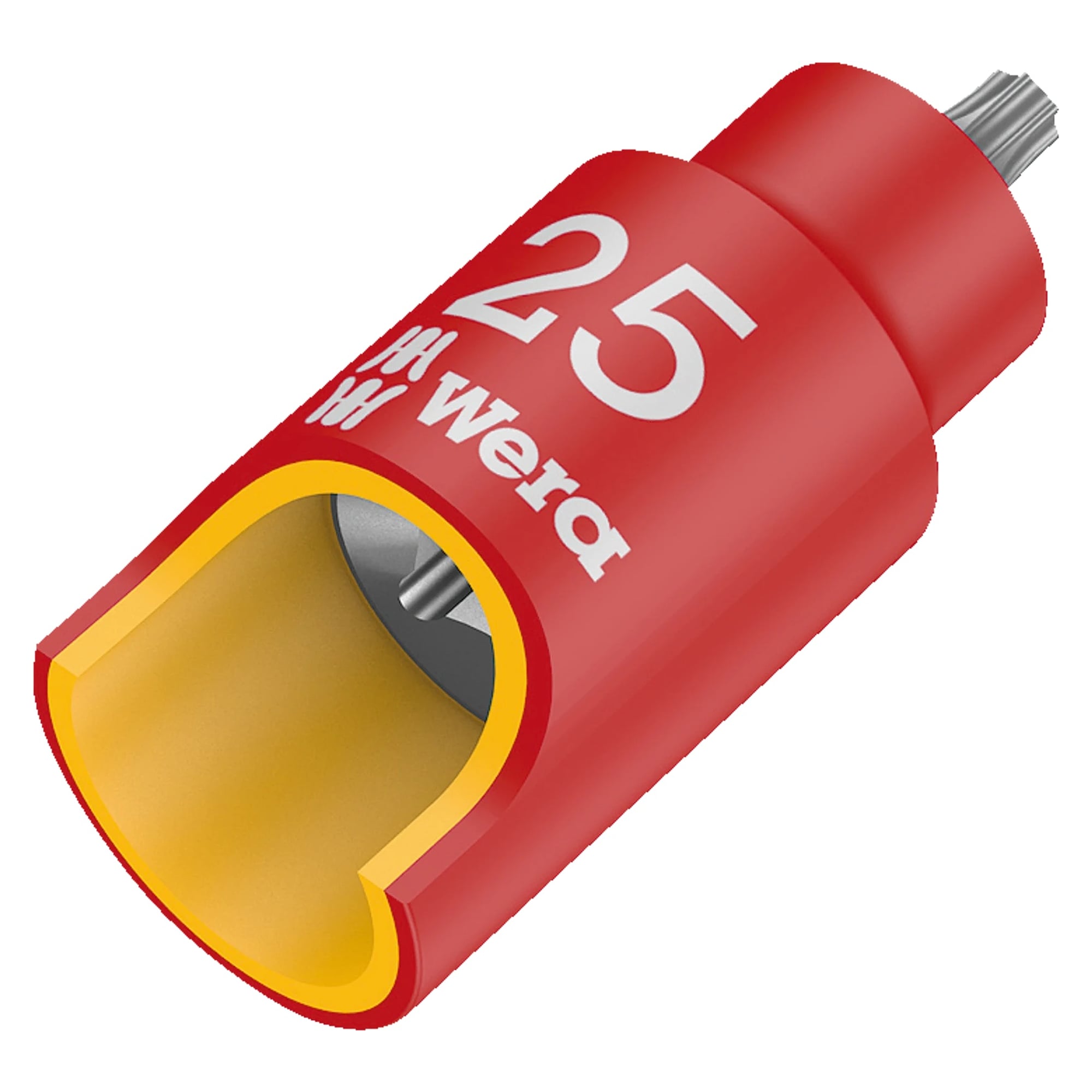

• 2-component insulation: the yellow insulation core under the red outer layer makes any damage visible at once
• HF holding function: the clamping force from the surface pressure between tip and screw profile holds the screw
• Less screw loss when feeding to the workpiece, particularly in hard-to-reach areas
• Plastic sleeve protects surfaces from damage

Applications

Switchgear and control cabinet construction, equipment mounting and maintenance of electrical systems with TORX screws under voltage up to 1,000 V. Fits Zyklop ratchets and accessories with 3/8" square drive.

Standards and safety

Insulated tool according to IEC 60900, every piece tested at 10,000 V and approved for a voltage of 1,000 V.
