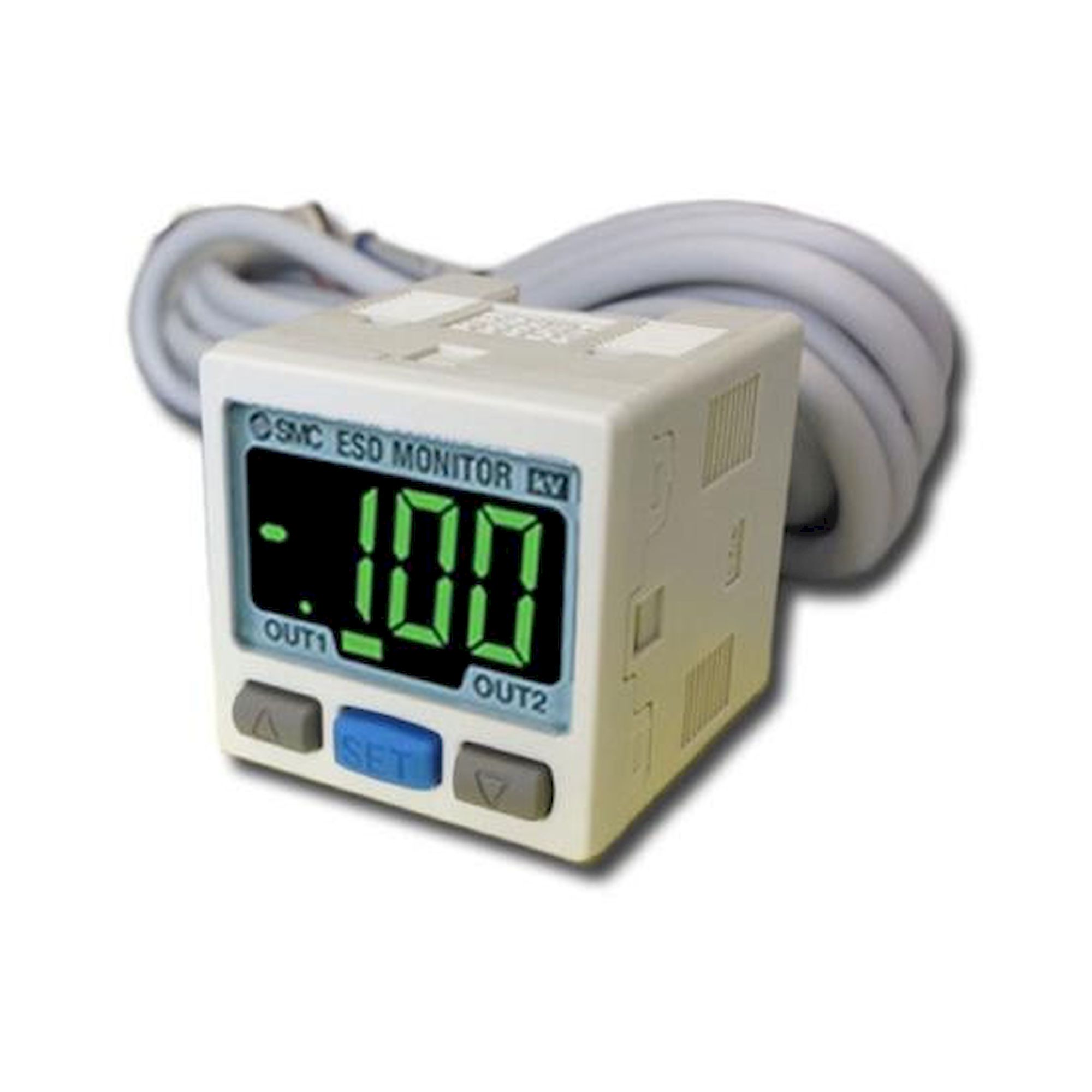

Digital sensor monitor for electrostatic sensors, PNP - SMC IZE112

The SMC IZE112 is the digital monitor for the IZD10 series electrostatic sensors. It converts the 1 to 5 V sensor signal into a readable potential value and passes threshold signals to the machine control via two switch outputs.

Benefits

• Two-colour display (red and green) for fast pass/fail assessment
• Two PNP switch outputs plus analogue output 1 to 5 V
• Four selectable display modes and functions such as peak hold

Technical data

• Switch output: 2 x PNP open collector
• Analogue output: 1 to 5 V
• Display: two-colour (red and green)
• Display accuracy: ±0.5 %
• Compatible sensors: IZD10 (±0.4 kV and ±20 kV)

Application

For displaying and monitoring electrostatic potential in electronics manufacturing together with the IZD10-110 and IZD10-510 sensors.
