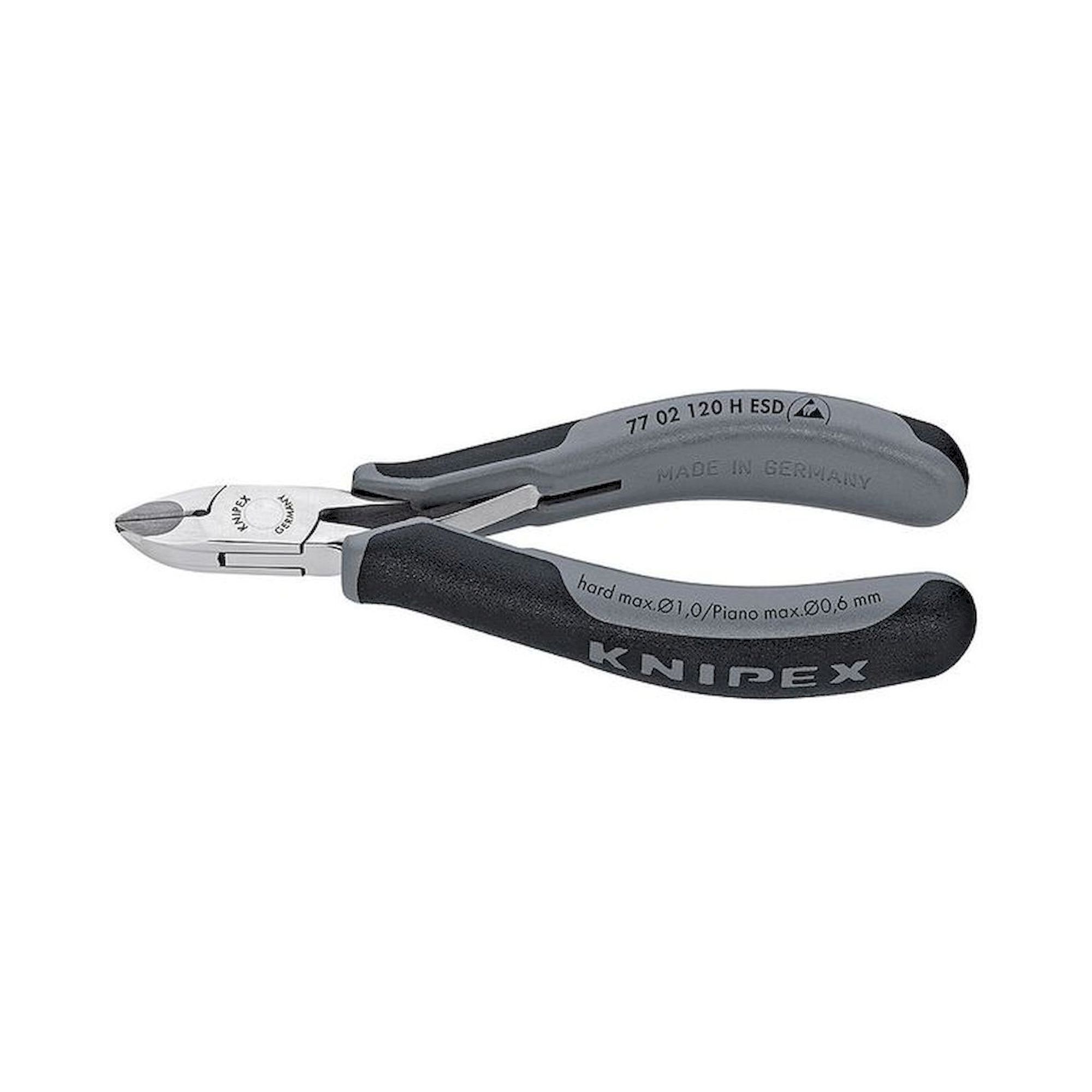

Electronics diagonal cutter ESD with inset carbide cutting edges, hard wire Ø 1.0 mm, 120 mm - Knipex 77 02 120 H ESD

Cutting piano, nickel, tungsten or diode wire in electronics and aerospace production wears out conventional cutting edges fast. The 77 02 120 H ESD diagonal cutter works with precision carbide cutting edges soldered into forged blanks and cuts hard wire up to Ø 1.0 mm.

Benefits

• Precision carbide metal cutting edges soldered into forged blanks, made for hard and tough materials.
• Hardness of the carbide cutting edges 80 to 83 HRC, giving a substantially longer service life than conventional edges.
• Cutting capacities up to Ø 1.4 mm on medium hard wire, Ø 1.0 mm on hard wire and Ø 0.6 mm on piano wire, soft wire up to Ø 2 mm.
• Sturdy zero-backlash box joint for consistently accurate cuts.
• Constantly reliable results because cutter deformation caused by overloading is avoided.
• Electrically dissipative handles for workplaces to DIN EN 61 340-5.

Areas of use

Electronics manufacturing and the aerospace industry, wherever hard or tough wire has to be cut on assemblies. The longer service life of the carbide edges reduces tooling costs in series production.

Standards and conformity

The manufacturer states DIN ISO 9654 for diagonal cutters and DIN EN 61 340-5 for the protection of electrostatic discharge sensitive devices. According to the manufacturer the pliers contain no substances of very high concern under REACH, the RoHS directive does not apply.
