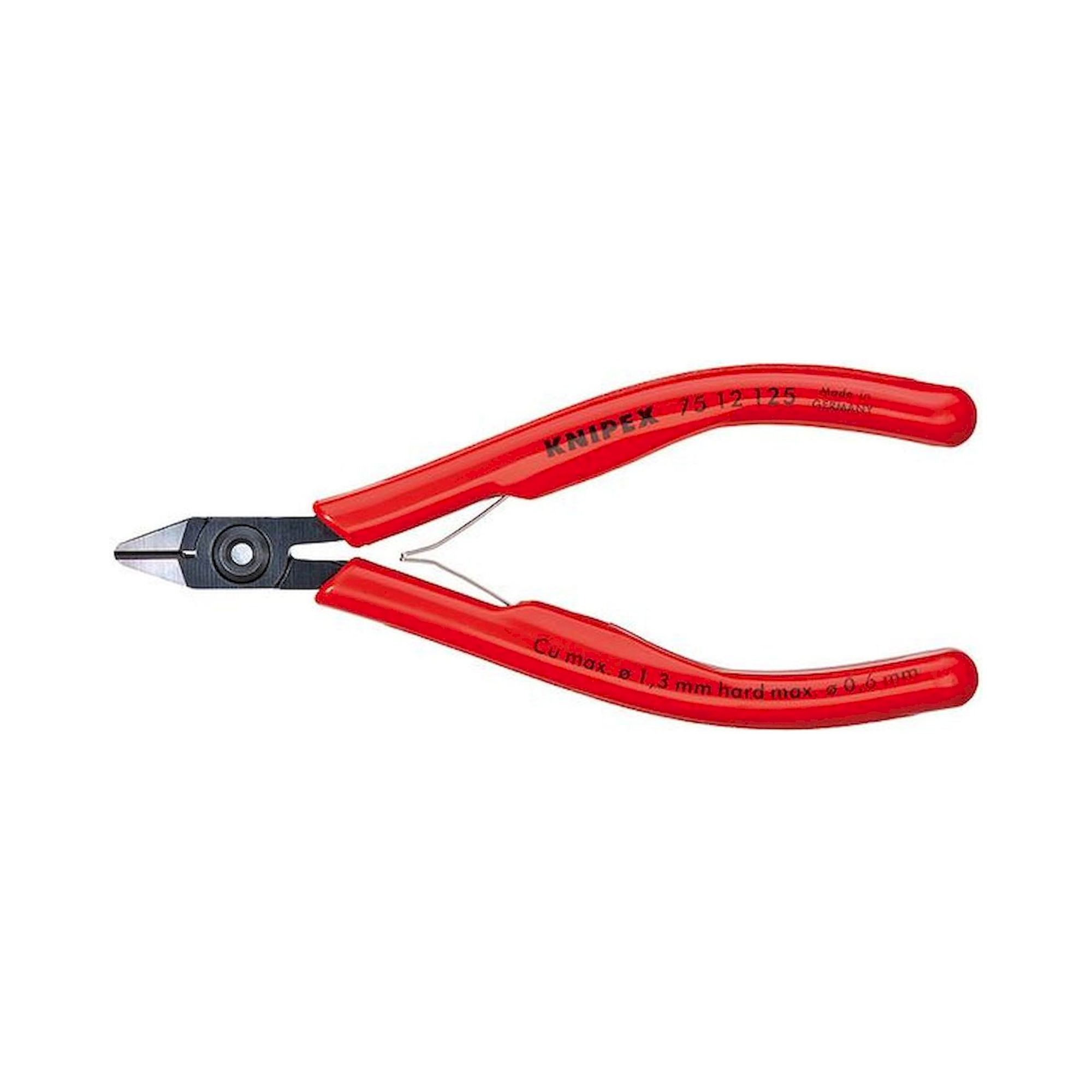

Electronics diagonal cutter with bolted joint for wire up to Ø 1.0 mm, 125 mm - Knipex 75 12 125

On densely populated boards the cutter has to reach right up to the component without touching its neighbours. The 75 12 125 electronics diagonal cutter has a head only 10.5 mm wide and jaws 14 mm long, and cuts wire from Ø 0.2 to 1.3 mm.

Benefits

• Sharp, ground cutting edges for soft and hard wire as well as piano wire, hard wire up to Ø 0.6 mm, piano wire up to Ø 0.4 mm.
• Edges additionally induction-hardened, cutting edge hardness approx. 62 HRC for a long service life on fine cuts.
• Narrow head of 10.5 mm and slim jaws 6.5 mm thick at the joint reach into densely packed assemblies.
• Low-friction double spring opens the pliers smoothly and evenly, which relieves the hand over many consecutive cuts.
• Bolted joint guides the edges precisely, 125 mm overall length at only 80 g.
• Built to DIN ISO 9654 with plastic grips on the handles.

Technical data

Areas of use

Electronics manufacturing and precision engineering, repair and rework on populated circuit boards, prototype assembly in the laboratory, model making and fine mechanics.

Standards and conformity

The pliers are built to DIN ISO 9654. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
