Electronics diagonal cutter for the finest cutting work in electronics and precision mechanics. The ground and induction hardened edges reach approx. 62 HRC and cut soft wire from 0.2 to 1.3 mm dia., hard wire up to 0.6 mm dia. and piano wire up to 0.4 mm dia. The head is only 10.5 mm wide and a low friction double spring keeps long sessions easy.

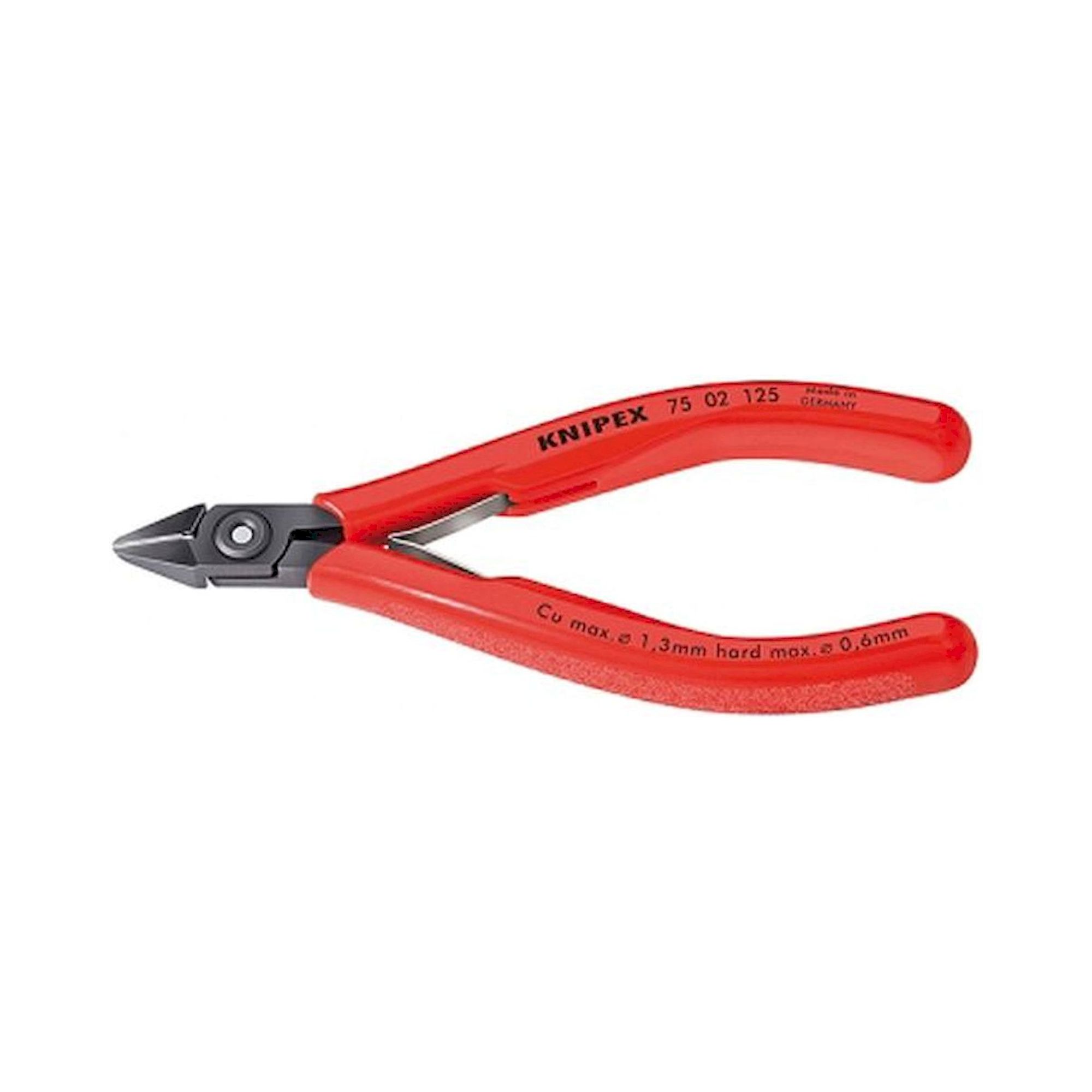

Electronics diagonal cutter with bolted joint, edges approx. 62 HRC, 125 mm - Knipex 75 02 125
KNIPEX
Original product
Net price (excl. VAT)
€35.68
Item
WL23699
Manufacturer no.
75 02 125
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.75 02 125
EAN4003773043720
ConditionNew
Article
WL23699
Frequently Bought Together
In precision mechanics the last tenth of a millimetre decides. The 75 02 125 electronics diagonal cutter still cuts piano wire up to 0.4 mm dia. with ground and induction hardened edges of approx. 62 HRC, while its 10.5 mm head width keeps it slim enough for densely populated assemblies.
Benefits
- For the finest cutting work, for example in electronics and precision mechanics.
- Sharp ground cutting edges for soft and hard wire as well as piano wire, soft wire from 0.2 to 1.3 mm dia.
- Cutting edges additionally induction hardened, cutting edge hardness approx. 62 HRC for a long service life.
- Low friction double spring for smooth and even opening, which relieves the hand over many consecutive cuts.
- Bolted joint of the 75 series, jaw thickness at the joint of 6.5 mm with a jaw length of 14 mm.
- Head width of only 10.5 mm, total weight 80 g at 125 mm length.
Technical data
| EAN | 4003773043720 |
|---|---|
| Pliers | burnished |
| Handles | with plastic sleeves |
| Weight | 80 g |
| Dimensions | 125 x 60 x 18 mm |
| Standard | DIN ISO 9654 |
| Cutting capacity soft wire (diameter) | Ø 0.2 - 1.3 mm |
| Cutting capacity medium hard wire (diameter) | Ø 1.0 mm |
| Cutting capacity hard wire (diameter) | Ø 0.6 mm |
| Cutting capacity piano wire (diameter) | Ø 0.4 mm |
| Jaw length (B) | 14 mm |
| Jaw thickness (at the joint) (D) | 6.5 mm |
| Head width (A) | 10.5 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Board assembly and repair, precision mechanics, model making, laboratory work and prototyping. The narrow head fits between closely spaced components and the piano wire rating also covers spring steel wires.
Standards and conformity
The electronics diagonal cutter complies with DIN ISO 9654. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN ISO 9654 |
|---|---|
| Manufacturer Nr. | 75 02 125 |
| Manufacturer | Knipex |
| EAN | 4003773043720 |
| Weight | 0.080000 |
| Height | 18 mm |
| Width | 60 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 125.000000 |
