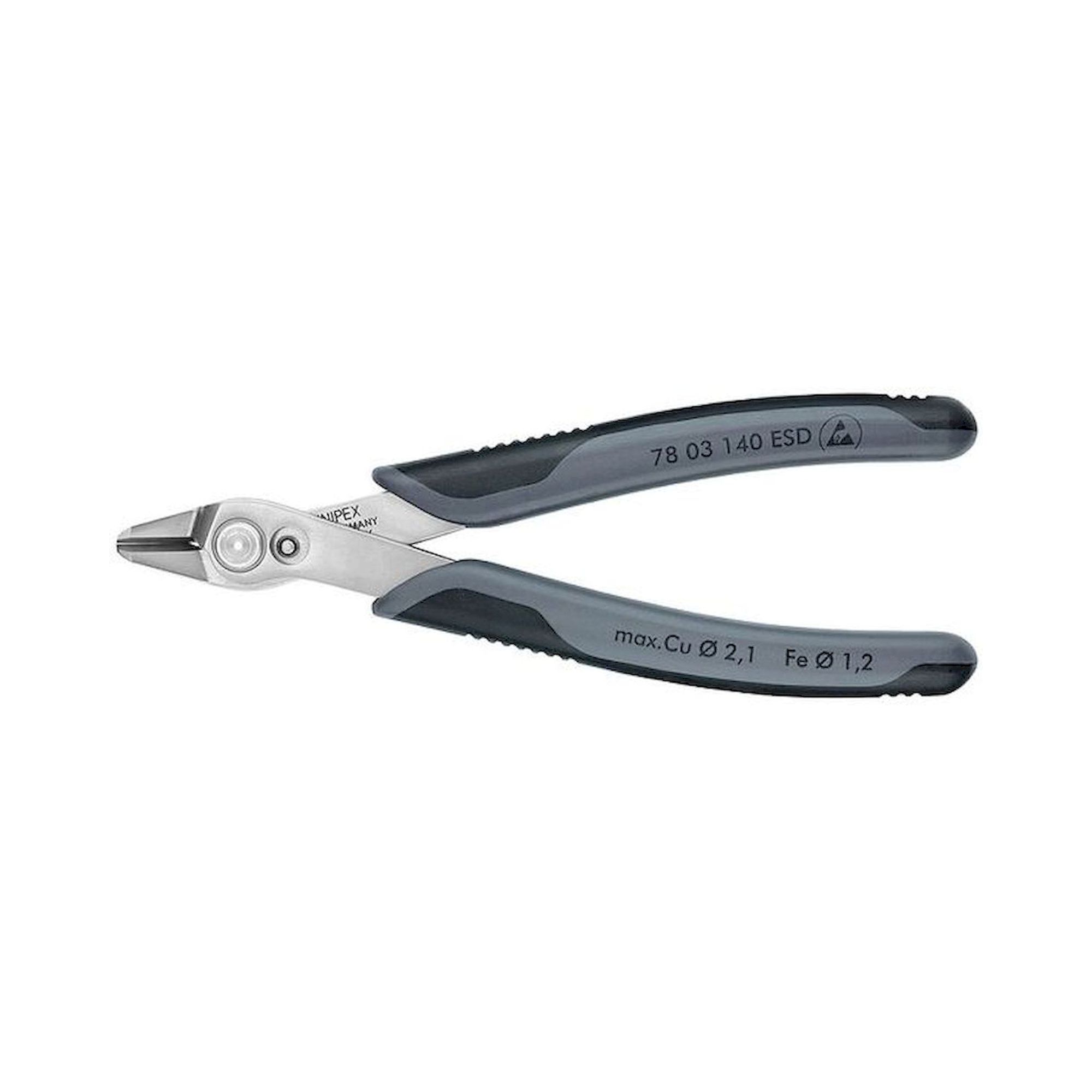

ESD electronics side cutter Electronic Super Knips XL to DIN EN 61 340-5, 140 mm - Knipex 78 03 140 ESD

At an EPA workstation no tool may interrupt charge dissipation. The Electronic Super Knips XL 78 03 140 ESD is designed for workplaces to DIN EN 61 340-5 and still cuts wires lying flat against a surface from 0.2 mm dia. as precisely as the standard version.

Benefits

• ESD version to DIN EN 61 340-5, which allows use at electrostatic protected workplaces.
• An additional 15 mm of length over the short version brings greater stability and greater cutting performance.
• Ground, very sharp cutting edges without bevel for ultra fine cutting work in electronics and precision mechanics, in particular for cutting cable ties to length.
• Shear cut with controlled micro cutting edge offset for a long service life and a highly precise cut on even the thinnest wires.
• Precisely shaped tips also cut wires close to a surface from 0.2 mm dia., soft wire up to 2.1 mm dia., medium hard wire up to 1.2 mm dia.
• Extremely smooth movement with opening spring and opening limiter, joint with stainless steel rivet, weight only 77 g.

Technical data

Areas of use

PCB assembly and rework inside the EPA, repair of electronic modules, laboratory and test bench work as well as precision mechanics. Wherever sensitive components have to be protected against electrostatic discharge.

Standards and conformity

The pliers are declared as an ESD tool to DIN EN 61 340-5. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
