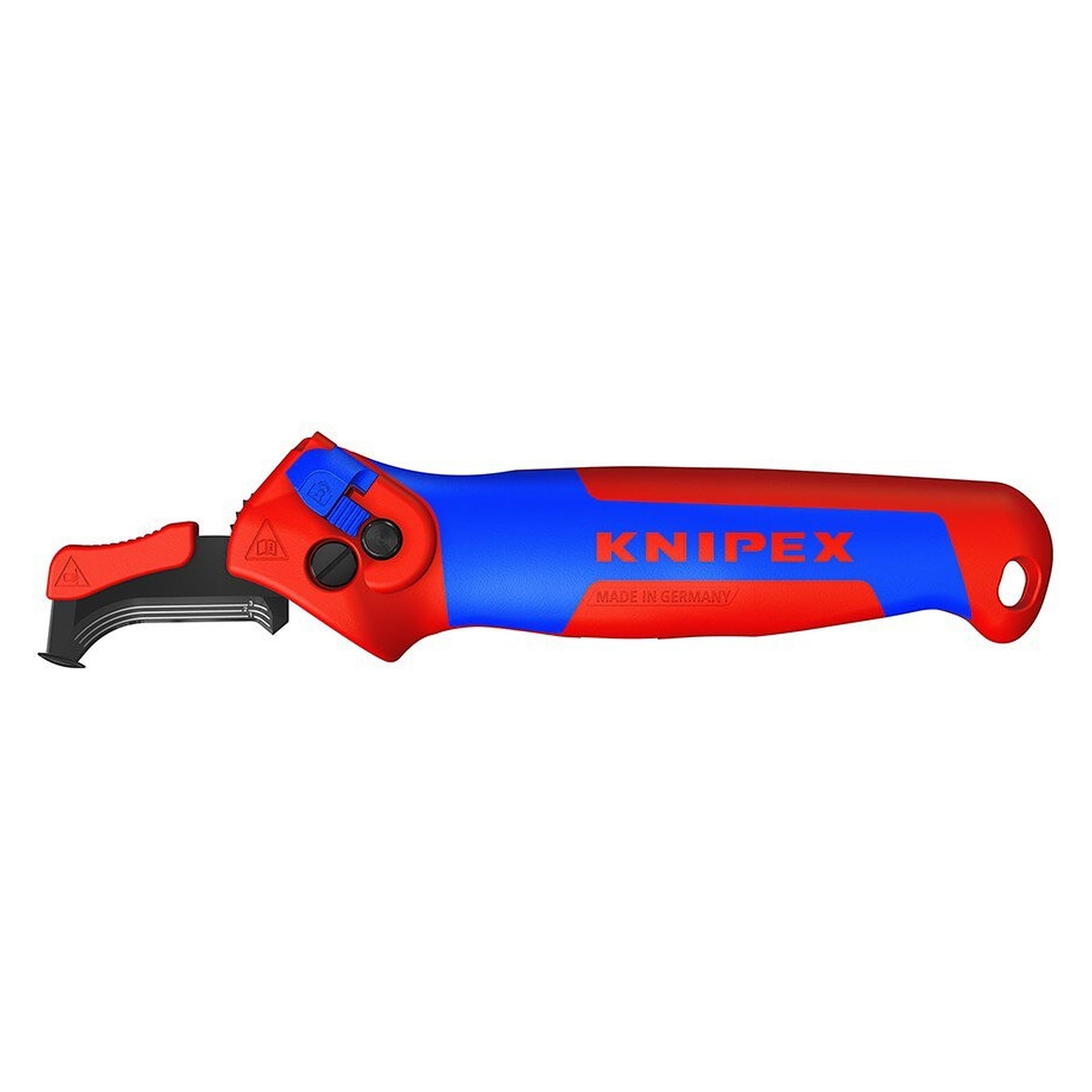

Dismantling knife with sliding shoe and ratchet function, sheaths up to 7 mm wall thickness - Knipex 16 50 145 SB
Dismantling knife with ratchet function that cuts even very hard and tough plastic sheaths up to 7 mm wall thickness. The sliding shoe protects the conductor insulation under the sheath. The hook blade has three cutting zones for circumferential and longitudinal cuts.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

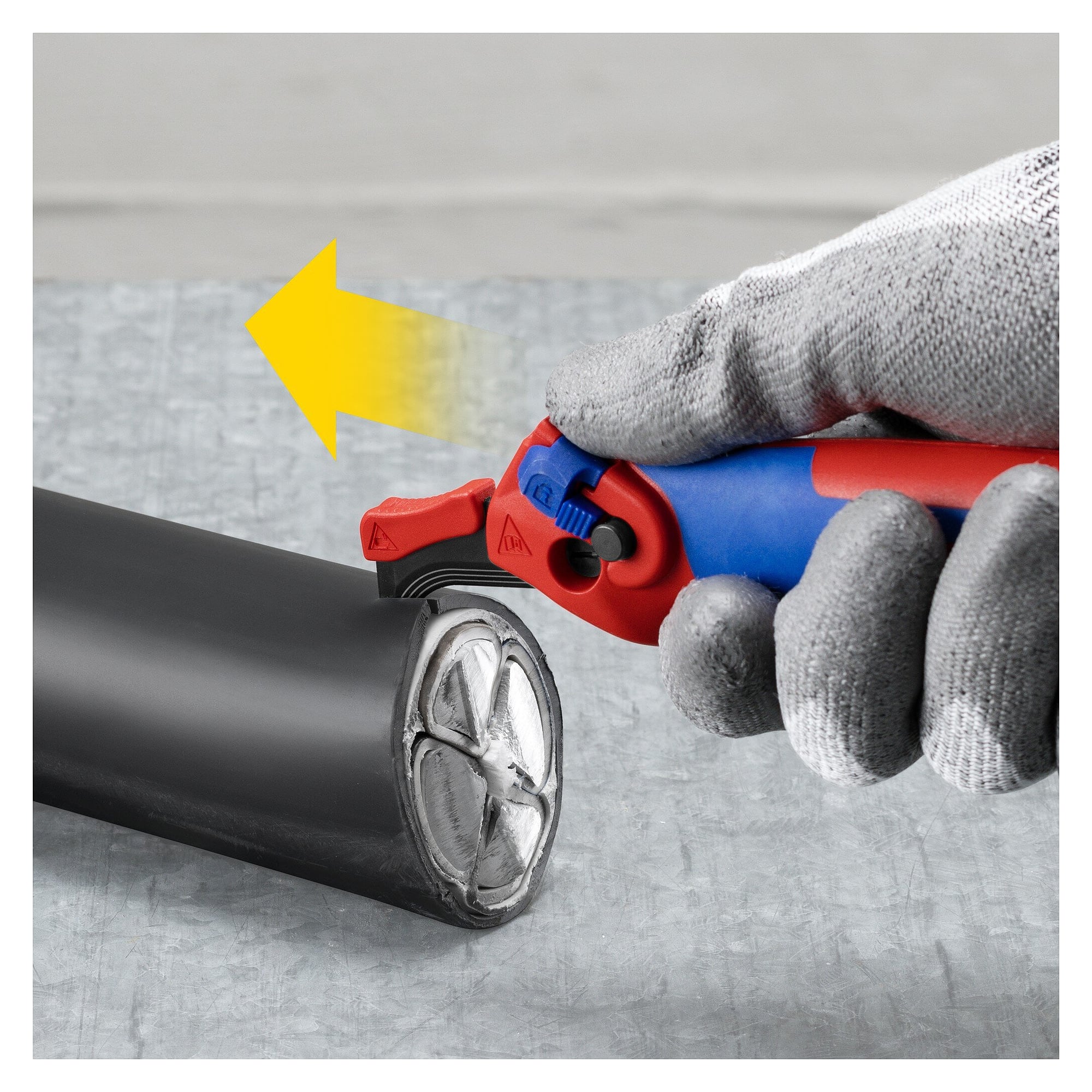

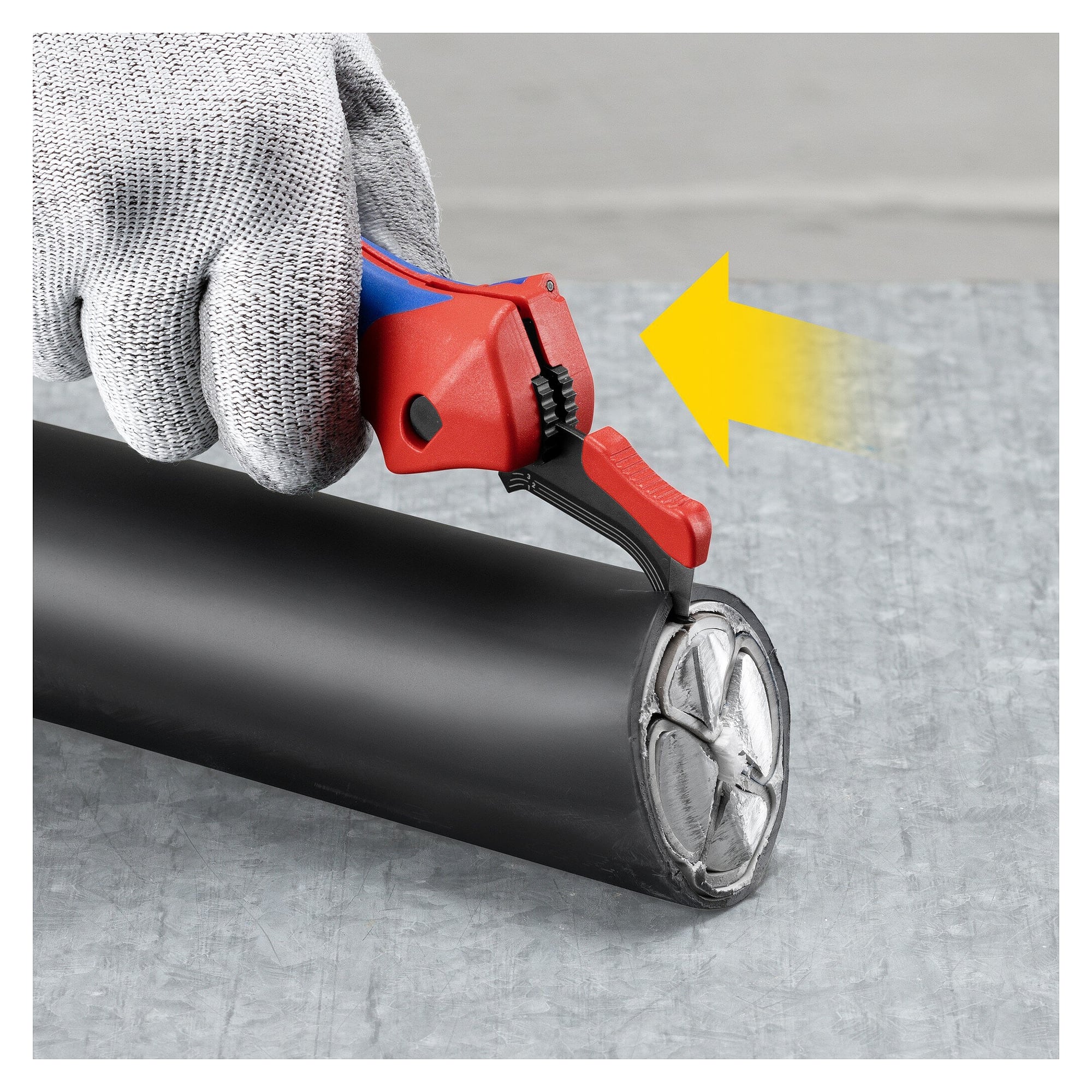

Opening thick cable sheaths by hand takes effort, and a cut too deep damages the cores underneath. The 16 50 145 SB dismantling knife handles both: the ratchet eases the cut through sheaths up to 7 mm wall thickness, while the sliding shoe keeps the blade away from the core insulation.
Benefits in use
- Ratchet function for easy cutting even of very tough cable sheaths up to 7 mm wall thickness.
- Sliding shoe protects the conductor insulation under the sheath.

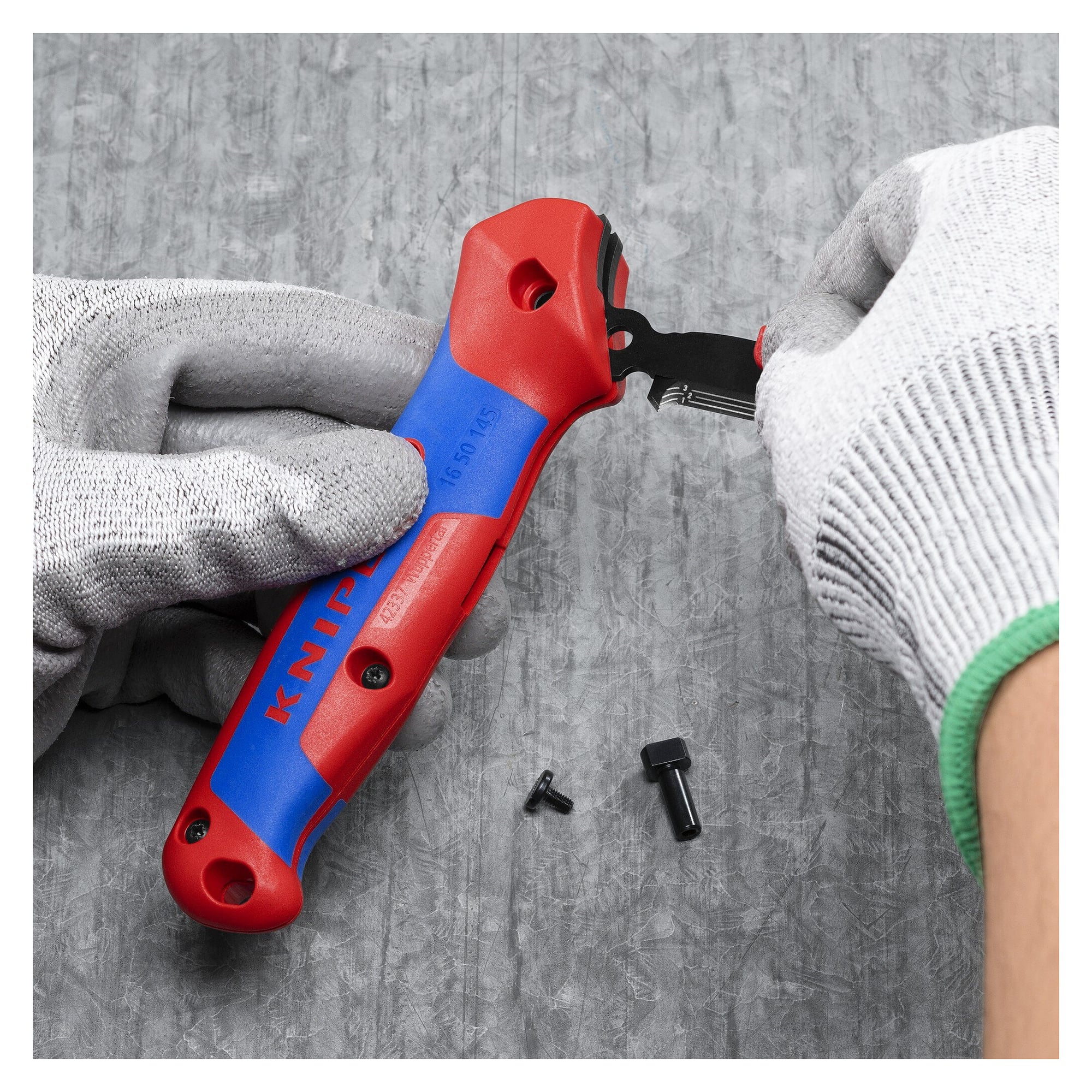

- Hook blade with three cutting zones for circumferential and longitudinal cuts, blade length 45 mm, replaceable.

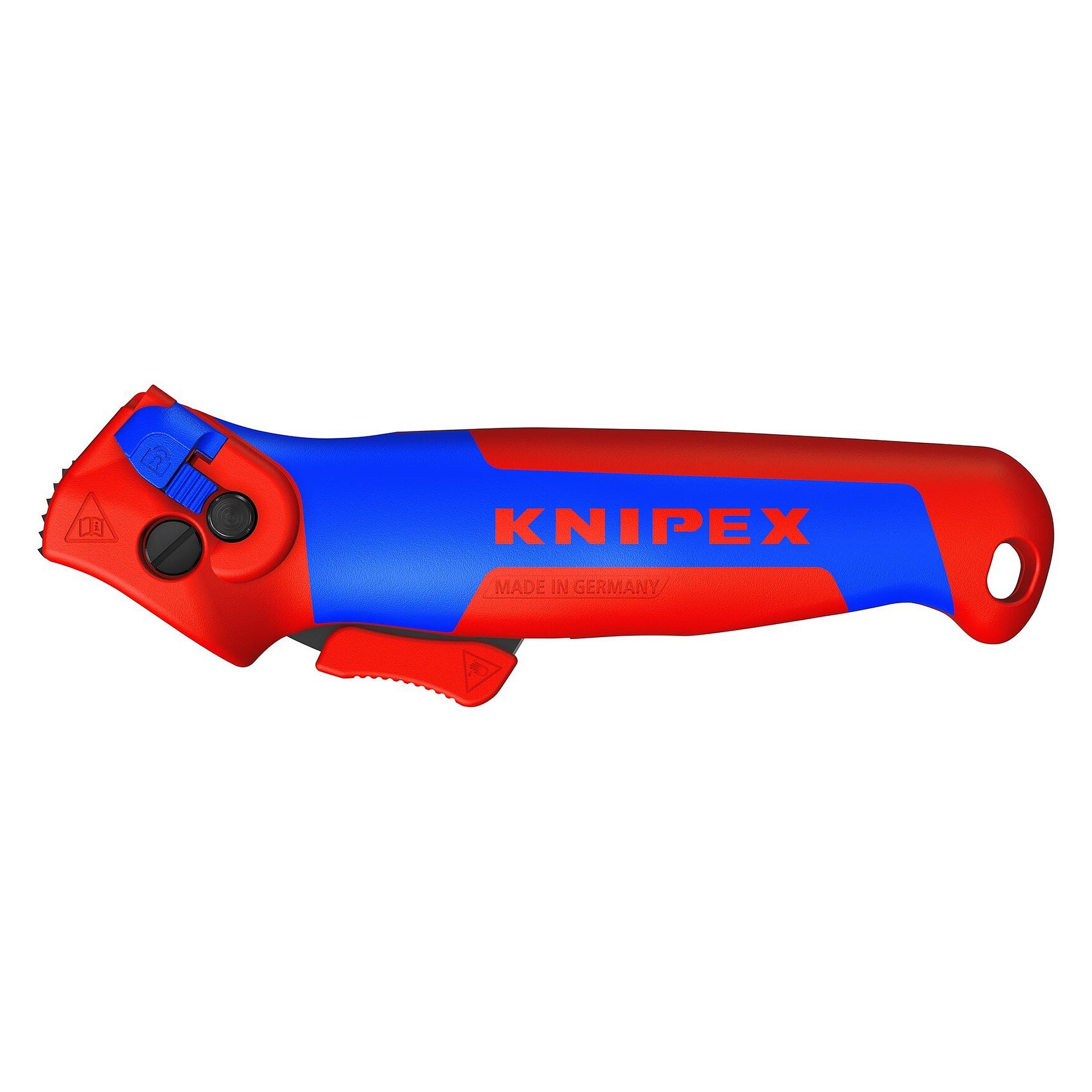

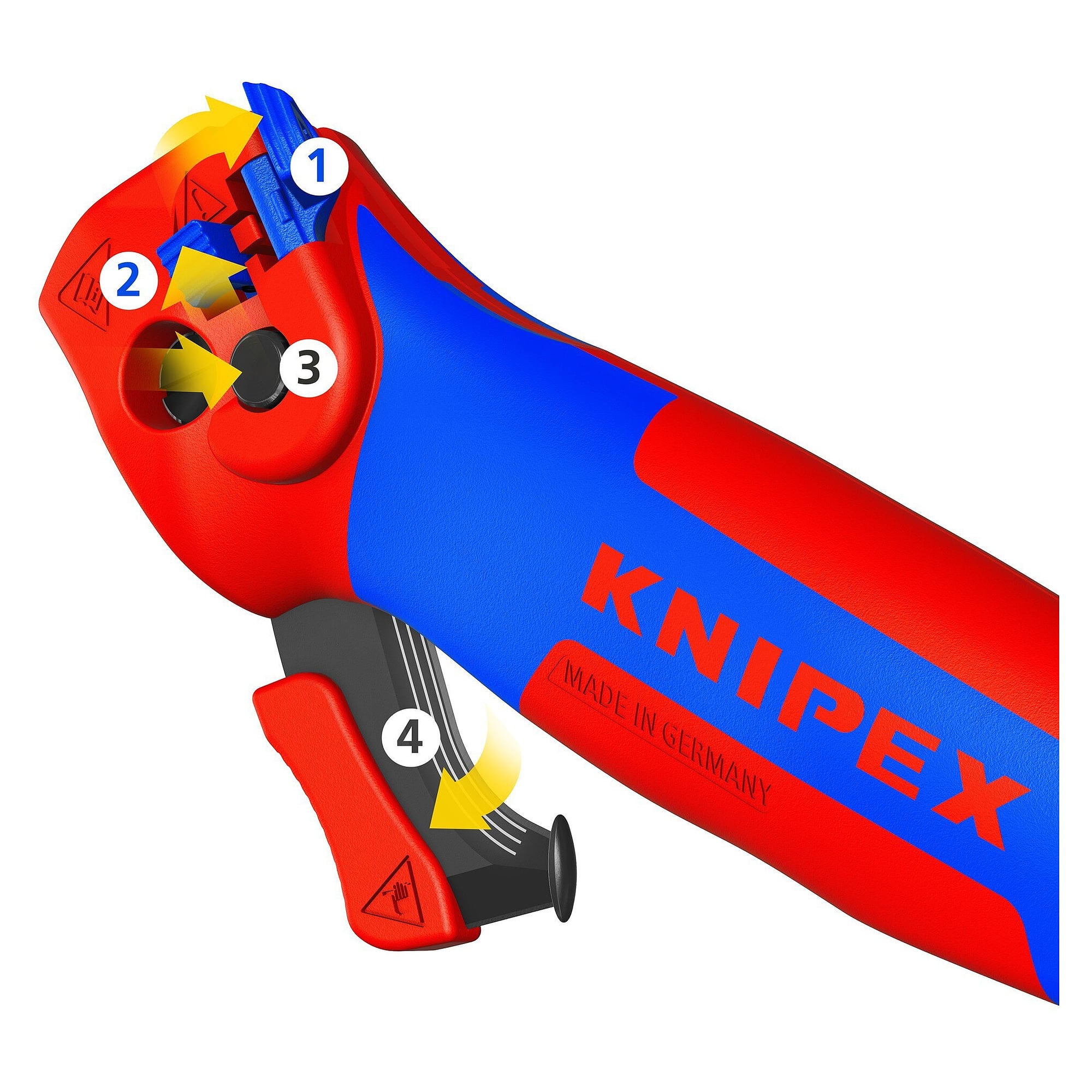

- Four blade locking positions: folded, straight, angled and free-moving.
- Three-stage blade lock for safe handling and transport.
- Integrated eyelet for a fall protection tether, weight 120 g.
Applications

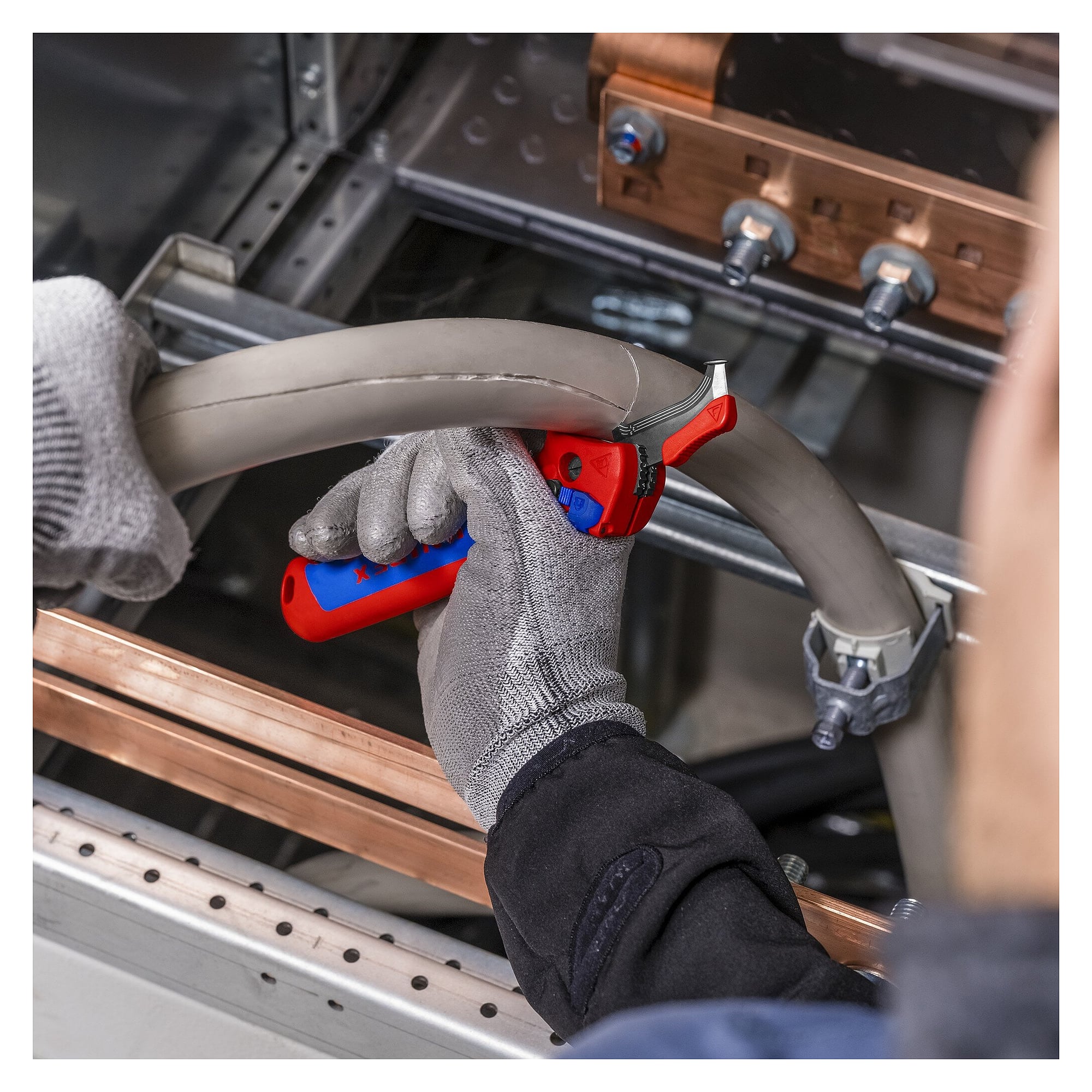

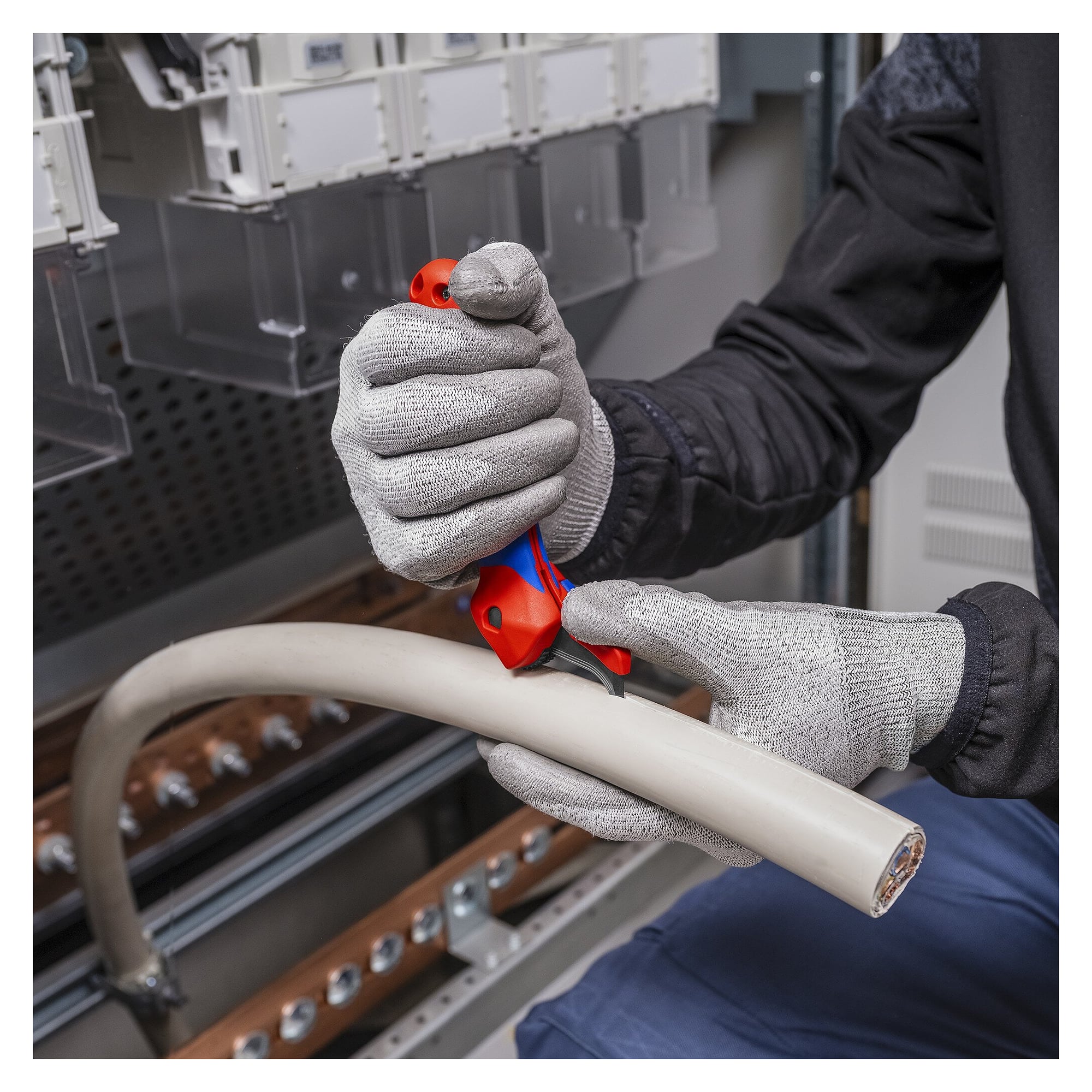

Electrical installation, stripping installation, control and power cables, cable assembly, industrial and plant installation.
Technical data
| Manufacturer | Knipex |
|---|---|
| Tool type | Dismantling knife with sliding shoe and ratchet function |
| Blade length | 45 mm |
| Blade | replaceable sickle-shaped hook blade, folding |
| Cutting zones | 3, for circumferential and longitudinal cuts |
| Max. sheath wall thickness | 7 mm |
| Blade locking positions | 4: folded, straight, angled, free-moving |
| Blade lock | three-stage |
| Tethering eyelet | yes |
| Handle | with multi-component sleeves |
| ESD-safe | no |
| RoHS compliant | no |
| Dimensions (L x W x H) | 146 x 30 x 42 mm |
| Net weight | 120 g |
| Sales unit | 1 piece |
| Weight | 0.101 kg |
| Manufacturer Nr. | 16 50 145 SB |
| HS-Code | 82119200 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
One 16 50 145 dismantling knife on SB card.
