Other versions
| item number | tether attachment point |
| WL61356 | ja |
| WL61357 | nein |

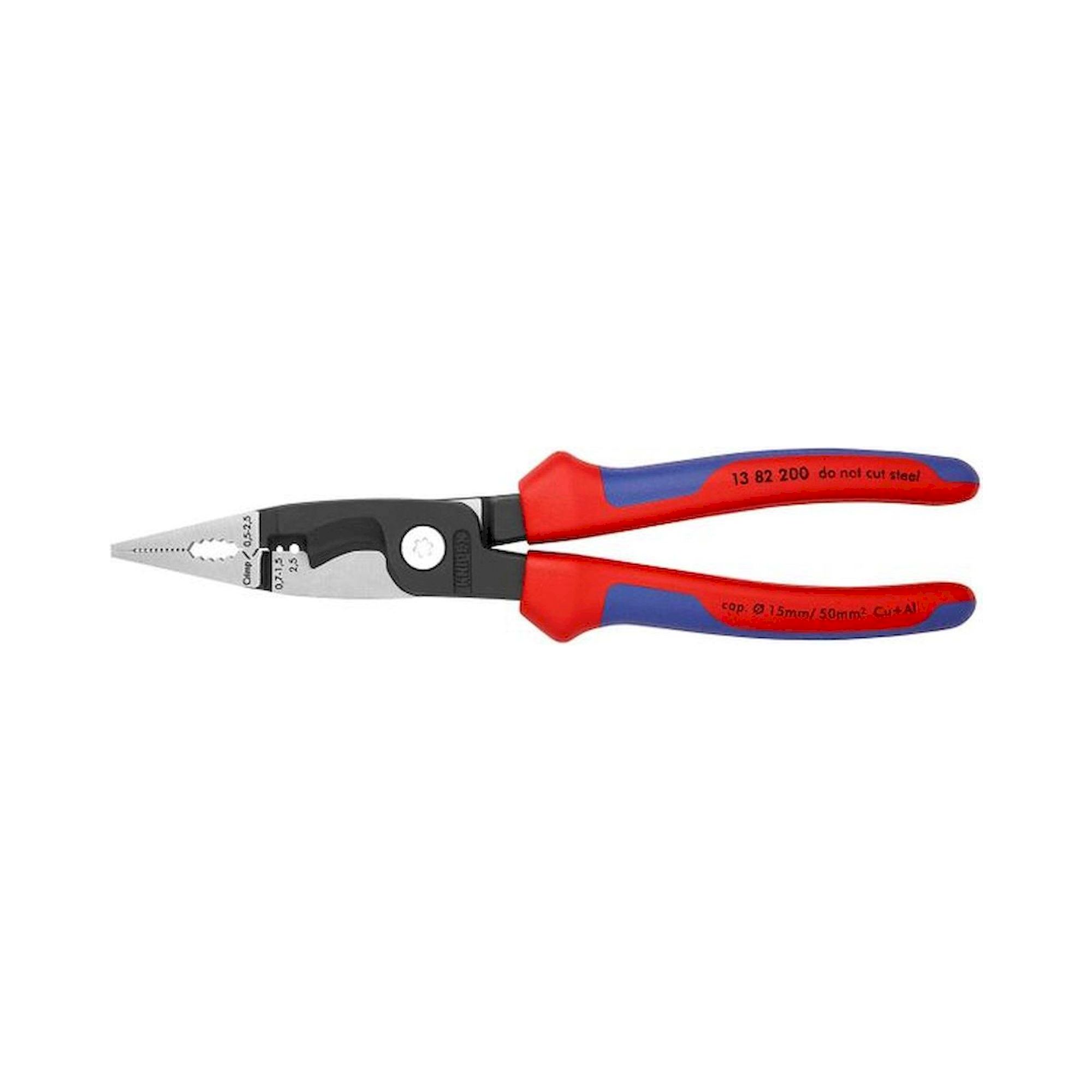

6 functions in one pair of pliers. Multifunctional pliers for electrical installation; for gripping flat and round material, bending, deburring, cable cutting, stripping and crimping wire-end ferrules. Smooth gripping surfaces at the tip for damage-free gripping of single wires; profiled gripping surfaces and burner hole for gripping flat and round material. Distinctive outer edge on the gripping surfaces for working on flush-mounted boxes and deburring feed-through holes. Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm². Crimping nest for wire end ferrules 0.5 - 2.5 mm². Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm. Slim design for good accessibility. Bolted joint: precise, backlash-free operation of the pliers. - Cutting value Cu-cable, stranded: Ø 15mm - Cutting value Cu-cable, stranded: 50mm² - Stripping values for single wires: 0.75 - 1.5mm² / 2.5mm² - Capacity square millimetre: 0.5 - 2.5mm² - AWG: 1 / 0
- Smooth gripping surfaces at the tip for damage-free gripping of single wires
- Profiled gripping surfaces and burner hole for gripping flat and round material
- Distinctive outer edge on the gripping surfaces for processing flush-mounted boxes and deburring feed-through holes
- Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm²
- Crimping nest for wire end ferrules 0.5 - 2.5 mm²
- Cable shears with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
- Slim design for good accessibility
- screwed joint: precise, backlash-free operation of the pliers
Product details
| item number | WL61357 |
| model | 13 82 200 |
| manufacturer | KNIPEX |
| manufacturer item number | 13 82 200 |
| dimensions (LxWxH) | 255 mm x 85 mm x 20 mm |
| dimensions with packaging (LxWxH) | 211 mm x 66 mm x 30 mm |
| Packaging volume | 2.65 dm³ |
| order unit | piece |
| type of packaging | single pack |
| RoHS conform | no |
| surface | black atramentised |
| tether attachment point | nein |
| VDE | no |
| crimp profile | Mandrel crimp |
| Stripping value of single wires | 0,75 - 1,5 / 2,5 mm |
| jaw form | flat jaws |
| ESD safe | no |
| tool length | 200 mm |
| AWG | 1 / 0 |
| description head | polished |
| type of handle | with multi-component sleeves |
| Cutting value copper cable, multistranded | 50 mm² |
| Cutting value copper cable, multistranded (diameter) | 15 mm |
| type of pliers | electronic pliers |
