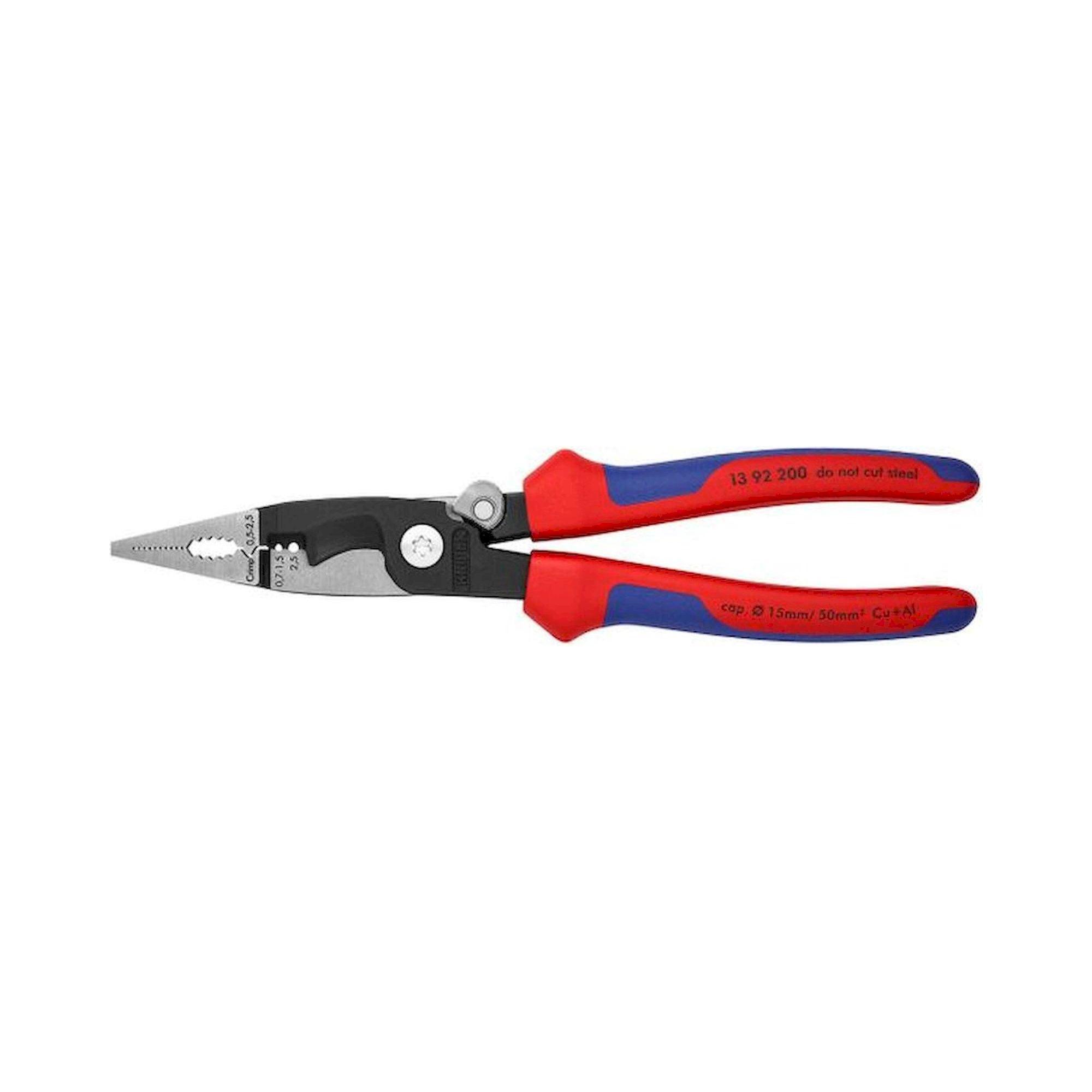

Pliers for Electrical Installation with latching mechanism and comfort handles, 200 mm - Knipex 13 92 200

Repetitive work on the distribution board demands a lot from hand and tool alike. The 200 mm pliers for electrical installation 13 92 200 keep the cutting edge closed while gripping thanks to the latching mechanism and cushion the hand force with comfort handles, while cutting copper cable up to 50 mm².

Benefits

• Six functions in one pair of pliers: gripping flat and round material, bending, deburring, cutting cable, stripping and crimping wire ferrules.
• Smooth gripping surfaces near the tips hold single cores without damage, profiled surfaces and a burner hole take flat and round material.
• Clear-cut outside edge for working on flush-mounted junction boxes and deburring feed-through holes.
• Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm², crimping die for wire ferrules of 0.5 - 2.5 mm².
• Cable shears with induction-hardened precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² or Ø 15 mm.
• Latching mechanism with opening spring keeps the cutting edge closed, plus comfort handles of three components with two KNIPEXtend interfaces.

Technical data

Areas of application

Electrical installation in residential and commercial buildings, control cabinet and distribution board assembly, service and maintenance. Wherever conductors up to 2.5 mm² are stripped, fitted with wire ferrules and terminated.

Standards and conformity

The pliers contain no substances of very high concern under REACH. The RoHS directive is not applicable to this product.
