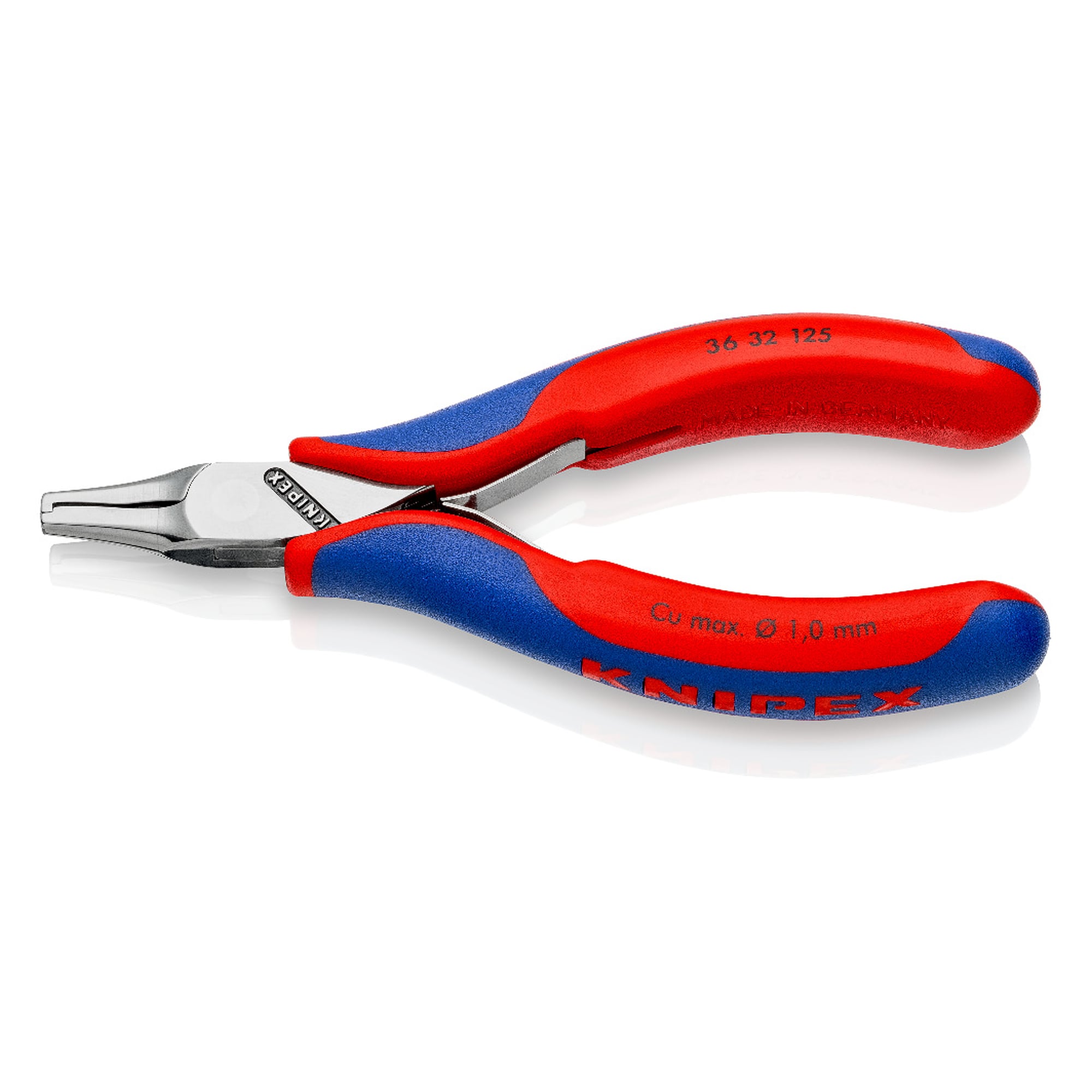

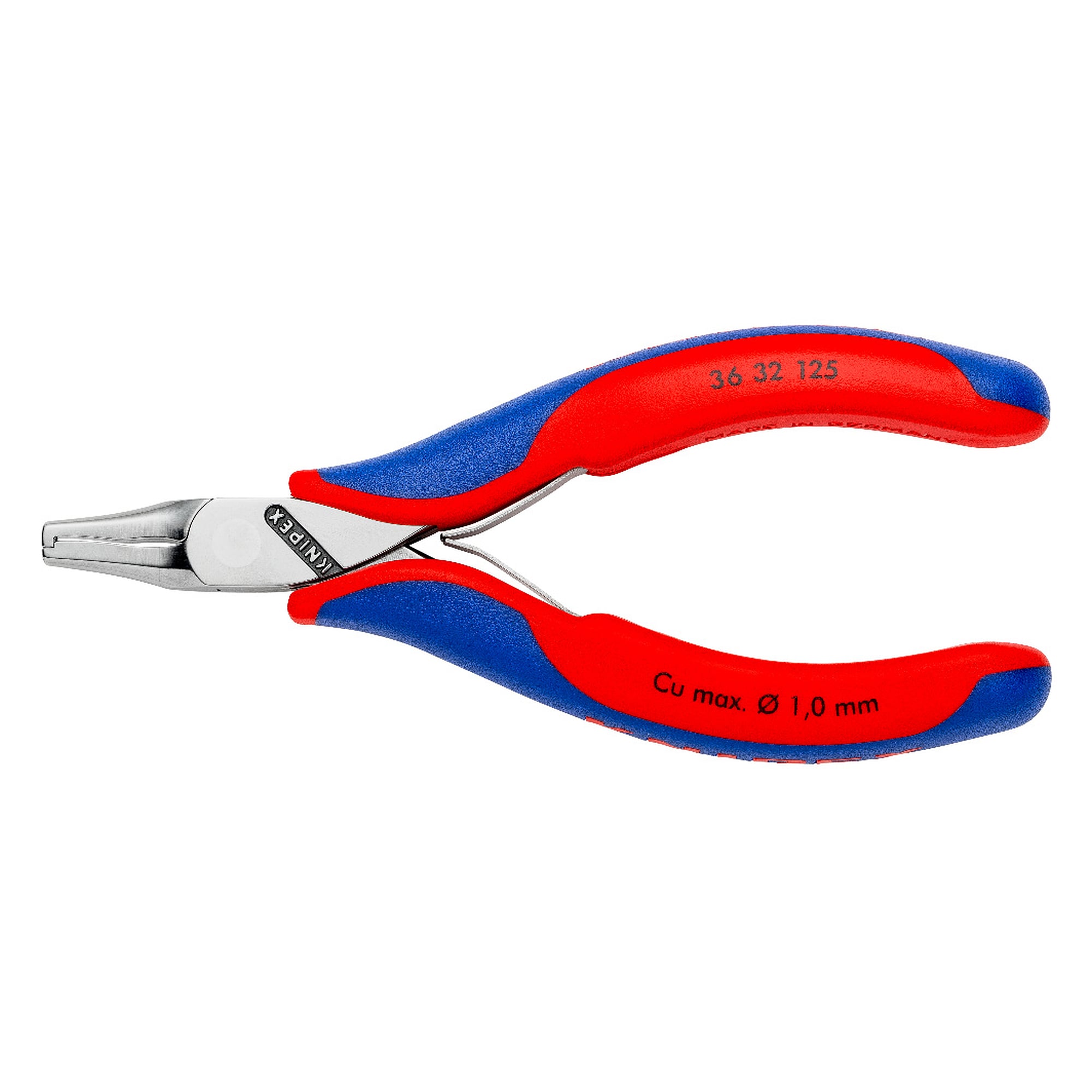

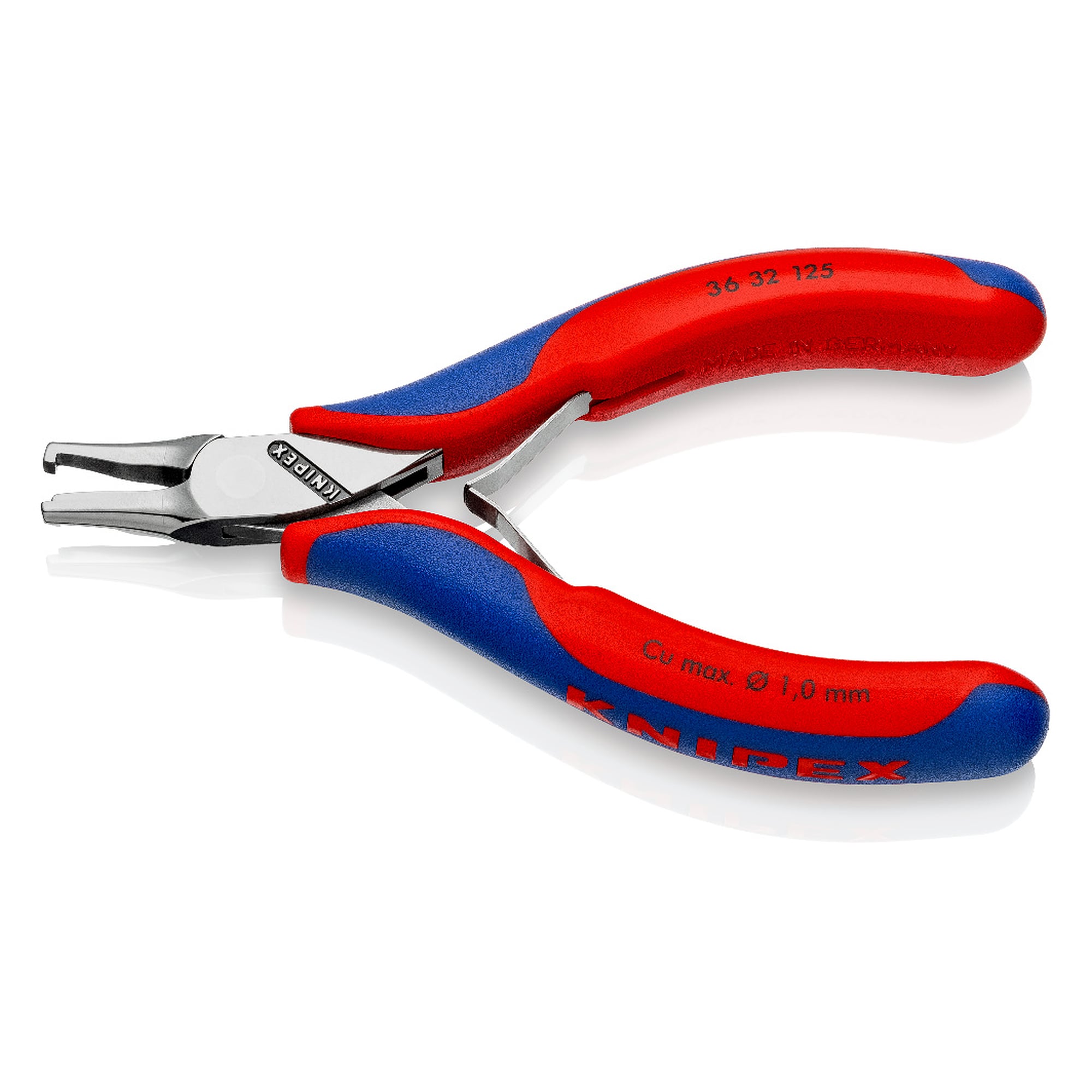

Electronics mounting pliers for crunching and shortening to 1.6 mm, 125 mm - Knipex 36 32 125

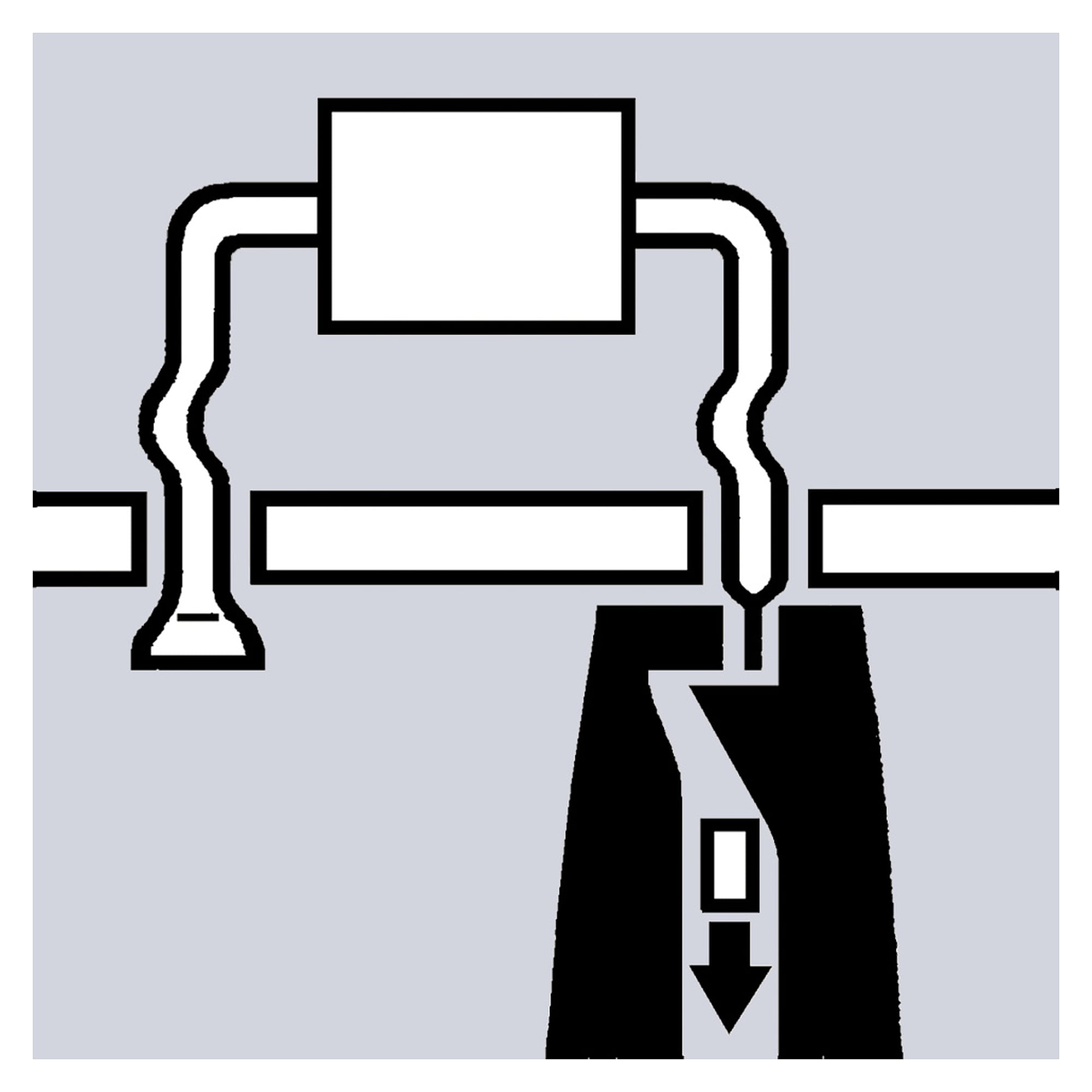

To stop a component slipping out of the board before soldering, the lead is crunched and cut on the underside. The 36 32 125 electronics mounting pliers do both in one step and shorten the wire below the board to 1.6 mm, cutting soft wire up to 1.0 mm dia.

Benefits

• For crunching and shortening wire ends below the board to 1.6 mm length.
• Robust, load-optimised construction with a through-pinned, backlash-free precision joint and uniform bending behaviour.
• Side angles carefully rounded, no sharp edges that could damage the material.
• A slim 3.0 mm tip and a head width of 11.0 mm also reach closely spaced components.
• Smooth ground gripping surfaces with deburred edges, plus a low-friction double spring for smooth and even opening.
• Mirror polished head with a fine oil film protects against rust. No chrome flakes come loose that could cause faults in the circuit.

Technical data

Areas of use

Board assembly and repair, precision mechanics, laboratory work and prototyping. The pliers suit every job where leads are secured before soldering and then cut to the same length.

Standards and conformity

According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
