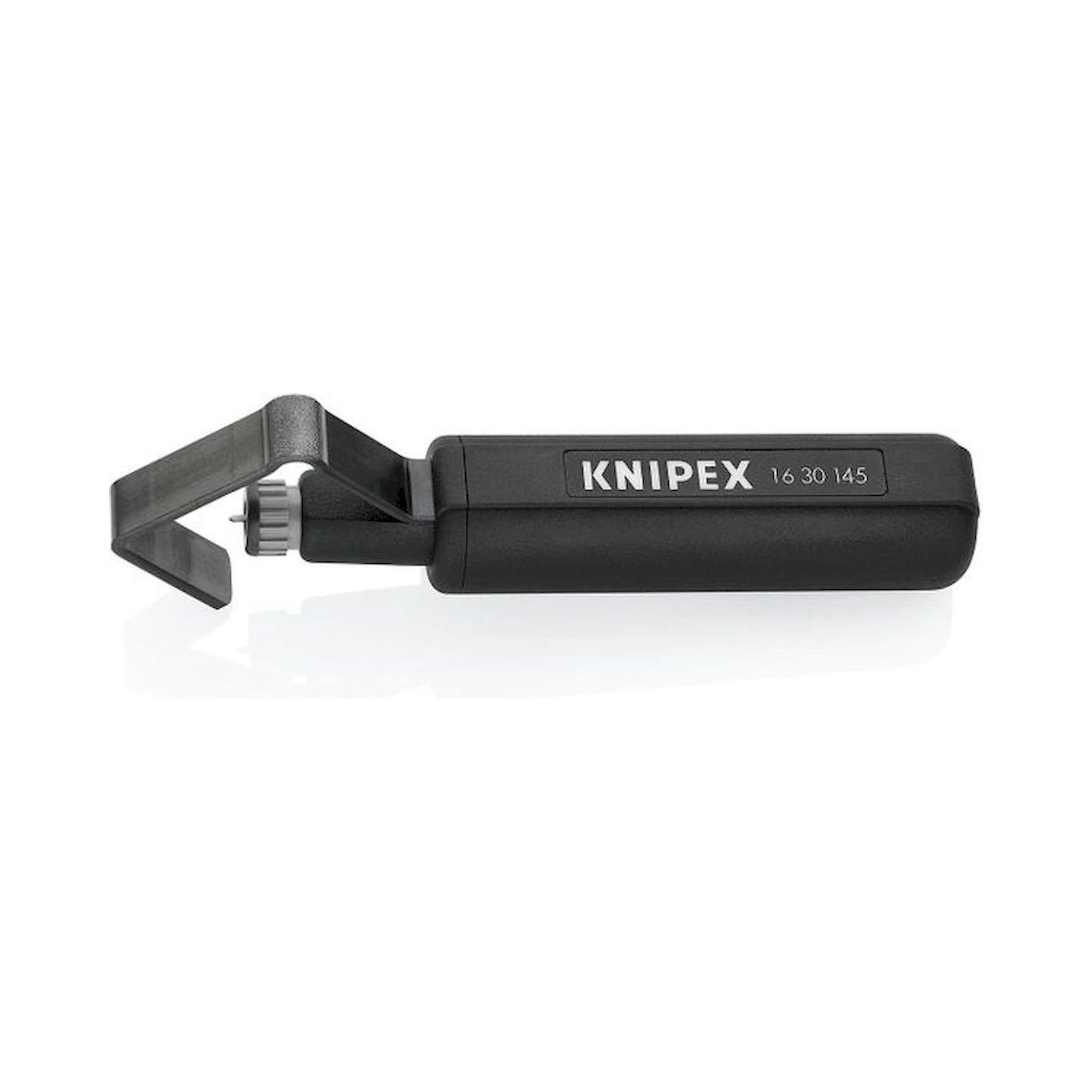

Stripping tool for spiral cutting on round cables 19.0 - 40.0 mm dia., 150 mm - Knipex 16 30 145 SB

On heavy supply cables a circular cut is often not enough, because a whole piece of sheath has to come off in the middle of the run. The 16 30 145 SB stripping tool cuts round cables from 19.0 to 40.0 mm diameter in a spiral as well and removes intermediate pieces in one operation.

Benefits

• For round cable sheaths made of PVC, rubber, silicone and PTFE in the range 19.0 to 40.0 mm diameter.
• Spiral cutting removes intermediate pieces without cutting the cable at one end.
• Turning the tool body changes from circular to longitudinal cutting without repositioning.
• Cutting depth adjusted with a knurled nut, no additional tool is needed for that.
• Self-tightening holding lever keeps the cable securely in position during the cut.
• Replaceable blade keeps the tool usable once the edge is worn, weight 140 g.

Areas of use

Distribution and switchgear building, cable assembly in industrial construction and service work on heavy round cables. The spiral cut pays off wherever branch points or repair spots have to be exposed in the middle of a run.

Standards and conformity

The manufacturer states no tool standard for this product. According to the manufacturer it contains no substances of very high concern under REACH, the RoHS directive does not apply.
