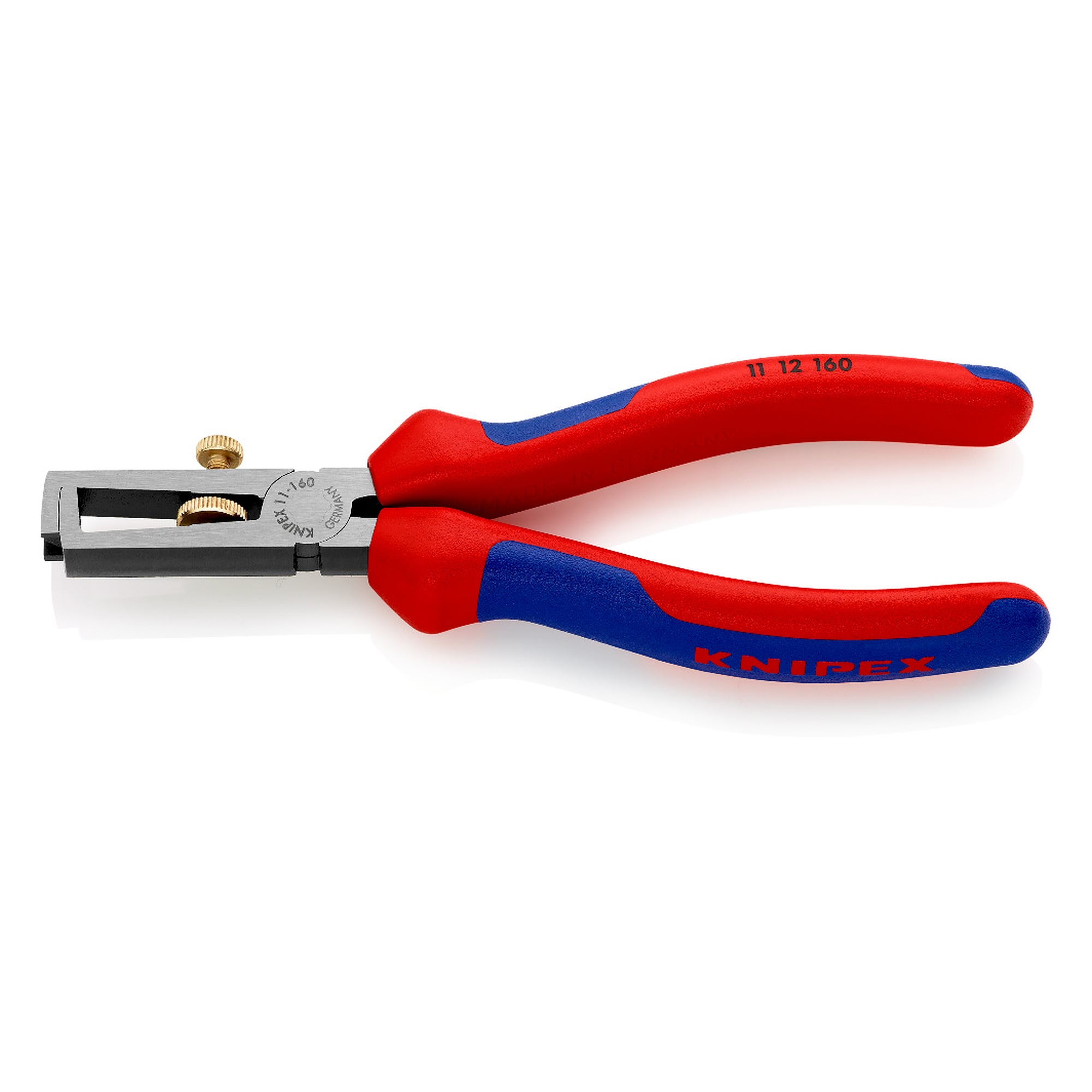

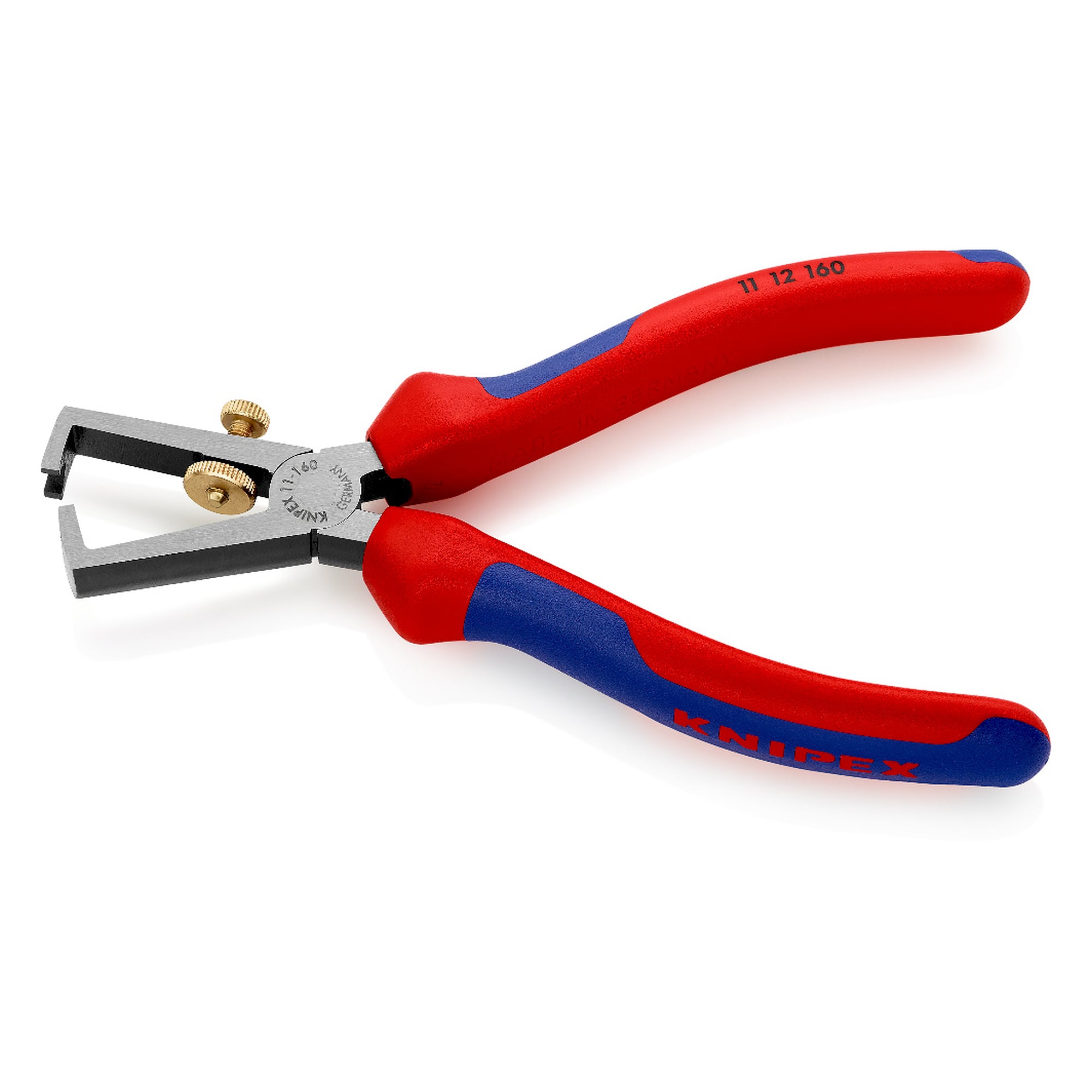

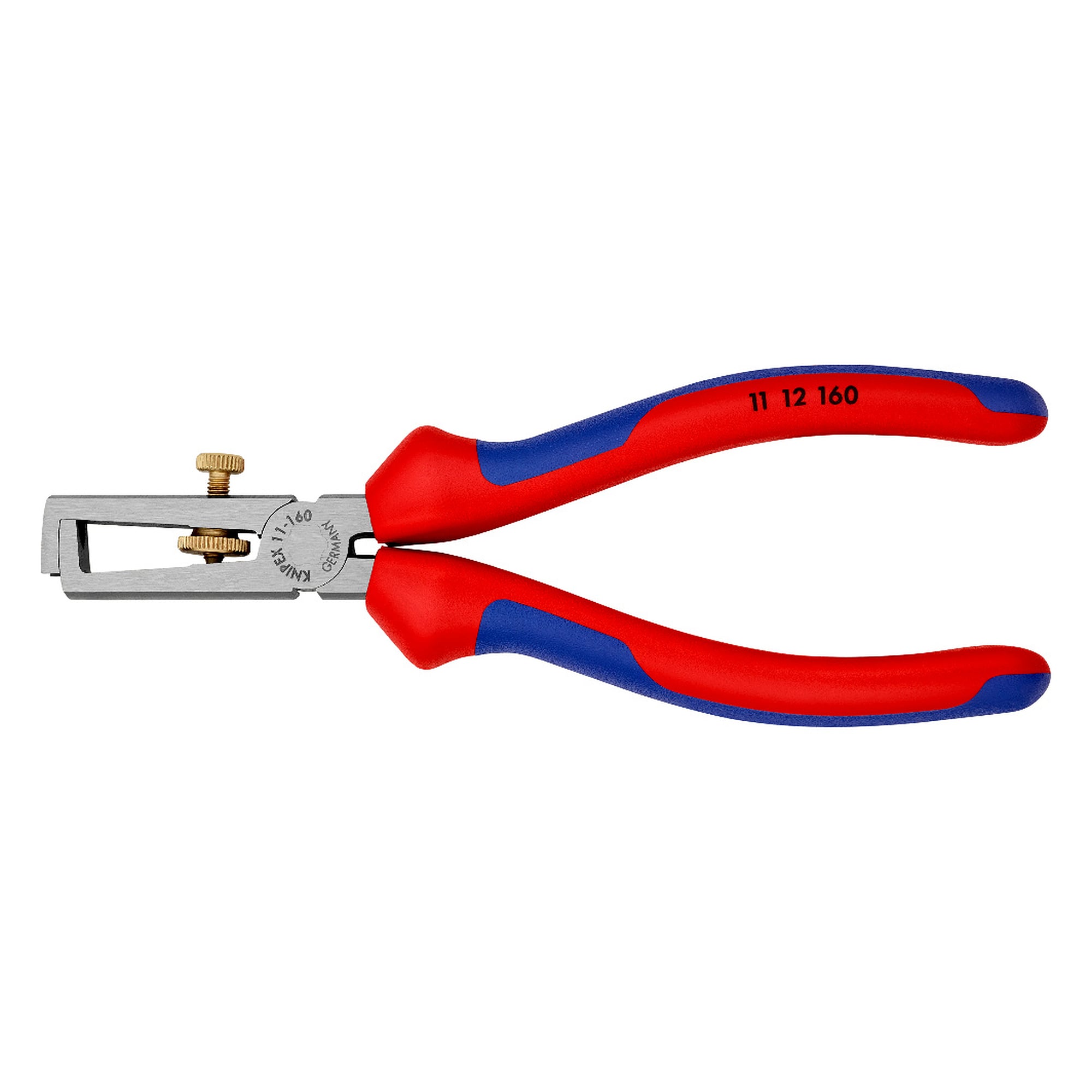

Universal insulation stripper for up to 10 mm², adjustable, black atramentized, 160 mm - Knipex 11 12 160

In electrical installation the cross-sections change from core to core. The 11 12 160 insulation stripper covers single, multi and fine stranded conductors with plastic or rubber insulation up to 5 mm diameter or 10 mm² cross-section with one single tool and is set exactly to the wire or strand diameter by knurled screw and lock nut.

Benefits

• Universal working range up to 10 mm² cross-section, matching AWG 8, one tool instead of several sizes.
• Easy adjustment to the required wire or strand diameter up to 5.0 mm by knurled screw and lock nut.
• The lock nut secures the setting, so the result stays constant over many identical cores in a row.
• Pliers black atramentized and head polished, a robust finish for daily work on site.
• Multi-component grips on the handles for a secure hold even during longer sessions.
• 160 mm long at 156 g, the lightest model of the range.

Technical data

Areas of use

Electrical installation, control cabinet and control system building, mounting of luminaires and devices, service and maintenance. For work on live parts the VDE tested version 11 06 160 is intended.

Standards and conformity

The manufacturer does not state a tool standard for this model, it is not VDE tested. According to the manufacturer the tool contains no substances of very high concern under REACH. The RoHS directive does not apply.
