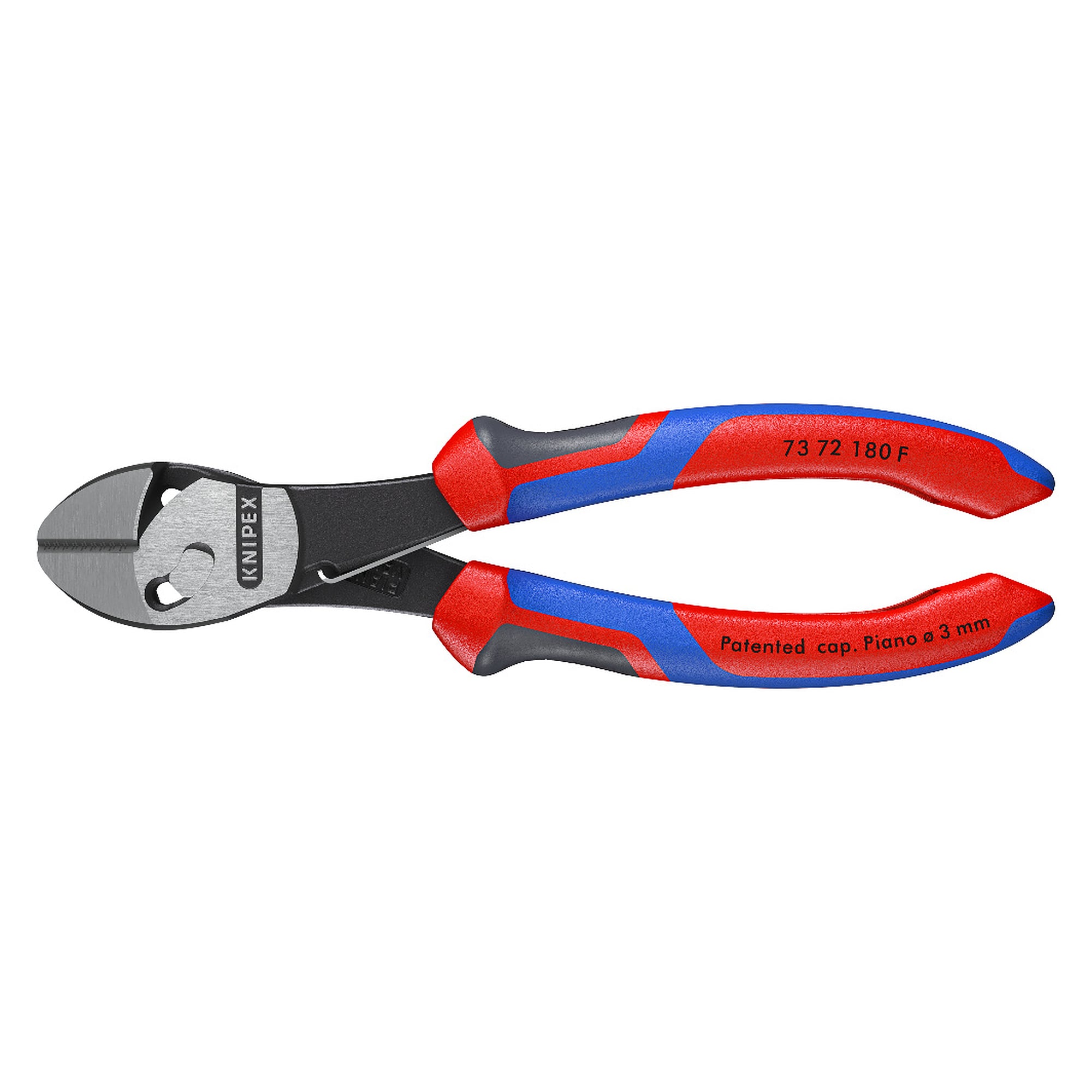

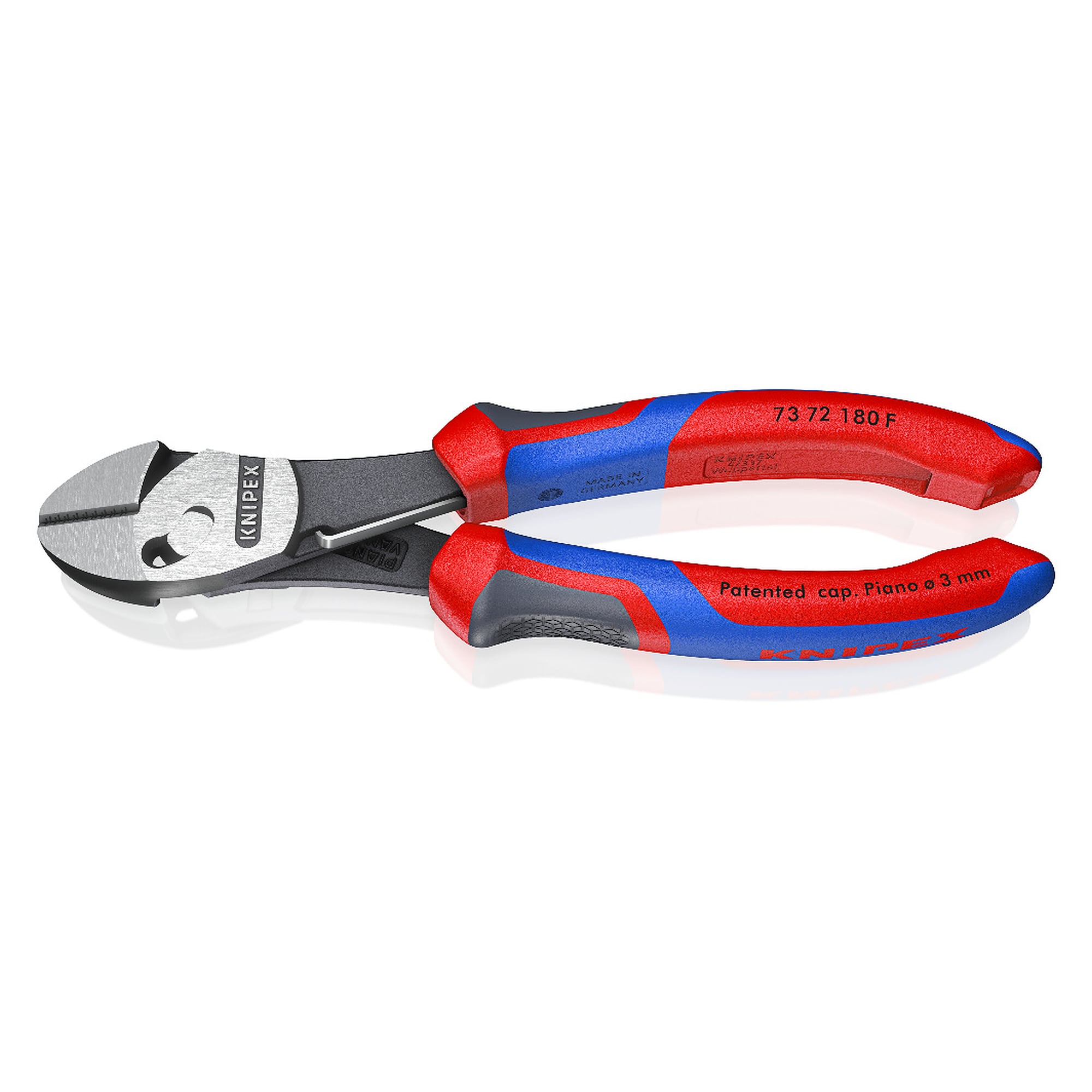

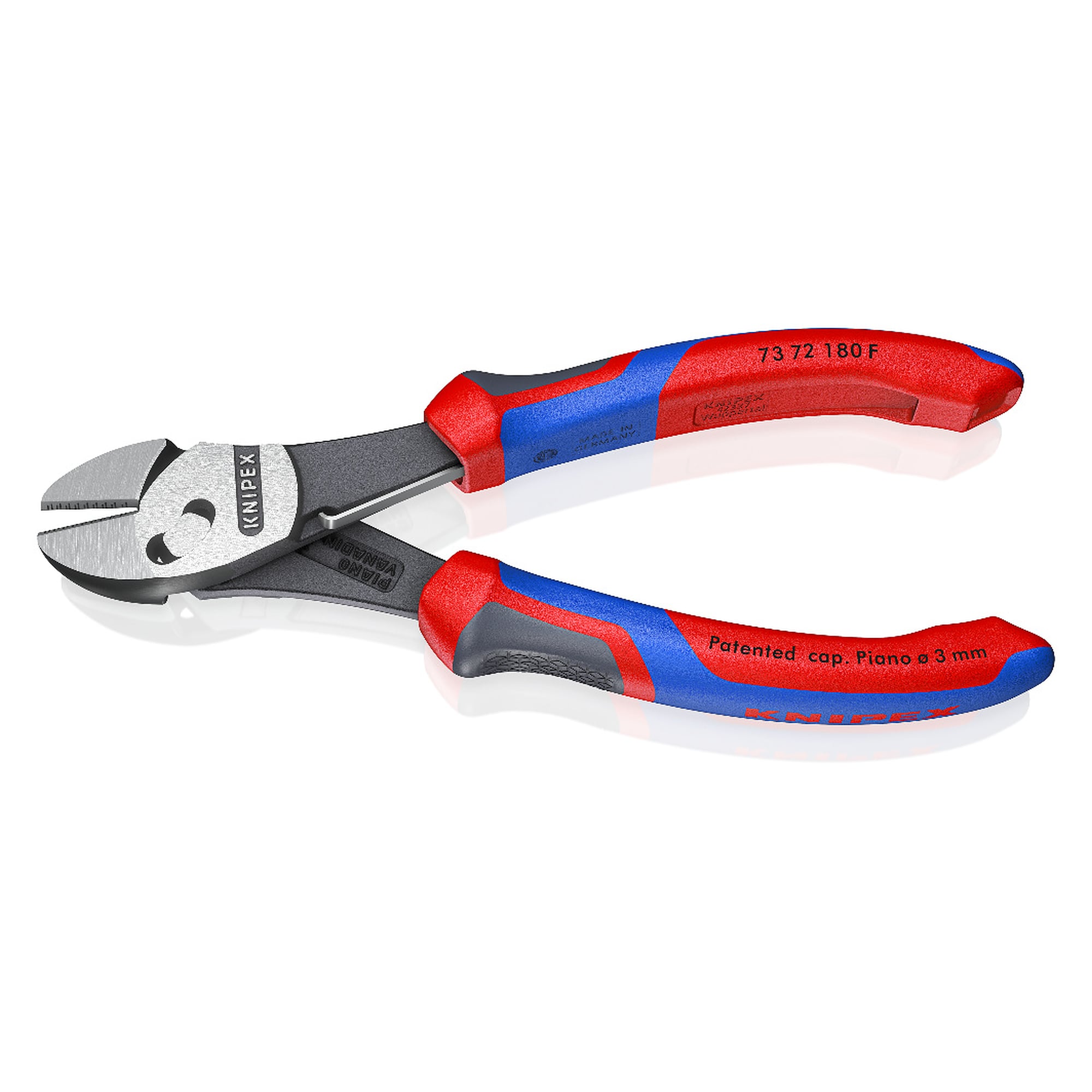

TwinForce high performance diagonal cutter with opening spring and comfort handles, 180 mm - Knipex 73 72 180 F
High leverage diagonal cutter with a patented double joint, opening spring and comfort handles made of three ergonomic components. It cuts all types of wire up to Ø 3.2 mm hard wire and Ø 3.0 mm piano wire as well as steel tape, cutting edge hardness about 64 HRC. Two KNIPEXtend interfaces take extensions, 280 g at 180 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In repetitive cutting every reopening of the pliers costs time and effort. The TwinForce high performance diagonal cutter 73 72 180 F combines the patented double joint with an opening spring and comfort handles and cuts hard wire up to Ø 3.2 mm and piano wire up to Ø 3.0 mm.
Benefits

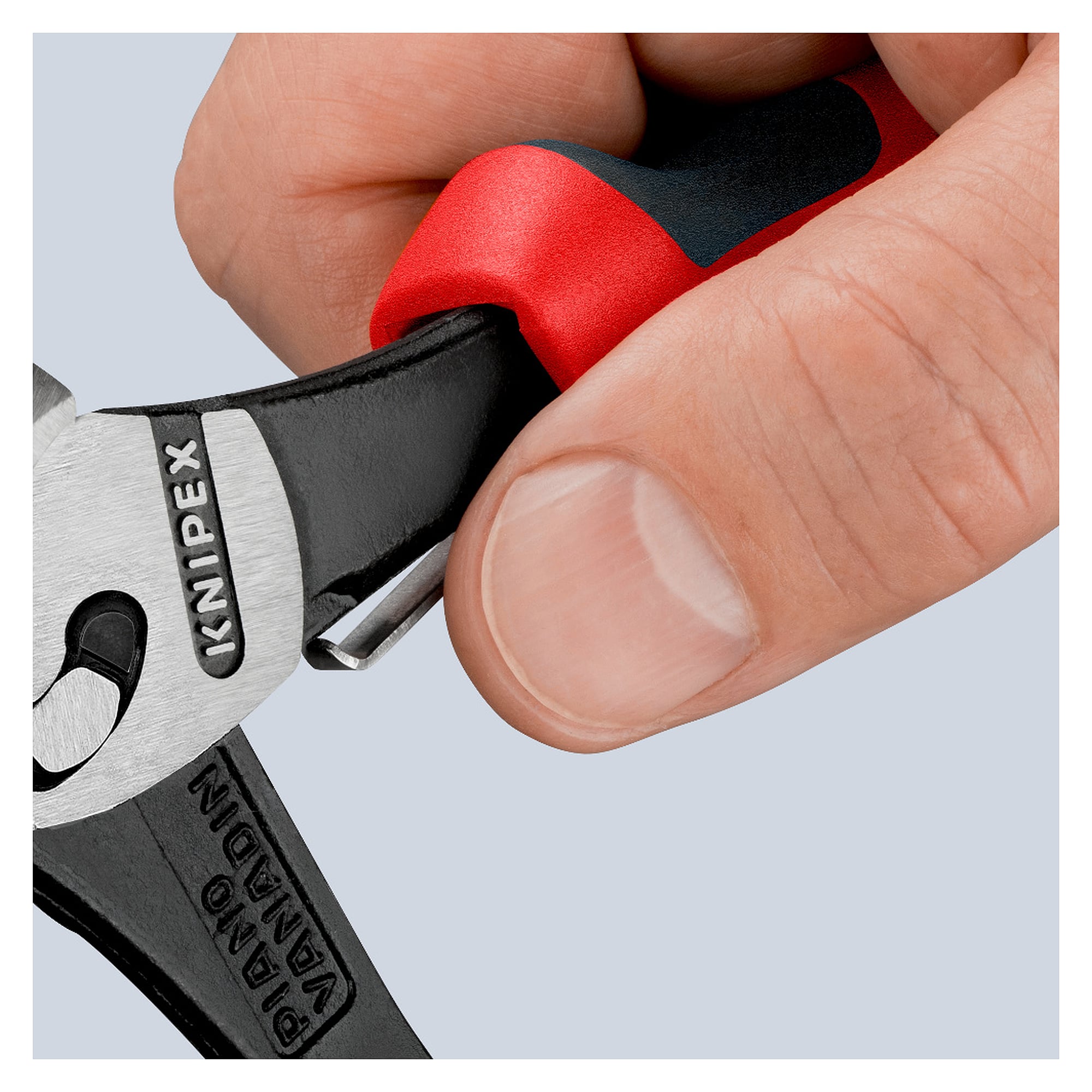

- Opening spring to simplify reapplication, which pays off above all in repetitive cutting with many cuts in a row.
- Comfort handles made of three ergonomic components for optimised handling, plus two KNIPEXtend interfaces for extensions.
- Ideal transmission of force through the double joint design, which keeps even very hard cutting jobs manageable.
- Reliably cuts all types of wire and steel tape as well, from rough to very fine cuts.
- Low cutting impact, gentle on the hand, the tension on muscles and tendons is relieved.
- Cutting edges additionally induction-hardened to approximately 64 HRC, joint axles forged in and precision milled.
Areas of use
Assembly, maintenance and production with a high volume of cuts, especially at workstations where cutting is done in series and the pliers are to be guided with one hand.
Standards and conformity
According to the manufacturer the pliers comply with DIN ISO 5749 for diagonal cutters. They contain no substances of very high concern under REACH. The RoHS directive does not apply.
Technical data
| EAN | 4003773077657 |
|---|---|
| Pliers | black atramentized |
| Head | polished |
| Handles | with comfort handles |
| Weight | 280 g |
| Dimensions | 180 x 52 x 22 mm |
| Standard | DIN ISO 5749 |
| Cutting capacity soft wire (diameter) | Ø max. 5.5 mm |
| Cutting capacity medium hard wire (diameter) | Ø 4.6 mm |
| Cutting capacity hard wire (diameter) | Ø 3.2 mm |
| Cutting capacity piano wire (diameter) | Ø 3.0 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 73 72 180 F |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 22 mm |
| Width | 52 mm |
| Colour | Black |
| Farbe | schwarz |
| Norm | DIN ISO 5749 |
| Overall length [mm] | 180.000000 |
