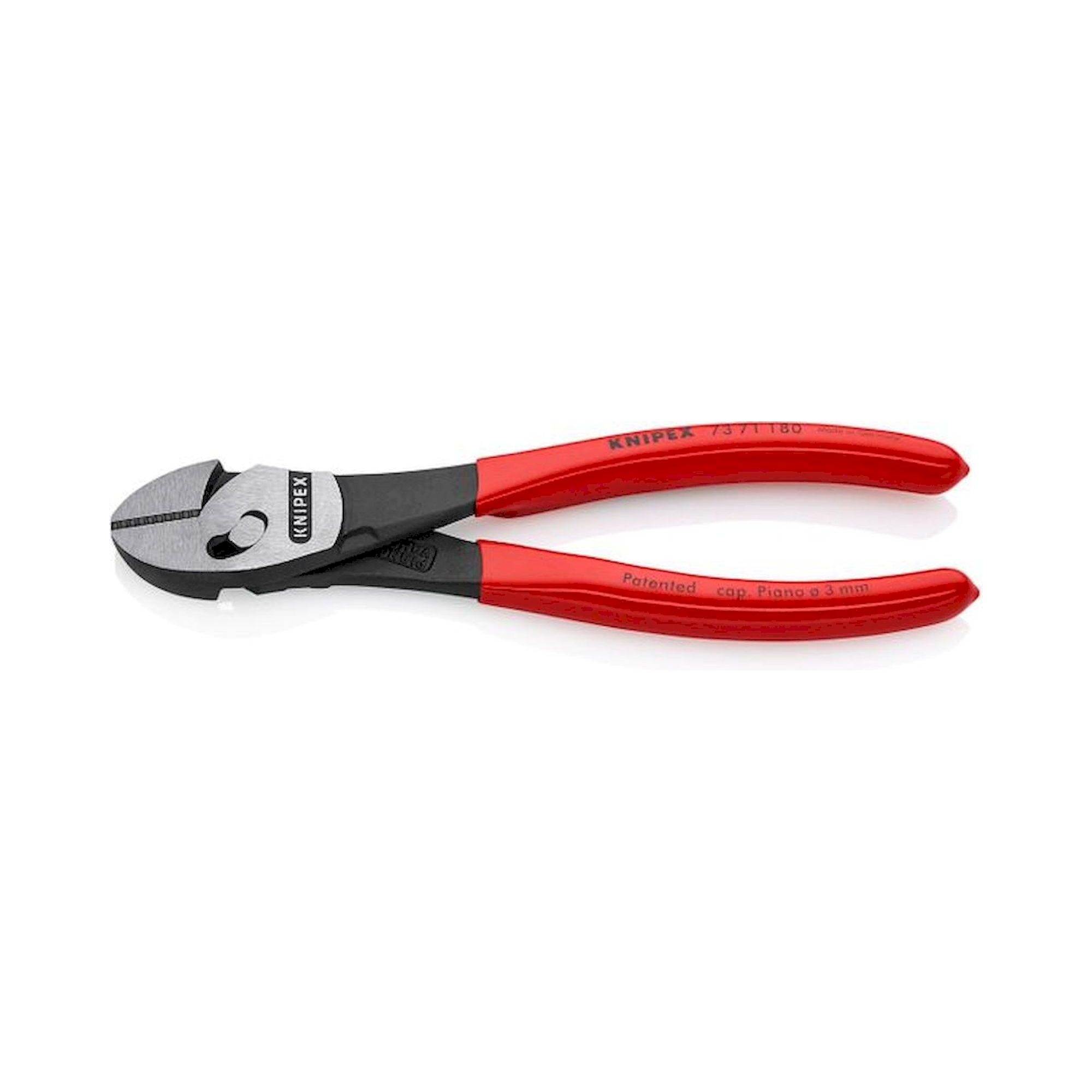

TwinForce high performance diagonal cutter with double joint, hard wire up to Ø 3.2 mm, 180 mm - Knipex 73 71 180

Knipex ✓ Original product Brand new

High leverage diagonal cutter with a patented double joint that transmits hand force ideally. It cuts all types of wire up to Ø 5.5 mm soft and Ø 3.2 mm hard wire as well as piano wire up to Ø 3.0 mm, and steel tape too. The low cutting impact relieves muscles and tendons, cutting edge hardness about 64 HRC at 255 g.

Net
€55.53
excl. VAT
Item WL61683
Manufacturer no. 73 71 180
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Anyone cutting many hard wires every day feels every cutting impact in hand and forearm. The TwinForce high performance diagonal cutter 73 71 180 transmits hand force through a patented double joint and cuts hard wire up to Ø 3.2 mm and piano wire up to Ø 3.0 mm.

Benefits

  • Ideal transmission of force through the double joint design, the superior high leverage diagonal cutter for hard cutting jobs.
  • Reliably cuts all types of wire and steel tape as well, from rough to very fine cuts.
  • Low cutting impact, gentle on the hand, the tension on muscles and tendons is relieved.
  • High stability and precise action thanks to forged-in and precision milled joint axles.
  • Cutting edges additionally induction-hardened, cutting edge hardness approximately 64 HRC.
  • Black atramentized pliers with polished head and plastic coated handles, 255 g at a length of 180 mm.

Areas of use

Assembly, maintenance and production with a high volume of cuts, particularly for repetitive cutting and for very hard cutting jobs such as spring steel and piano wire.

Standards and conformity

According to the manufacturer the pliers comply with DIN ISO 5749 for diagonal cutters. They contain no substances of very high concern under REACH. The RoHS directive does not apply.

Technical data

EAN4003773074762
Pliersblack atramentized
Headpolished
Handlesplastic coated
Weight255 g
Dimensions180 x 49 x 16 mm
StandardDIN ISO 5749
Cutting capacity soft wire (diameter)Ø max. 5.5 mm
Cutting capacity medium hard wire (diameter)Ø 4.6 mm
Cutting capacity hard wire (diameter)Ø 3.2 mm
Cutting capacity piano wire (diameter)Ø 3.0 mm
REACH conformitycontains no SVHC
RoHS conformitynot applicable
Weight0.255000
ManufacturerKnipex
Manufacturer Nr.73 71 180
GPSR manufacturer informationKNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
Condition of articleNew
Article authenticityOriginal product
Height16 mm
Width49 mm
ColourBlack
Farbeschwarz
NormDIN ISO 5749
Overall length [mm]180.000000
