Conductive PUR Foam Self-Adhesive 350 x 550 mm, Height 15 mm - A1-ESD EP0705090

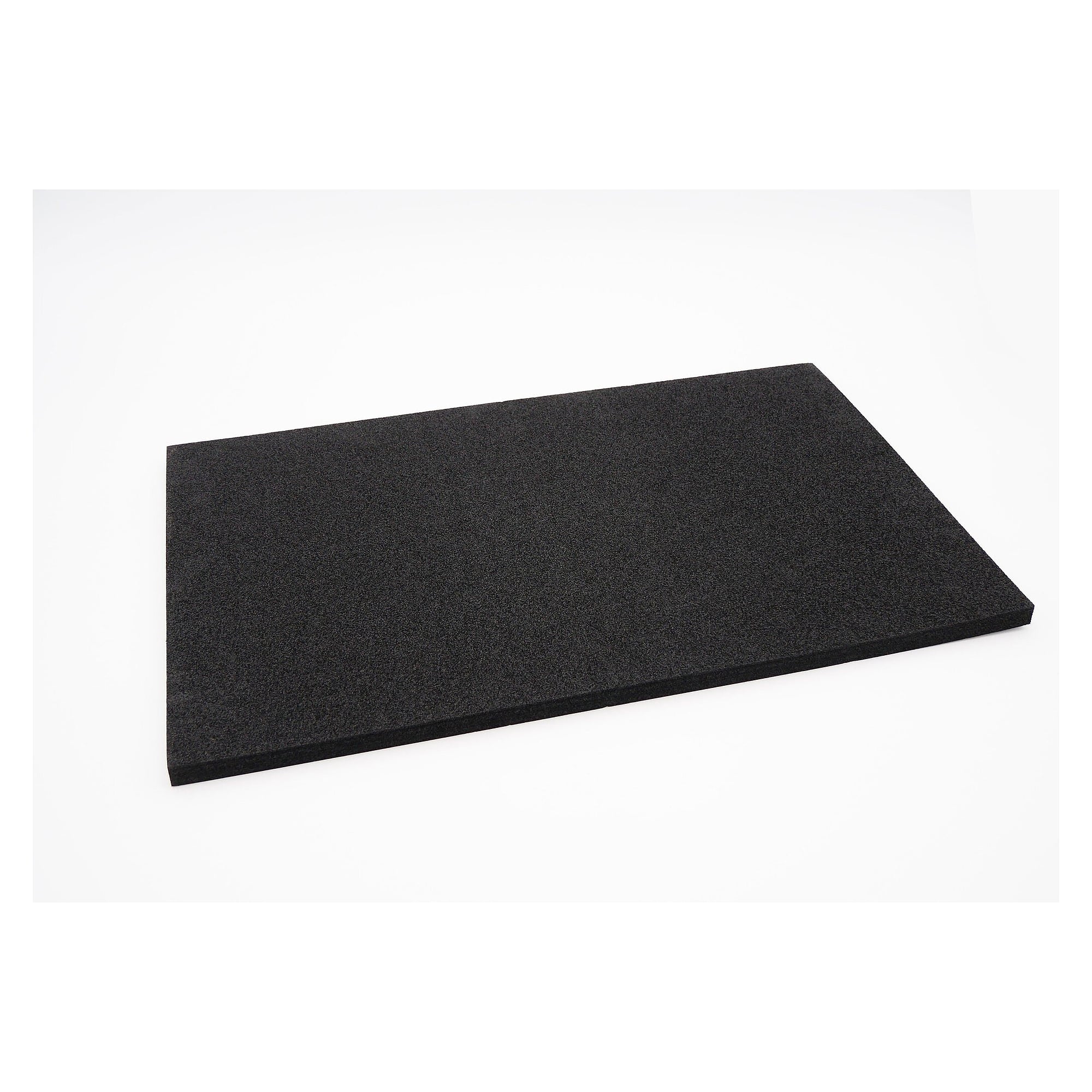

Sensitive assemblies need a bedding inside the container that does not interrupt the path to ground. This PUR foam is set up conductive and sits at roughly 10E3 to 10E4 ohm, so charges are drained instead of being held under the part. The sheet measures 350 x 550 mm at 15 mm height and carries a self-adhesive layer on one side.

Benefits

• Conductive setting of roughly 10E3 to 10E4 ohm, the bedding stays part of the dissipation path instead of turning into an insulator.
• Self-adhesive on one side, the sheet goes straight into a container, case or carton without extra glue or tooling.
• Sheet size 350 x 550 mm, large enough for one continuous base insert rather than many small offcuts.
• 15 mm build height, enough travel for parts with protruding leads and connectors.
• Black throughout, abrasion and pressure marks stay inconspicuous in daily use.
• The item belongs to a size range, the same material is also available in a smaller cut.

Technical data

Application

Typical uses are base and lid inserts in ESD containers and cartons, interleaving when stacking populated boards, and a resting pad at test and rework benches inside the ESD protected area. The sheet can be cut to shelf size with a knife, after which the adhesive layer keeps the insert in place.
