Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Fast ESD personnel tester with a 7-inch colour touch display for checking wrist strap and footwear. With automatic shoe-to-shoe test, adjustable measurement voltages and 3 freely configurable relays for access control. Includes a special test function for vulnerable persons.

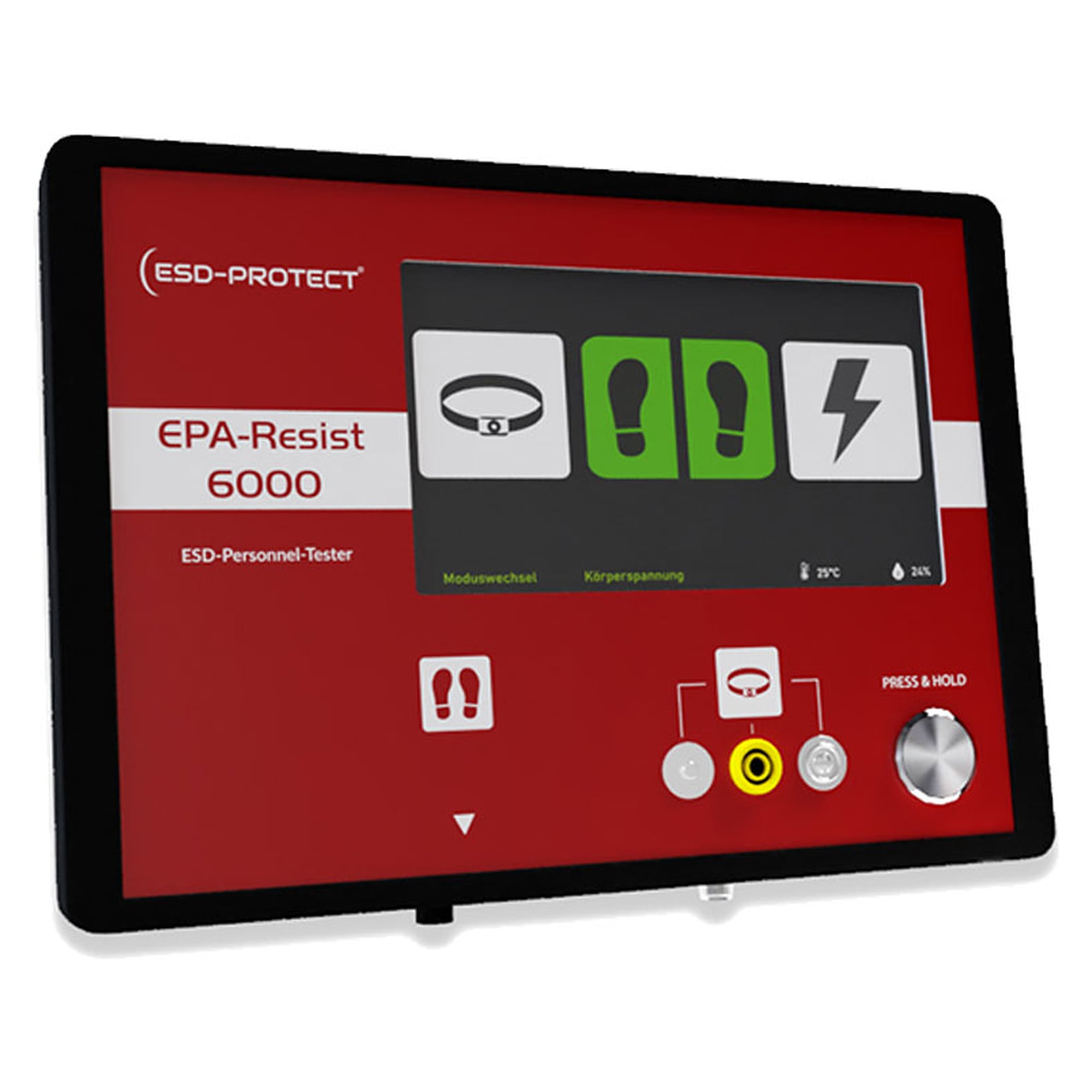

ESD personnel tester EPA-RESIST 6000 with 7-inch touch display
A1-ESD Original product
Net price (excl. VAT)
€1,740.00
Item EP0206073
Manufacturer no. EP0206073
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.EP0206073
Country of originGermany
ConditionNew
Article
EP0206073
Frequently Bought Together
- This Item: €1,740.00
- Power supply 230 V AC to 9 V for Safety Pips standard version - Warmbier 7100181103 €53.21
- Frame with lead-in edge for foot electrode EP0206048 €298.00
Total price
The EPA-RESIST 6000 checks wrist strap and footwear at the EPA entrance and releases access via the built-in relays once the test is passed. The 7-inch touch display guides the user intuitively through the entry test.
Main functions
- 7-inch colour touch display with intuitive operation and German/English language selection
- Testing of wrist strap and footwear, freely selectable test sequence
- Automatic shoe-to-shoe test
- Special test function for vulnerable persons through a voltage-free body test (pregnant persons, persons with active implants)
- Measurement of temperature and relative humidity

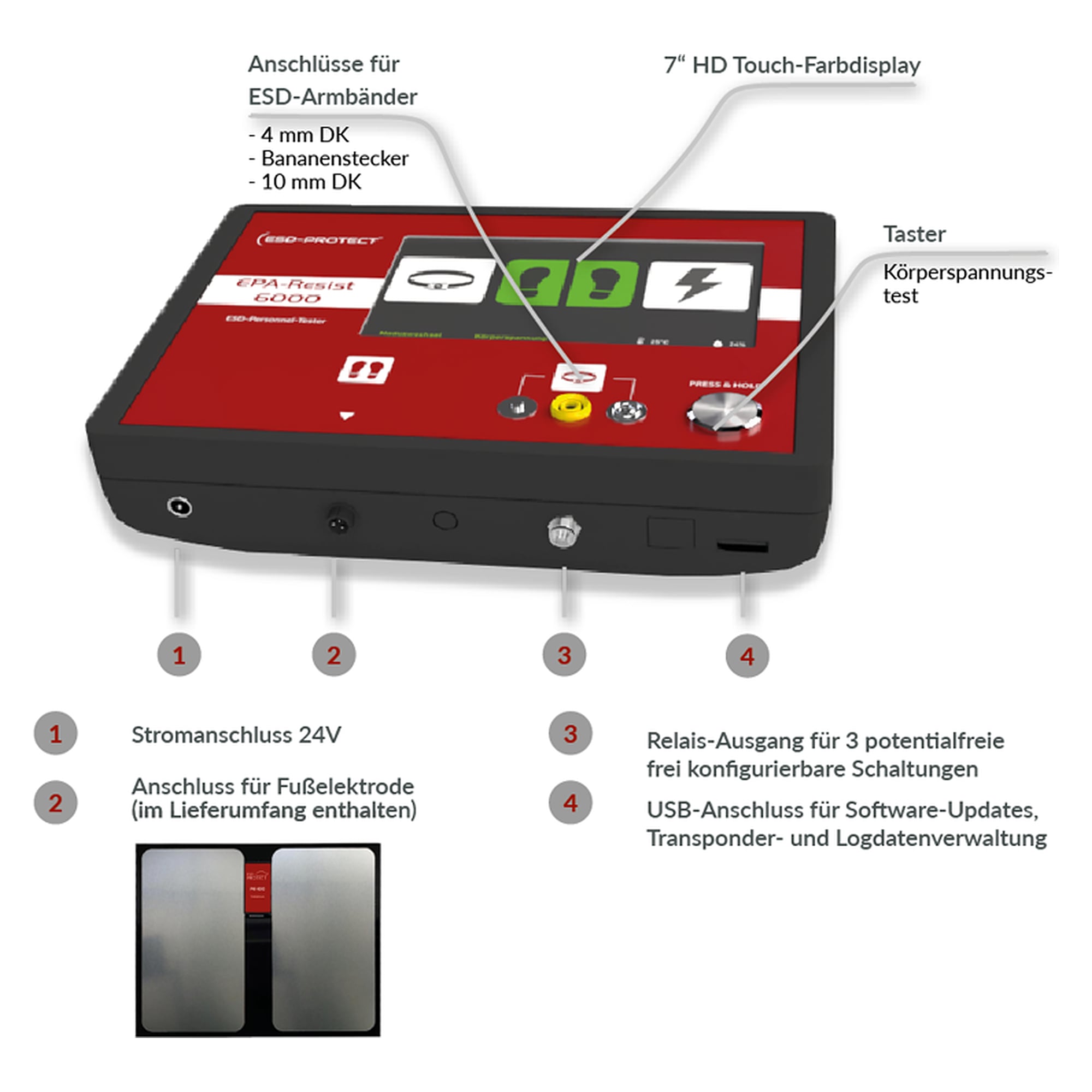

Technical data
- Display: 7-inch colour touch display
- Processor: 32 bit for fast and precise measurements
- Measurement voltages selectable: 33 V, 50 V or 100 V
- Access control: 3 freely configurable relays
- Software updates via USB stick (integrated bootloader)
- Free limit value definition
- Power supply 24 V with cable
- Weight: approx. 5.0 kg
Scope of delivery
- EPA-RESIST 6000

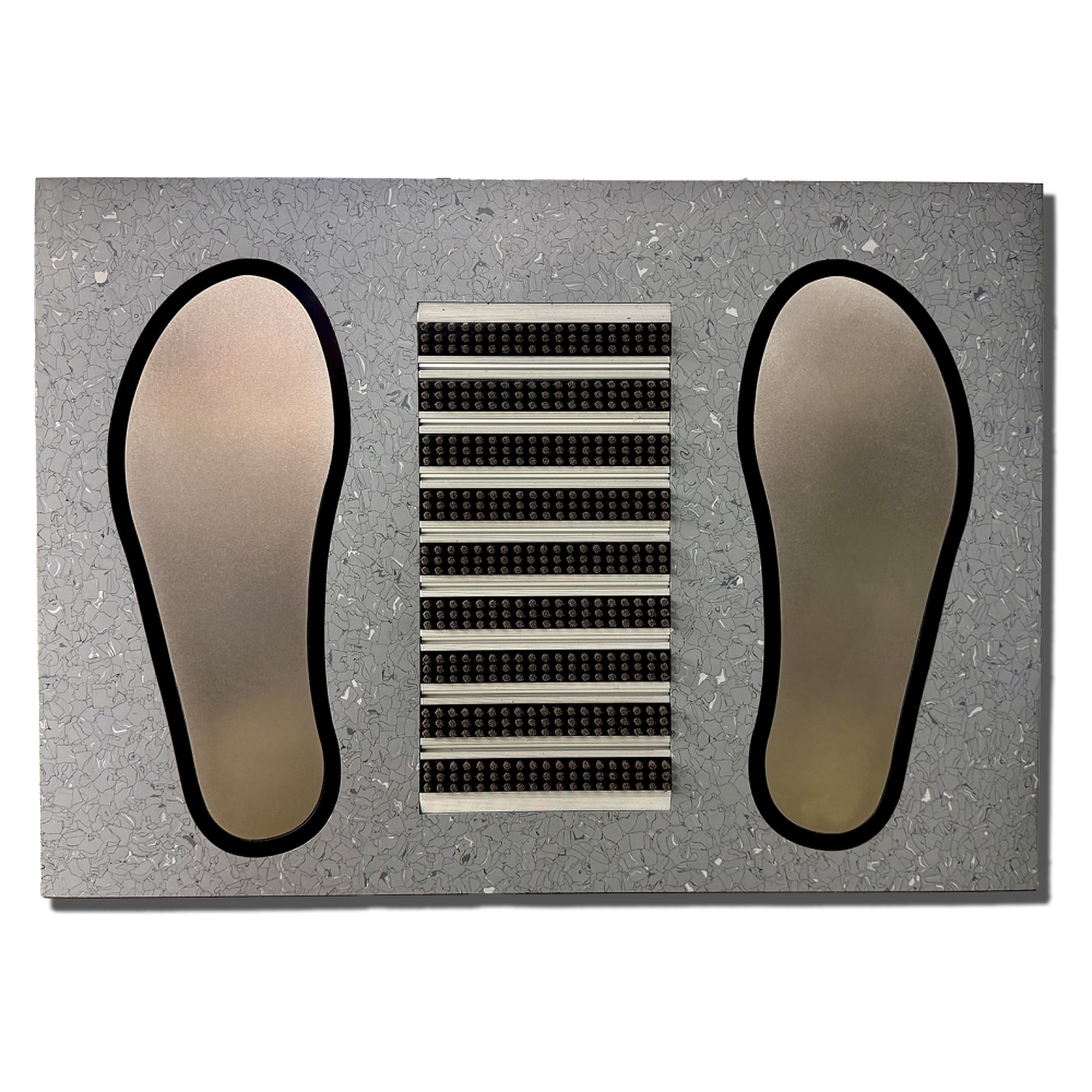

- Foot electrode FE 100 or optionally a foot electrode with shoe scraper

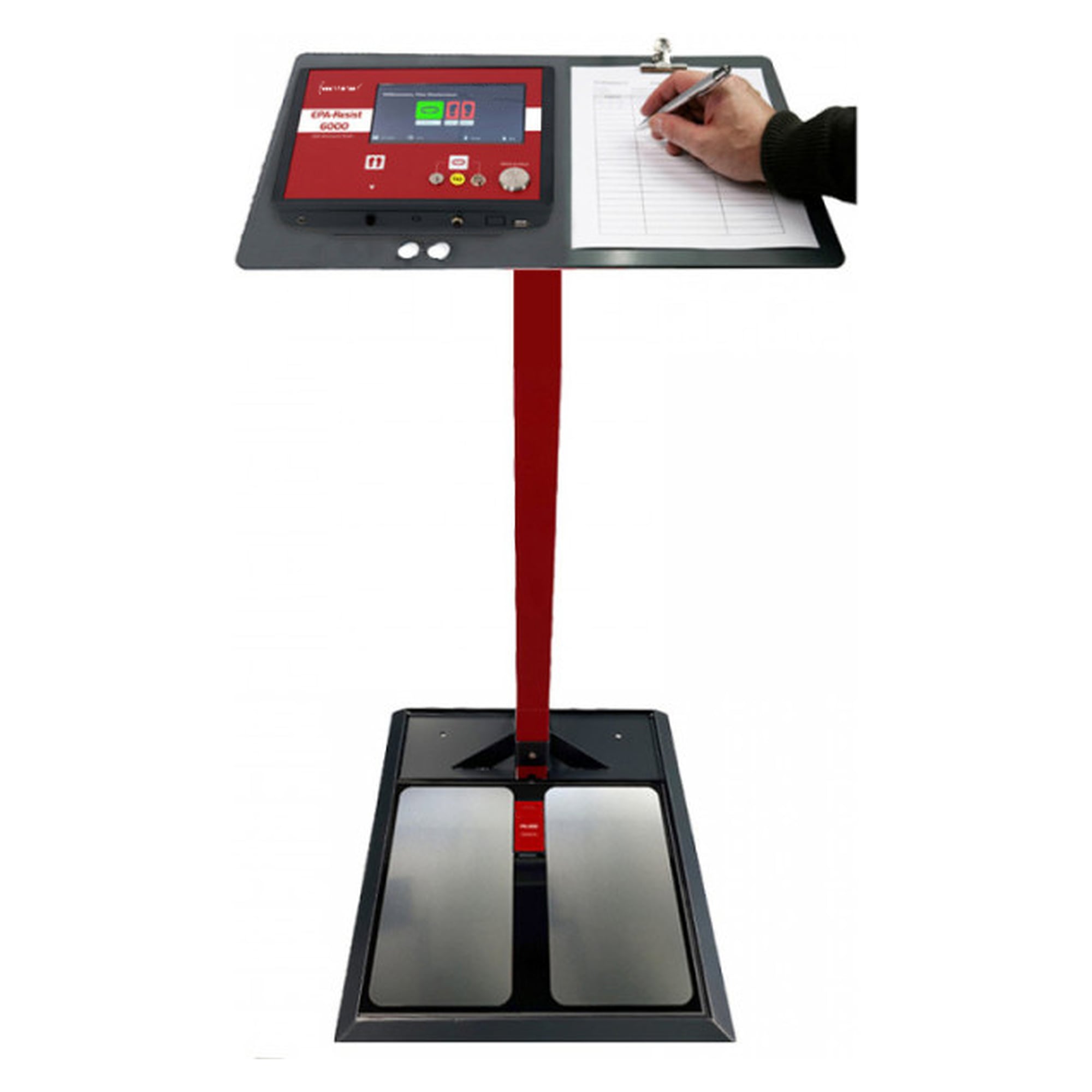

- Mounting console for wall or desk mounting
- 24 V power supply with cable
- Relay output connection cable
- Operating manual and calibration certificate
Standards and compliance
Verifies ESD personnel grounding to IEC 61340-5-1: wrist strap per IEC 61340-4-6, footwear and person/footwear system per IEC 61340-4-5.
| Norm | IEC 61340-5-1, EN 61340-5-1, IEC 61340-4-5 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | EP0206073 |
| Manufacturer | A1-ESD |
| Country of Manufacture | Germany |
| Weight | 5.000000 |
| Sales unit | 1 Stück |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
