Flat hood DN75, rectangular, 330 x 240 mm, transparent PETG, red flange - Alsident 1-753324-4

Name: Flat hood DN75, rectangular, 330 x 240 mm, transparent PETG, red flange - Alsident 1-753324-4
Brand: Alsident
SKU: AL-1-753324-4
Price: 136.55 EUR
Availability: InStock

Alsident ✓ Original product Brand new Made in Denmark

Transparent 330 x 240 mm flat hood with red flange for the Alsident System 75 Aluminium. It matches arms with red joints and intercepts gases drifting across the work surface.

Net

€136.55

excl. VAT

Item AL-1-753324-4

Manufacturer no. 1-753324-4

Question about this item

Datasheet (PDF) 3 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At soldering and bonding stations, vapours often drift sideways across the bench. The Alsident flat hood 1-753324-4 is placed upright behind the source and, in manufacturer tests, reaches 96 % capture efficiency at 200 mm. The red flange matches System 75 AL arms with red joints.

Benefits

Red flange, matching extraction arms with red joints
Particularly high capture when upright to the work surface
Transparent, solvent-resistant PETG for a clear view
Stub pipe in anodised aluminium

Specifications

Applications

Hand soldering stations in electronics production
Goldsmith and silversmith workshops
Bonding stations in assembly and repair

Compatibility and scope of delivery

For Alsident System 75 AL extraction arms with 75 mm pipe diameter
With white flange: 1-753324-5
Scope of delivery: hood with stub pipe

Technical data

Manufacturer part no.	1-753324-4
Type	Flat hood, rectangular
System	Alsident System 75 Aluminium (AL)
Pipe diameter	75 mm

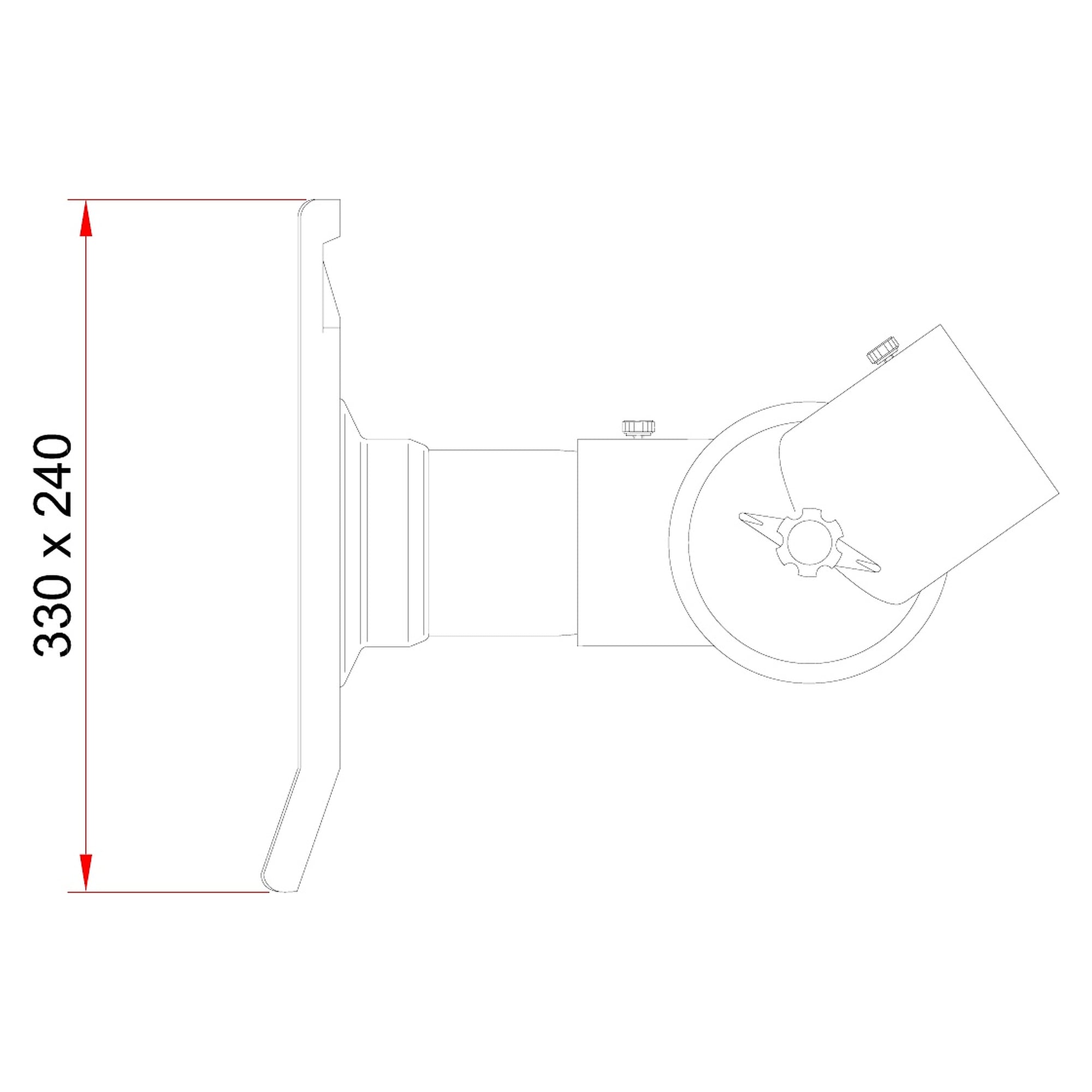

Hood size	330 x 240 mm
Material	Hood in transparent PETG, solvent resistant, stub pipe in anodised aluminium (10 µm layer)
Colour	transparent, red flange
Max. air temperature	80 °C (PETG)
Capture efficiency (manufacturer test, position A)	96 % at 200 mm, 90 % at 350 mm, 63 % at 500 mm distance
ESD-safe	no
Sales unit	1 piece
Weight	0.5 kg
Manufacturer	Alsident
Manufacturer Nr.	1-753324-4
HS-Code	84149000
GPSR manufacturer information	Alsident system A/S Finlandsvej 10 DK-8450 Hammel www.alsident.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Denmark
Compatible with	Alsident System 75
