Extraction arm DN63 chemical-resistant, 3 joints, 1080 mm, white, table mount - Alsident 63-5545-1-7-5

Mounted on the bench, this chemical-resistant arm with three joints reaches 1080 mm, making it the longest table model in System 63. Alsident System 63 uses Ø 63 mm tubes and is designed for airflows of 60 to 120 m³/h. In the pharmaceutical industry it covers weighing and batching stations where solvent vapours occur at changing points.

Benefits

• Self-supporting design: threaded rods and springs sit inside the arm, so the hood stays in any position and is easy to guide to the source
• Tubes and joints of white, chemical-resistant polypropylene for capturing vapours from aggressive chemicals
• Threaded rods, springs and thumb screws of acid-resistant stainless steel AISI 316L, maintenance-free O-rings
• Dismantles by hand in a few steps without tools, maintenance is limited to cleaning as needed
• One-hand operation, suited to frequently changing tasks

Specifications

Applications

• Laboratories and hospitals
• Chemical and pharmaceutical industry
• Food industry
• Hair salons, schools and dental practices

Compatibility and scope of delivery

• Part of Alsident System 63, tube Ø 63 mm
• Scope of delivery: extraction arm only, hood and bracket are ordered separately

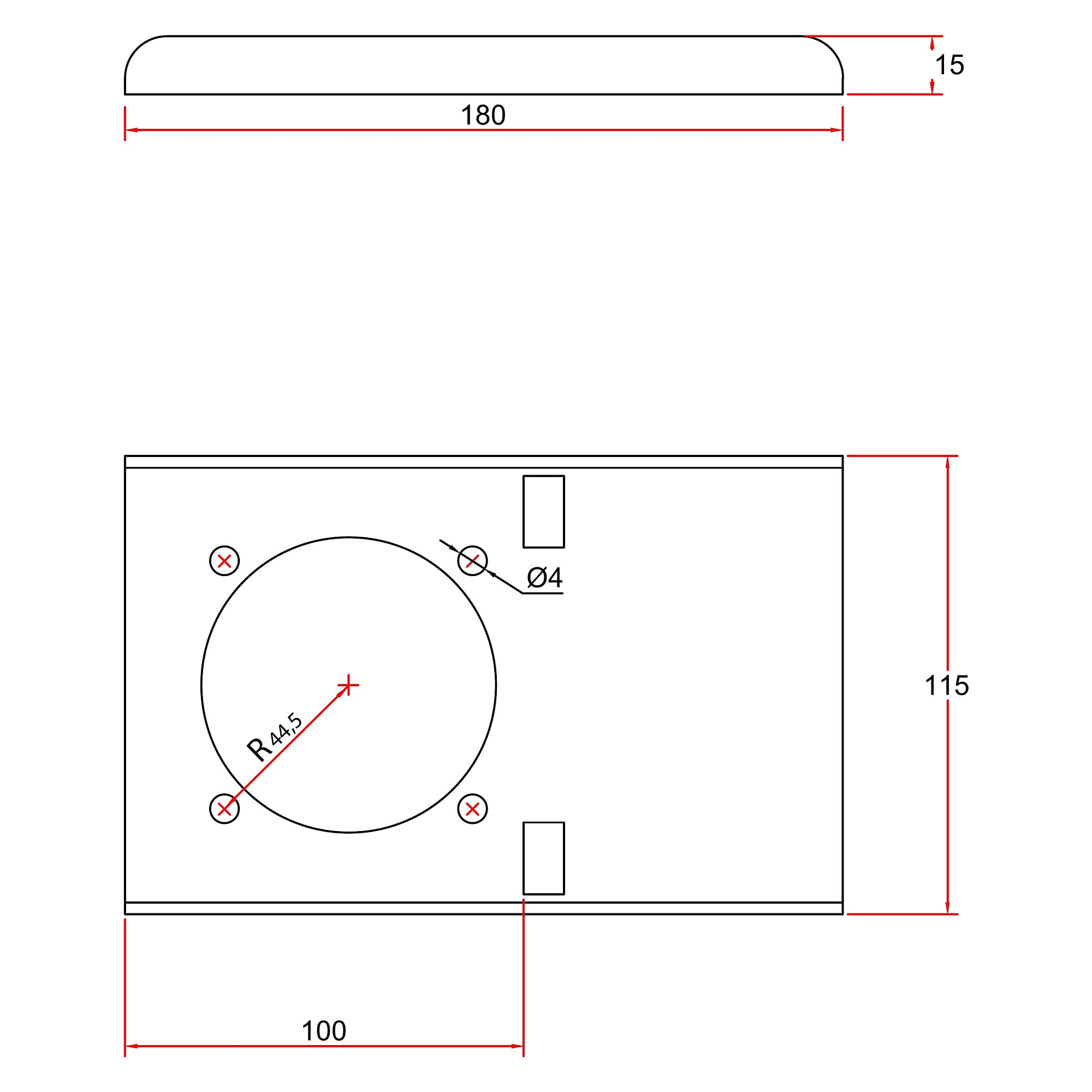

• Bracket: table bracket 2-6310 (white)
• PP hoods: suction tip 1-6325-7-5, round hood 1-6335-7-5 (Ø 385 mm), 1-633324-7-5 (330 x 240 mm), reducers 4-8063 and 4-10063
