Additional superstructures for lighting

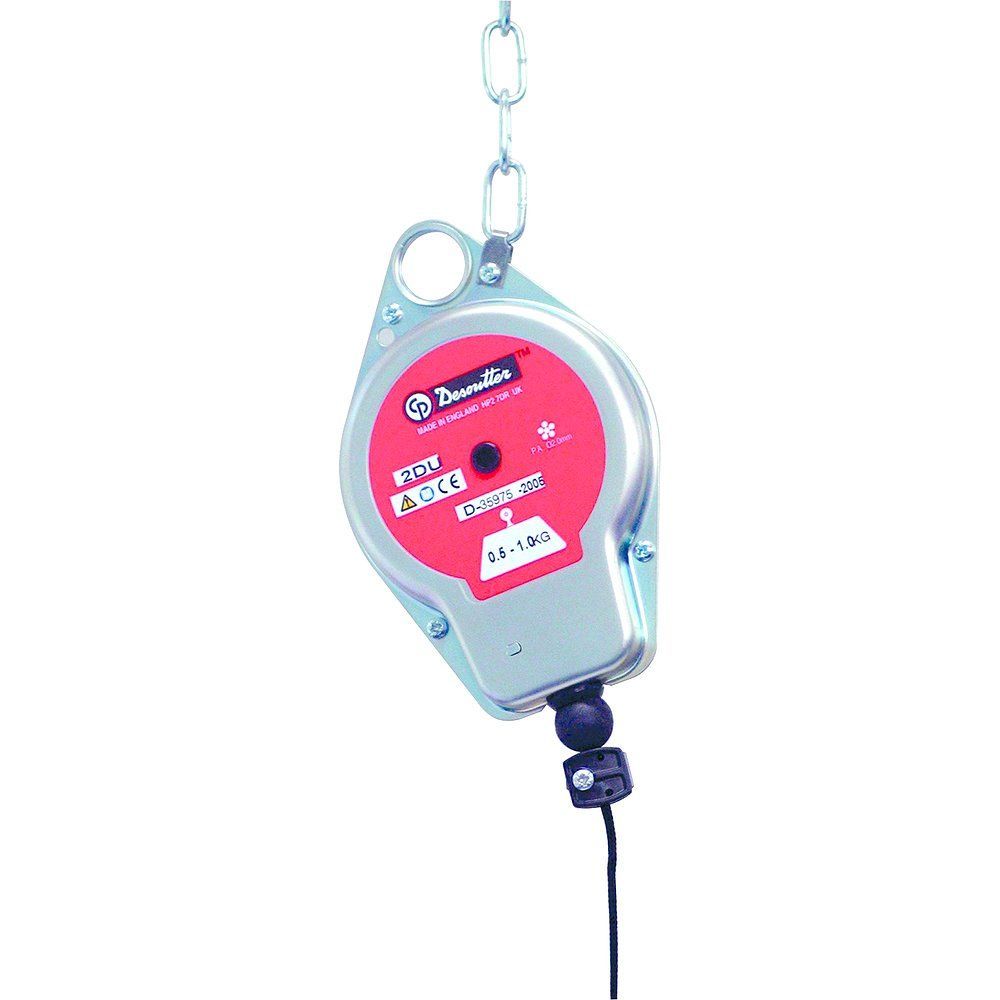

Treston additional superstructures for lighting are frames and overhead assemblies that position luminaires and spring balancers on Treston workbenches. The ESD frames (91849001P-91849012P) each have a 15 kg load capacity and match louvre tube widths M500, M750, M900, M1200, M1350, and M1800 in single and double configurations. Spring balancers (Balancer 2 DU: 0.5-1.0 kg; Balancer 4 DU: 1.0-2.0 kg) retain luminaire and tool cables and reduce operator fatigue with frequently moved items.

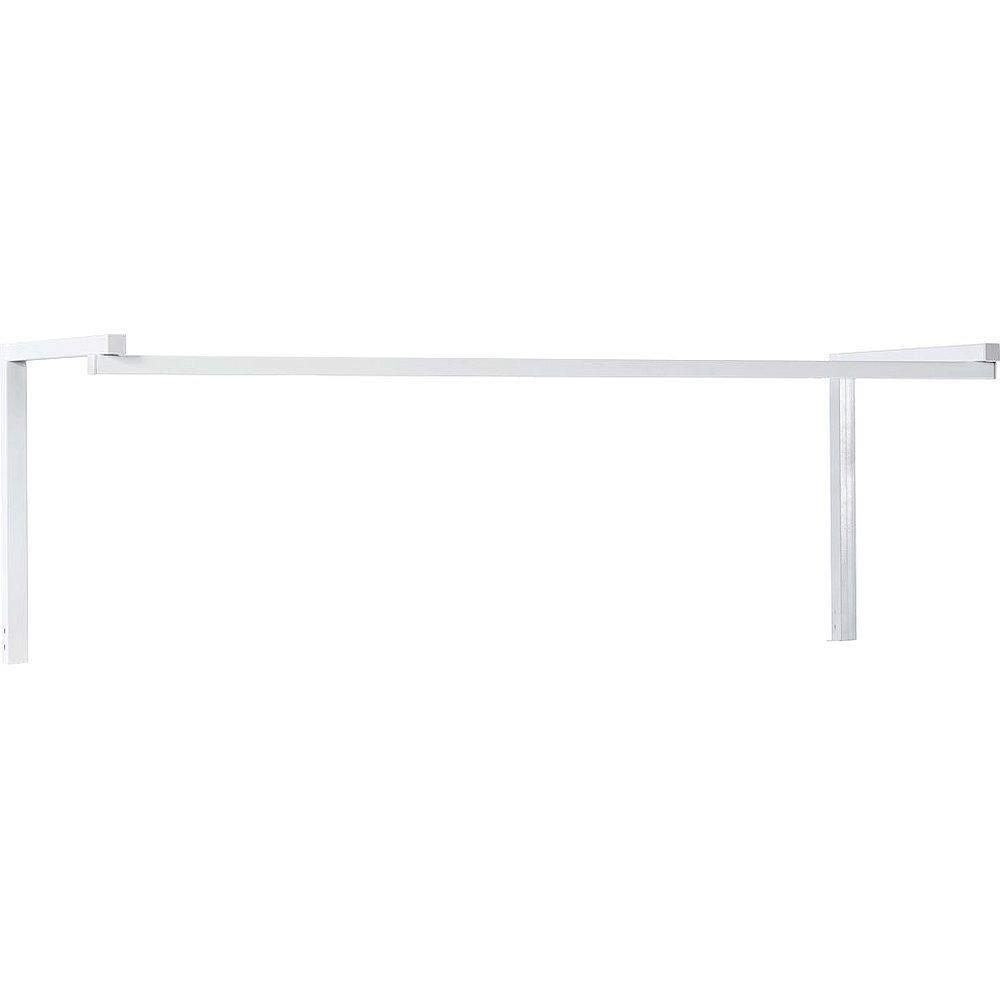

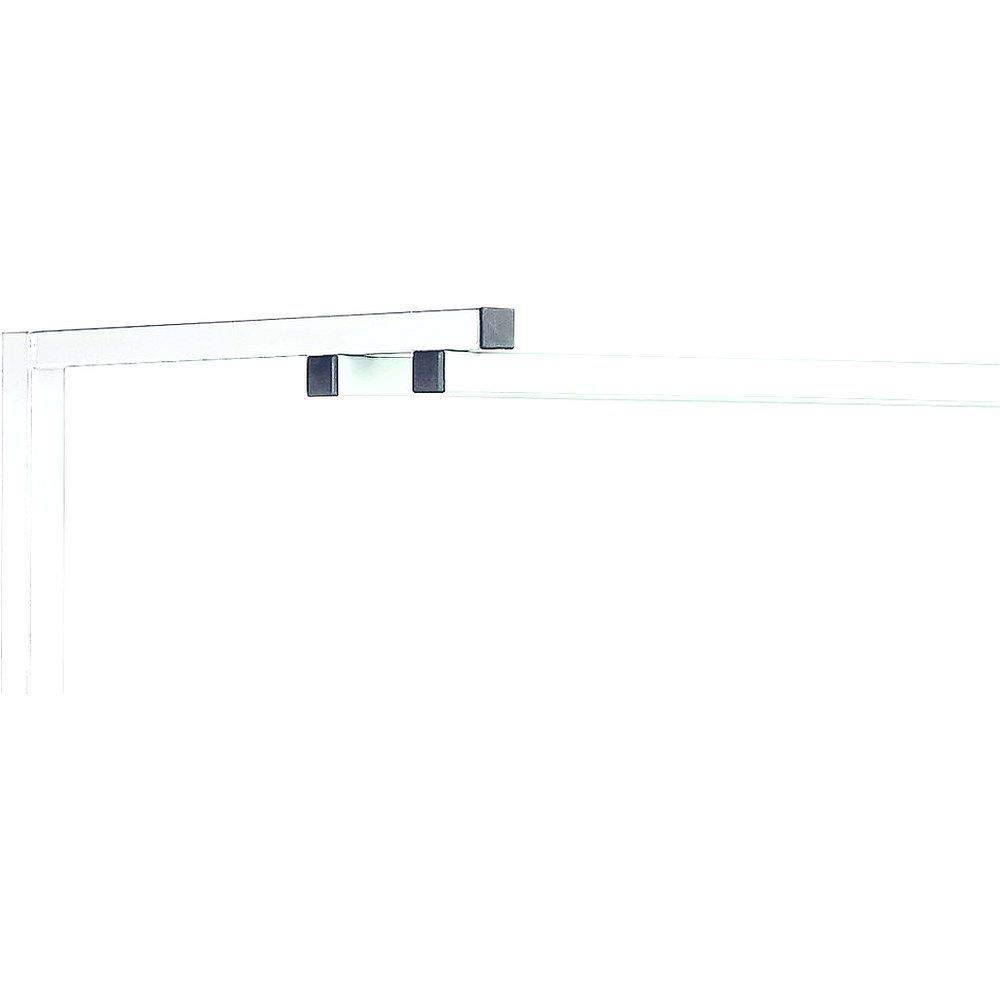

KT additional superstructures (KT120, KT150, KT180) add a complete overhead assembly with C-profile rail and trolley for the balancer to TPH workbenches, in widths 1200, 1500, and 1800 mm matching TPH712/TPH715/TPH918. The C-profile rails SPR150 and SPR180 (lengths 1500 and 1800 mm) allow retrofitting of existing KT assemblies.
- 20 items
- 1 manufacturer
- Net prices plus VAT
Buying guide
How to choose Additional superstructures for lighting
What matters when choosing: properties, comparison and typical applications.
Technical features
Frames and compatibility
| Article | Width / louvre tube | Load capacity | Note |
|---|---|---|---|
| 91849001P | 2xM500 / B1000 | 15 kg | ESD |
| 91849002P | 2xM500 / B1500 | 15 kg | ESD |
| 91849003P | 4xM500 / B2000 | 15 kg | ESD |

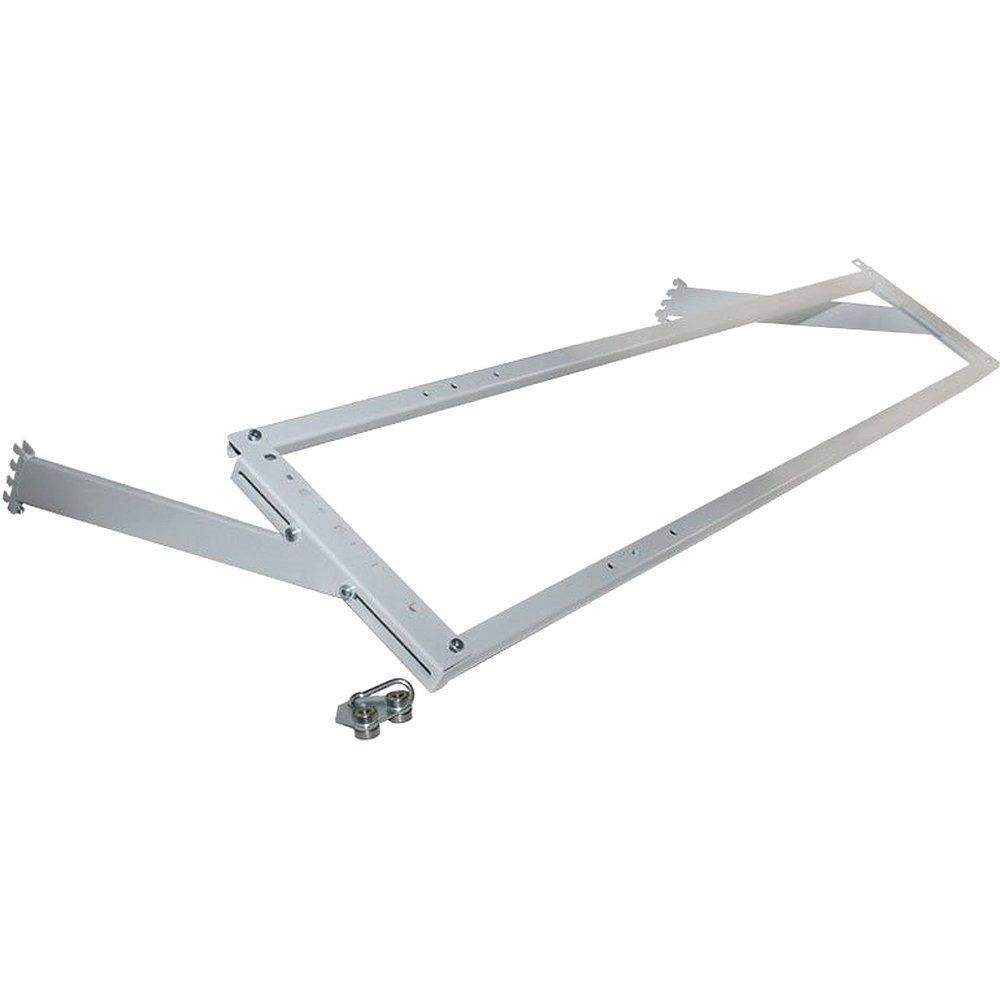

| 91849004P | M750 / B750 | 15 kg | ESD |

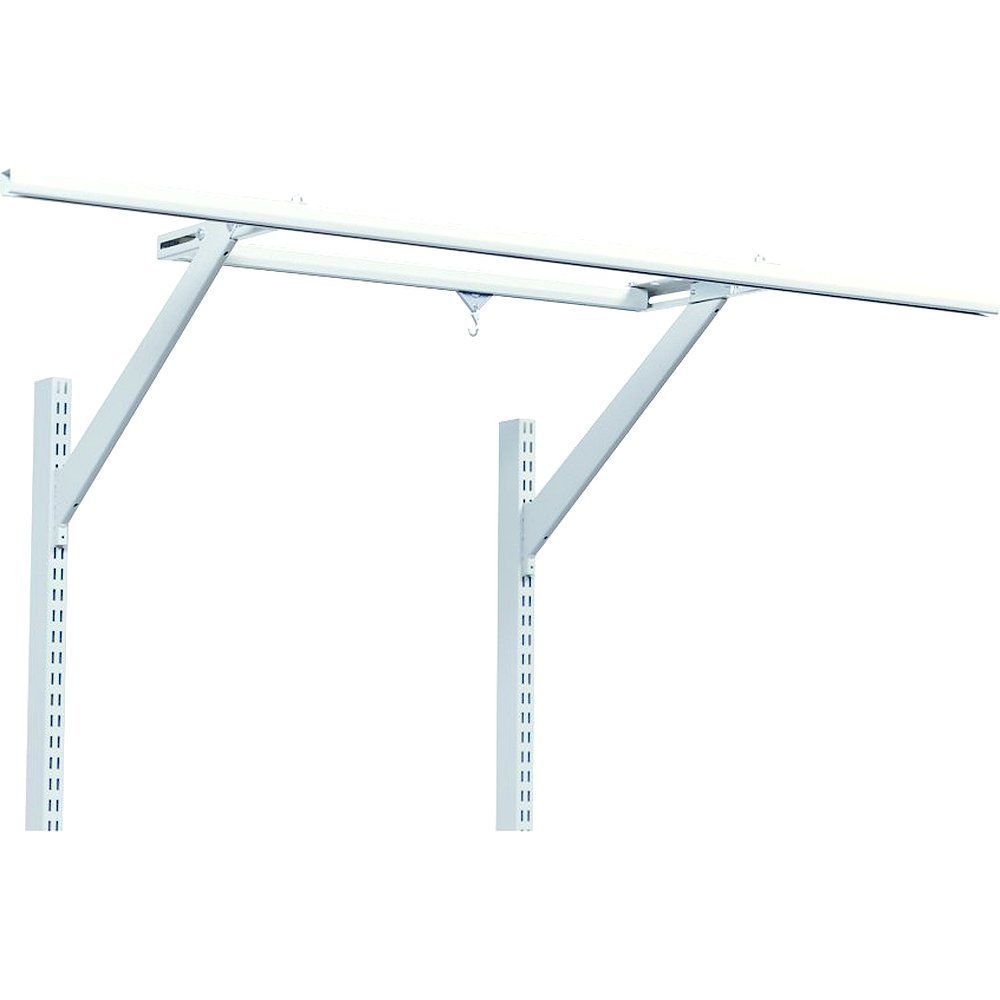

| 91849005P | M750 / B1500 | 15 kg | ESD |
| 91849006P | 2xM750 / B1500 | 15 kg | ESD |
| 91849007P | M900 / B900 | 15 kg | ESD |
| 91849008P | 2xM900 / B1800 | 15 kg | ESD |
| 91849009P | M900 / B1500 | 15 kg | ESD |
| 91849010P | M1200 / B1200 | 15 kg | ESD |

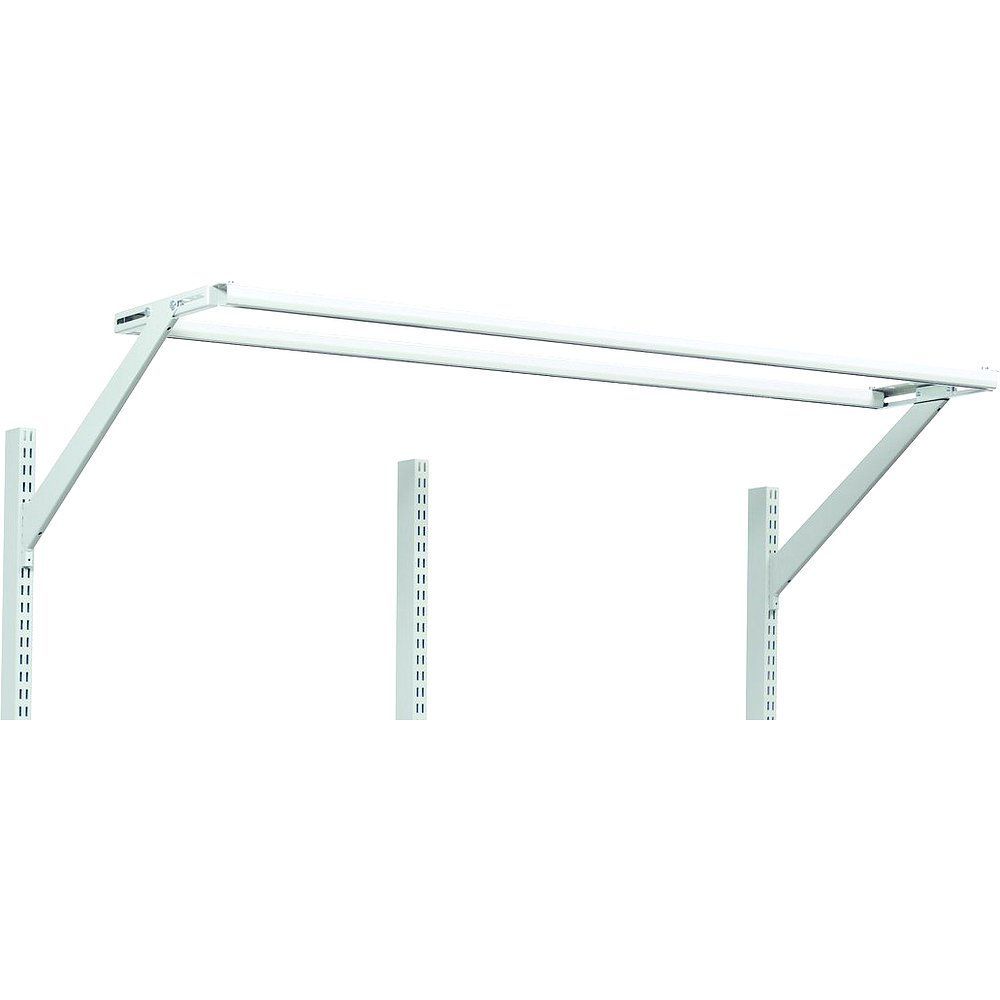

| 91849011P | M1350 / B1350 | 15 kg | ESD |
| 91849012P | 3xM750 / B2250 | 15 kg | ESD |
Typical applications
Typical applications: Assembly and test workstations with precise luminaire positioning over the work area, soldering workstations with spring balancers for tip cleaners and hand soldering stations up to 2 kg, placement lines with multiple luminaires on wide 2xM900 or 4xM500 frames, and retrofitting of TPH workbenches via KT superstructure kits.
