ESD safety boot ERGO-MED 500 S3, waterproof leather, width 10 - Atlas 95600

Between the production hall and the yard lie wet ramps, grating and gravel. The ERGO-MED 500 is built for that: a shaft above the ankle, waterproof smooth leather and an outdoor outsole. Inside the ESD area it remains a dissipative shoe. For its ESD models Atlas guarantees a person, shoe and floor resistance below 10 to the power of 8 ohms, that is below 100 MOhm, measured to DIN EN 61340-5-1.

What sets this model apart

• Class S3 means a closed heel area, antistatic construction, an energy absorbing heel, tested resistance to water penetration and absorption, a penetration resistant layer and a cleated outsole. Slip resistance SRC, tile with detergent and steel with glycerine.
• Anatomically shaped steel toe cap tested at 200 joules of impact energy and 15 kN of compression, plus an overcap against wear on the toe of the boot.
• The shaft reaches above the ankle and supports the joint on uneven ground. Anyone moving between hall and yard gets the hold that a low shoe cannot give.

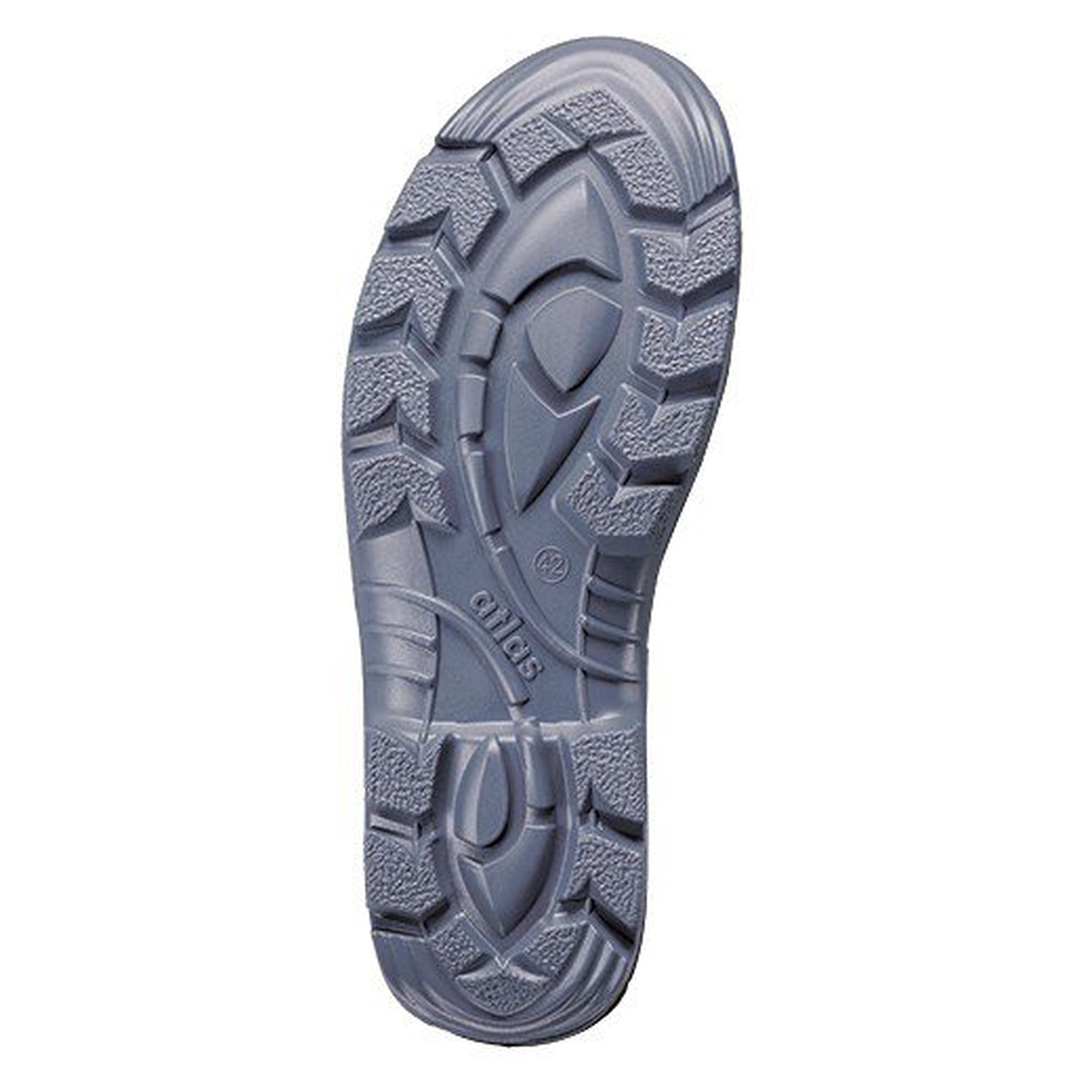

• Outdoor sole technology for wet and uneven ground combined with the MPU REBOUND SYSTEM for cushioning. Waterproof smooth leather from first quality hides keeps the moisture out.
• aktiv-X functional lining, moisture regulating, skin friendly and abrasion resistant. It is colourfast and lets the boot dry quickly after the shift.
• As a blueline model of the ERGO-MED series the boot is released under DGUV rule 112-191 for insoles and for certified orthopaedic modifications such as raised soles and heels.

Technical data

Areas of use

Maintenance and technical services, assembly and workshop, warehouse and yard, moving between hall and open ground, and every ESD area where damp, uneven floors and sharp objects come together.

Standards and conformity

• EN ISO 20345, safety class S3, slip resistance SRC. The manufacturer does not name an edition for this model, the supplier data sheet refers to EN ISO 20345:2012.
• DIN EN 61340-5-1, person, shoe and floor resistance below 100 MOhm
• EN ISO 20345 requires an antistatic range between 10 to the power of 5 ohms (100 kOhm) and 10 to the power of 9 ohms (1000 MOhm)
• PPE regulation (EU) 2016/425, risk category 2
• DGUV rule 112-191, suitable for insoles and orthopaedic modifications

Sizes

Available in EU sizes 36 to 49 in standard width 10, which Atlas builds broad and foot friendly. The sales unit is one pair. The model is also made in width 12 and in special widths 13 and 14.
