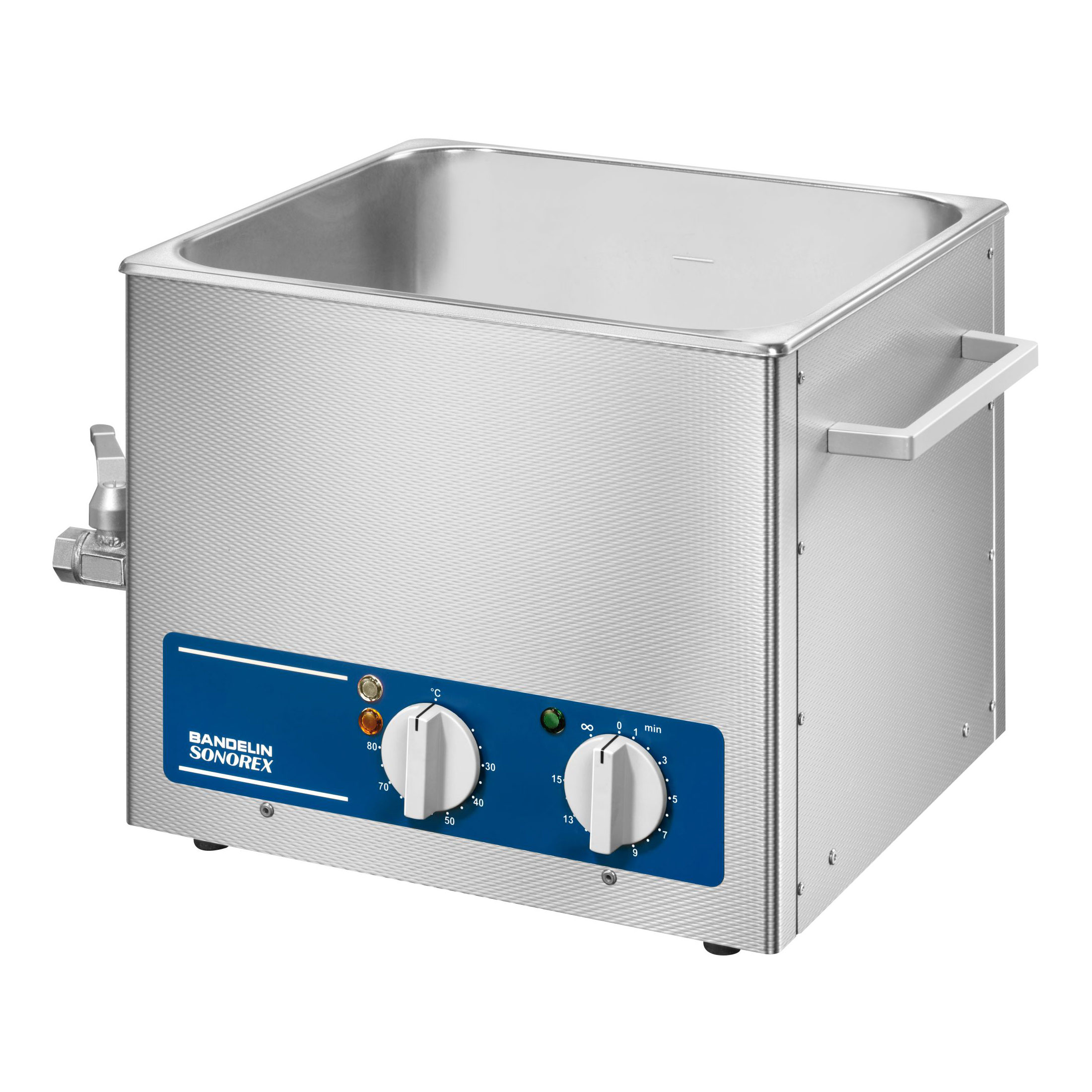

Ultrasonic Cleaner 18.7 L with Heating, Deep Tank, 35 kHz - Bandelin Sonorex Super RK 514 BH
Heated ultrasonic cleaner with 18.7 L capacity and a deep tank for tall items. At 35 kHz, intense cavitation cleans thoroughly and gently, with rotary controls for time and bath temperature. Medical Device Class I.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Sonorex Super RK 514 BH is a heated high-performance ultrasonic cleaner with 18.7 L capacity and a deep tank for clinics, labs and workshops. The greater tank depth of 200 mm accommodates taller items. At 35 kHz, intense cavitation bubbles remove contamination thoroughly and gently, even in hard-to-reach areas. Cleaning time and bath temperature are set with two rotary controls.
Benefits
- Deep tank with 18.7 L capacity for tall items
- 600 W heating for temperature-assisted cleaning
- 35 kHz cavitation for thorough, material-friendly cleaning
- Simple rotary controls for time and temperature
- Corrosion-resistant V2A stainless steel tank with drain
- Medical Device Class I, CE compliant
Applications
The RK 514 BH suits tall items such as longer instruments, components and laboratory glassware in clinics, labs and workshops. The heating helps lift oils, greases, polishing pastes and dried-on residues.
The unit is marked as a Class I Medical Device and is CE compliant. Matching insert baskets, lids and cleaning and disinfection concentrates are available as Bandelin accessories.
Technical data
| Order no. | 263 |
|---|---|
| Capacity | 18.7 L |
| Working volume | 12.5 L |
| Inner dimensions (L×W×D) | 325 × 300 × 200 mm |
| Outer dimensions (L×W×H) | 355 × 325 × 385 mm |
| Ultrasonic frequency | 35 kHz |
| HF peak power | 860 W |
| HF nominal power | 215 W |
| Heating power | 600 W |
| Tank material | Stainless steel V2A (1.4301) |
| Drain | Ball valve G ½, left side |
| Weight | 11.895 kg |
| Manufacturer | Bandelin |
| Manufacturer Nr. | 263 |
| HS-Code | 84798997 |
| GPSR manufacturer information | BANDELIN electronic GmbH & Co. KG, Heinrichstraße 3-4, DE-12207 Berlin, bandelin.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
| Volumen (l) | 18.7 |
Downloads
Datasheet
User Manual
Brochure
CAD Data
Other
Accessories

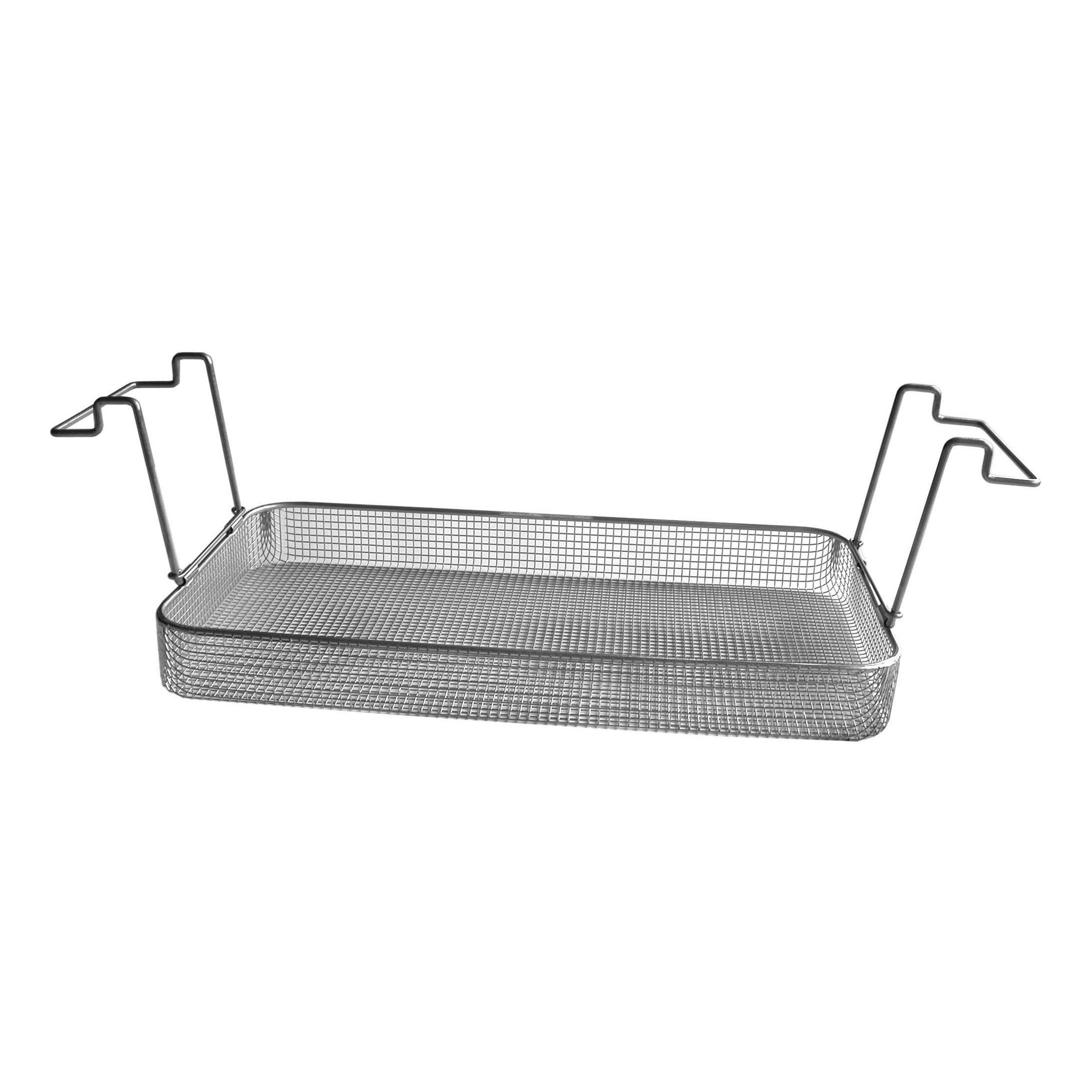

Insert Basket Stainless Steel for RK 514 BH, DL 514 BH, DT 514 BH/BH-RC - Bandelin Sonorex K 14 B

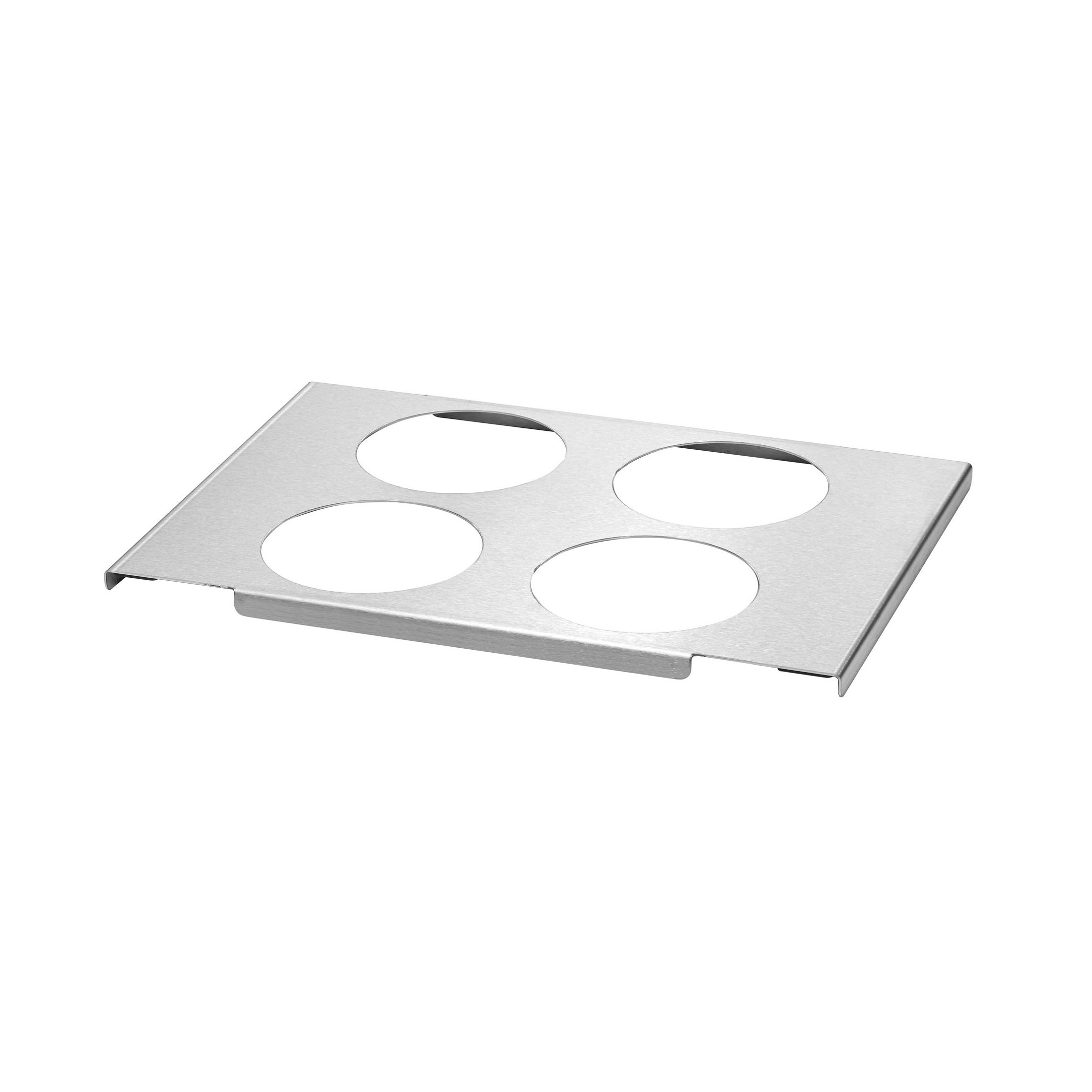

Item BND-205Perforated Lid for Insert Beakers, RK/DT/DL 514 - Bandelin Sonorex DE 514
Item BND-3039Plastic Insert Tank with Lid for RK/DT 514 BH - Bandelin Sonorex KW 14 B
Item BND-648Videos
