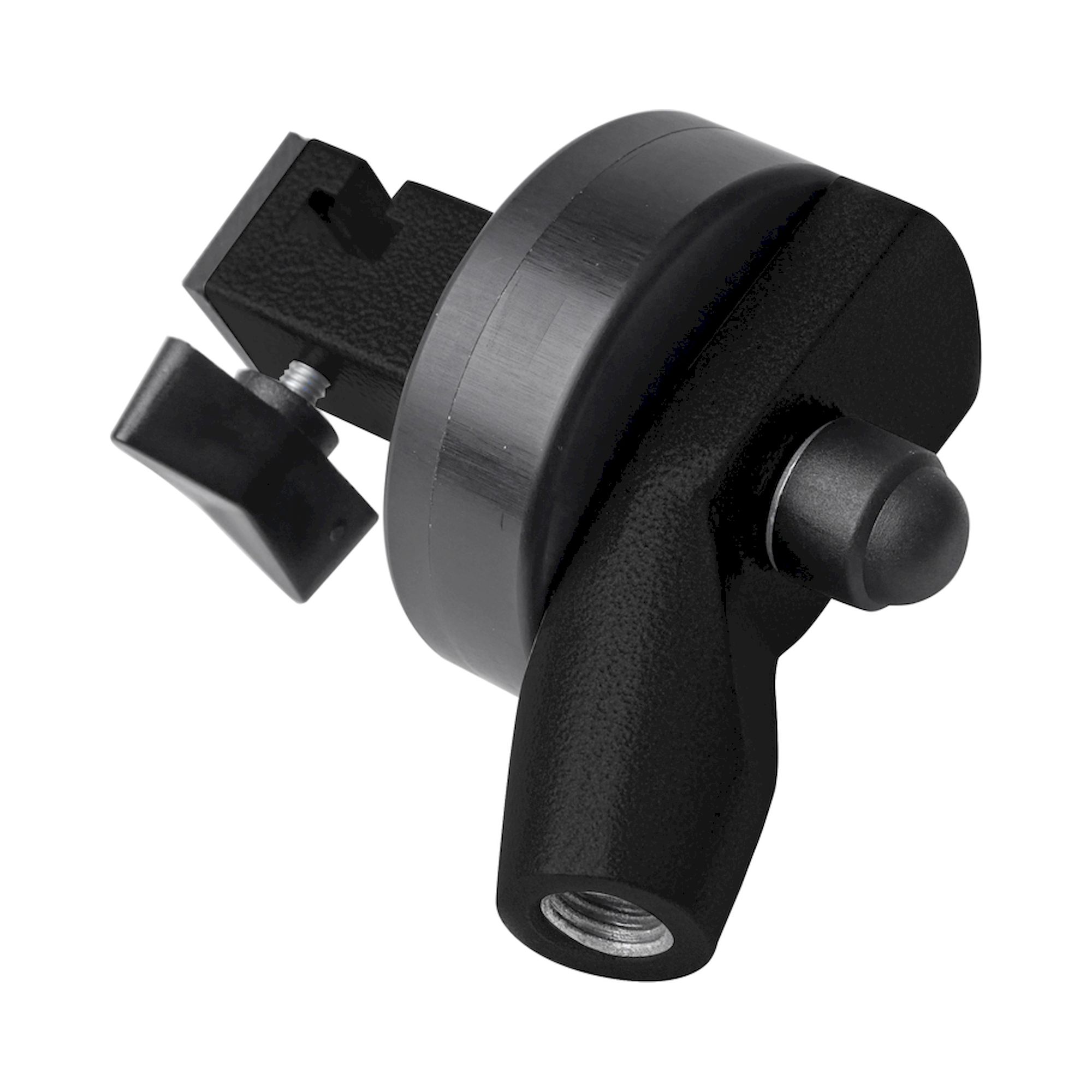

ESD Rapid Turning Device SPANNFIX for 180 Degree Rotation without Loosening - Bernstein 9-257-ESD
This ESD rapid turning device rotates the board holder 9-253-ESD by 180° without loosening a set screw. Its thread fits all ESD ball joint holders of the SPANNFIX system, with a dissipation resistance of 10^7 to 10^8 ohm for use in the ESD protected area.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The ESD rapid turning device is the angle adapter for the board holder 9-253-ESD on the ball joint vice 9-251-ESD. It rotates the holder by 180° without loosening a set screw, speeding up work on both sides of a board considerably.
Advantages
- rotates the board holder 9-253-ESD by 180° without loosening a set screw
- thread fits all ESD ball joint holders of the system
- precision ball joint rotatable 360° with steplessly lockable quick release
- dissipation resistance of 10^7 to 10^8 ohm suitable for the ESD protected area
- cast aluminum with black ESD powder coating, robust and durable
Application
As an accessory or replacement for the ball joint vice 9-251-ESD combined with the board holder 9-253-ESD, the rapid turning device speeds up populating or soldering boards on both sides. The base can be connected to the earthing point via a 10 mm push button.
Standards and Delivery Data
- EPA suitable for electrostatically protected areas
- EAN 4250838511445
- Customs tariff number 82057000
- Country of origin Germany
Technical data
| Feature | Value |
|---|---|
| Ball joint | rotatable 360°, steplessly lockable quick release |
| Function | angle adapter for board holder 9-253-ESD |
| Rotation | 180° without loosening a set screw |
| Thread | fits all ESD ball joint holders |
| Suitable for | 9-251-ESD |
| Material | cast aluminum with black ESD powder coating |
| Dissipation resistance | 10^7 to 10^8 ohm |
| Dimensions | approx. 280 x 130 x 20 mm |
| Weight | 270 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-257-ESD |
| EAN | 4250838511445 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | ESD (antistatic) |
