ESD PCB Holder SPANNFIX Vario with Assembly Frame, Clamping Range 25 to 270 mm - Bernstein 9-240-ESD
Item BS-9-240-ESD
€191.77
Images are examples, some edited with AI. The technical data are authoritative. AI notice
ESD PCB holder SPANNFIX VARIO, adjustable 25 to 270 mm, for clamping - Bernstein 9-270-ESD
The ESD PCB holder SPANNFIX VARIO clamps circuit boards from 25 to 270 mm in length and rotates 360° on its ball joint, locking steplessly in any position. The dissipative powder coating and the 1.8 m grounding cable turn it into a third hand at the ESD workstation.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Every hand counts when soldering or assembling circuit boards. The ESD PCB holder SPANNFIX VARIO holds boards from 25 to 270 mm and flips instantly thanks to its quick-turning device, keeping the workstation dissipative.
Advantages

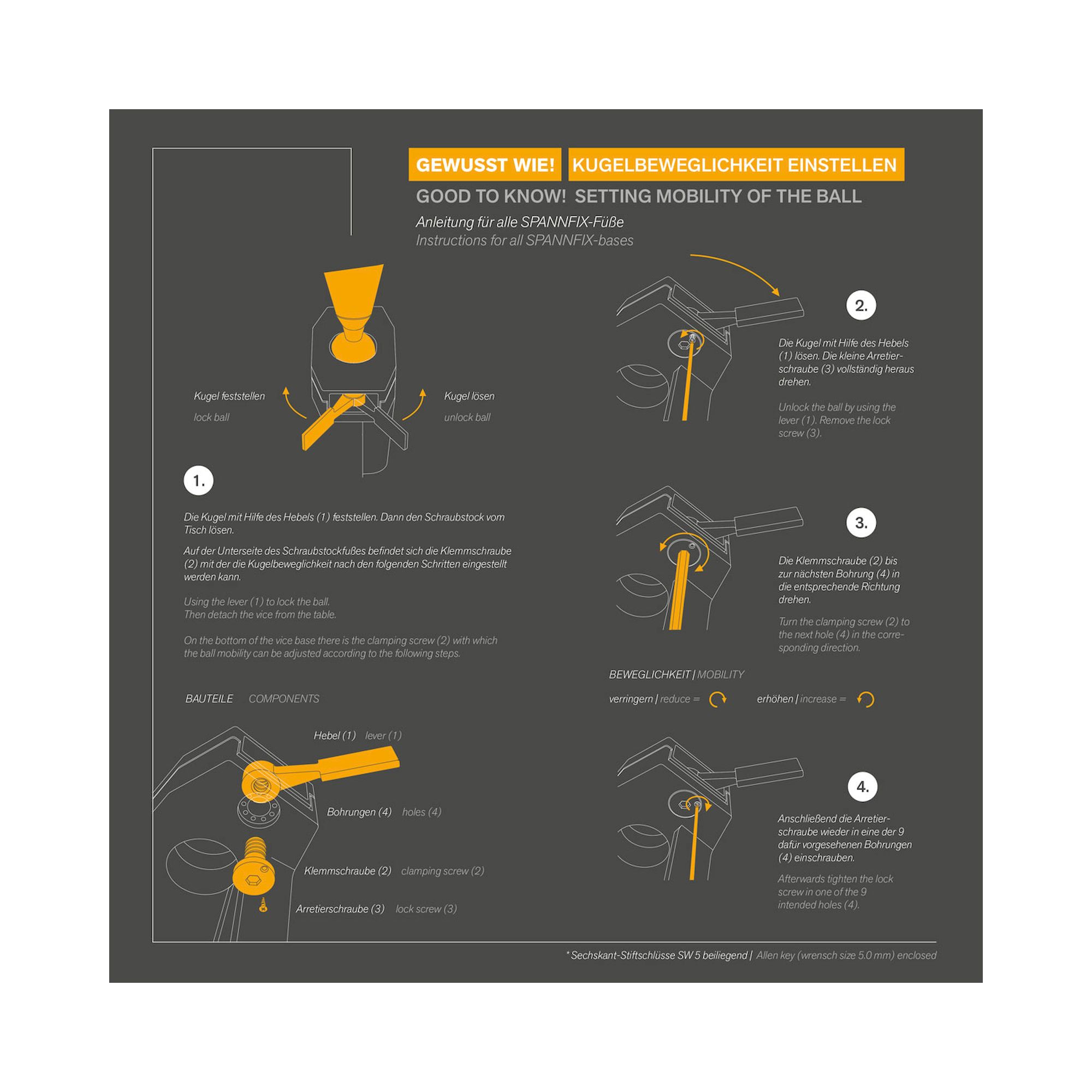

- Precision ball joint, rotatable 360° and steplessly lockable
- Adjustable from 25 mm to 270 mm board length
- Quick-turning device with adapter plate, spring for sensitive boards
- Dissipative 10^7 to 10^8 ohm, EPA suitable
- ESD grounding cable 1 MOhm, 1.8 m, included
Application

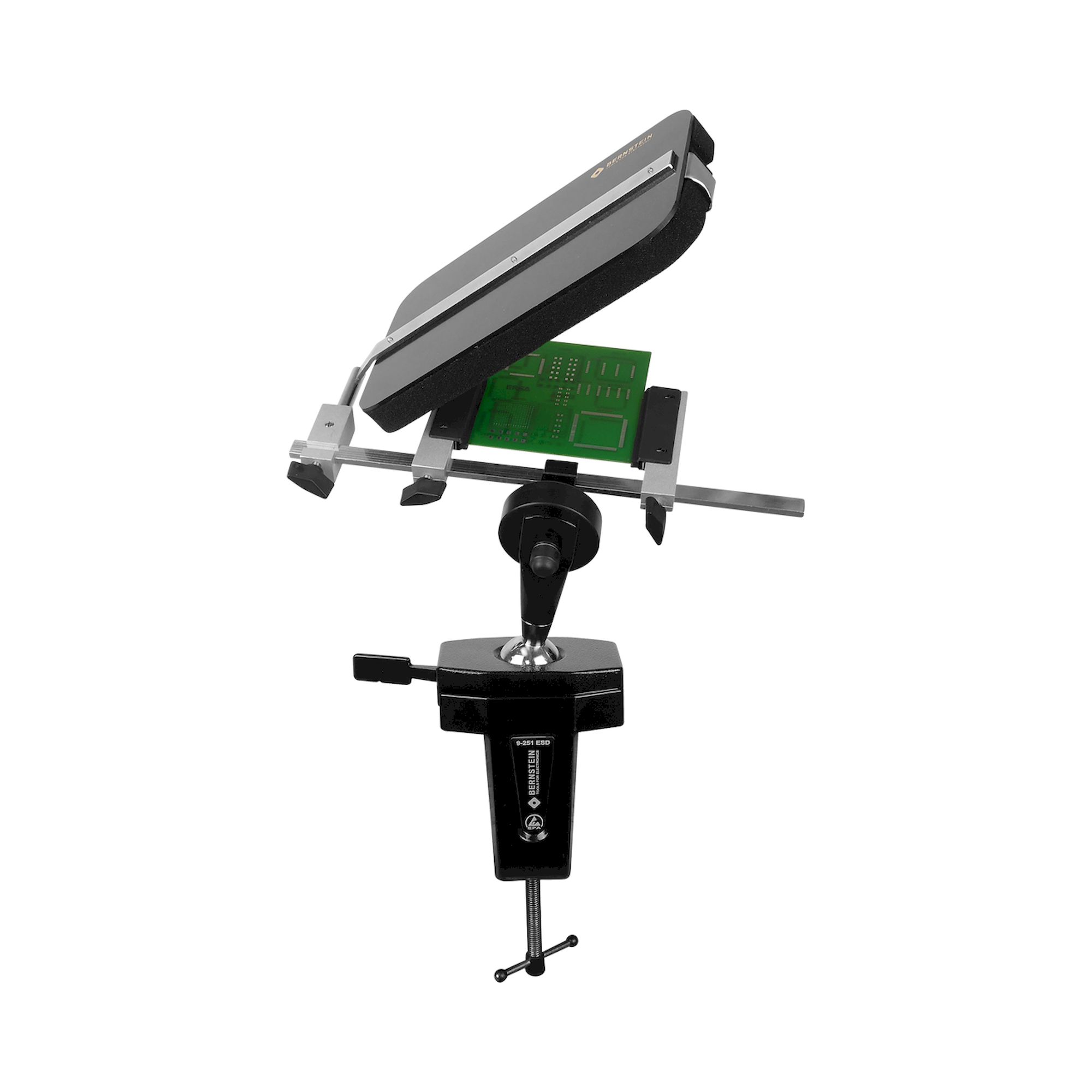

The SPANNFIX VARIO serves as a third hand when soldering or assembling boards up to 270 mm long. The grounding cable keeps the workstation at ESD potential.
Standards and Delivery Data
- EPA suitable for ESD workplace and ESD protection zone
- EAN 4250838530071
- Customs tariff number 82057000
- Country of origin Germany
Technical data
| Feature | Value |
|---|---|
| Clamping mechanism | Precision ball joint, 360° rotatable, steplessly lockable |
| Origin | Made in Germany |
| Assembly frame | with quick-turning device and adapter plate |
| Spring support | for sensitive boards, angle adapter |
| Adjustment range | 25 mm to 270 mm |
| Mounting | for clamping, table thickness up to 80 mm |
| Inclination angle | +/- 45° |
| Grounding | ESD grounding cable 1 MOhm, 1.8 m |
| Material | Steel, plastic, cast aluminum, black ESD powder coating, dissipative 10^7 to 10^8 ohm |
| Dimensions | approx. 410 x 300 x 240 mm |
| Weight | 1560 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-270-ESD |
| EAN | 4250838530071 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | ESD (antistatic) |
Scope of delivery

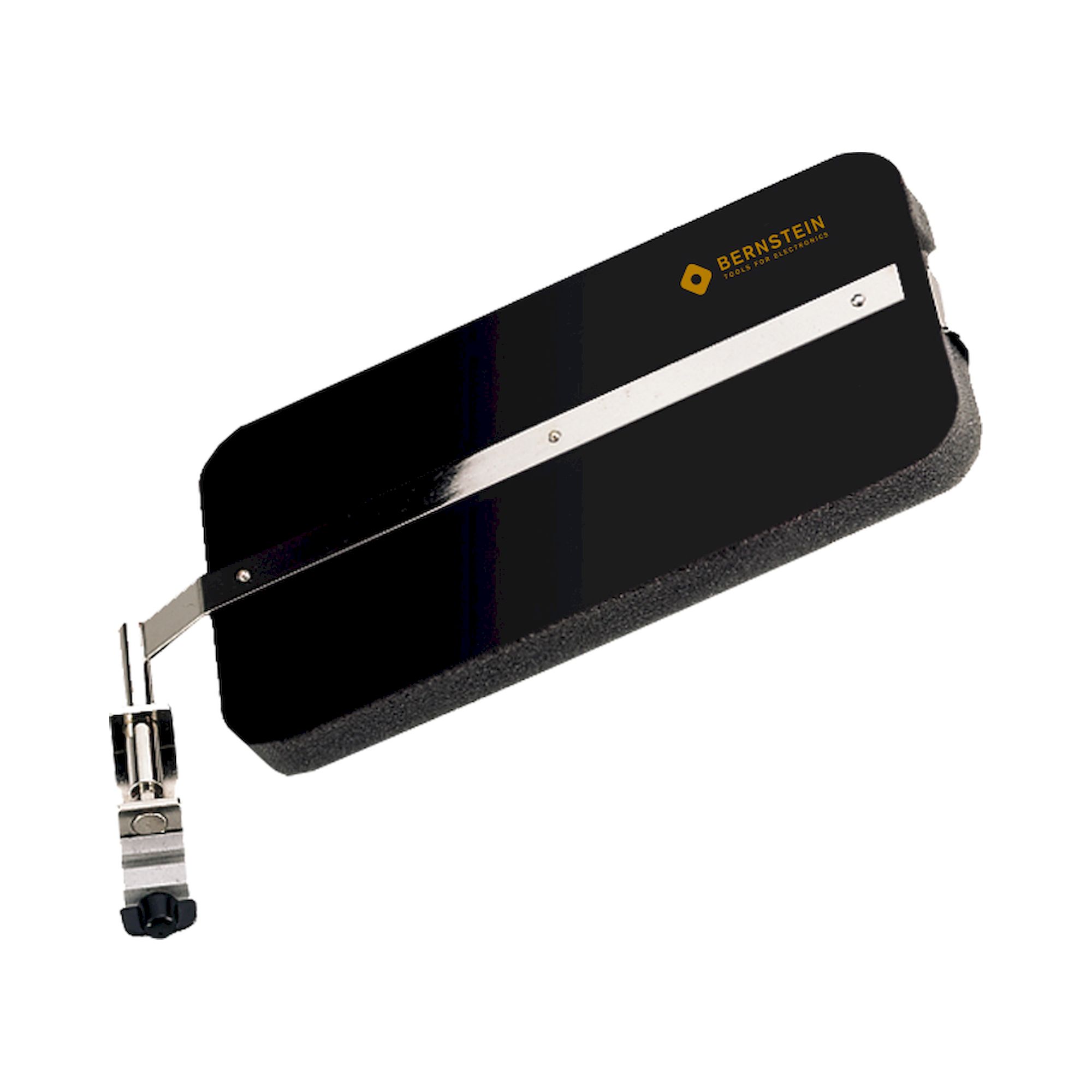

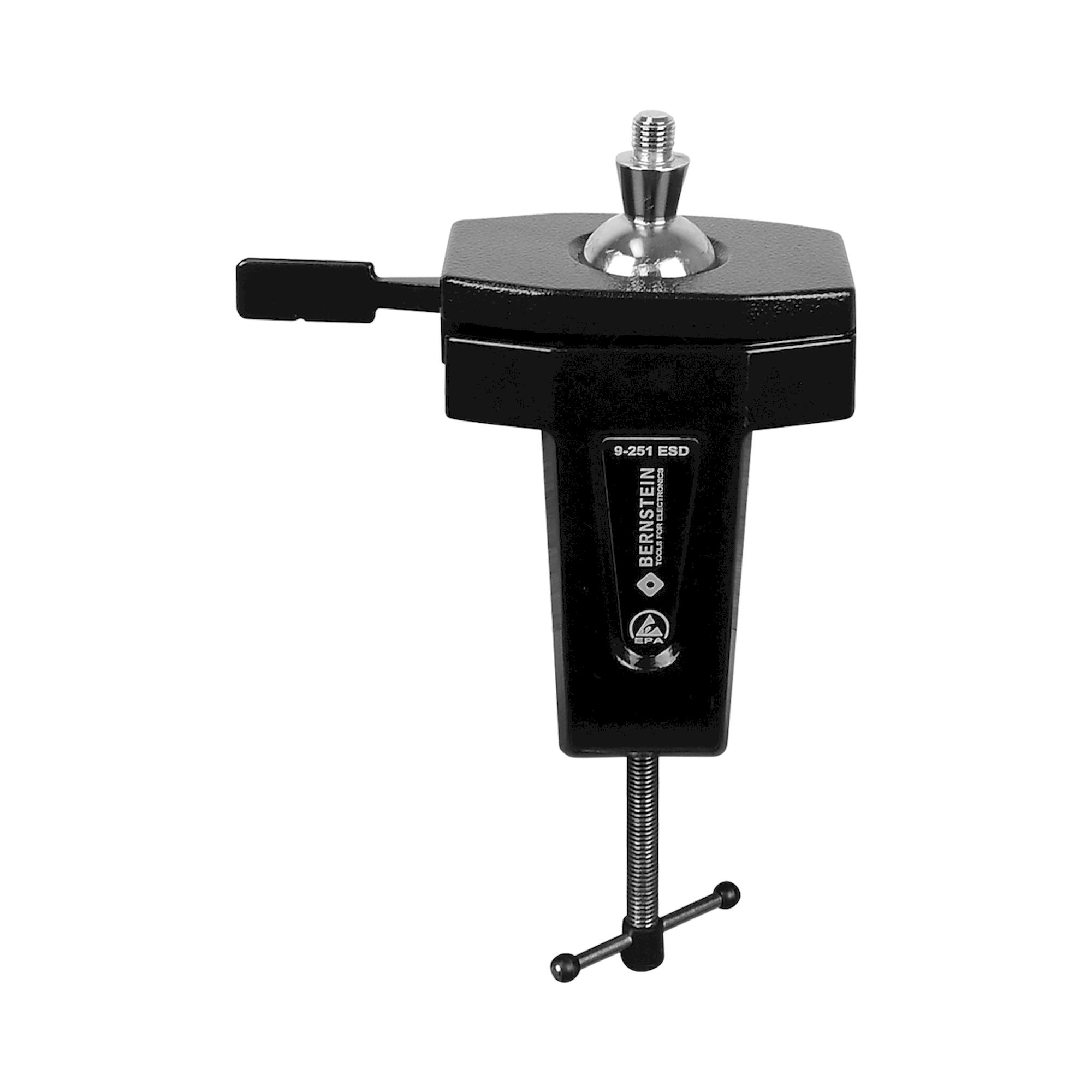

- 9-251 ESD ball joint base, threaded pin 20 mm

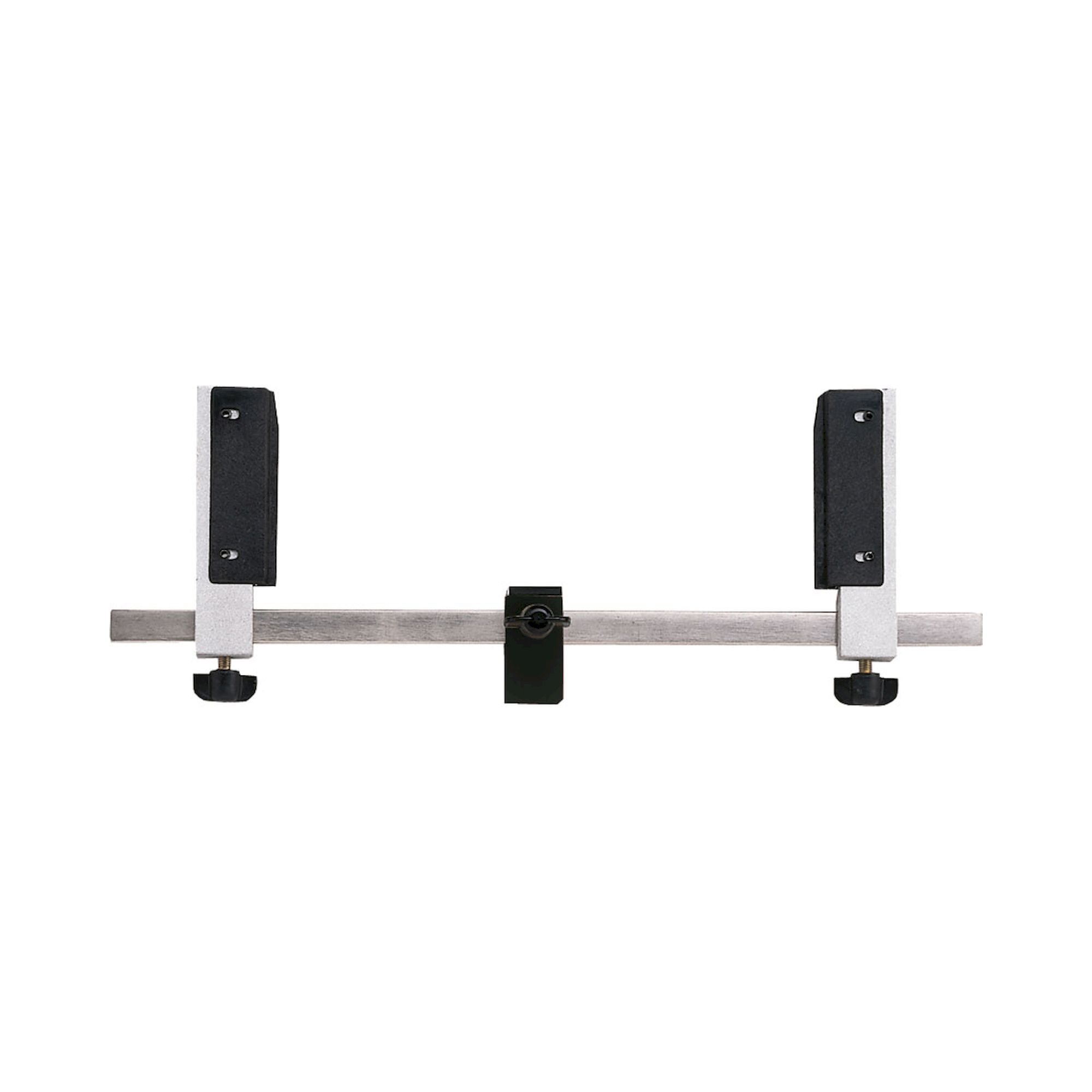

- 9-253 ESD PCB holder for screwing on, M12 x 1.5
- 9-256 ESD cover plate for PCB holder

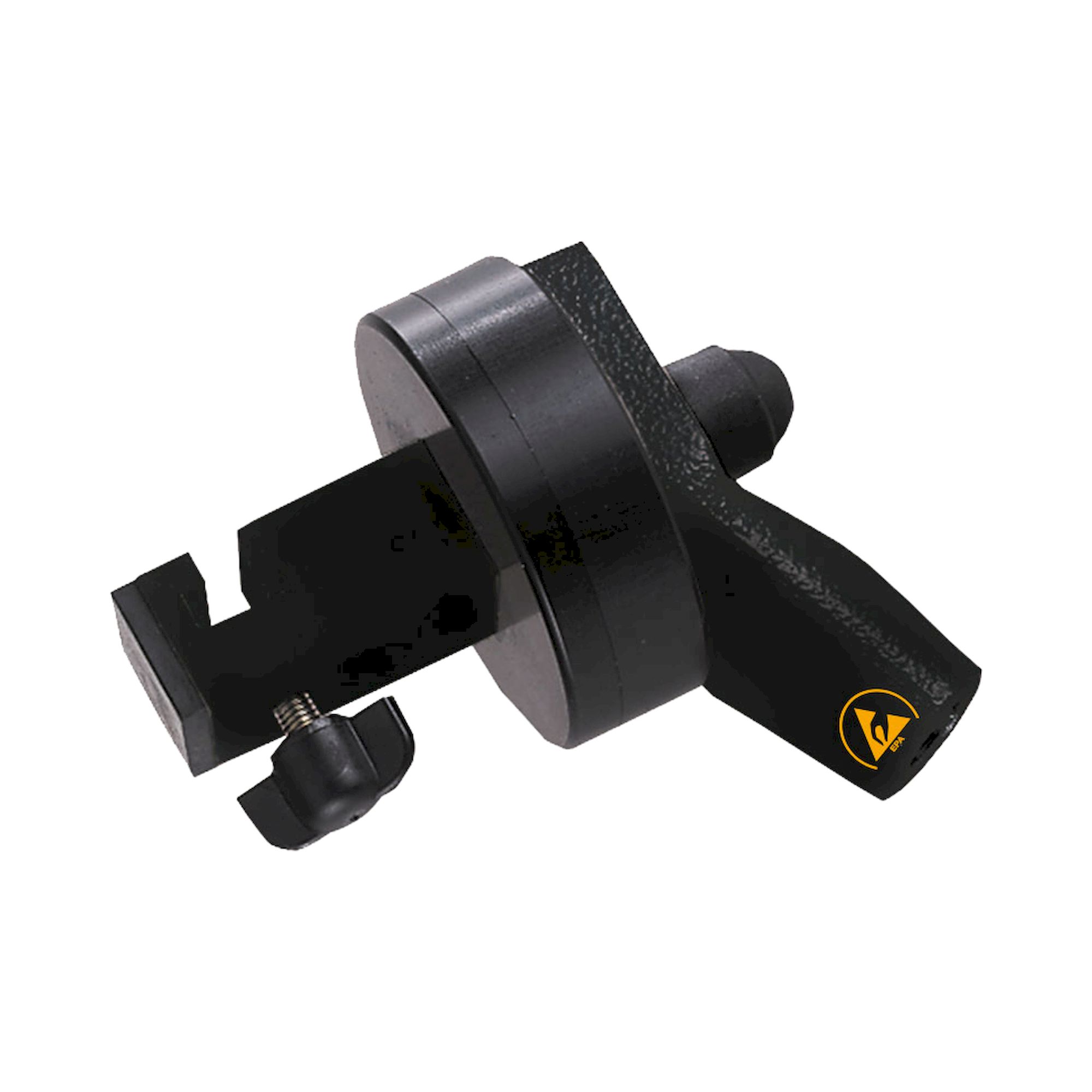

- 9-257 ESD quick-turning device

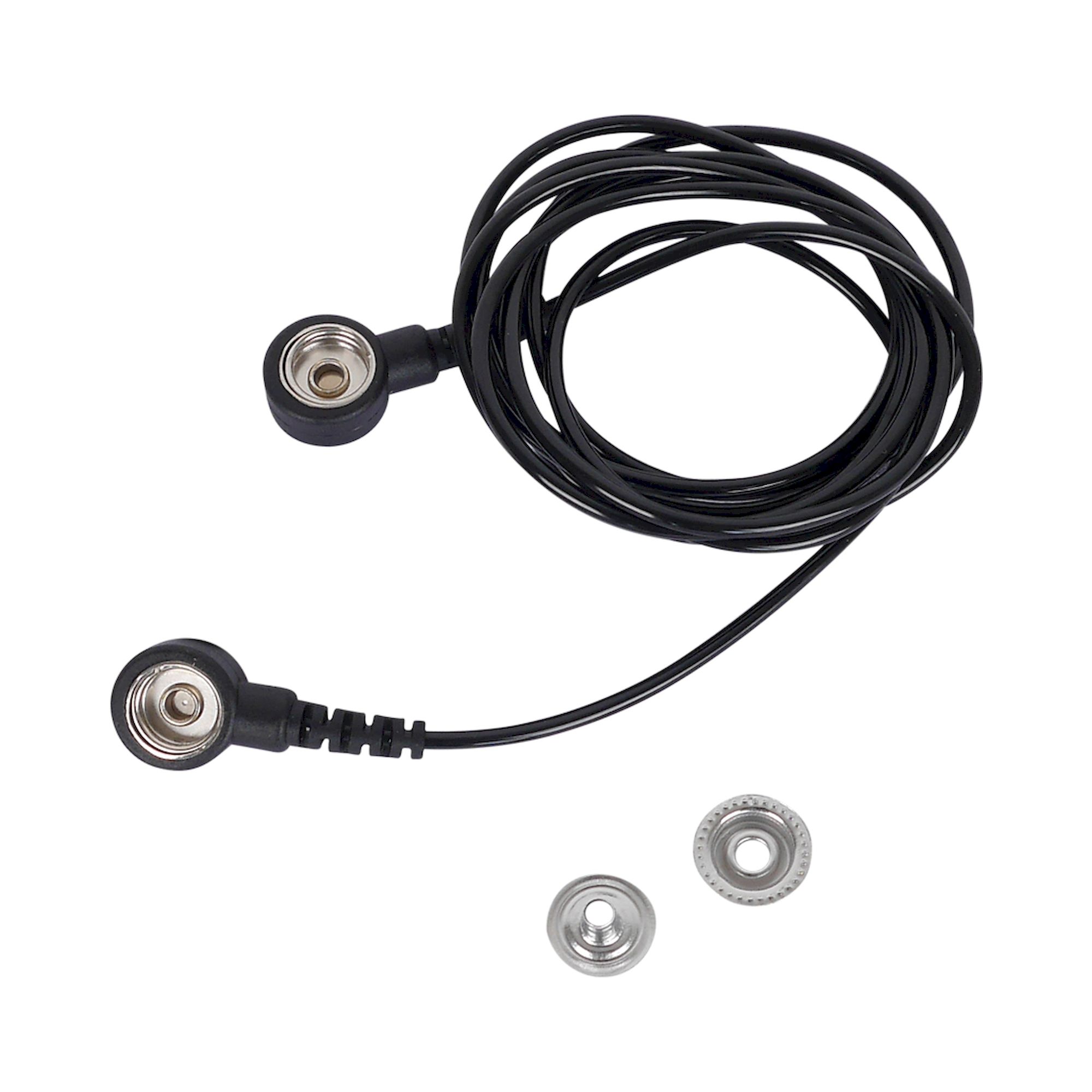

- 9-343-1 ESD grounding cable 1 MOhm, 1800 mm
Downloads
Datasheet
Certificate
Other
- Cases and Sets EN
- Bernstein Catalogue Pages Screwing Tools, Torque and Bits EN
- Bernstein Catalogue Pages Ball Joint Vices and Holders EN
- Bernstein Catalogue Pages VDE Tools EN
- Bernstein Catalogue Pages Pliers EN
- Bernstein ESD Guide EN
- Bernstein protective and replacement jaws with new linings EN
- Drehmoment Schraubendreher DE
- Kugelgelenk Schraubstock DE
- Schonbacken DE
- Bernstein Katalogseiten Schraubstöcke und Halter DE
- Ersatzbacken, Schonbacken DE
- ESD Leifaden DE
- Bernstein Katalogseiten Pinzetten DE
- Bernstein Katalogseiten VDE Werkzeuge DE
- Zangen DE
- Bernstein Katalogseiten ESD Arbeitsplatz und ESD Handwerkzeuge DE
