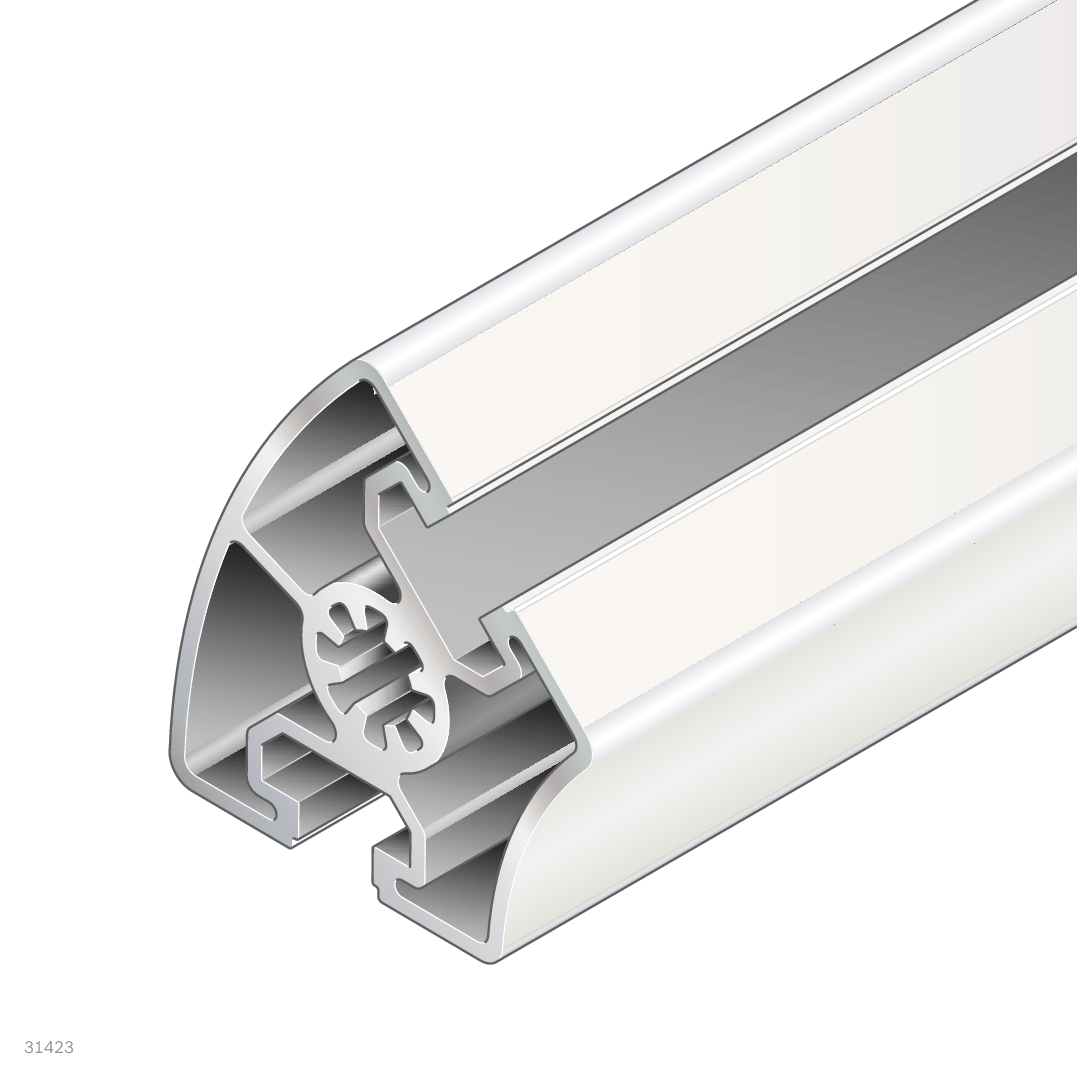

Strut Profile 45x45°, 6070 mm, Anodized Aluminum, 2 Open Slots - Bosch Rexroth 3842558317
Datasheet (PDF)
The product may differ from the illustration
Strut profile with a 45-degree cross-section (45x45 mm) and a length of 6070 mm in anodized aluminum. Two open slots (profile slot 10, modular dimension 45 mm) allow connectors and brackets to be fitted without drilling. Supplied as a single rod in standard length.

Strut Profile 45x45°, 6070 mm, Anodized Aluminum, 2 Open Slots - Bosch Rexroth 3842558317

BOSCH REXROTH Original product
Net price (excl. VAT)
€180.13
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842558317
Manufacturer no. 3842558317
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842558317
Country of originGermany
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842558317
Frequently Bought Together
Total price

The Bosch Rexroth 45x45° strut profile is an extruded aluminum section for building assembly and transfer systems on a 45 mm modular grid. The anodized surface provides corrosion resistance and long-term dimensional stability. Two open slots with profile slot 10 accept connectors, brackets and add-on components without machining.

  • 45x45° cross-section with 2 open slots - connectors fit directly, no drilling required
  • Profile slot 10, modular dimension 45 mm - compatible with the full Bosch Rexroth aluminum structural system
  • Anodized aluminum - corrosion-resistant, lightweight and dimensionally stable
  • 6070 mm single rod - suited to long traverses and large frame structures
  • Profile surface 7.6 cm², mass 2 kg/m - efficient stiffness-to-weight ratio for load-bearing assemblies

Technical data

PropertyValue
Cross-section45x45°
Dimensions45x45 mm
Length [L]6070 mm
Profile type45 degrees
Modular dimension45 mm
Profile slot10
Open slots2
MaterialAluminum, anodized
ColorNatural
Profile surface [A]7.6 cm²
Mass [m]2 kg/m
Weight (rod)12.6 kg
Area moment of inertia lx13.4 cm⁴
Area moment of inertia ly21.4 cm⁴
Moment of resistance Wx5.2 cm³
Moment of resistance Wy6.4 cm³
Torsional moment of inertia [It]9 cm⁴
Moment of torsion resistance [Wt]6.8 cm³
Condition on deliverySingle rod in standard length
Packaging unit1
Recommended accessoriesCover cap 45x45°, signal gray; Cover cap 45x45°, black
More Information
Manufacturer Nr. 3842558317
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 12.600000
Lenght 6070 mm
Note Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code 76042100
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
Download
File Icon Bosch Rexroth. Katalog Mechanik-Grundelemente (de) (30.56 MB)
File Icon Bosch Rexroth. TSplus Modular Conveyors for Flexible Manufacturing (en) (12.02 MB)
File Icon Bosch Rexroth. Catalog Basic Mechanic Elements (en) (30.55 MB)
File Icon Bosch Rexroth. Aluminum Structural Framing System (en) (29.62 MB)
File Icon Bosch Rexroth. Transfersystem TS 5 (de) (40.69 MB)
File Icon Bosch Rexroth. Transfer system TS 5 (en) (43.75 MB)
File Icon Bosch Rexroth Éléments mécaniques de base (fr) (36.36 MB)
