TASS brake test element TR3, 40 to 80 Nm - Bosch Rexroth 3609438136

For joints between 40 and 80 Nm, the TASS element TR3 provides the matching test load. It is applied directly to the spindle and delivers two torque values, the angle of rotation and a linearity result in one run. As the third size of the TASS elements, TR3 has a 32 mm width across flats and a length l3 of 226.5 mm, and weighs 1.75 kg.

Benefits

• Characteristic values M1 40 Nm and M2 80 Nm cover the working range stated in the designation, M3 is specified as 100 Nm
• Three parameters in one pass: two torque values, angle and linearity, no second test setup required
• Testing in the installed state, the spindle stays in the machine and the cycle is barely interrupted
• Immediate feedback after the test run, so release or readjustment can be decided on the spot
• Size TR3 at 1.75 kg with a 32 mm width across flats, easy to handle at the station

Specifications

Applications

• Regular checks of fixtured nutrunners and spindles with target values from 40 to 80 Nm
• Testing and setting nutrunners before production start or after work on the spindle
• Daily validation of tightening stations without removing the spindle

System compatibility

• TASS (Tool Analysis and Setup System) by Bosch Rexroth, size TR3 with elements from 20 to 100 Nm

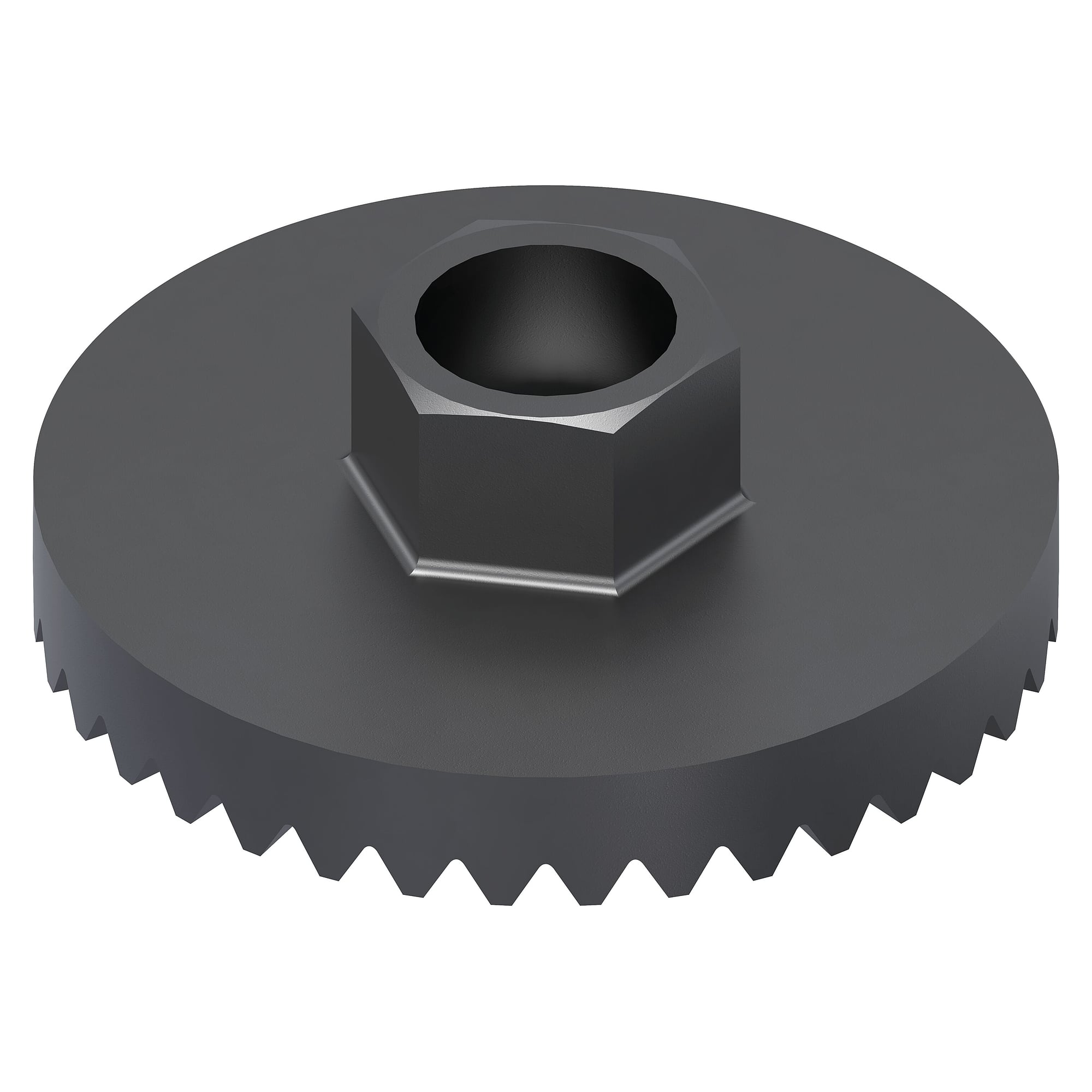

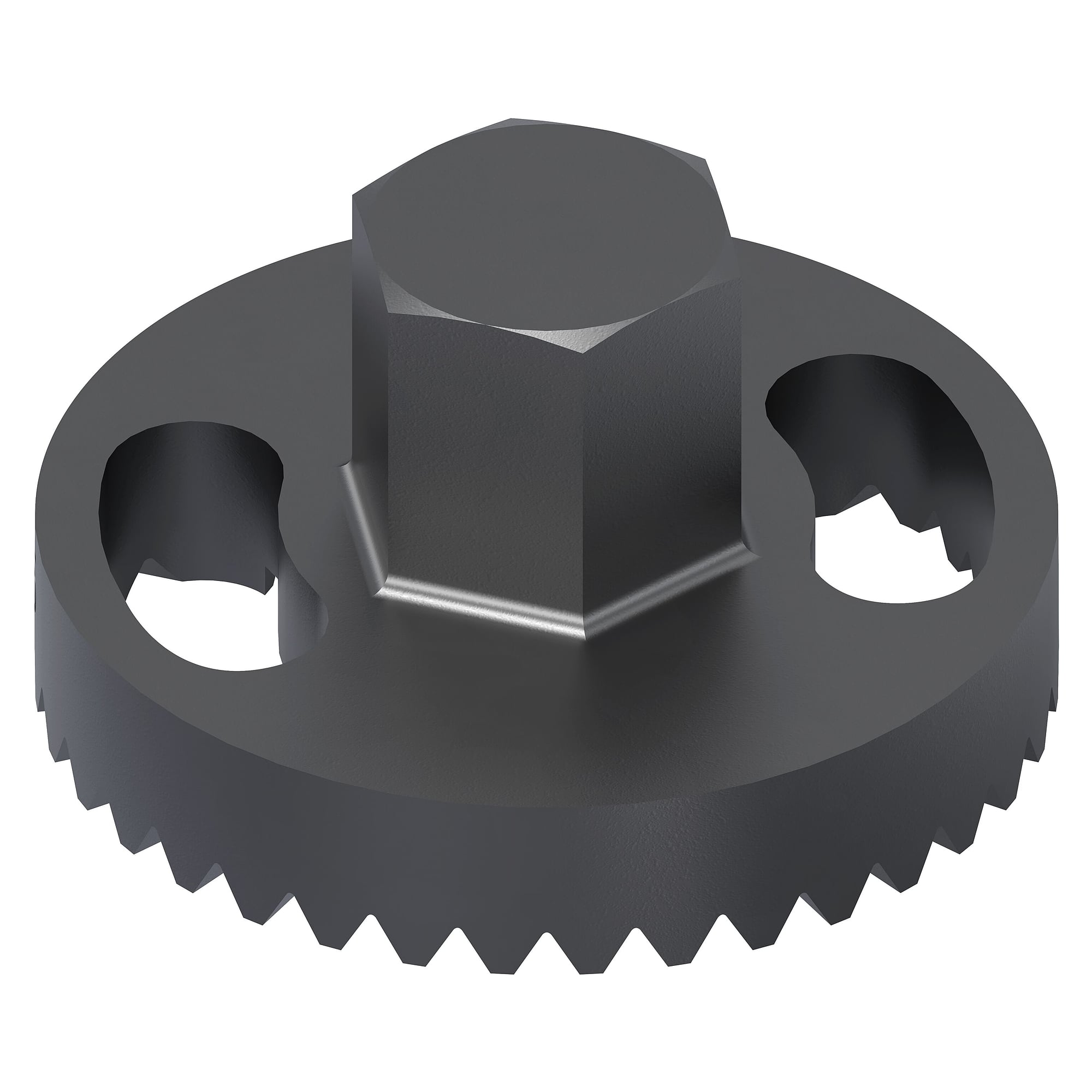

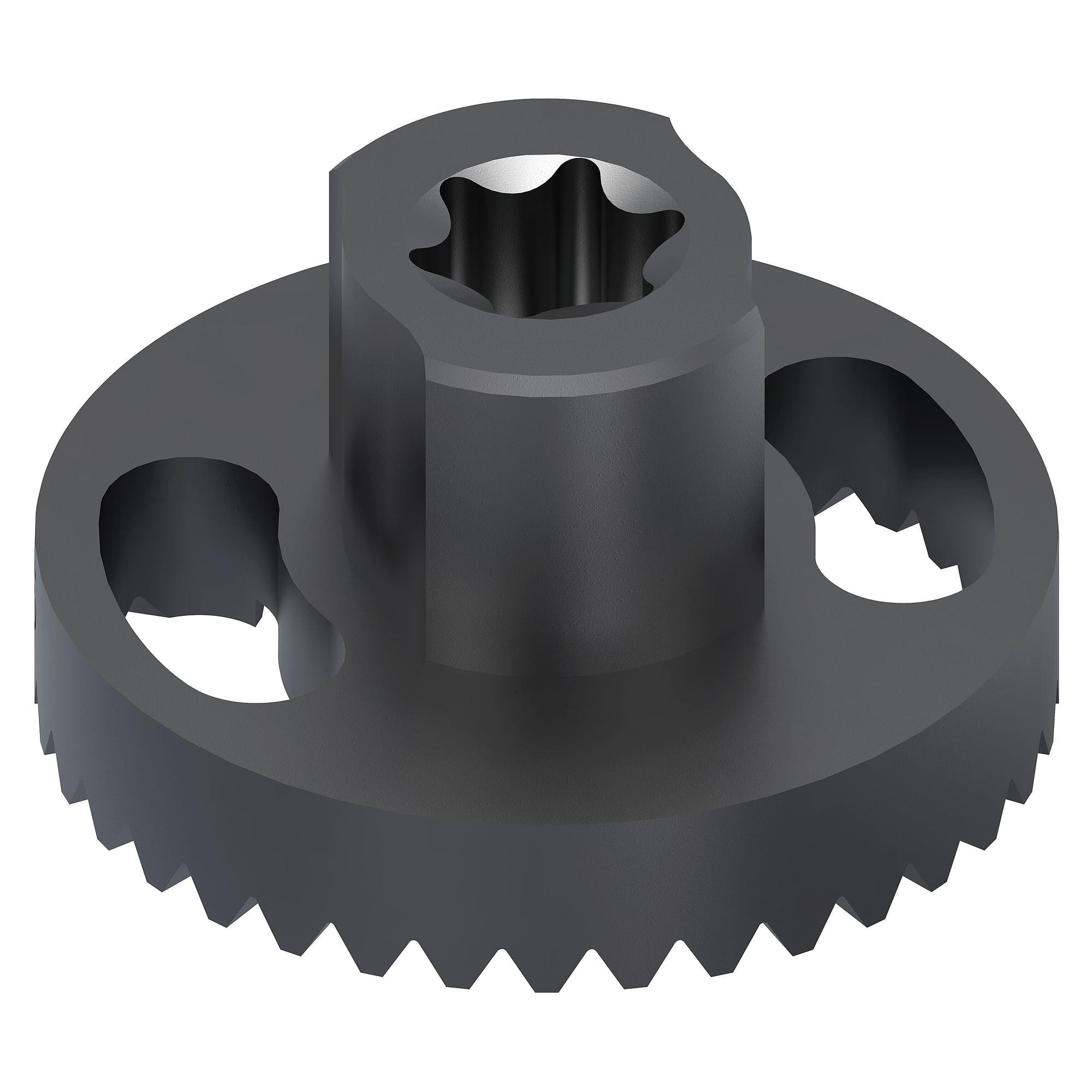

• Adapters match the interface to the joint (hex socket, external hex, Torx, internal thread)
• TASS FIX TR3 fixture (Bosch Rexroth 3609438003) for fixed mounting at the test station
