Lift-Rotate Unit HD 2, ESD, 180°, 240 mm Track Width, 90 mm Lift - Bosch Rexroth 3842525856

Name: Lift-Rotate Unit HD 2, ESD, 180°, 240 mm Track Width, 90 mm Lift - Bosch Rexroth 3842525856
Brand: Bosch Rexroth
SKU: BRR-3842525856
Price: 4907.61 EUR
Availability: InStock

BOSCH REXROTH Original product

Net price (excl. VAT)

€4,907.61

Excl. 19% VAT , excl. Shipping Cost

Available Fast shipping

Item BRR-3842525856

Manufacturer no. 3842525856

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.3842525856

Country of originGermany

Customs tariff number84313900

ConditionNew

Article

BRR-3842525856

Skip to the end of the images gallery

Lift-Rotate Unit HD 2, ESD, 180°, 240 mm Track Width, 90 mm Lift - Bosch Rexroth 3842525856

Skip to the beginning of the images gallery

The product may differ from the illustration

The HD 2 lift-rotate unit lifts the workpiece pallet above the conveyor level and turns it into the required orientation. This ESD version works with a 180° turning angle, 240 mm track width and 90 mm lift and is also suitable when components are mounted at the side of the pallet. It integrates into the TS 2plus transfer system and allows work operations without additional applied forces.

Frequently Bought Together

This Item: Lift-Rotate Unit HD 2, ESD, 180°, 240 mm Track Width, 90 mm Lift - Bosch Rexroth 3842525856
€4,907.61
Excl. 19% VAT , excl. Shipping Cost

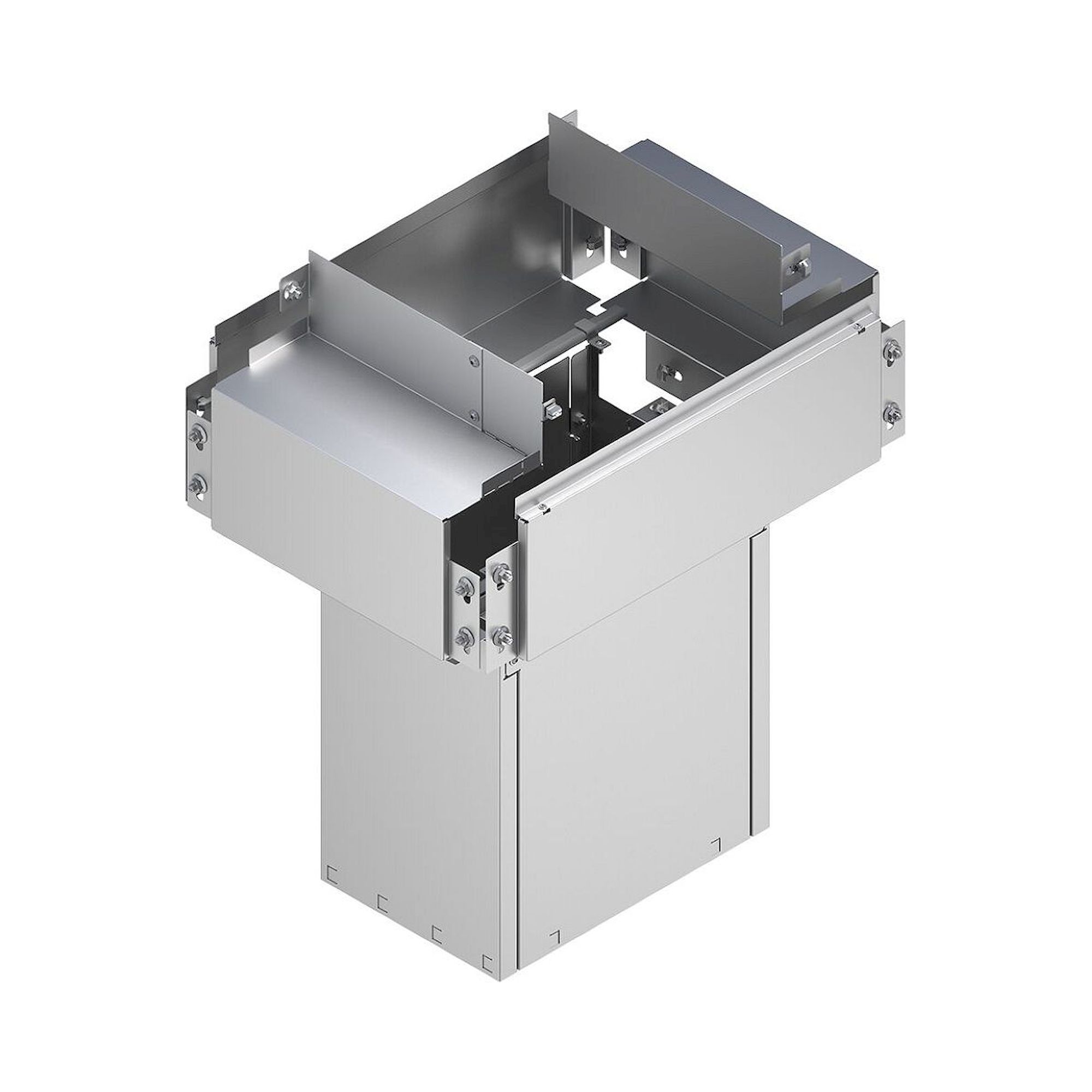

Bosch Rexroth 3842552603. Housing element for HD 2/H, 240/400 180°
€546.27
Excl. 19% VAT , excl. Shipping Cost
Protective Box HP 2, Length 512 mm - Bosch Rexroth 3842532410
€108.61
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

The HD 2 lift-rotate unit turns the workpiece pallet into the required orientation within the TS 2plus transfer system while lifting it above the conveyor level. In recirculating systems without curves it keeps the workpiece pallet in a constant orientation, so the front stays at the front. This ESD version is designed for a 240 mm track width and turns through 180°.

90 mm lift above conveyor level, also suitable when components are mounted at the side, such as identification and data storage modules
Work operations on the unit are permitted without additional applied forces
ESD-compliant design
Supplied including fastening material

Technical data

Article number	3842525856
Type	Lift-rotate unit HD 2
ESD	yes
Turning angle (DW)	180°
Track width in direction of transport (b)	240 mm
Length in direction of transport (lT)	160 mm
Lift of WP above conveyor level (h)	90 mm
Max. total mass of workpiece pallet (mG)	16 kg
Max. permitted total mass moment of inertia	0.65 kgm²
Required accessories (not included)	Stop gate VE 2, M12x1 sensor (sensing range SN 4 mm, non-flush)
Scope of delivery	incl. fastening material
Weight	22.6 kg

Information

More Information
Execution	TEC
Manufacturer Nr.	3842525856
Manufacturer	Bosch Rexroth
Country of Manufacture	Germany
Weight	0.009900
HS-Code	84313900
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity	Original product
Condition of article	New
