HD 2/H Size 2 Lift Rotate Unit, 90°/180° Rotation, max. 240 kg - Bosch Rexroth 3842998761
Datasheet (PDF)
The product may differ from the illustration
The HD 2/H Size 2 lift rotate unit raises workpiece pallets by 50 mm and rotates them by 90° or 180°. It handles square and non-square pallets up to 240 kg and reduces cycle times by executing the return rotation below the belt during pallet changeover.

HD 2/H Size 2 Lift Rotate Unit, 90°/180° Rotation, max. 240 kg - Bosch Rexroth 3842998761

BOSCH REXROTH Original product
Net price (excl. VAT)
€7,160.86
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842998761
Manufacturer no. 3842998761
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842998761
Country of originGermany
Customs tariff number84313900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842998761
Frequently Bought Together
Total price

The HD 2/H BG 2 lift rotate unit (part number 3842998761) is a pneumatic assembly for Bosch Rexroth VarioFlow transfer systems. It lifts the workpiece pallet and rotates it to the required orientation - 90° or 180° - depending on pallet geometry and process requirements. For 90° rotation, the return stroke runs below the belt in parallel with pallet changeover, keeping cycle times short.

  • Rotation angle 90° or 180° - both angles for square pallets, 180° only for non-square pallets
  • Lift above conveyor level: 50 mm
  • Max. workpiece pallet total weight: 240 kg
  • Center position available in the 90° version (Size 1 and Size 2)
  • Delivered fully assembled including fastening material and pneumatic elements for top/center/bottom lift positions
  • ESD-capable version available

Technical data

ParameterValue
Part number3842998761
SizeBG 2
Max. workpiece pallet total weight (mG)240 kg
Lift above conveyor level (h)50 mm
Rotation angle90° or 180°
Workpiece pallet width (bWT)400, 480, 640, 800 mm
Length in direction of transport (lT)400, 480, 640, 800, 1040 mm
Delivery conditionFully assembled
Scope of delivery2x damper for rotary end positions, fastening material, pneumatic elements for top/center/bottom lift positions
Weight0.0099 kg (shipping weight; product weight per manufacturer pending)

Dimensions BG 2 (selection)

bWT (mm)H (mm)H1 (mm)L (mm)L1 (mm)
400363.5137.5675585
480363.5137.5675585
640363.5137.5675585
800363.5137.5675585

Required accessories

ItemNote

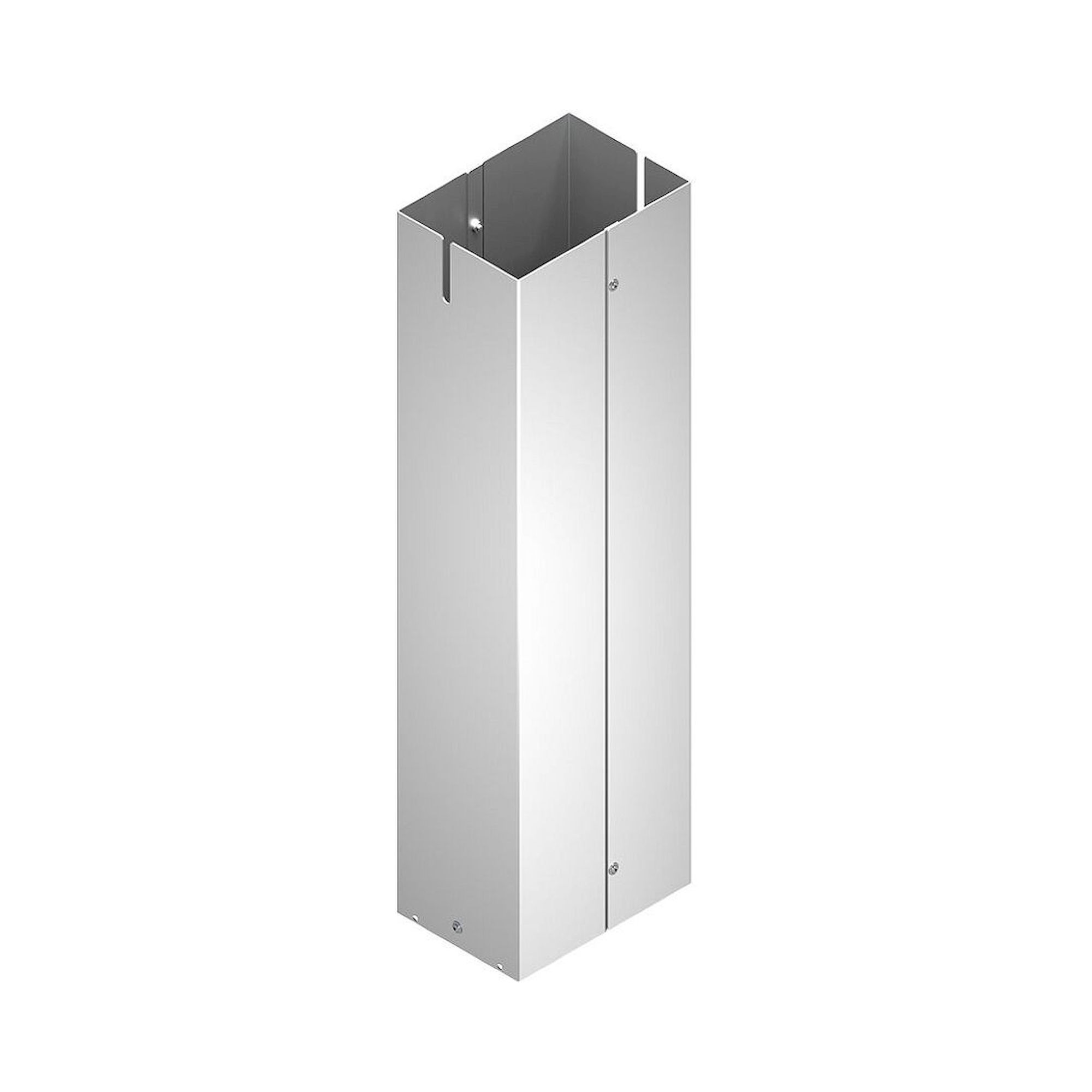

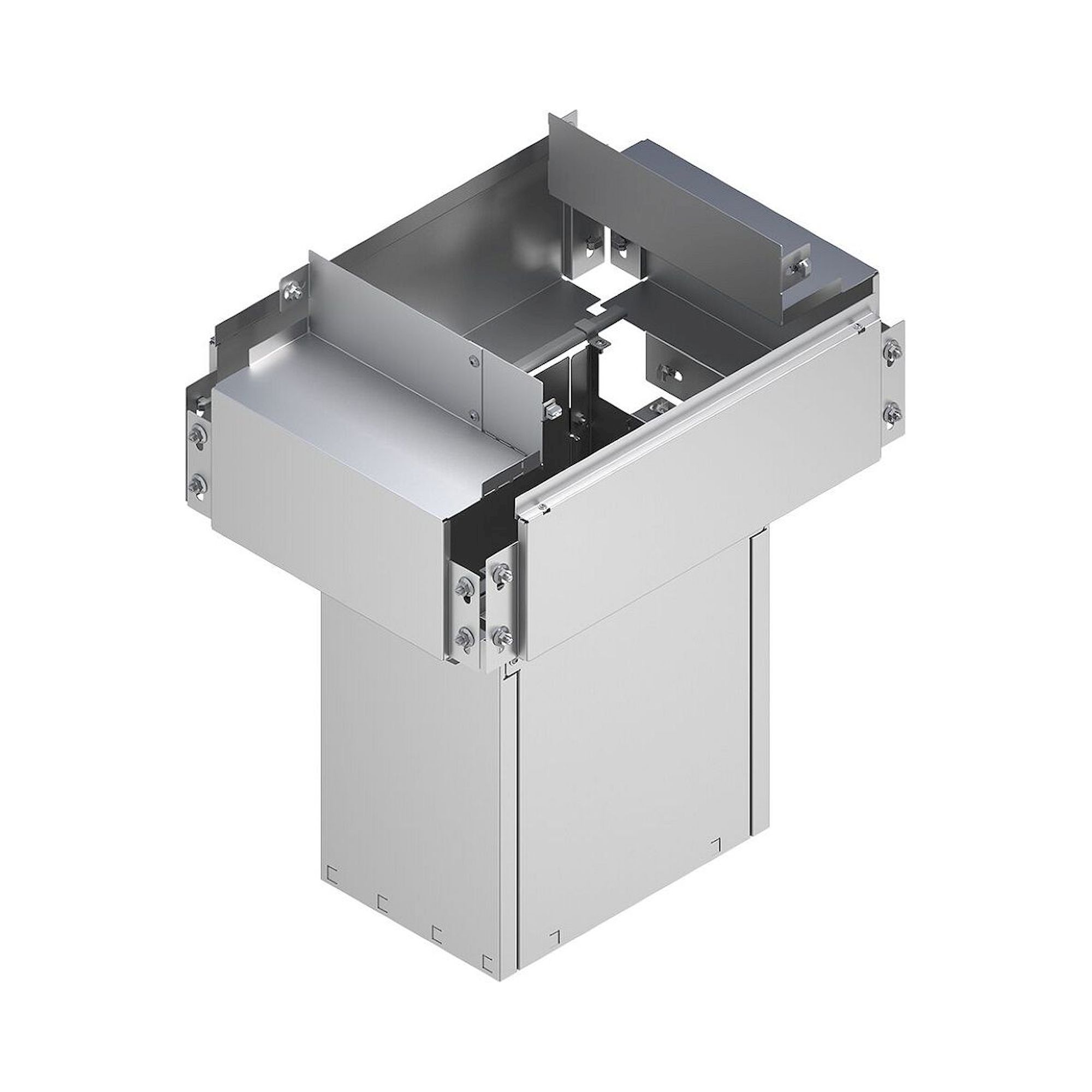

Protective housingsRequired
SupportsRequired for BG 2 from 50 kg pallet weight
Cylinder switch 0830100433For top/center/bottom lift positions
Sensor for rotary movementFor 0°/180° or 0°/90°
