The HD 2 lift-rotate unit turns the workpiece pallet of the TS 2plus transfer system into the required orientation, with a 90° turning angle and 40 mm lift above conveyor level. Track width and length are 240 mm each, and the unit is ESD-compatible. Work operations are permitted without additional applied forces.
Lift-Rotate Unit HD 2, b240, lT240, 90° Turn, ESD - Bosch Rexroth 3842525857
BOSCH REXROTH Original product
Net price (excl. VAT)
€4,907.61
Item BRR-3842525857
Manufacturer no. 3842525857
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842525857
Country of originGermany
Customs tariff number84313900
ConditionNew
Article
BRR-3842525857
Frequently Bought Together
- This Item: €4,907.61

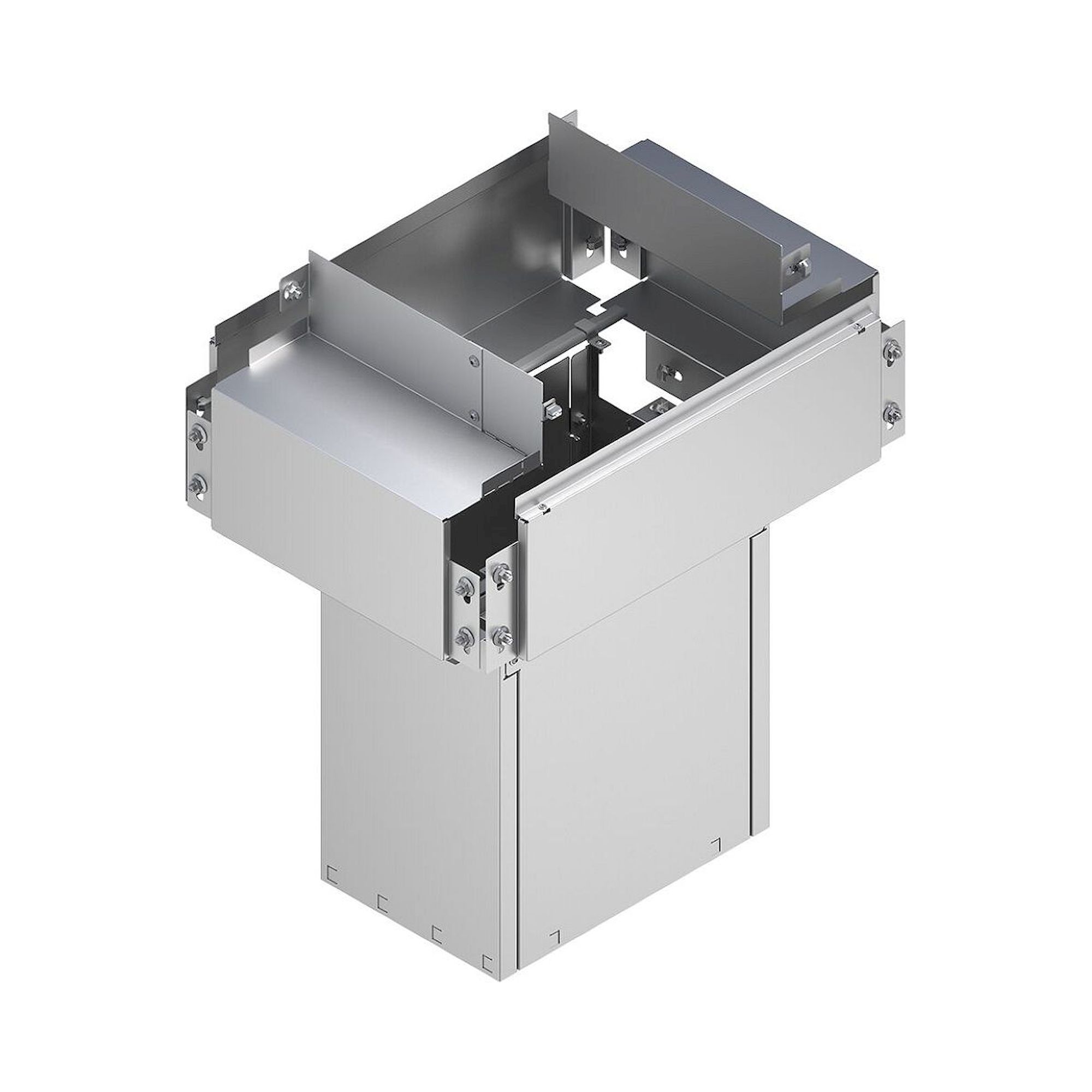

- Housing Element for HD 2/H Transfer System, 480/400 180° - Bosch Rexroth 3842552613 €733.15
- Centering Pin D12x39, Flat-Sided - Bosch Rexroth 3842242395 €27.12
Total price
The HD 2 lift-rotate unit turns the workpiece pallet of the TS 2plus transfer system into the required orientation. In recirculating systems without curves it maintains a constant pallet orientation, so the front stays the front.
This version lifts the workpiece pallet 40 mm above conveyor level and turns it by 90°. The 40 mm lift version is suitable for turning the pallet directly above the conveyor section. Work operations on the HD 2 are permitted without additional applied forces.
- Defined 90° turn for a constant workpiece pallet orientation
- 40 mm lift for turning directly above the conveyor section
- ESD-compatible
- Supplied including fastening material
Technical data
| Article number | 3842525857 |
| Track width in direction of transport (b) | 240 mm |
| Length in direction of transport (lT) | 240 mm |
| Turning angle (DW) | 90° |
| Lift of WT over conveyor level (h) | 40 mm |
| Max. total weight of workpiece pallet (mG) | 16 kg |
| Max. permitted total mass moment of inertia | 0.65 kgm² |
| Dimension c | 82 mm |
| Dimension d | 82 mm |
| ESD | yes |
| Required accessories | Stop gate VE 2/..., M12x1 sensor (SN 4 mm) |
| Scope of delivery | Incl. fastening material |
| Weight | 22.6 kg |
| Execution | TEC |
|---|---|
| Manufacturer Nr. | 3842525857 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.009900 |
| HS-Code | 84313900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
