This strut profile with a 45-degree 40x45° cross-section provides diagonal bracing and stiffening in aluminum profile structures. It is ESD-capable and made of anodized aluminum, with profile slot 10 for connection within the 40 mm modular system. Supplied in the 6070 mm standard length in packaging units of 12.

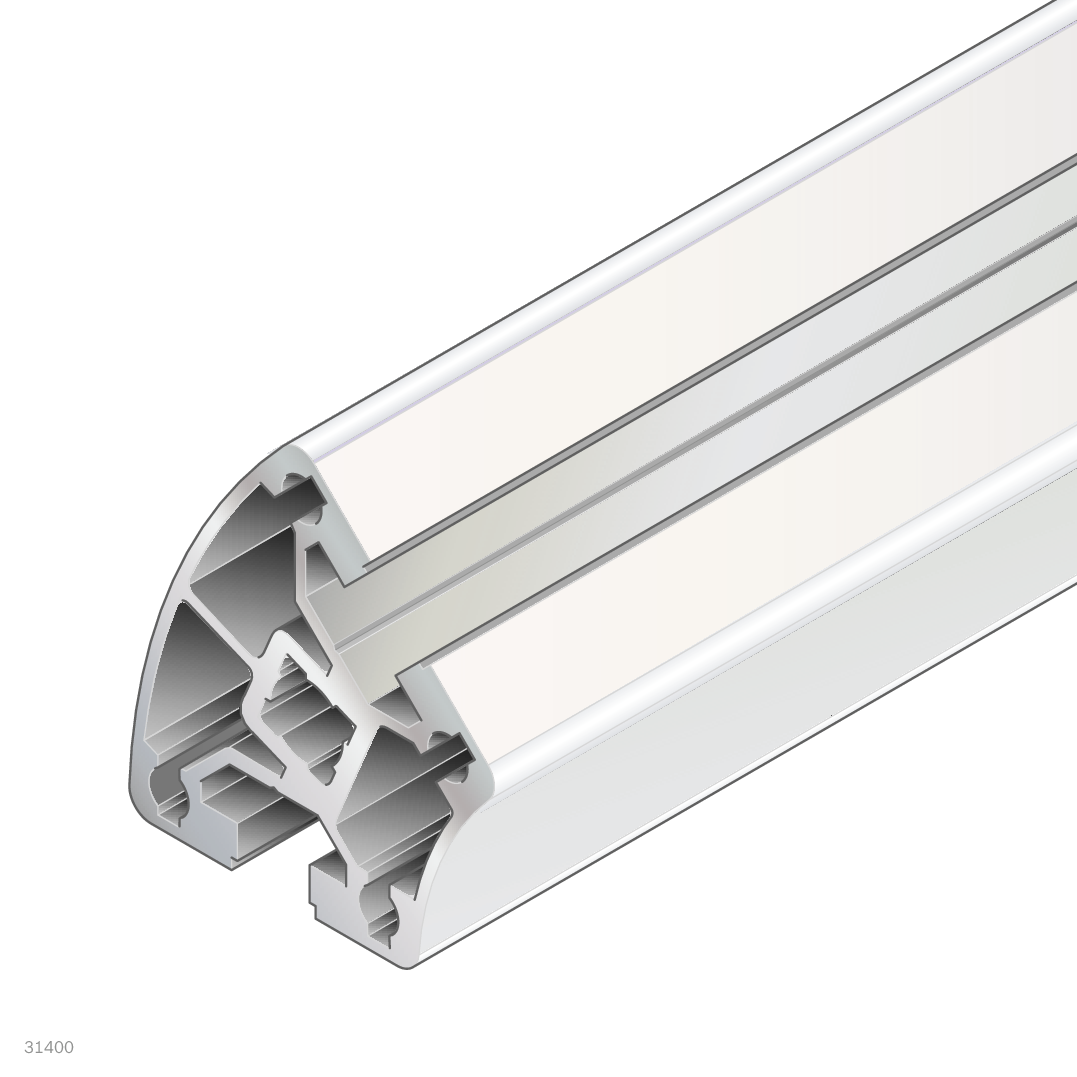

Strut Profile 40x45°, ESD, Slot 10, Anodized Aluminum - Bosch Rexroth 3842529373
BOSCH REXROTH
Original product
Net price (excl. VAT)
€1,851.47
Item
BRR-3842529373
Manufacturer no.
3842529373
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842529373
Country of originSweden
Customs tariff number76042100
ConditionNew
Article
BRR-3842529373
Frequently Bought Together
- This Item: €1,851.47
- Strut Profile 40x80L Slot 10, ESD, Anodized Aluminum, L 6070 mm - Bosch Rexroth 3842536484 €2,464.52
- Strut Profile 40x40L 1N, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529361 €2,388.81
Total price
The Bosch Rexroth 40x45° strut profile provides diagonal bracing and stiffening in frames and machine structures built from aluminum profiles. It is intended for designers and system builders who need to stiffen frames and transfer loads at an angle.
- 45-degree 40x45° cross-section for diagonal bracing within the 40 mm modular system
- ESD-capable for applications requiring electrostatic discharge protection
- Profile slot 10 for connecting compatible connectors and profiles
- Made of anodized aluminum with a natural surface finish
Technical data
| Condition on delivery | Packaging unit in standard length |
| Cross-section | 40x45° |
| Profile type | 45 degrees |
| Dimensions | 40x40 |
| Modular dimension | 40 mm |
| Profile slot | 10 |
| Open slots | 2 |
| ESD | yes |
| Color | Natural |
| Material | Aluminum, anodized |
| Length [L] | 6070 mm |
| Delivery unit | 12 |
| Profile surface [A] | 6.8 cm² |
| Area moment of inertia in x-direction [Ix] | 9.9 cm⁴ |
| Area moment of inertia in y-direction [Iy] | 16.6 cm⁴ |
| Moment of resistance in x-direction [Wx] | 5 cm³ |
| Moment of resistance in y-direction [Wy] | 8.3 cm³ |
| Torsional moment of inertia [It] | 4.2 cm⁴ |
| Moment of torsion resistance [Wt] | 3.7 cm³ |
| Mass [m] | 1.8 kg |
| Recommended accessories | Cover cap 40x45°, signal gray or black |
| Weight | 172 kg |
| Manufacturer Nr. | 3842529373 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Sweden |
| Weight | 172.000000 |
| Lenght | 6070 mm |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
