Strut Profile 40x60°, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529375
Datasheet (PDF)

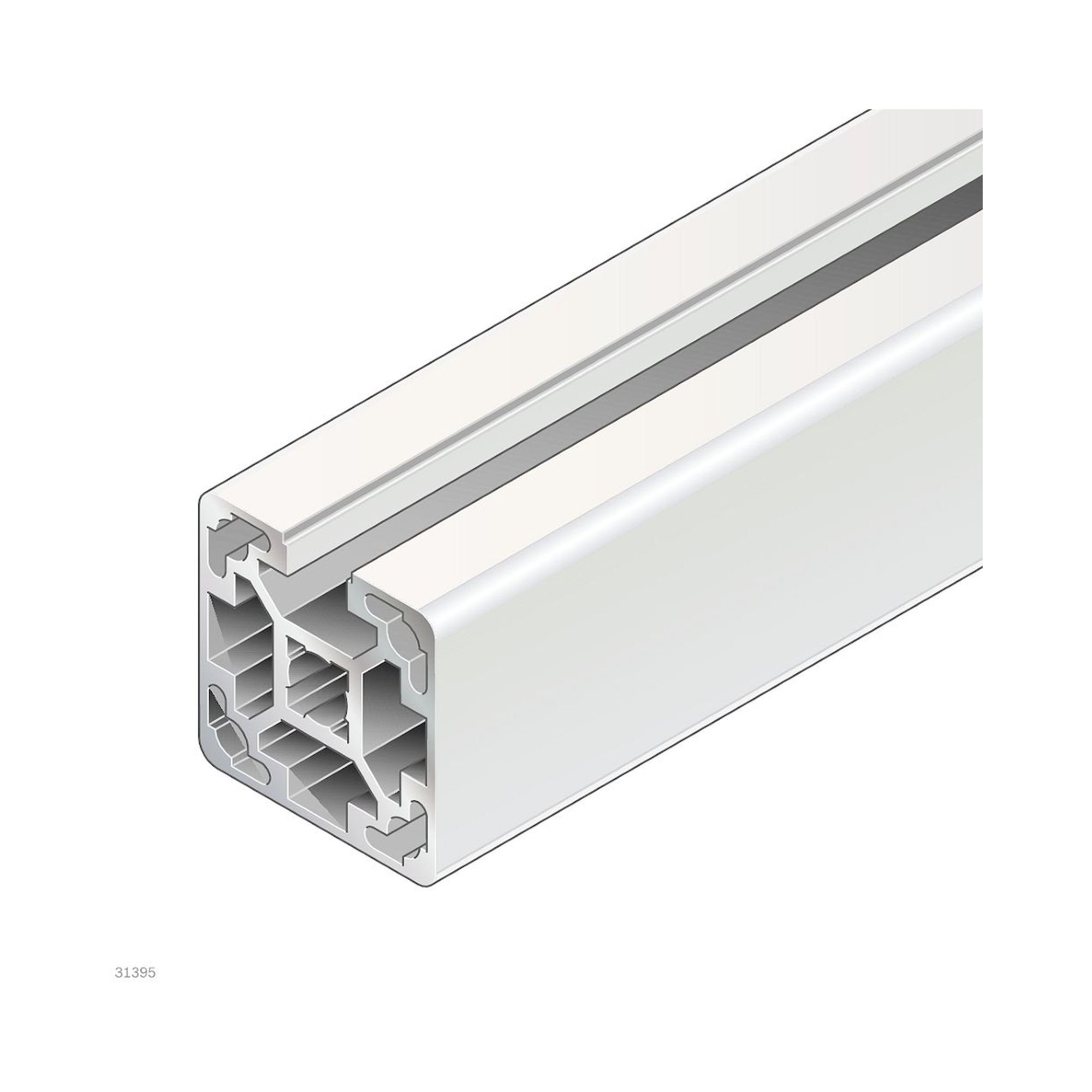

The product may differ from the illustration
Strut profile 40x60° in anodized aluminum with profile slot 10 for diagonal bracing and frame construction. ESD-capable and supplied in a natural finish. Delivered as a packaging unit of 12 profiles in standard length 6070 mm.

Strut Profile 40x60°, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529375

BOSCH REXROTH Original product
Net price (excl. VAT)
€1,851.47
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842529375
Manufacturer no. 3842529375
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842529375
Country of originSweden
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842529375

The Bosch Rexroth strut profile 40x60° is an anodized aluminum profile with profile slot 10, used for diagonal bracing and frame construction within the modular aluminum profile system. It is intended for designers and machine builders who need stable supports and stiffeners. The ESD-capable version supports use in electrostatically protected areas.

  • Profile slot 10 for compatible connectors and accessories
  • ESD-capable for applications with dissipation requirements
  • Anodized surface in natural finish
  • Delivered as a packaging unit of 12 profiles in standard length

Technical data

Cross-section40x60°
Profile type60 degrees
Dimensions40x40
Profile slot10
Modular dimension40 mm
Open slots2
ESDyes
Length [L]6070 mm
Delivery unit12
Condition on deliveryPackaging unit in standard length
Profile surface [A]6.3 cm²
Area moment of inertia in x-direction [Ix]8.7 cm⁴
Area moment of inertia in y-direction [Iy]13.1 cm⁴
Moment of resistance in the x-direction [Wx]4.3 cm³
Moment of resistance in the y-direction [Wy]6.5 cm³
Torsional moment of inertia [It]3 cm⁴
Moment of torsion resistance [Wt]3.1 cm³
MaterialAluminum, anodized
ColorNatural
Mass [m]1.7 kg/m
Weight (delivery unit)145 kg
More Information
Manufacturer Nr.3842529375
ManufacturerBosch Rexroth
Country of ManufactureSweden
Weight145.000000
Lenght6070 mm
NoteGemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code76042100
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
Download
File Icon Bosch Rexroth. Systemleuchten LED basic (de) (2.74 MB)
File Icon Bosch Rexroth. Katalog Mechanik-Grundelemente (de) (30.56 MB)
File Icon Bosch Rexroth. TSplus Modular Conveyors for Flexible Manufacturing (en) (12.02 MB)
File Icon Bosch Rexroth. Catalog Basic Mechanic Elements (en) (30.55 MB)
File Icon Bosch Rexroth. Aluminum Structural Framing System (en) (29.62 MB)
File Icon Bosch Rexroth. Transfersystem TS 5 (de) (40.69 MB)
File Icon Bosch Rexroth. Transfer system TS 5 (en) (43.75 MB)
File Icon Bosch Rexroth Éléments mécaniques de base (fr) (36.36 MB)
Write Your Own Review
You're reviewing:Strut Profile 40x60°, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529375
Your Rating
Related Products
Check items to add to the cart or

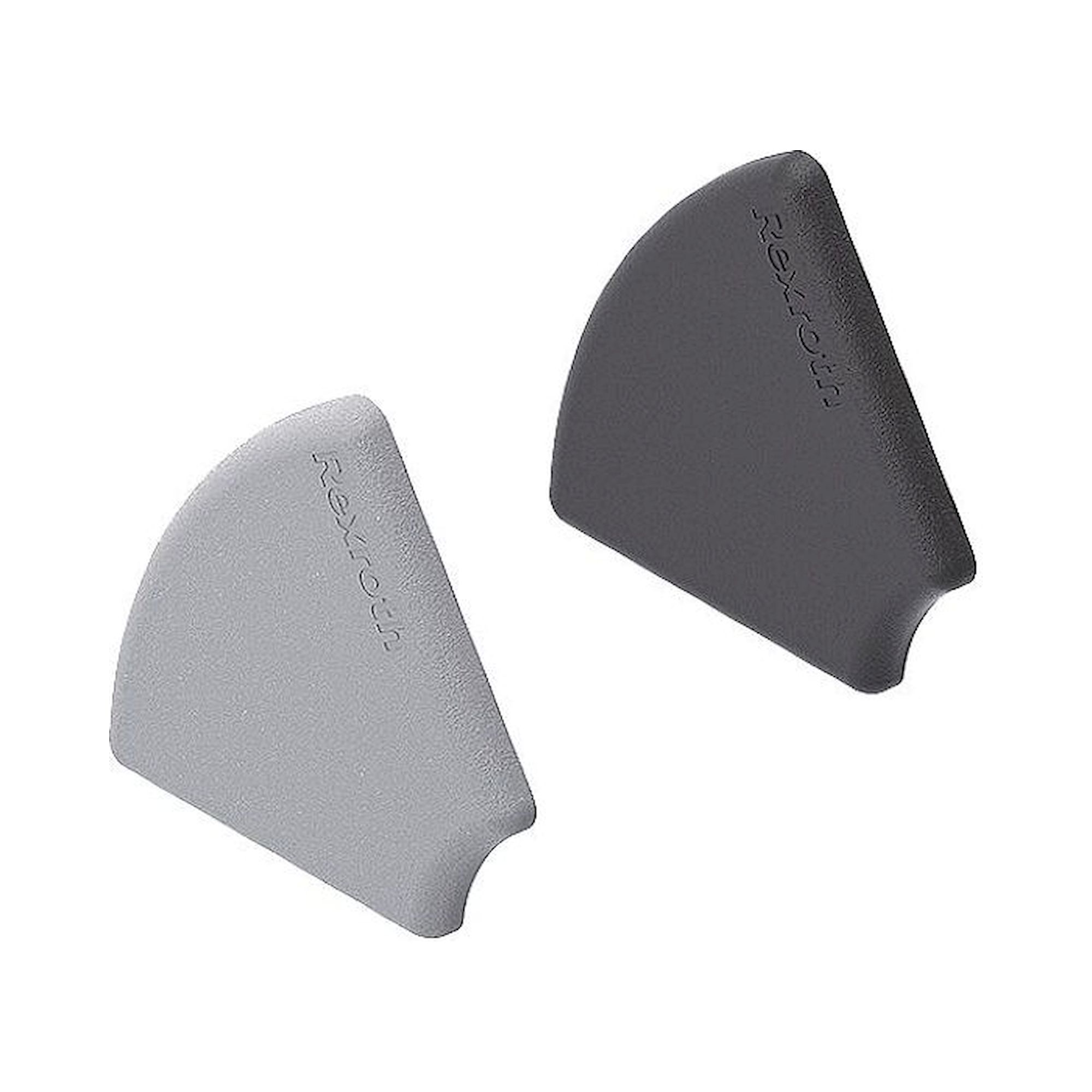

  1. ESD Cover Cap 40x60°, 40 mm Modular Dimension, Black - Bosch Rexroth 3842551019
