Inside Bracket 10, Galvanized Cast Steel, ESD - Bosch Rexroth 3842535572

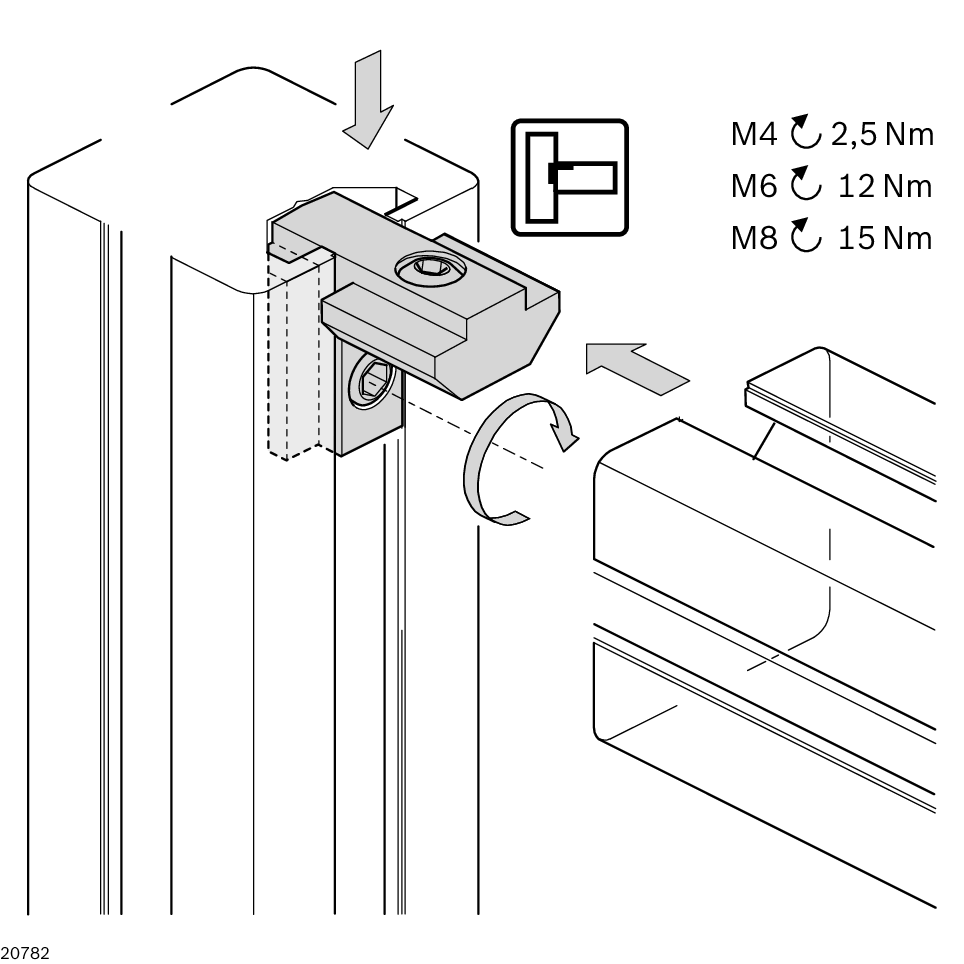

Inside Bracket 10, Galvanized Cast Steel, ESD - Bosch Rexroth 3842535572 Dimensional drawing 3842535572

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Inside Bracket 10, Galvanized Cast Steel, ESD - Bosch Rexroth 3842535572

Bosch Rexroth ✓ Original product Brand new Made in China

Inside bracket for a stable right-angle connection of slot 10 aluminum profiles. The galvanized cast steel dissipates charges and is therefore ESD-safe. It mounts hidden inside the profile slot using two supplied setscrews.

Net
€6.54
excl. VAT
Item BRR-3842535572
Manufacturer no. 3842535572
Minimum order quantity: 10 pieces. This item is supplied in multiples of 10.
Save Compare
Question about this item
Datasheet (PDF) 8 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The inside bracket joins two slot 10 aluminum profiles permanently at a right angle. It is inserted into the slot to create a concealed, force-fit connection. Suitable for building frames, structures and fixtures in assembly and automation technology.

  • Concealed connection with no machining of the profile
  • High load capacity with bending moment up to 100 Nm
  • ESD-safe due to galvanized cast steel
  • Fastening material included in delivery

Technical data

Profile slot10
ESDyes
Bending moment 1100 Nm
MaterialCast steel, galvanized
Material informationInner bracket: Cast steel, galvanized; Fastening material: Steel, galvanized
Fastening material2x headless setscrew ISO 913 M8x12
Scope of deliveryincl. fastening material (FS)
Packaging unit10
Weight0.053 kg
Weight0.053000
ManufacturerBosch Rexroth
Manufacturer Nr.3842535572
HS-Code73269098
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureChina
ESD versionESD (antistatic)
NormDIN 913
