Variofix Block S N6 20mm for Surface Elements, Signal Gray (RAL 7004) - Bosch Rexroth 3842548836

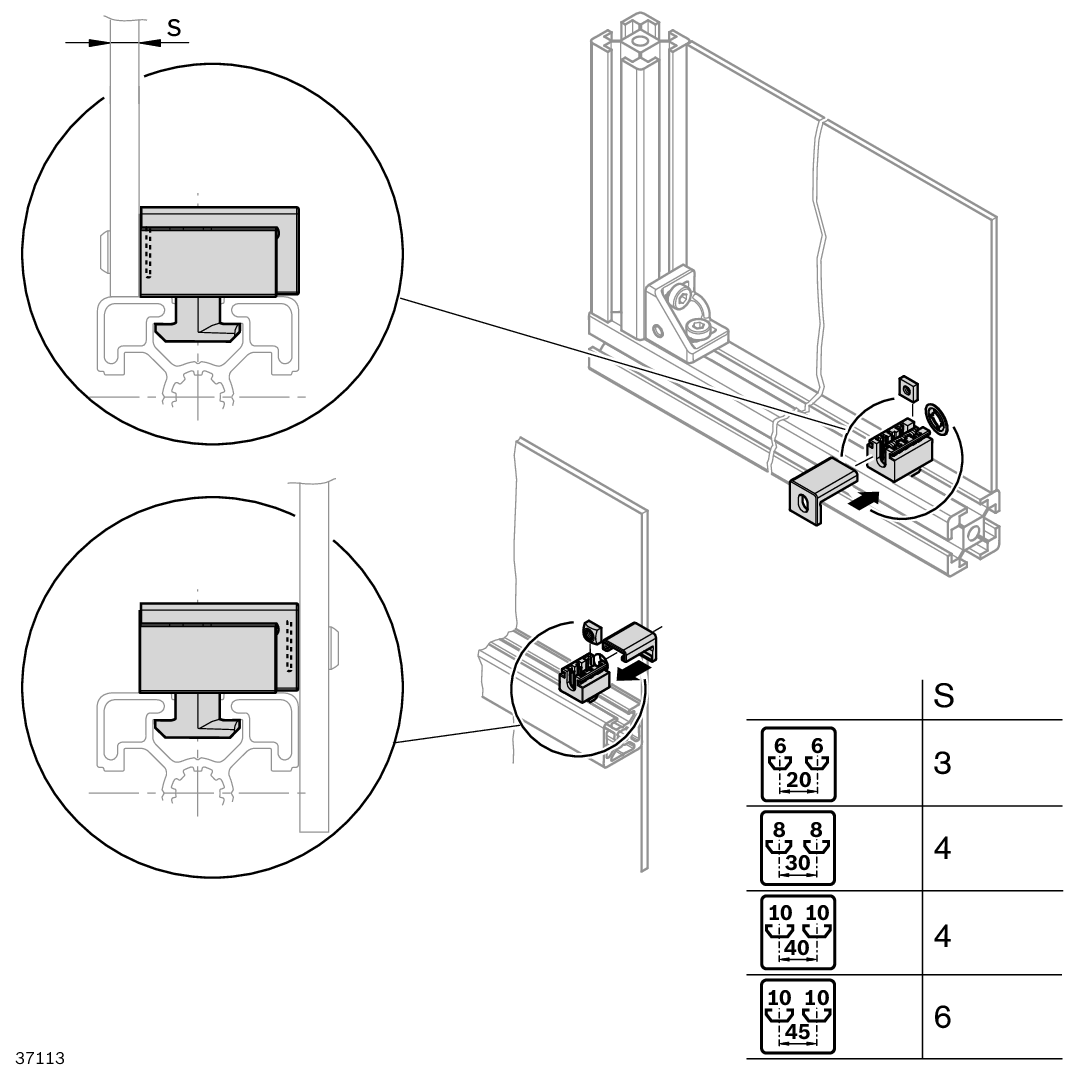

Variofix Block S N6 20mm for Surface Elements, Signal Gray (RAL 7004) - Bosch Rexroth 3842548836 Dimensional drawing 3842548836

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Variofix Block S N6 20mm for Surface Elements, Signal Gray (RAL 7004) - Bosch Rexroth 3842548836

Bosch Rexroth ✓ Original product Brand new Made in Italy

Polypropylene mounting block for attaching surface elements to Bosch Rexroth profiles with slot 6. Secured by a screw (required accessory, sold separately); delivery includes one M4 square nut (steel, galvanized) and one cap. Packaging unit: 10 pieces.

Net
€1.40
excl. VAT
Item BRR-3842548836
Manufacturer no. 3842548836
Minimum order quantity: 10 pieces. This item is supplied in multiples of 10.
Save Compare
Question about this item
Datasheet (PDF) 8 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Variofix Block S N6 20mm is a surface-element mounting block made from polypropylene, designed for Bosch Rexroth profiles with slot 6 (20 mm grid). It provides a clean, form-fitting connection between surface elements and the profile structure, with the included M4 square nut handling the clamping force.

  • Profile slot 6: compatible with all Bosch Rexroth profiles in the slot-6 / 20 mm grid series
  • Complete delivery: includes M4 square nut (steel, galvanized) and cover cap - ready to install
  • Lightweight PP construction: 1.94 g per unit, corrosion-resistant, suited for assembly and workstation systems
  • Screw-based fastening: surface element is locked with a separate screw (required accessory, not included)
  • Signal gray RAL 7004: consistent visual appearance within the Rexroth profile system

Technical data

AttributeValue
Profile slot6
Grid dimension20 mm
Mounting typeScrews
Material (block)PP (polypropylene)
Material (square nut)Steel, galvanized
ColorSignal gray (RAL 7004)
Scope of deliveryIncl. square nut M4, cap
Required accessoriesScrew for fastening the surface element
Packaging unit10 pieces
Weight0.00194 kg (1.94 g)
ManufacturerBosch Rexroth
Manufacturer Nr.3842548836
HS-Code39269097
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureItaly
